Highlights
Model: GDL-202

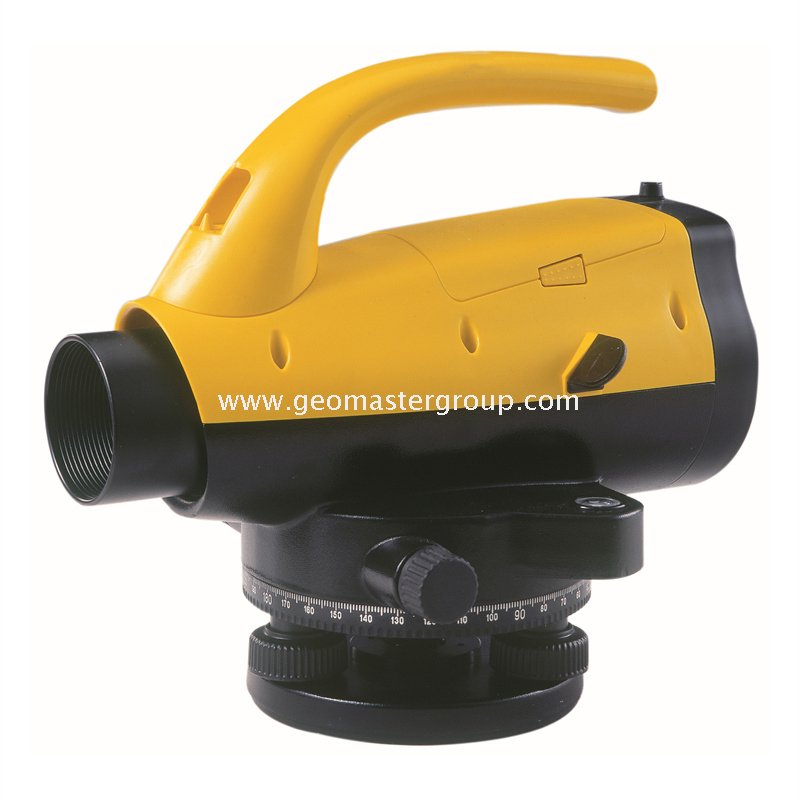

1.Geomaster Barcode Digital Level (GDL)
2.Magnification 32x & Objective Aperture 40mm
3.Measuring Range up to 100m
4.Magnetic Damping Compensator
5.Built-in Memory up to 1000 Points
6.Built-in rechargeable Ni-H Battery
7.Interfaces with Micro-USB to PC/Laptop
8.Water Protection IP54 & Multiple Languages a/v

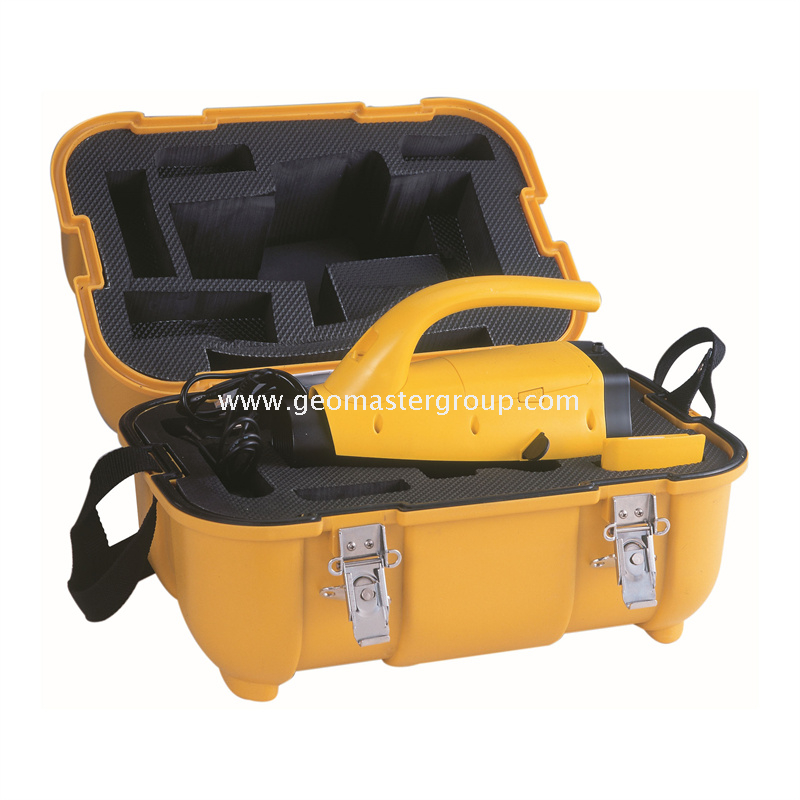

9.w.Carrying Box & Barcode Leveling Rod (5m×4secs)
| Quantity: | |
|---|---|
GDL-202
Geomaster
90318090
Specifications & Features
Model: GDL-202
-Optical Reading System
1.Magnification: 32x
2.Standard Deviation for 1Km Double-Run Leveling: ±2.0mm
3.Objective Aperture: 40mm
4.Image of Telescope: Erect
5.Length of Telescope (from Objective to Eyepiece): --
6.Shortest Focusing Distance: 1.5m
7.Field of View: 1°30´
8.Setting Accuracy: ±0.3"
9.Setting Time: ≤2.5"
10.Resolution Power: 3"
11.Compensator Type: Magnetic Damping
12.Working Range: ±15"
13.Compensation Accuracy: 0.5"
14.Multiplication Constant: 100
15.Additive Constant: 0
-Electronic Reading System
1.Distance Measuring Accuracy: D x 0.2% (D: measured distance)
2.Measuring Range: 1.50-100m
3.Single Measuring Time: approx. 3"
4.Minimum Altitude Reading: 0.1/1mm
5.Minimum Distance Reading: 0.1/1cm
6.Power Supply: Input: 11-240v,50Hz; Output: DC 4.8v; Ni-H rechargeable Battery, approx.
15-hour continuous working; auto power-off in 5 minutes
7.Illuminated LCD (4 lines and 128x32) and USB data-transfer interface
8.Languages for option: English,Spanish,Portuguese,Turkish,Russian or Polish.
-Others
1.Sensitivity of Circular Level: 8"/2mm
2.Horizontal Circle: built-in, 360°/1°
3.Ambient Temperature: －20℃ ~ ＋45℃
4.Water-proof and dust-proof: IP54

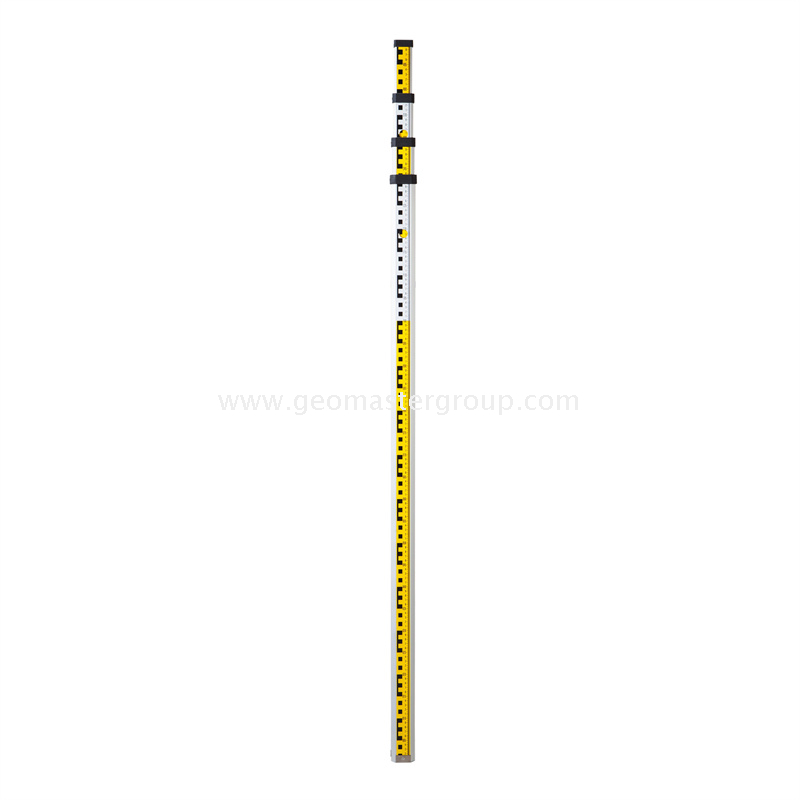

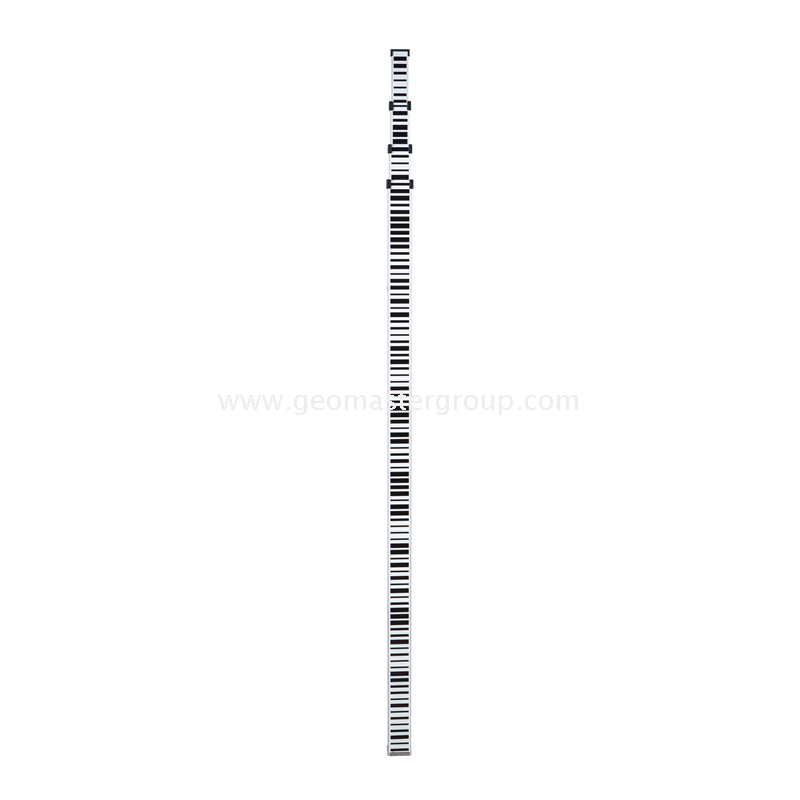

5.Equipped with Aluminum Telescopic Bar Code Leveling Staff TBS5-4/B11-202 (5 meter, 4 sections;
Front-side Graduation: bar code for GDL-202; Back-side Graduation: B11,E,10mm)
6.Standard Accessories: Carrying Box,Charger (Adapter),Battery (Ni-H), Adjusting Pin, Allen Wrench,
Data-transfer Cable, Desiccating Agent, Dust Cover, Plumb Bob,User Manual CD
Note: Any updating would be subject to occur without prior notice!!
