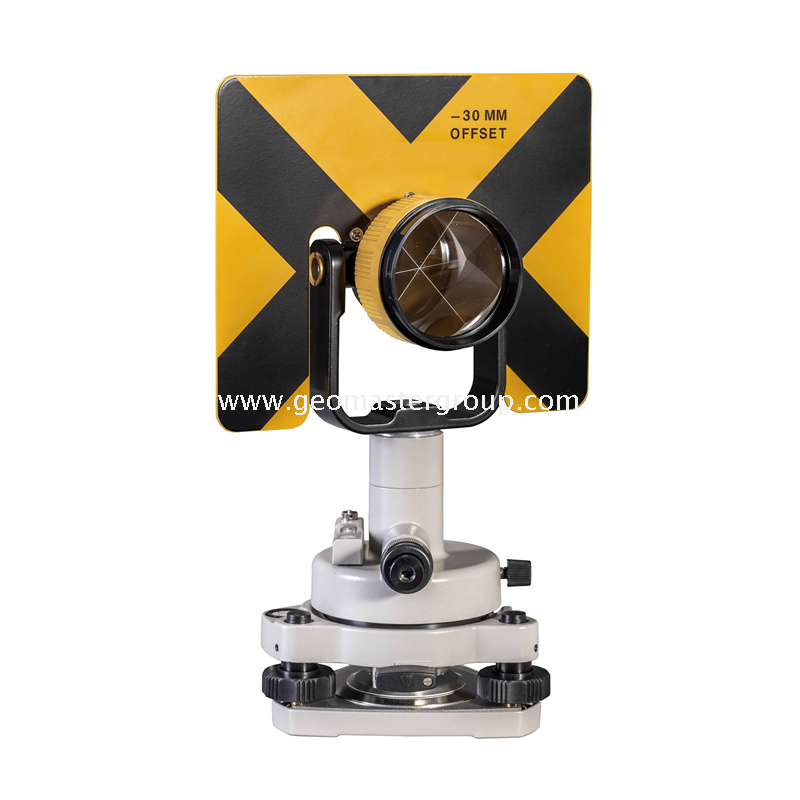

Traverse Prism Kit

Highlights
Model: PRS22-G/GY
1.Topcon-style Traverse Prism Kit
2.Single Circular Prism (5" or 3")
3.Offset: 0mm or -30mm
4.Metal Prism Holder & Target
5.Sokkia Gray Prism Adapter & Tribrach
6.Carrying Case or Bag
7.Different Colors a/v for Targets,Adapters & Tribrachs

Availability:
Quantity:
  • PRS22-G/GY

  • Geomaster

  • 9015900090

Specifications & Features
Model: PRS22-G/GY

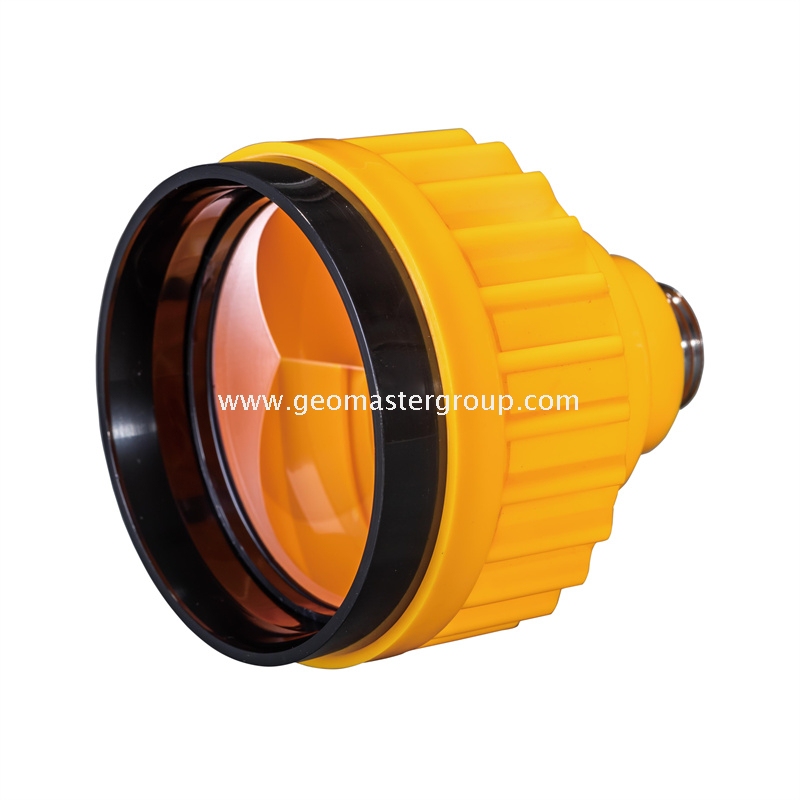

1.Single Circular Prism: AY04-YW205
1)Accuracy: ≦5"; ≦3" available
2)Compatible with all Geomaster Circular Prisms AY01 series,AY02 series and AY04 series

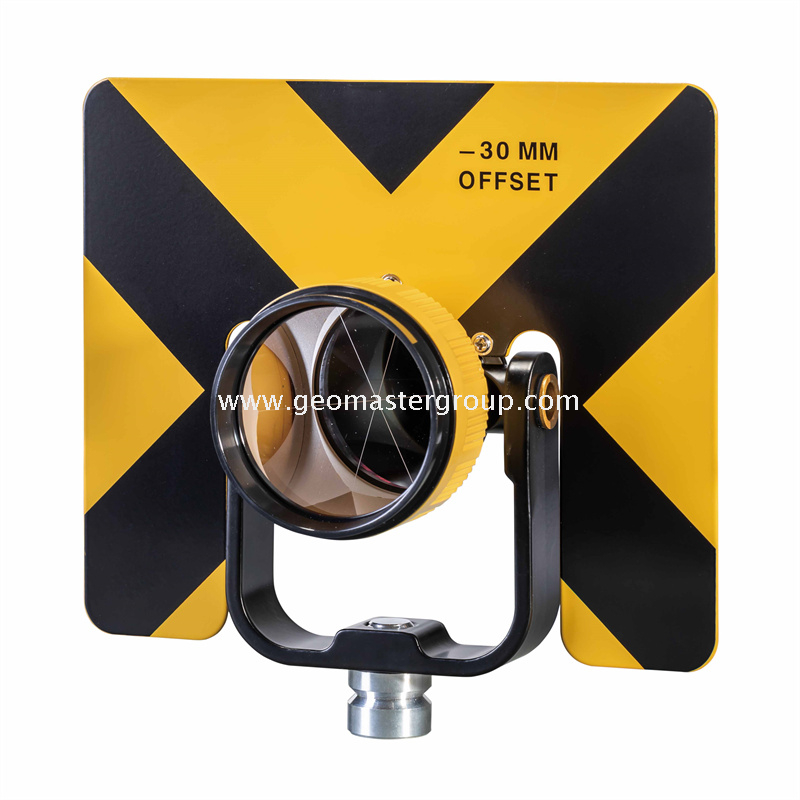

2.Topcon-style Metal Prism Holder & Target (AKZ)
1)Offset: 0mm or -30mm
2)Dimensions: 12cm x 16cm (4.7" x 6.3")
3)Four high-color-contrast Prism Holders & Targets a/v
(1)AKZ22-GN: Fluorescent Green
(2)AKZ22-RD: Orange Red
(3)AKZ22-YW: Orange Yellow
(4)AKZ22-WH: White

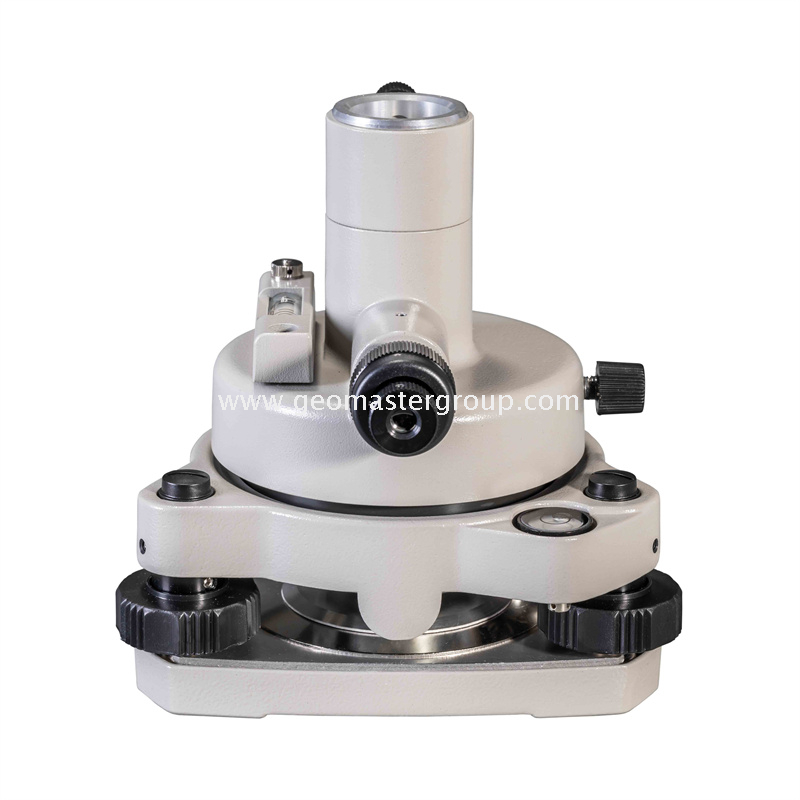

3.Prism Adapter & Tribrach (LJ13/G-GY)

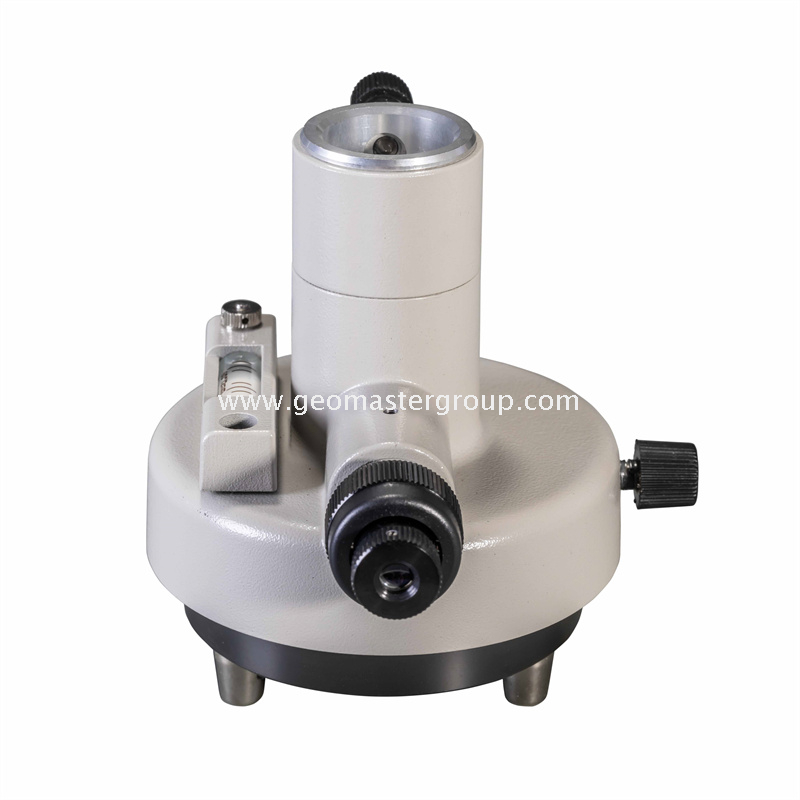

1)Sokkia Gray Prism Adapter: AL13/G-GY,with Optical Plummet

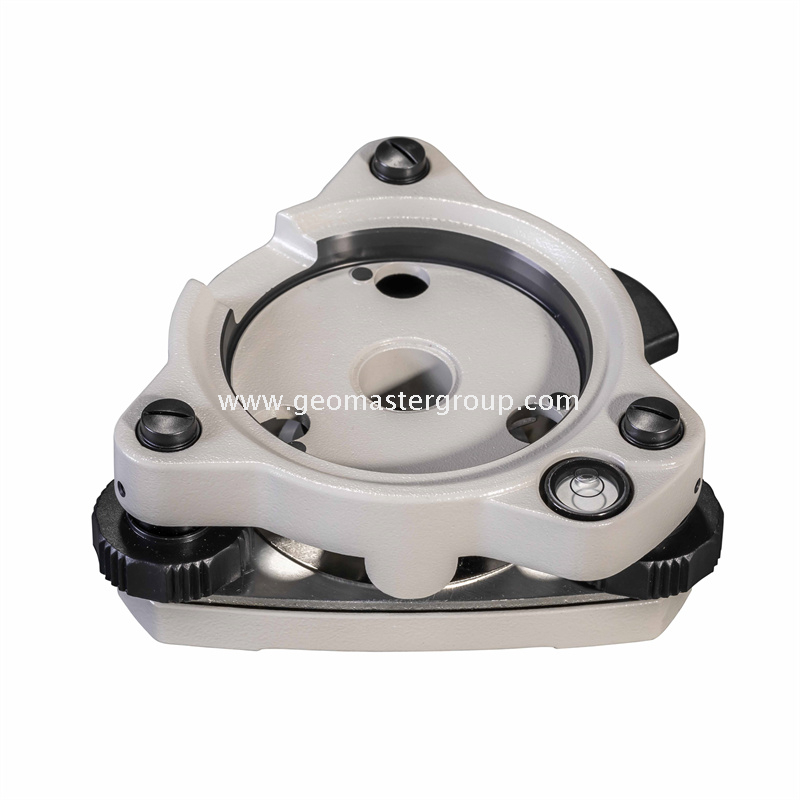

2)Sokkia Gray Prism Tribrach: AJ13/G-GY,without Optical Plummet
3)Compatible with all Geomaster Prism Adapters and Tribrachs, incl. Leica-style GDF series Tribrachs but except
Leica-style GZR and GRT Carriers


4.Carrying Case and Bag available
1)Cushioned ABS Carrying Case: PAB-1OR,PAB-1YW
2)Soft Carrying Bag: PAB-2,PAB-3

5.Compatible with
1)all Geomaster Tripods w. 5/8" Central Screw: Surveying Tripods, GPS Tripods, Laser Tripods
2)all top-brand Total Stations and Theodolites like Geomax, Leica, Sokkia, Topcon, Nikon, Trimble, Geomax, Geomaster

Note: Any updating would be subject to change without prior notice.


Keywords & Tags

Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,
Remote Surveying,Geospatial,SLAM Survey,Geosystems,Reality Capture,SLAM Survey, Multitrack Prism,Surveying Prism,360-deg Prism,Monitoring Prism,
Reflector Prism,Robotic Prism,Target Prism,GMP Prism,GPR Prism,Prism Carrier,Prism Holder,Prism Target, Survey Target,Surveying Target,Fixed Adapter,
Fixed Carrier,Optical Carrier,Precision Carrier,Precision Optical Carrier, Prism Adapter,Prism Carrier,Rotating Adapter,Rotating Carrier,Tribrach Adapter,
Surveying Tribrach, Prism Tribrach,Traverse Prism,Traverse Target,TraverseTribrach,Traverse Prism Kit,Traverse Prism System,Traverse Kit,Monitoring
Prism System,Scan Station,ScanStation,Premier Prism Holder, AutoPole,Monitoring Prism Kit,,Premier Prism, 58008042, 6402 Prism,GPR111,GPR112,GPR121 (Artec,DJI,Autel,Cygnus,Holy Stone, Fimi, Faro, Geomax, GeoSLAM, Leica, Mini, Marvice, Nikon, Onrol, Pentax, Riegl, SECO,Sokkia ,Stonex, Topcon, Trimble,
Zeb, Geomaster)

Packing Details
Model: PRS22-G/GY
1.N.W.: 3.5-4.0kg (incl.Carrying Case)
2.Qty:./CTN 2pcs
3.G.W./CTN:10-12kg
4.Size/CTN 0.075cbm (46cm×43cm×38cm)
