Concrete Tester

Highlights

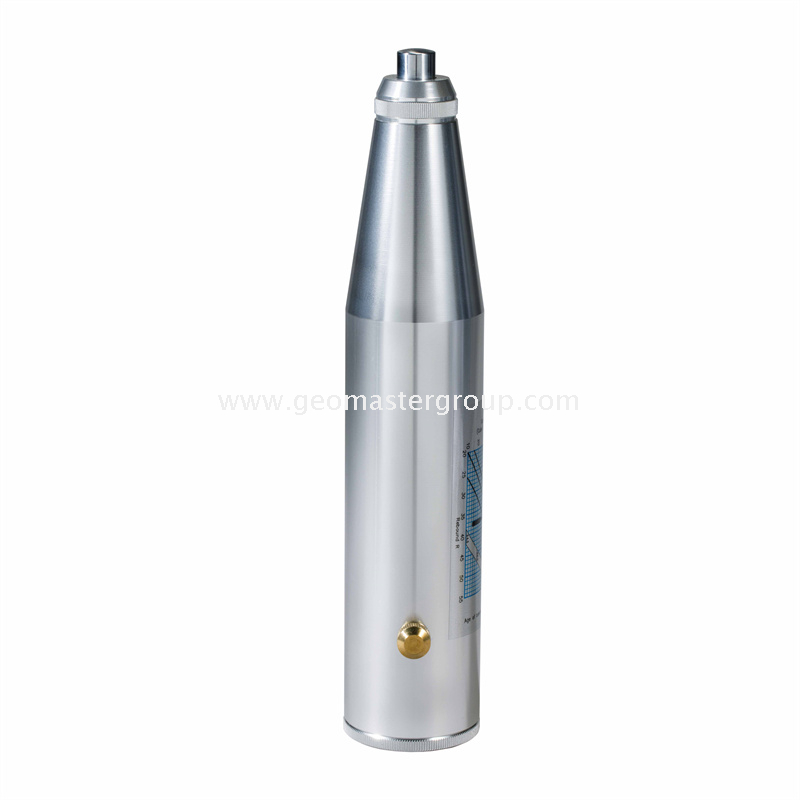

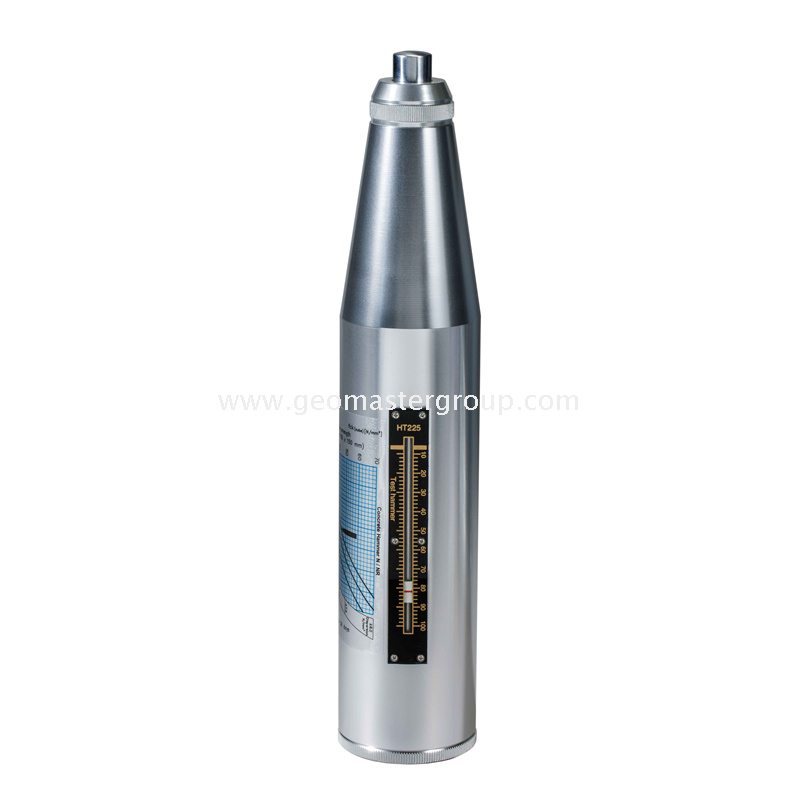

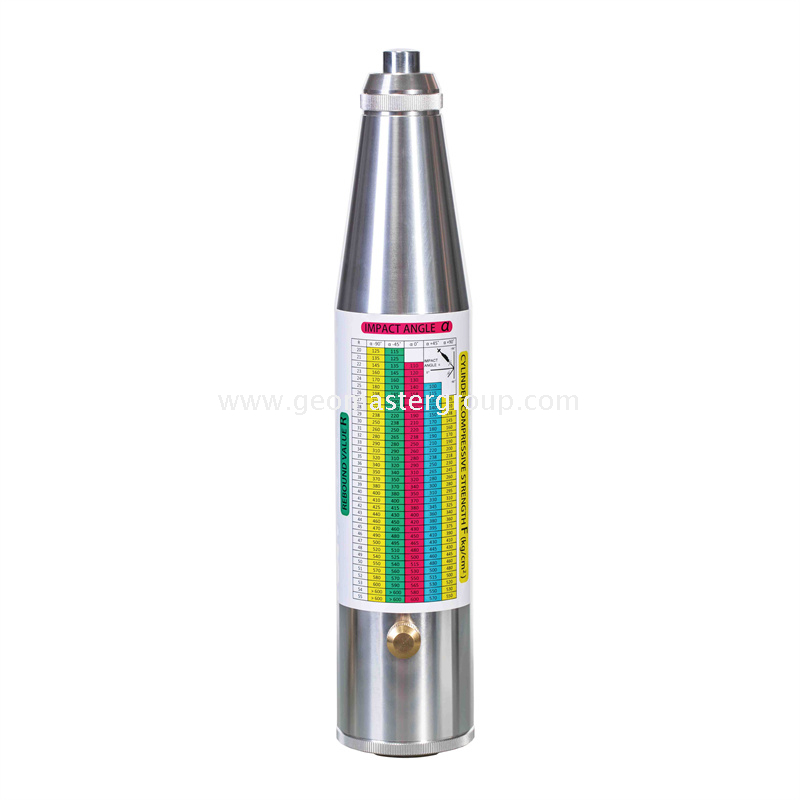

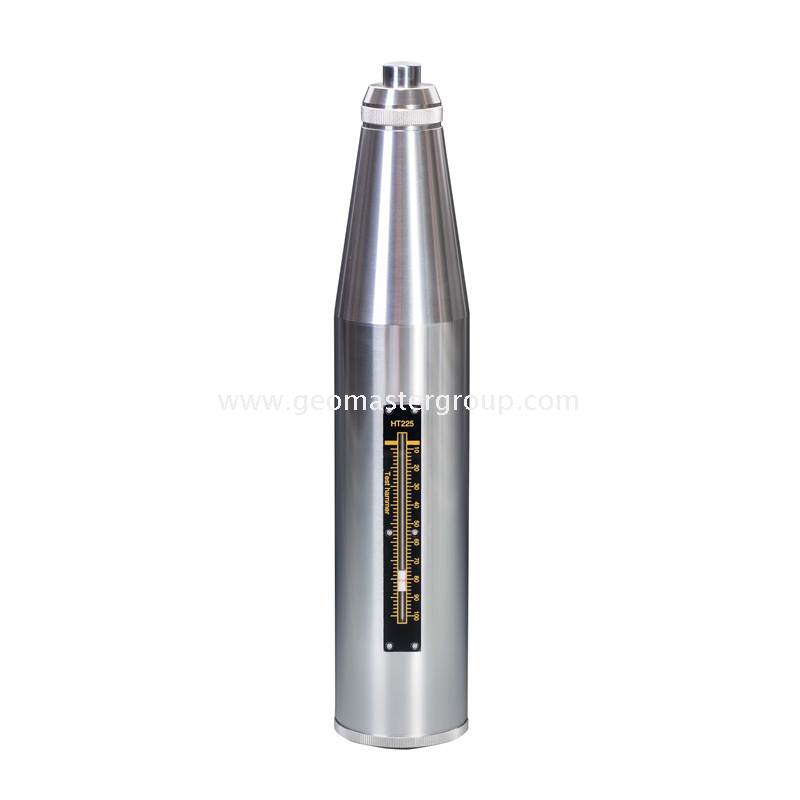

Model: HT-225
1.Mechanical Concrete Rebound Hammer
2.Compatible w.Schmidt Hammer Type N
3.One-piece Al. Alloy Shell
4.Measuring Range: 10-70Mpa
5.Al.or ABS Carrying Case

Quantity:
  • HT-225
  • Geomaster
  • 9015900090

Specifications
Model: HT-225
1.Measuring Range (Rebound Value): 10-70Mpa
2.Impact Kinetic Energy: 2.207±0.1J (0.225Kgf.m)
3.Impact Stroke (Length of Spring Stretch): 75±0.3mm
4.Max. Static Friction of Pointer Slider: 0.5-0.8N (50-80g)
5.Rated Rebound Average on Steel Anvil: 80±2
6.Spring Constant (Spring Rigidity/Stiffness): 7.85N (0.80kgf/cm)
7.Curvature Radius of Impact Rod: 25mm±1mm
8.Impact surface hardness value between impact hammer and rod: HRC59-63

Note: Any updating or improvement would be subject to change without prior notice!

Alternative Names

Schmidt Hammer, Schmidt Tester, Concrete Rebound Tester, Resiliometer, Concrete Tester, Rebound Hammer, Resiliometer Testing Machine, Testing
Machine,Testing Equipment, NDT Equipment, NDT Tool, Digital Concrete Tester, Measuring Equipment, Measuring Tool, Concrete Hardness Tester,
Hardness Tester,Concrete Hammer, Concrete Breaker, Surveying Equipment,
Rebound Hammer Anvil, Test Anvil, Calibration Anvil


Features
Model: HT-225

1.Compatible with Schmidt Test Hammer Type N
2.For non-destructive measuring the Strength of Concrete, ideal for testing the strength of general building components, bridges and various tunnel components...
3.One-piece Al. Alloy Body (Shell) ensuring high-performance water-proof and dust-proof
4.Ultra-hard Aluminum Shell against being scratched on rough work-site
5.Upgraded designing of Pointer Slider for easy friction adjustment and stabilization
6.Equipped with wear-resistant quality Impact Rod for super-precision
7.Equipped with Carborundum Stone (Grinding Stone) for surface preparation

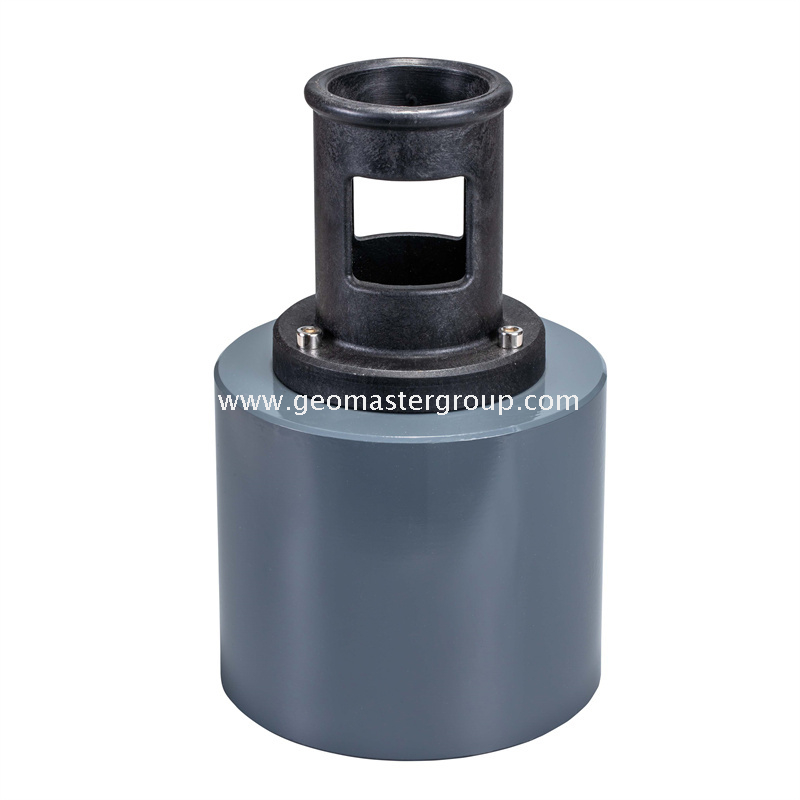

8.Solid Steel Anvil (Anvil-17B/JW-225) for option
9.Specially designed Brass Cap preventing Press Button from being operated by mistake

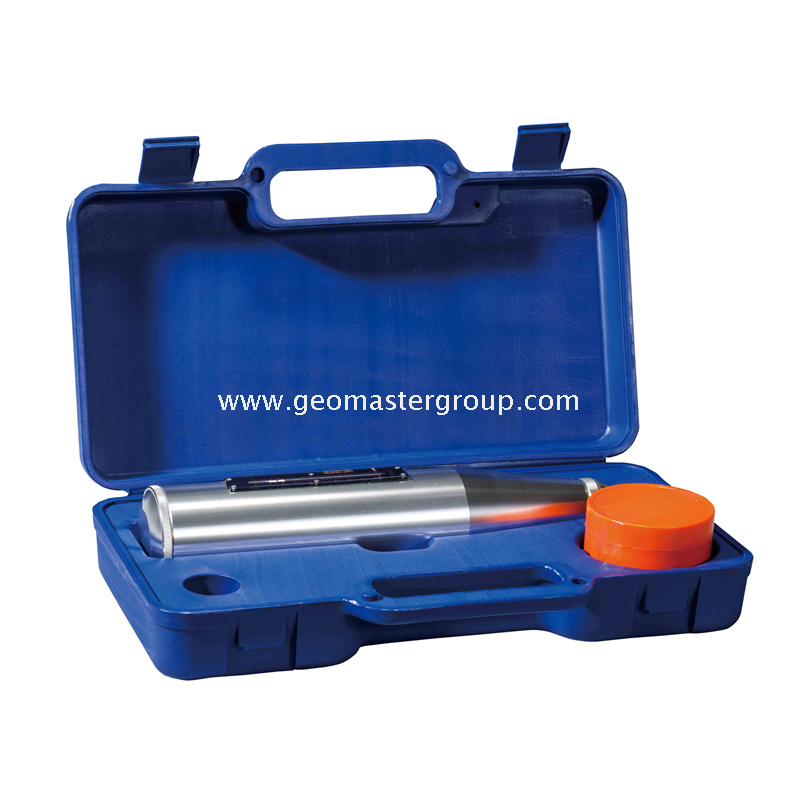

10.Coming with durable ABS or Aluminum Case for convenient carrying and storage

Packing Details
Model: HT-225
1.Dimensions: 54mm (Dia)×280mm
2.N.W.: 1.1kg (w/o Accessories);1.75kg (w. Accessories)
3.Qty./CTN:10pcs
4.G.W./CTN: 24kg
5.Size/CTN: 0.07cbm (50cm×35cm×40cm)
