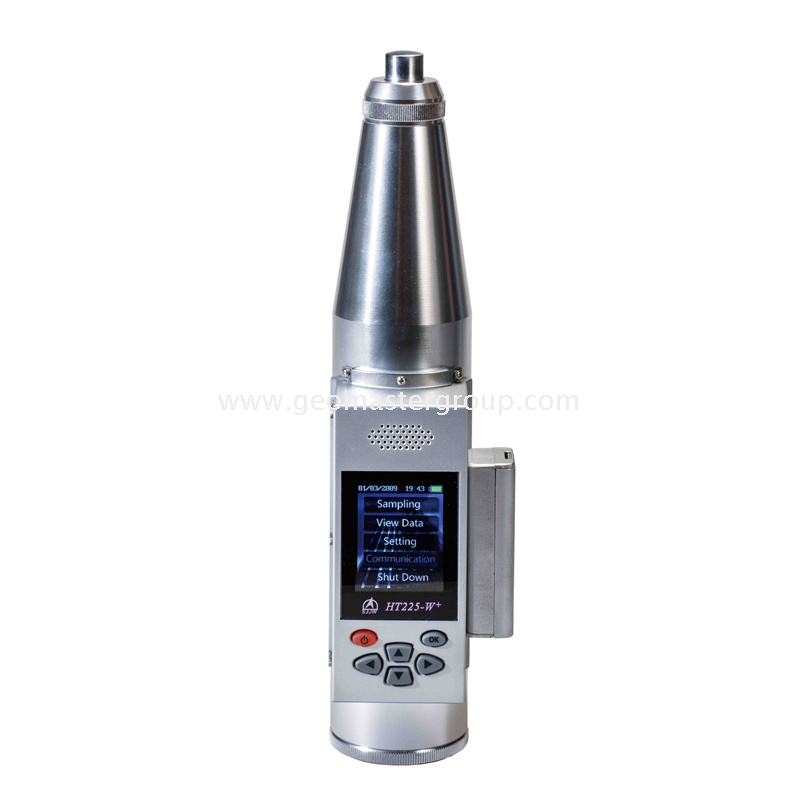

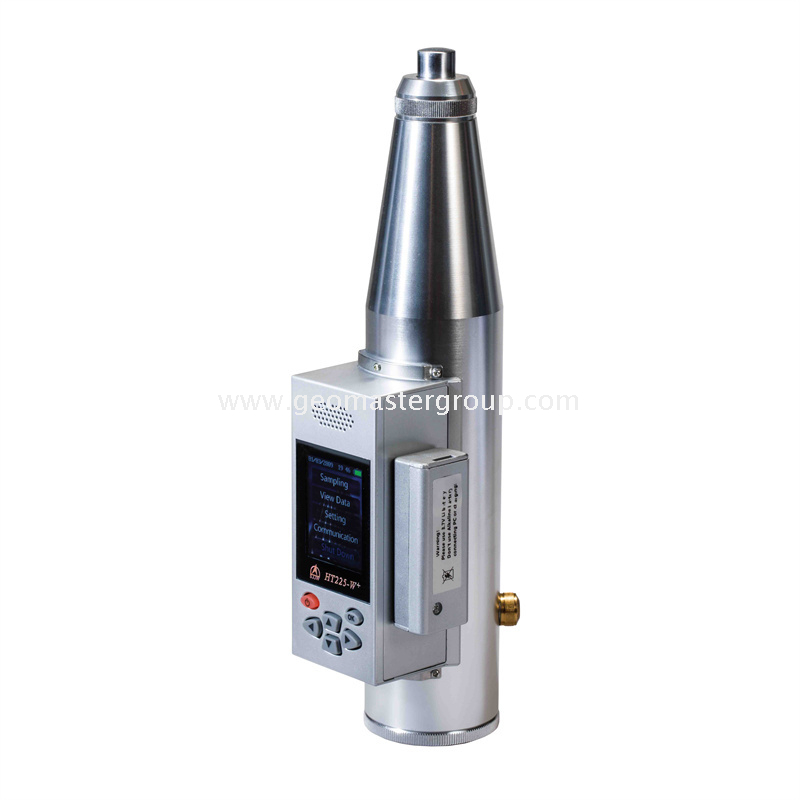

Digital Concrete Tester

Highlights
Model: HT-225W+
1.Digital Concrete Rebound Hammer
2.Compatible w.Schmidt Hammer Type N
3.One-piece Al. Alloy Shell
4.Measuring Range: 10-70Mpa
5.Data Memory and illuminated LCD
6.Rechargeable Lithium Battery( No.14500)
7.Portable Infrared Printer (optional)

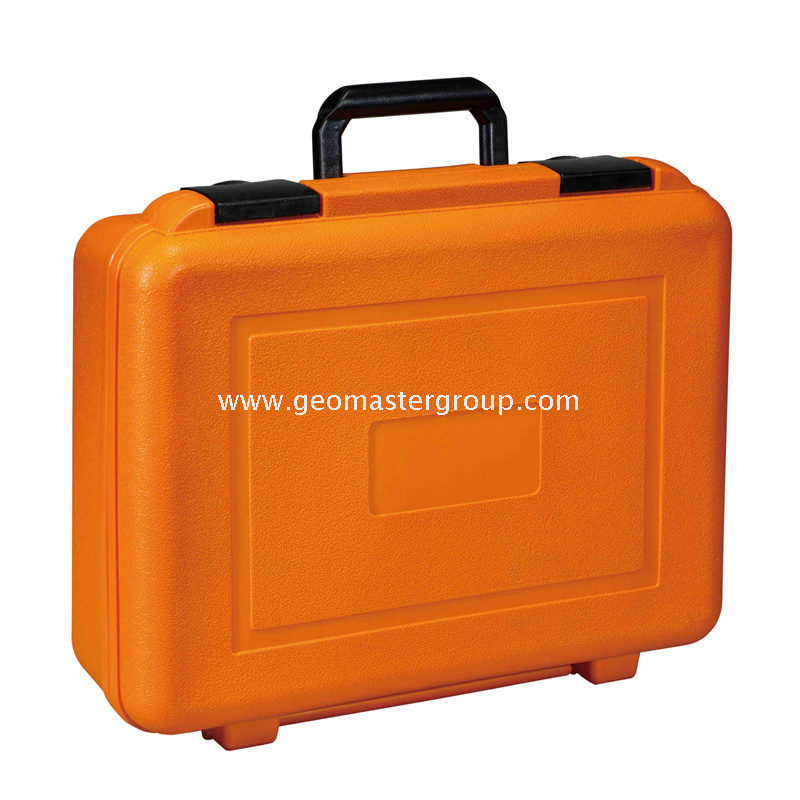

8.Aluminum or ABS Carrying Case

Quantity:
  • HT-225W+
  • Geomaster
  • 9015900090

Specifications
Model: HT-225W+
1.Measuring Range (Rebound Value): 10-70Mpa
2.Impact Kinetic Energy: 2.207±0.1J (0.225Kgf.m)
3.Impact Stroke (Length of Spring Stretch): 75±0.3mm
4.Spring Constant (Spring Rigidity): 785±30N/m
5.Rated Rebound Average on Steel Anvil: 80±2
6.Curvature Radius of Impact Rod: 25mm±1mm
7.Difference between Display Value and Scale Value: ≤0.5
8.Data Memory: 48000 Testing Results and 20 Special Testing Strength Curves

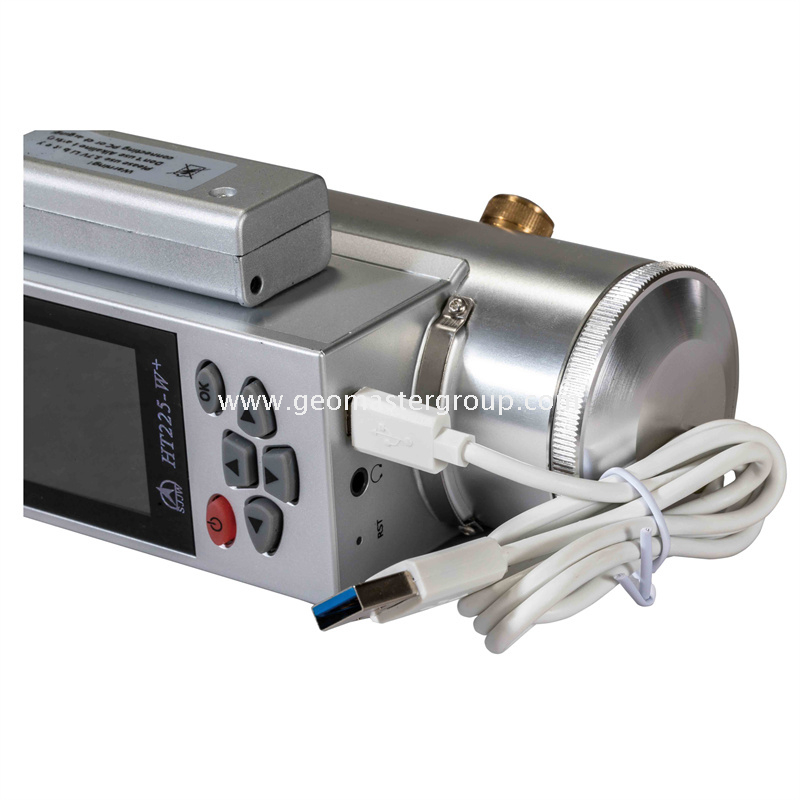

9.Communication Interface: USB 2.0 (w/o Drive CD)
10.LCD (back-lit): Color Screen, high-resolution,Pixel:176×220

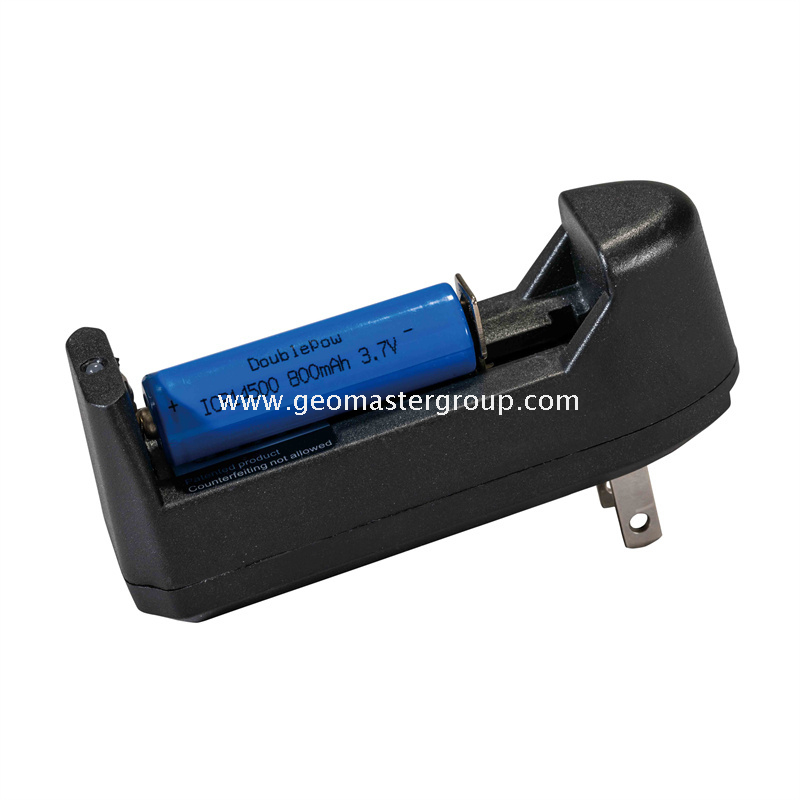

11.Detachable Rechargeable Lithium Battery, 1×3.7v/2000mAh (Type 14500); Charger: DC5V/2A
12.Standard Outfit: Carborundum Stone,USB Cable,Power Charger,Carrying Case,User Manual(CD)

Note: Any updating or improvement would be subject to change without prior notice!


Alternative Names
Schmidt Hammer, Schmidt Tester, Concrete Rebound Tester, Resiliometer, Concrete Tester, Rebound Hammer, Resiliometer Testing Machine, Testing Machine,
Testing Equipment, NDT Equipment, NDT Tool, Digital Concrete Tester, Measuring Equipment, Measuring Tool, Concrete Hardness Tester, Hardness Tester,
Concrete Hammer, Concrete Breaker, Surveying Equipment, Rebound Hammer Anvil, Test Anvil, Calibration Anvil

Features
Model: HT-225W+
1.One-piece Al. Alloy Body (Shell) ensures high-performance water-proof and dust-proof
2.Integrated designing of Shell and Display Element for easy carrying and efficient working
3.Dual displaying (digital display by sensor and scale display by needle) and Voice prompting
guarantee stable and efficient data transmission in case of power failure or on-site noises
4.Large data-in facilitating field operation and fast data-out convenient for office processing
5.Real-time auto-recording for efficient measuring and fast tracking
6.Portable infrared Printer (optional) producing on-site testing report

Packing Details
Model: HT-225W+
1.Dimensions: 54mm (Dia.)×280mm
2.N.W.: 1.2kg (w/o Accessories); 3.3kg (w.Accessories)
3.Qty./CTN: 1pc
4.G.W./CTN: 5kg
5.Size/CTN: 0.019cbm (44cm×15cm×29cm)
