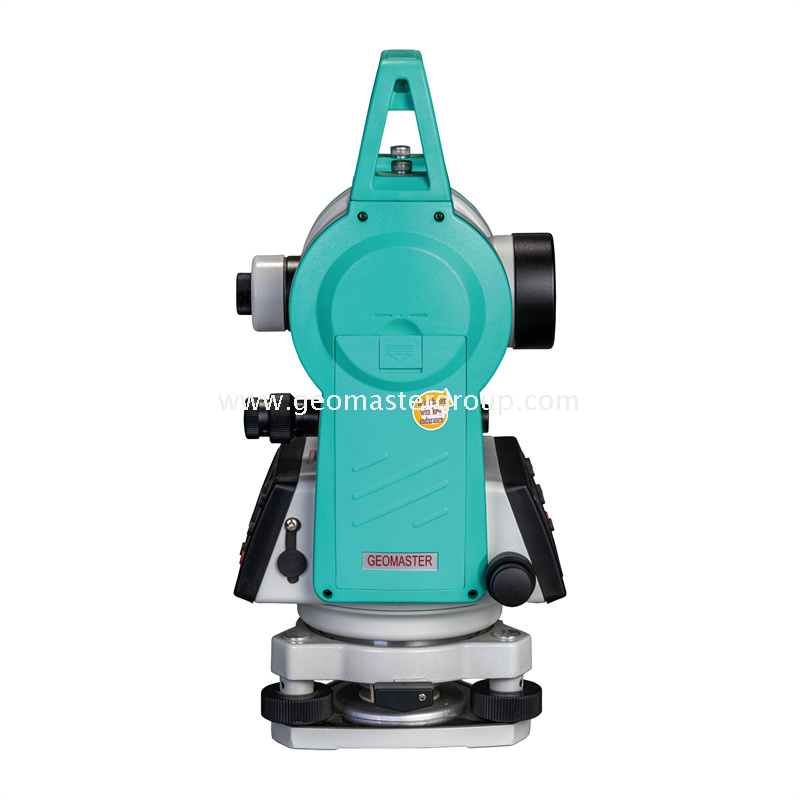

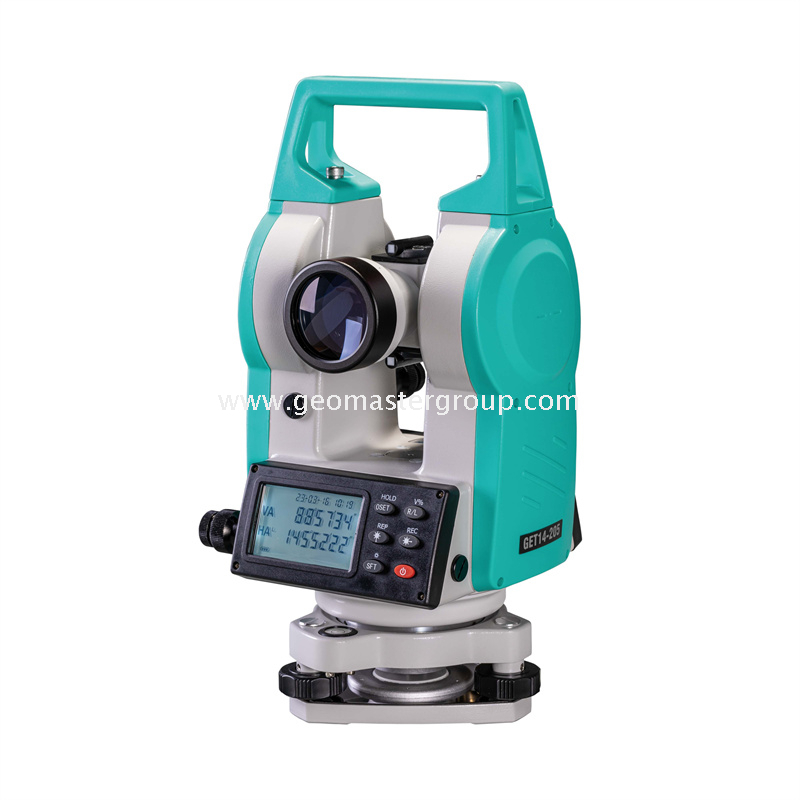

Electronic Theodolite

Highlights
Model: GET14-205
1.Angular Accuracy: 5"
2.e-sensor Compensator
3.Built-in Laser Plummet
4.Lithium Battery (30 hrs)
5.Dual Illuminated LCD
6.6-key Keyboard
7.Diagonal Eyepiece a/v

Quantity:
  • GET14-205
  • Geomaster
  • 90152000

Specifications
Model: GET14-205
Angle measurement
1.Accuracy: 5"
2.Minimum reading: 1" or 5"
3.Reading System: Absolute Encoder
4.Circle Diameter (Horizontal, Vertical): 79mm
5.Detecting:
1)Horizontal Circle: dual
2)Vertical Circle: single
6.Measurement unit: 360°/400Gon/6400Mil

Telescope

1.Magnification: 30X
2.Image: Erect
3.Objective Aperture: 45mm
4.Resolution Power: 3.5"
5.Field of View: 1º 30'
6.Shortest Focusing Distance: 1.3m
7.Multiplication Constant: 100
8.Additive Constant: 0
9.Tube Length: 156mm

Compensator
1.Style: e-sensor
2.Working Range: ±3'

Dada Memory and Display
1.Inner Memory: 1000 points

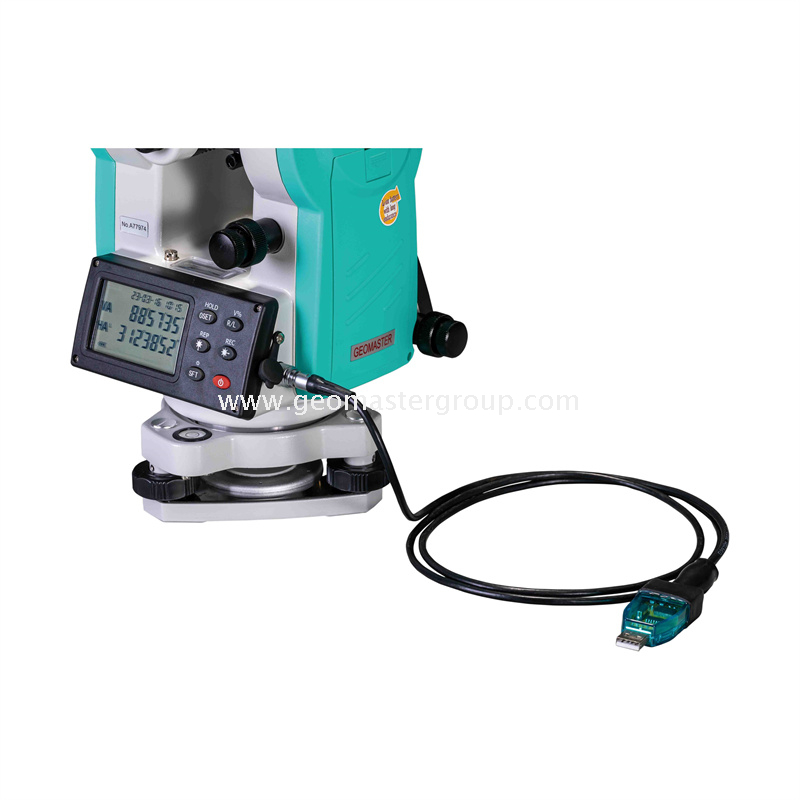

2.Output Interface: RS-232C
3.Illuminated LCD: 2-sided, segment LCD, in two lines
4.6-button interface Panel

Laser Plummet (built-in)
1.Laser source: 650nm, class II, output: <5mW
2.Dot diameter: ≤2-4mm at 5m
3.Working range: <5m
4.Accuracy: ±1.0mm at 1.5m

Bubbles
1.Circular: 8'/2mm
2.Plate: 30"/2mm

Power Supply and Ambient
1.Li-ion Battery (Default): DC 6V
2.Universal Adapter (Charger): 100-240V, 10A, 50Hz
3.Operating Time: approx 30 hours
4.Ambient Temperature: -20-+45°C
5.Waterproof and dust-proof: IP3-4

Accessories

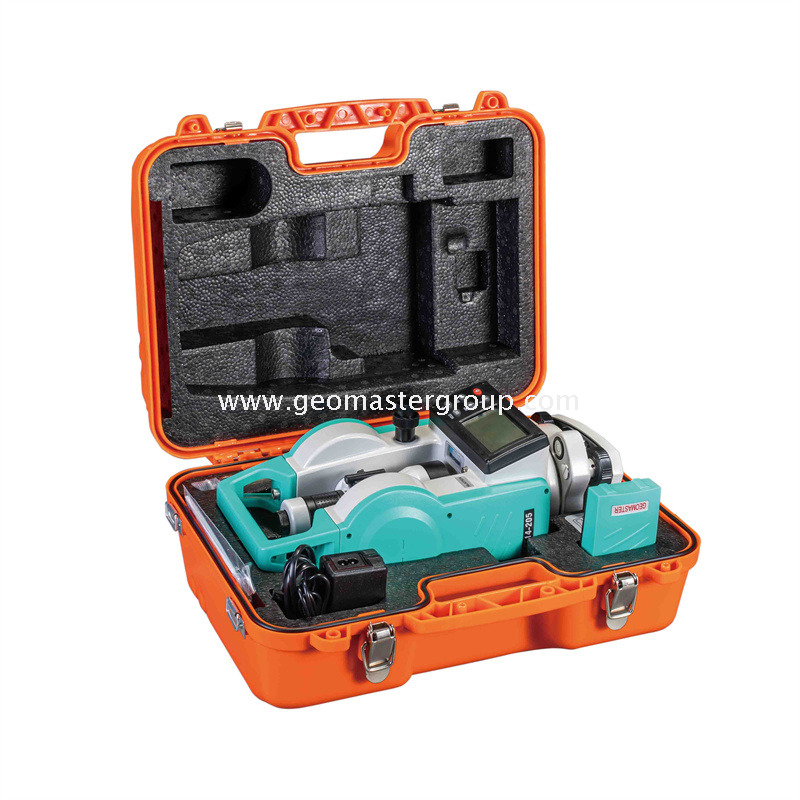

1.Standard: Battery, Charger, Adjusting Pin, Desiccant, Plumb Bob, Screwdriver, Woolen
cloth, User Manual (CD), Plastic Carrying Case
2.For option: Diagonal Eyepiece (Model: DE-1903; NW: 23g)

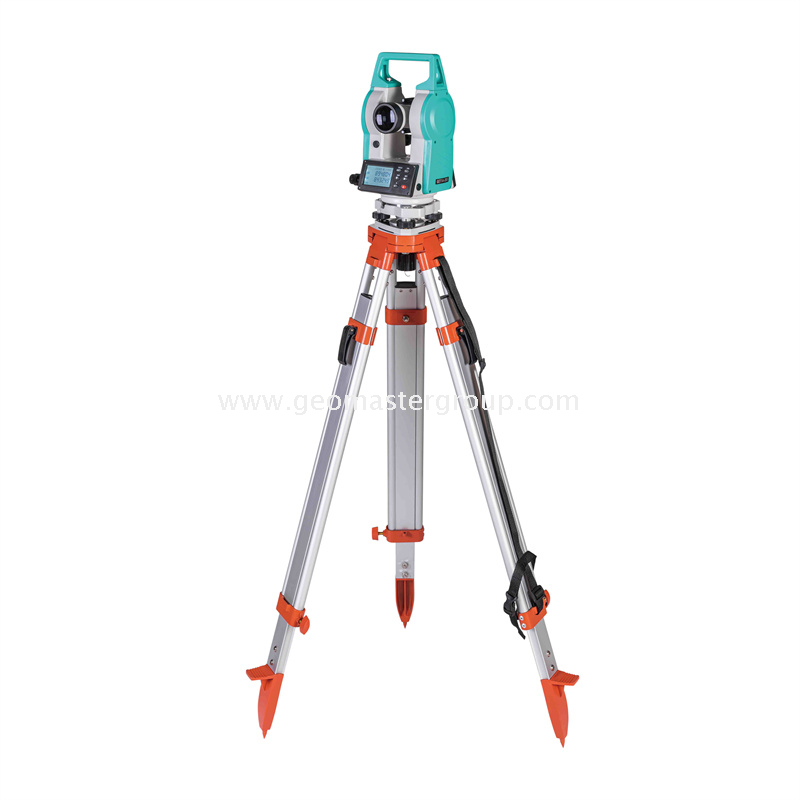

3.Recommended: Please refer to "surveying tripods".

Note:
Any updating would be subject to change without prior notice.


Related Names

Diagonal Eyepiece,Surveying Instrument, Surveying Equipment, Surveying Accessory, Automatic Level, Digital Level, Laser Level,Electronic Theodolite, Digital Theodolite, Total Station, Reflectorless Total Station, Robotic Station,Laser Scanner, 3D Laser Scanner, Surveying Prism, Surveying Tripod, Leveling Rod, Leveling Staff, Monitoring Prism,Surveying Prism, GPS & GNSS Receiver,RTK Receiver, Data Controller, Drone Survey, Surveying Drone, Mapping Drone, UAV Surveying, Laser Scanner Target, Scanner Sphere,Drone Station, MultiStation, Geomax Station,Leica Station,Nikcon Station,Sokkia Station,Stonex Station, Topcon Station, Trimble Station, Laser Theodolite, Mechanical Theodolite

Packing Details
Model: GET14-205
1.Instrument Dimension: 160×175×340(mm)
2.Net Weight: 7kg (Instrument + Case)
3.Qty./CTN: 1pc
4.G.W./CTN: 8kgs
5.Size/CTN: 0.057CBM (49cm×30cm ×39cm)
