Highlights

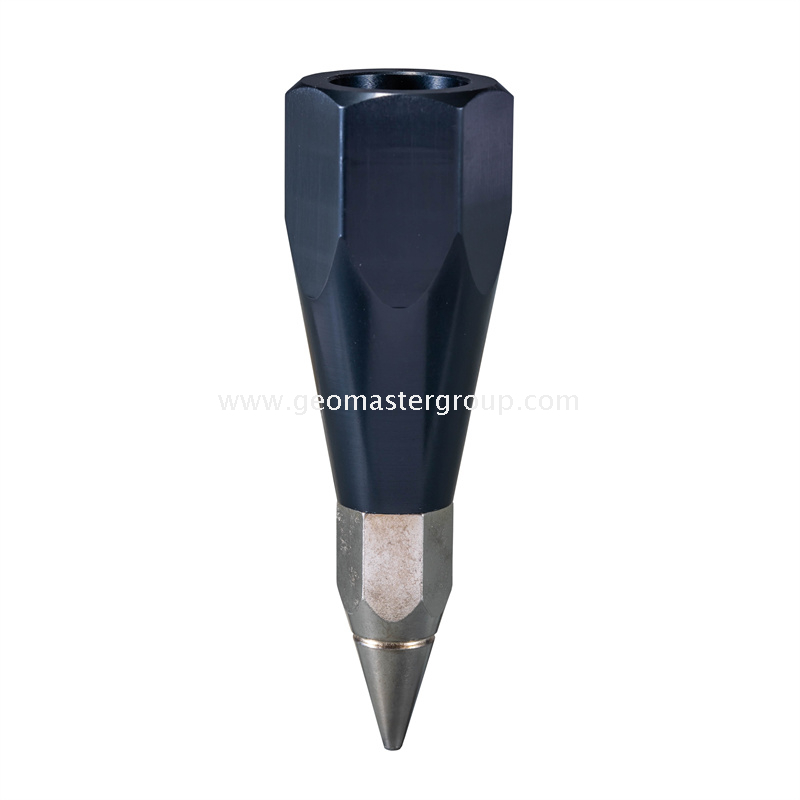

Model: Point-860
1.GPS Pole Point/Pole Foot
2.Made of Aluminum Alloy & Steel
3.Effective Height: 86mm
4.Detachable and Replaceable
5.For Geomaster GPS Poles(GAP series)
6.For Geomaster Prism Poles (PP series)
Availability: | |
---|---|
Quantity: | |
Point-860
Geomaster
90318090

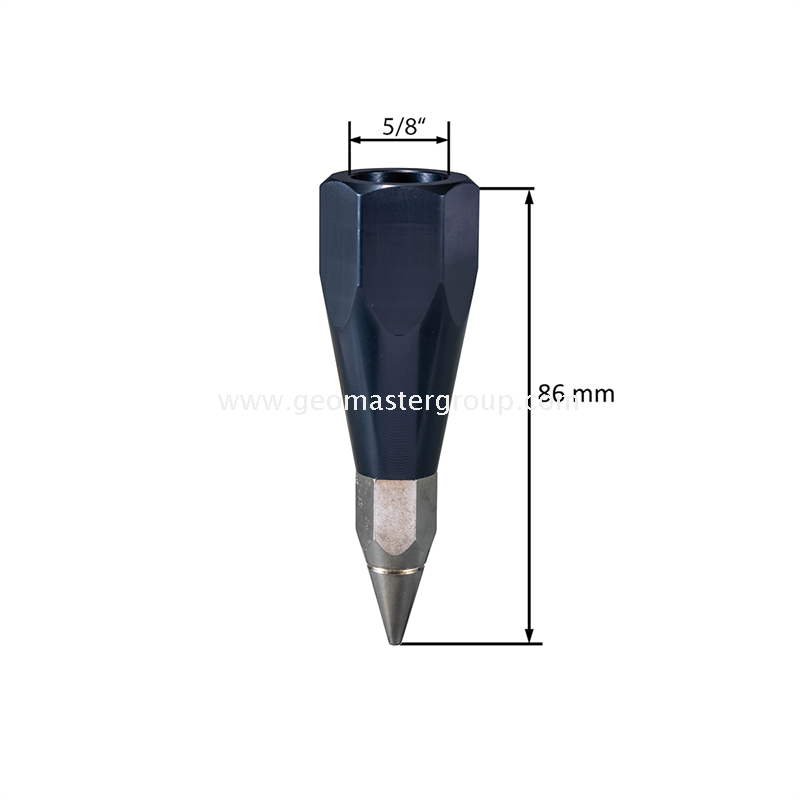

Specifications
Model: Point-860
1.Including Joint-530 and Tip-330
1)Total Height: 86mm
2)Joint-530 Height: 53mm
3)Tip-330 Height: 33mm
4)N.W.: 69g
2.Joint: Joint-530
1)Connecting Pole and Tiptoe, made of Aluminum Alloy,Black oxidized
2)Top Inner Diameter: 5/8" Thread
3)Bottom Inner Diameter: M10 Thread
4)Effective Height: 53mm
5)N.W.: 42g
3.Tip/Tiptoe: Tip-330
1)Made of galvanized steel
2)Effective Height: 33mm
3)Male Adapter Thread: M10
4)N.W.: 27g
4.Features
Model: Point-860
1)N.W.: 69g(the whole part)
2)Point-860 detachable from Poles and Tip-330 detachable from Joint-530
3)Used for Geomaster GPS Poles GAP series (2m,2.6m,3.6m,4.6m,5.1m)
4)Used for Geomaster Prism Poles PP19A and PP19B series (2.6,3.6m,4.6m)
5)Mostly used for GPS Poles,Prism Poles,GPS Bipods,Prism Bipods,GPS Tripods,Range Poles
6)Compatible w. most of the present Surveying Poles (GPS Poles, Prism Poles and GPS Poles)
Note: Any updating would be subject to change without prior notice.
Keywords & Tags
Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,
Remote Surveying,Geospatial,Geosystems,RTK,SLAM Survey,Multitrack Prism,Multitrack Target,GPS Adapter,GPS Receiver Adapter,GPS Pole, GPS Pole
Adapter, GPS Pole Bracket, GPS Pole Clamp,Claw Pole Clamp,Claw Cradle,Claw Clamp,GPS Clamp, GPS Cradle,GPS Tribrach,GPS Carrier,Data Collector,
Data Collector Bracket, Data Collector Cradle, TSC Field Controller, CS Field Controller,GPS Tracker,Pole Foot,Pole Tiptoe,Pole Shoe,Pole Point,Topo Shoe (Artec,DJI,Autel,Cygnus,Holy Stone, Fimi, Faro, Geomax, GeoSLAM, Leica, Mini, Marvice, Nikon, Onrol, Pentax, Riegl, SEOC, Sokkia, Stonex, Topcon,
Trimble,Recon, Zeb,Hilti,Bosch,PLS,Stabila,Johnson,Dewalt,Dutch Hill,Geomaster).
Specifications
Model: Point-860
1.Including Joint-530 and Tip-330
1)Total Height: 86mm
2)Joint-530 Height: 53mm
3)Tip-330 Height: 33mm
4)N.W.: 69g
2.Joint: Joint-530
1)Connecting Pole and Tiptoe, made of Aluminum Alloy,Black oxidized
2)Top Inner Diameter: 5/8" Thread
3)Bottom Inner Diameter: M10 Thread
4)Effective Height: 53mm
5)N.W.: 42g
3.Tip/Tiptoe: Tip-330
1)Made of galvanized steel
2)Effective Height: 33mm
3)Male Adapter Thread: M10
4)N.W.: 27g
4.Features
Model: Point-860
1)N.W.: 69g(the whole part)
2)Point-860 detachable from Poles and Tip-330 detachable from Joint-530
3)Used for Geomaster GPS Poles GAP series (2m,2.6m,3.6m,4.6m,5.1m)
4)Used for Geomaster Prism Poles PP19A and PP19B series (2.6,3.6m,4.6m)
5)Mostly used for GPS Poles,Prism Poles,GPS Bipods,Prism Bipods,GPS Tripods,Range Poles
6)Compatible w. most of the present Surveying Poles (GPS Poles, Prism Poles and GPS Poles)
Note: Any updating would be subject to change without prior notice.
Keywords & Tags
Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,
Remote Surveying,Geospatial,Geosystems,RTK,SLAM Survey,Multitrack Prism,Multitrack Target,GPS Adapter,GPS Receiver Adapter,GPS Pole, GPS Pole
Adapter, GPS Pole Bracket, GPS Pole Clamp,Claw Pole Clamp,Claw Cradle,Claw Clamp,GPS Clamp, GPS Cradle,GPS Tribrach,GPS Carrier,Data Collector,
Data Collector Bracket, Data Collector Cradle, TSC Field Controller, CS Field Controller,GPS Tracker,Pole Foot,Pole Tiptoe,Pole Shoe,Pole Point,Topo Shoe (Artec,DJI,Autel,Cygnus,Holy Stone, Fimi, Faro, Geomax, GeoSLAM, Leica, Mini, Marvice, Nikon, Onrol, Pentax, Riegl, SEOC, Sokkia, Stonex, Topcon,
Trimble,Recon, Zeb,Hilti,Bosch,PLS,Stabila,Johnson,Dewalt,Dutch Hill,Geomaster).
Packing Details
Model: GAP21-260B
1.N.W.: 1.05-1.1kg
2.Qty./CTN: 10pcs
3.G.W./CTN: 13kg
4.Size/CTN: 0.16cbm (160cm×25cm×40cm)
Packing Details
Model: GAP21-260B
1.N.W.: 1.05-1.1kg
2.Qty./CTN: 10pcs
3.G.W./CTN: 13kg
4.Size/CTN: 0.16cbm (160cm×25cm×40cm)
