Model: SMR300-178
1.Laser Tracker Reflector/Monitoring Ball Prism
2.Metal Canister O.D.: 30mm
3.Prism Aperture: 17.80 mm
4.Prism Accuracy: ≦5"
5.Silver-coated,water-proof
6.Measuring Range: up to 500m
7.Optics Centering: ±0.5~1mm
8.Double-sided Magnetic Base
| Quantity: | |
|---|---|
SMR300-178
Geomaster
9015900090
Specifications
Model: SMR300-178

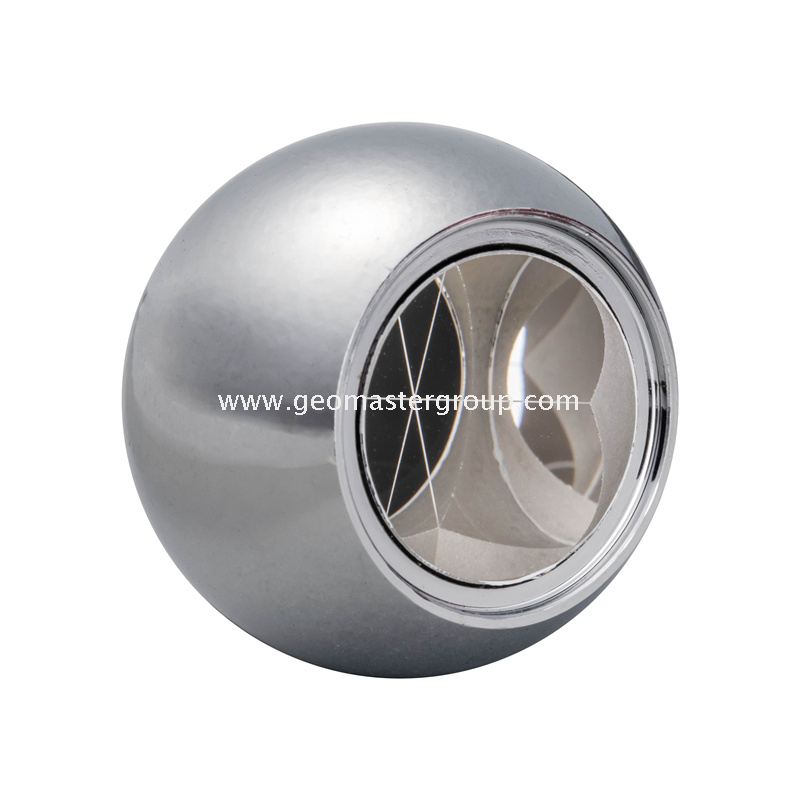

1.Monitoring Ball Prism: Mini-178
1)Glass mini Prism Aperture: 17.80 mm, silver-coated
2)Prism Accuracy: ≦5"
3)Optics Centering: ±0.5~1mm
4)Measuring Range: up to 500m
5)Centre Height: 20mm
6)Galvanized Metal Canister O.D.: 30mm; N.W.: 85g

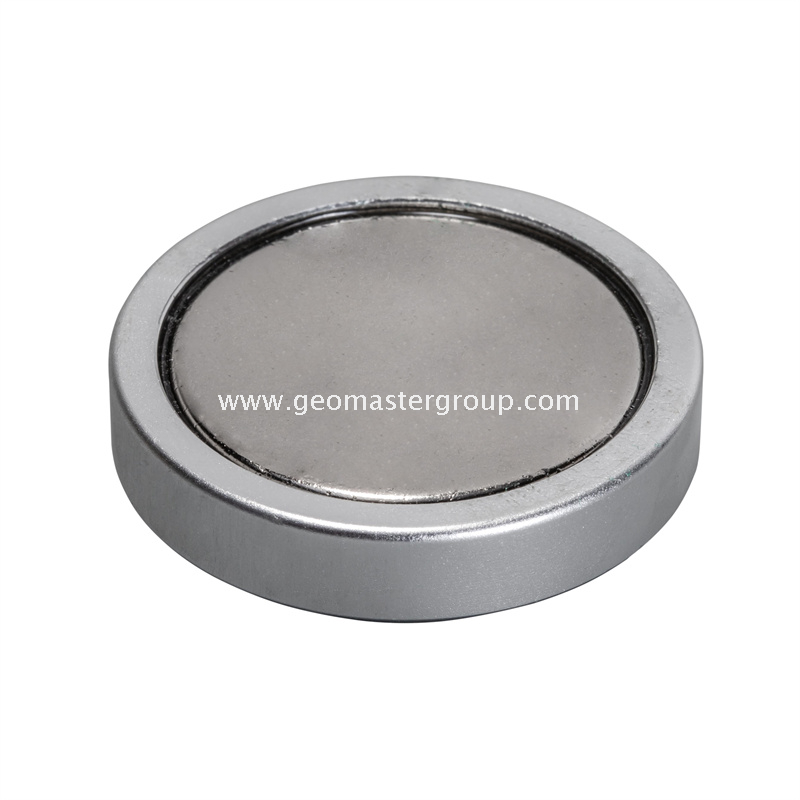

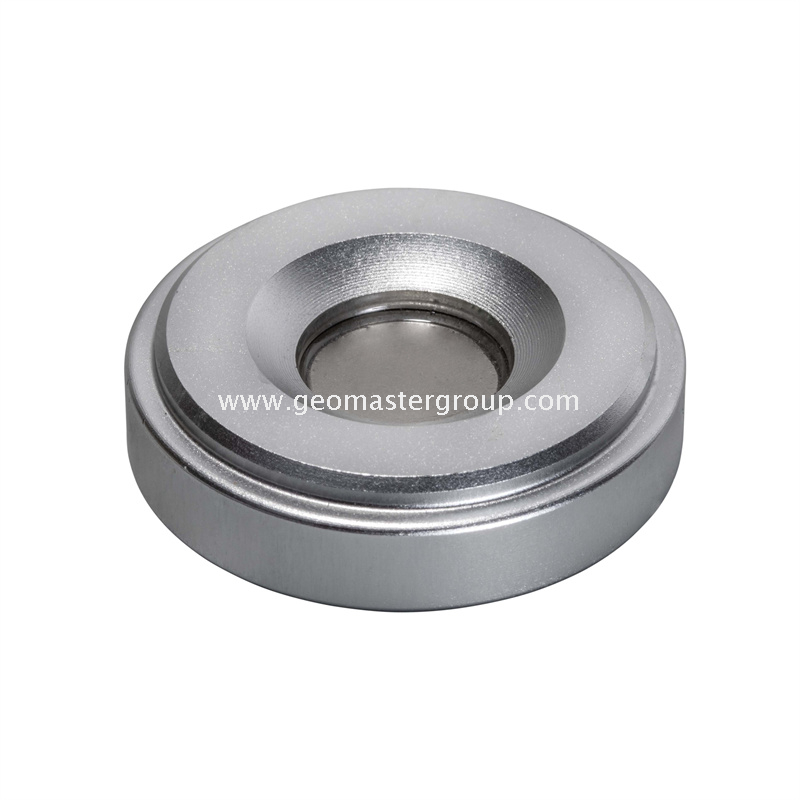

2.Double-sided Magnetic Mounting Base: MMB-360
1)Base Surface: chrome-plated
2)Base Dimensions: 9mm×36mm (Dia)
3)N.W.: 35g
Features
Model: SMR300-178

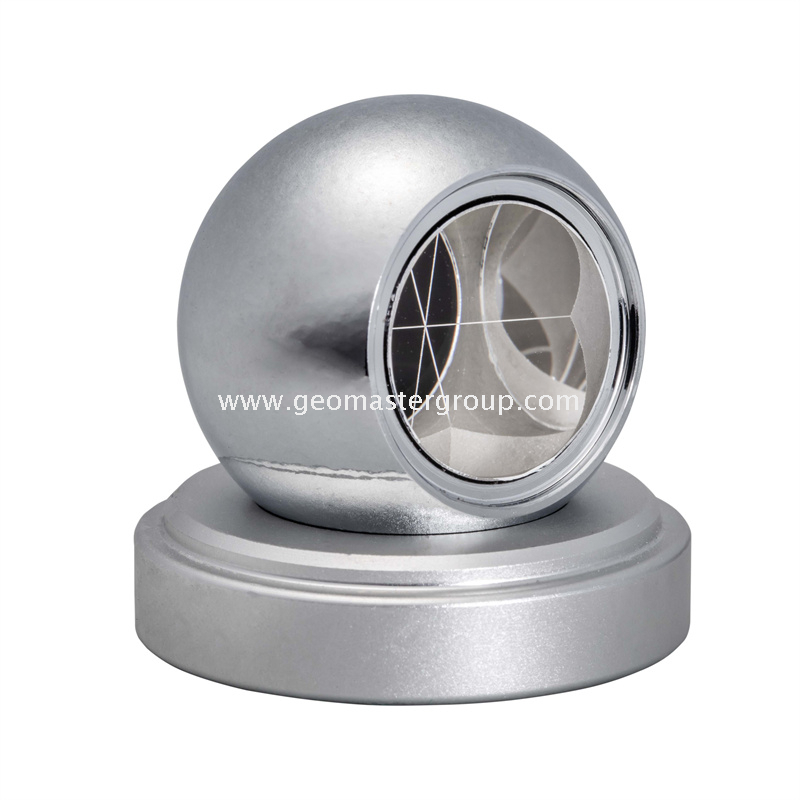

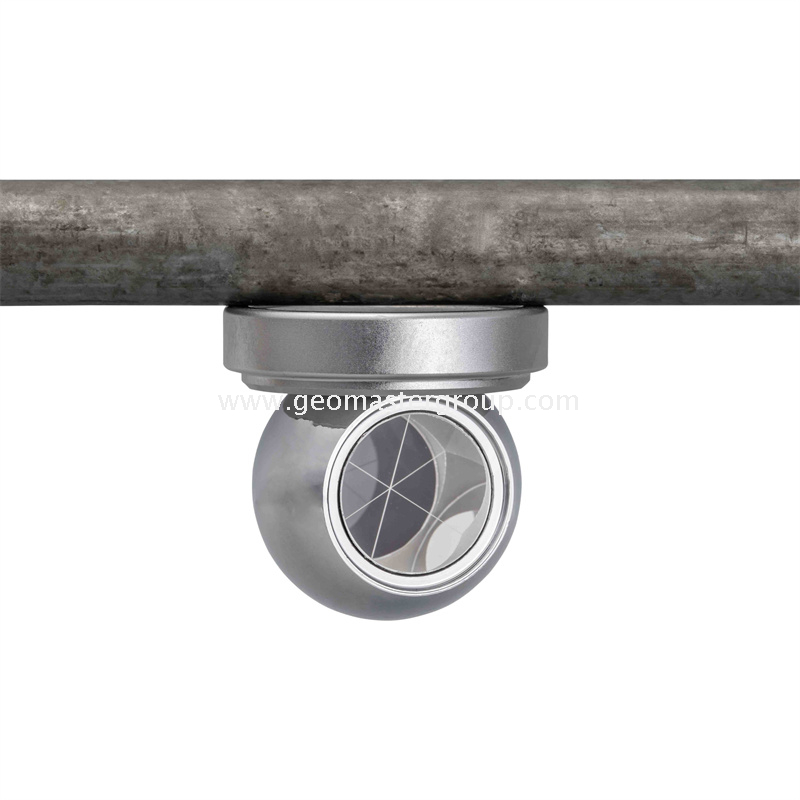

1.Installed with double-sided galvanized Magnetic Base for free tilting & turning in ball socket
and fixing on the flat Steel Surfaces
2.Precisely manufactured mini Prism, shockproof and waterproof
3.Prism Accuracy optional: ≦3" or ≦5"
4.Prism Apertures available: 12.7mm,17.8mm,25.4mm,38.1mm,50.8mm,63.5mm
4.Prism Surface Treatment optional: copper-coated or silver-coated
5.Metal Canister Surface Treatment optional: blackening oxidized or chrome plated
6.Ideal for short-range monitoring and surveying in difficult sites such as bridges, tunnels,railway and subway constructions,etc.
7.Customization service available.
Note: Any updating would be subject to change without prior notice.
