Model: GDN381-577140
1.Geomaster Magnetic Drift Nest (GDN)
2.For Spherically Mounted Retro-Reflector (SMR)
3.Replacement of Original Drift Nest 577140
4.Outer Diameter: 40mm (1.57")
5.Made of Stainless Steel 304
6.Compatible with Laser Tracker Reflectors (SMR381,1.5")
| Quantity: | |
|---|---|
GDN381-577140
Geomaster
9031809090
Specifications & Features
Model: GDN381-577140

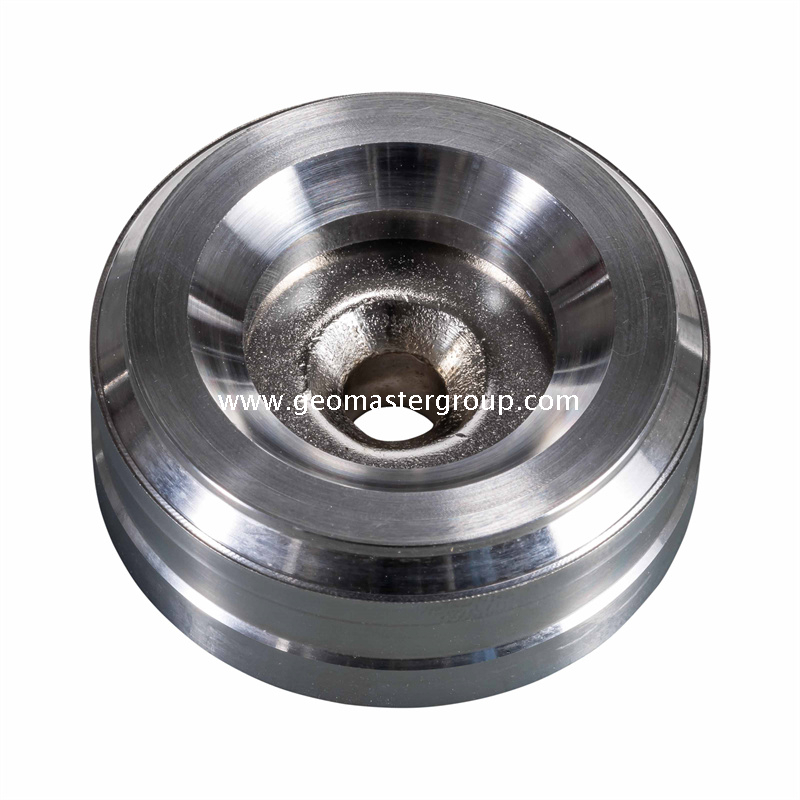

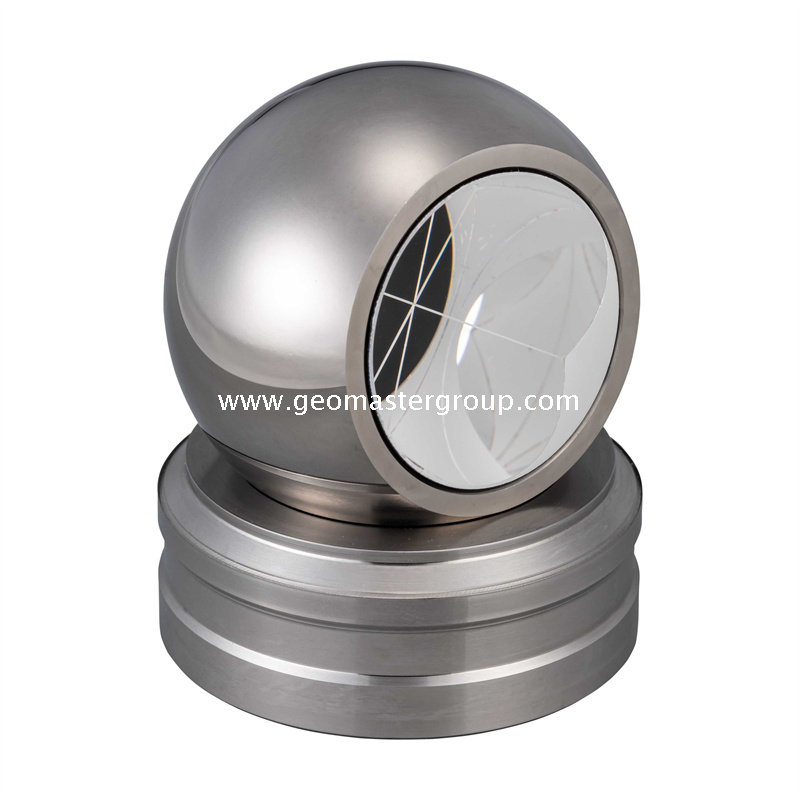

1.Magnetic Drift Nest (Magnetic Holder,Magnetic Base,Magnetic Nest,Shankless Drift Nest,Nest without Shank) specially designed for Spherically Mounted Retro-Reflectors (SMR) with 38.1mm steel Sphere
2.Replacement of Original Drift Nest 577140
3.Compatible with all existing Laser Tracker Reflectors (SMR)
4.Material: Stainless Steel 304
5.Offset:

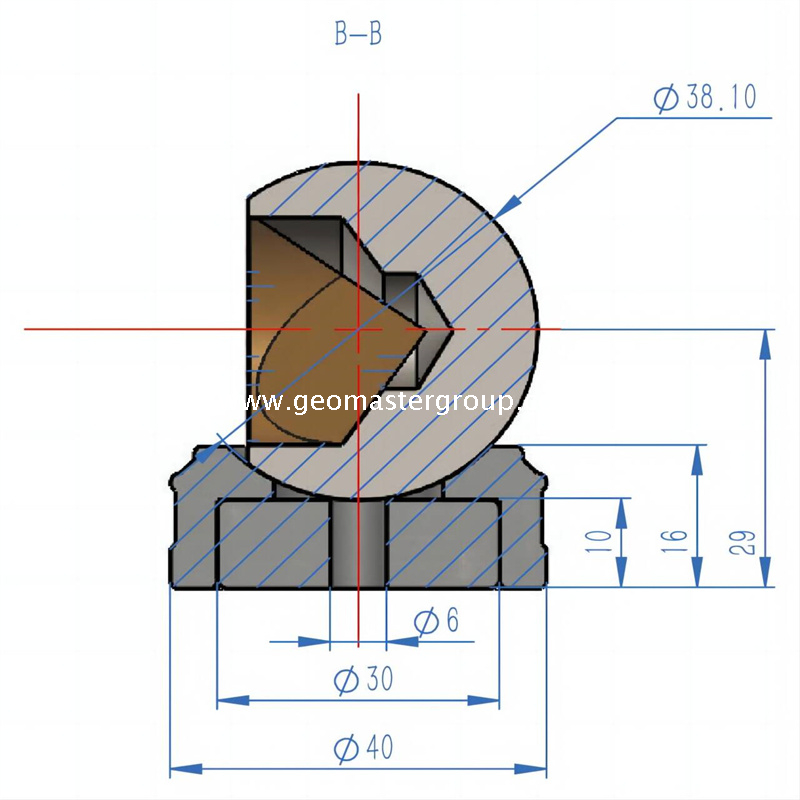

6.Height: 16mm (0.63")
7.Outer Diameter: 40mm (1.57")

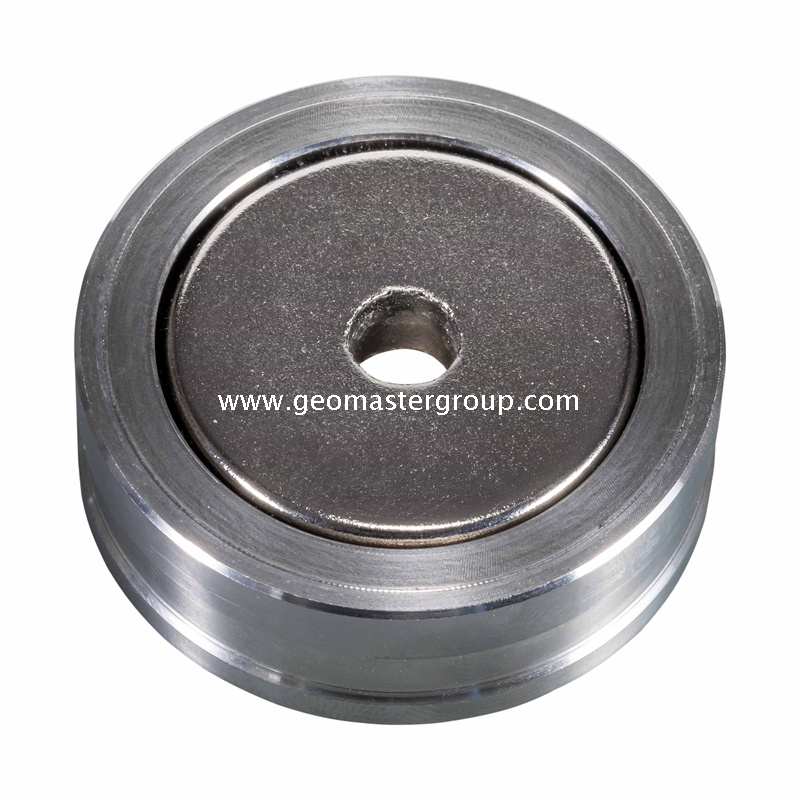

8.Neodymium (N52) Magnetic Ring: 30mm (O.D.) ×6mm (I.D.)×10mm (T.)
9.N.W.: 115-120g
10.Customization services are available
1)Outer Diameters: 40mm(1.57"), 38.1mm(1.5"), 30mm(1.18"), 25.4mm(1"), 12.7mm(0.5")
2)Styles: Shank Drift Nest,Edge Drift Nest,Corner Drift Nest
3)Colors: Black(Black anodized),Blue,Red
4)Surface Treatment: Stainless Steel, chrome-plated, nickel-plated,black-anodized
Note: Any updating would be subject to change without prior notice.
