Highlights

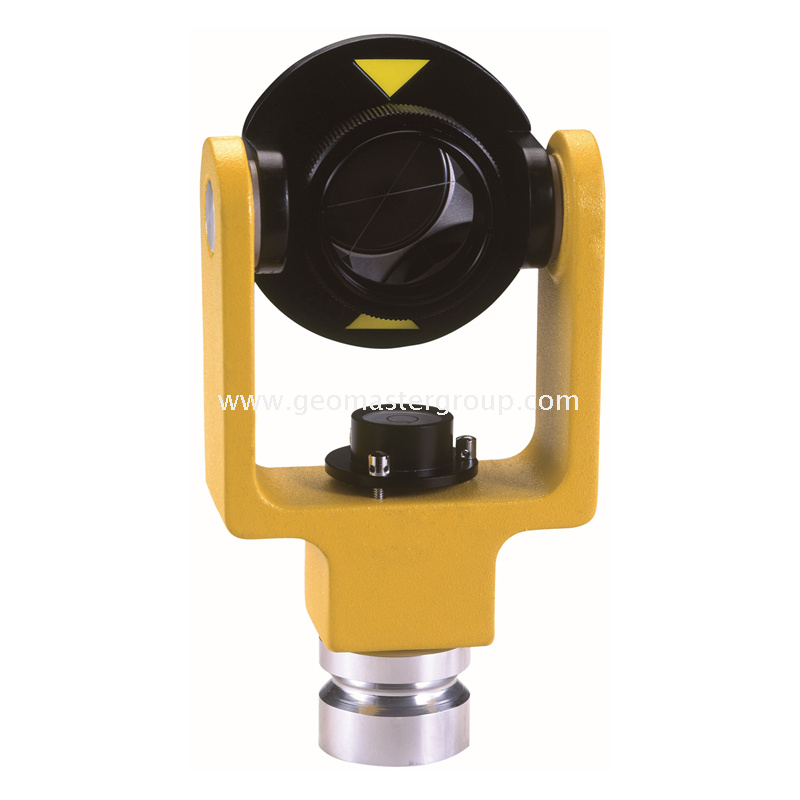

Model: GMP6200A-0/30-25.4/YEL
1.Geomaster Mini Prism Set (GMP6200)
2.Prism Constant: 0mm or -30mm
3.Prism Aperture: 25.4mm (1inch)
4.Prism Accuracy: ≦5"
5.Silver-coated (Ag),water-proof
6.Powder-painted bright Yellow Holder (YEL)
7.Centre-mounted adjustable Vial (40'/2mm)
8.Measuring Range: up to 500m
9.W. Bayonet Base (OD: 24.9mm)+Int. Thread (5/8")
| Quantity: | |
|---|---|
GMP6200A-0/30-25.4/YEL
Geomaster
9015900090
Specifications
Model: GMP6200A-0/30-25.4/YEL

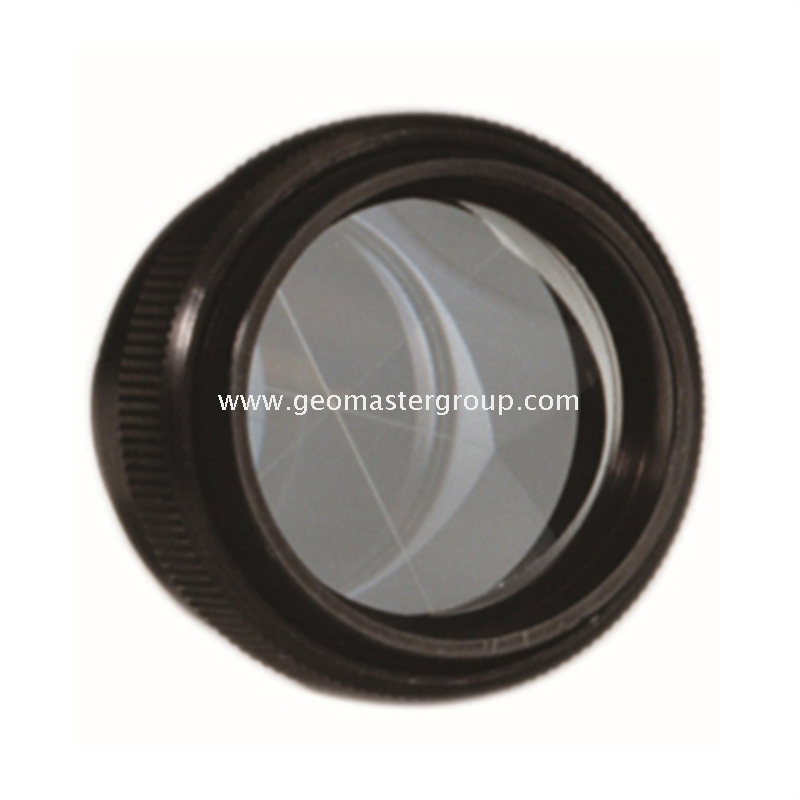

1.Mini Prism Mini6200-25.4/5Ag
1)Prism Aperture: 25.4mm(1inch)
2)Prism Accuracy: ≤5"
3)Central Height (Axis Height): 70mm
4)Material: precision-ground Optical Glass K9
5)Silver-coated,water-proof
6)Measuring Range: up to up to 500m (under good weather condition)

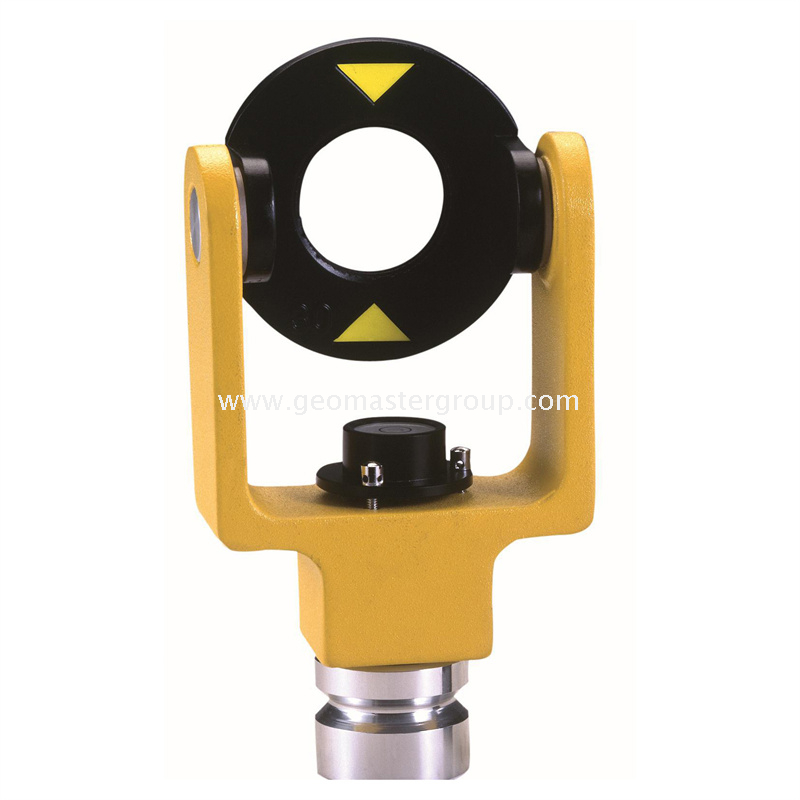

2.Bright Yellow Aluminum Holder Holder6200A-YEL
1)Offset: 0mm or -30mm
2)Tilting Target Plate w. highly visible Reflective Tapes
3)Powder-painted bright Yellow Holder (YEL)
4)Adjustable Centre Circular Bubble CB-40: 40'/2mm
5)With Bayonet Base (OD: 24.9mm) and internal Thread (5/8"×11)
Features
Model: GMP6200A-0/30-25.4/YEL
1.Replacement of American-style 6200-10-FOR 25 mm Mini Prism System with Center Vial
2.Silver-coated (Ag) for high Reflection Rate; Copper-coated (Cu) available
3.Prism hermetically sealed in metal Housing for rough distance measurement and ranging
4.Built-in Circular Bubble (centred for GMP6200 series) for fast leveling and accurate positioning

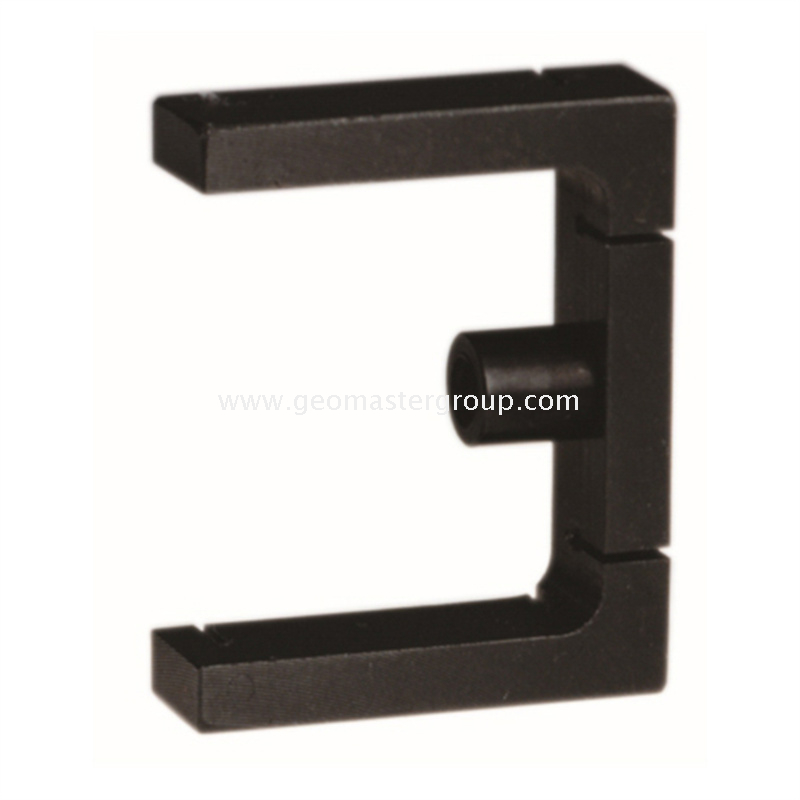

5.Equipped with Bracket and s-shaped Hook for easily securing Plumb Bob

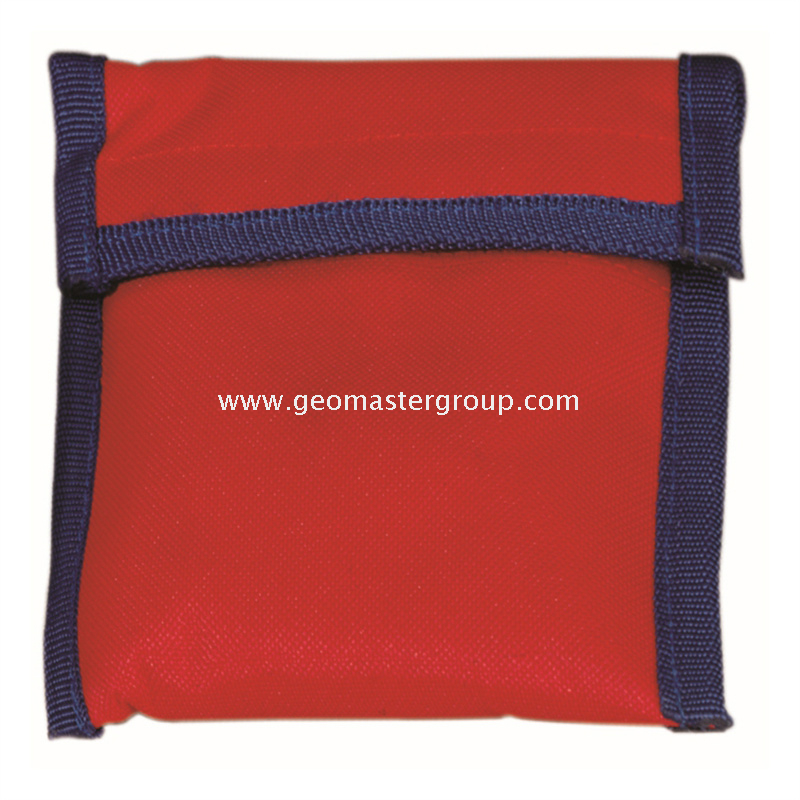

6.Coming with padded Carrying Bag Bag-6200 for convenient storage and transport
7.Compatible w. all Geomaster Prism Adapters PPA12-25 and PPA16-25 (ID:25mm)
8.Compatible w. all Geomaster Prism Poles (PP and GLS series) with 5/8" external thread
Note: Any updating would be subject to change without prior notice.
