English
 |
Highlights
Model: A8854L
1.Geomaster Self-leveling Proline Laser Level (Green)
2.Working Range: ≧30m (with Detector)
3.Multi-lines & Multi-dots: 4V-1H-6D
4.Self-Leveling Range: ±3°; Auto-alarm
5.Circular Bubble (8'/2mm),Tripod Thread 5/8"×11
6.Detachable Battery Packs (Dry & Li-ion Batteries)
7.PE Carrying Case, Power Supply Cable USB C
8.For outdoor,Laser Detector a/v
| Quantity: | |
|---|---|
A8854L
Geomaster
9015900090
Specifications & Features
Model: A8854L
1.Working Range: ≧30m (with Detector A9029G)

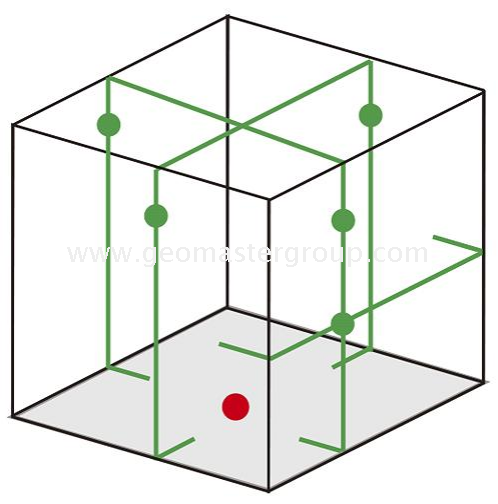

2.Multi-lines and Multi-dots: 4V-1H-6D (4 Vertical,1 Horizontal,6 Dot)
1)Laser Beam & Dot Colors: Green, excl.down-point
2)Down-point Color: Red
3)Horizontal and Vertical Fan Angle: ＞120°
4)Line Width: about 2mm at 5m
3.Self-leveling & Tilting
1)Self-leveling Range: ±3°
2)Out-of-Range Alarm: Line blinking
3)Leveling Mode: Magnetic Damping
4)Leveling Time: about 3sec
5)Fine Adjustment Range: 360° (unlimited)
6)Precision Leveling Screws with Rubber
7)360 Rotating Base and Lock Knob
8)Tilting Mode: yes
3.Laser Source
1)Module Qty: 6
2)Class: 2; ˂1mW
3)Accuracy: ±0.2mm/m
4)Wave Length
(1)Green Lines & Green Dots: 508-530nm
(2)Down-point: 650nm
4.Multi-power Supply

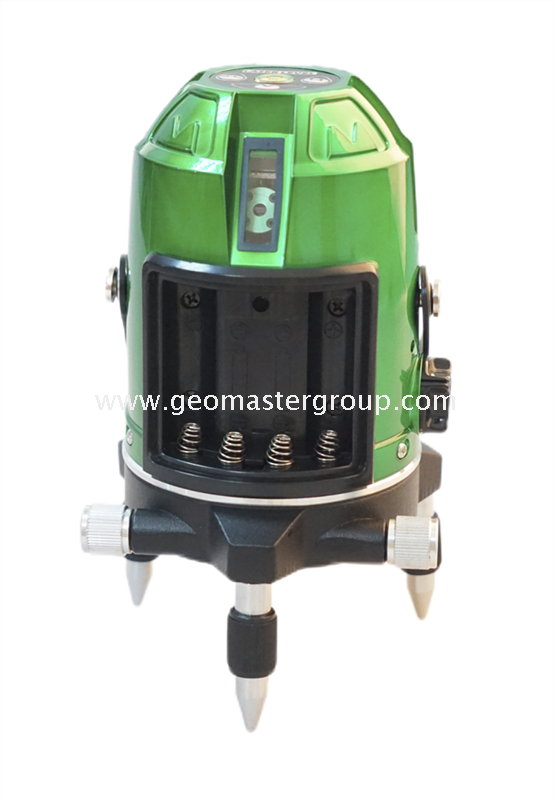

1)Detachable 4×AA Dry Battery Pack or LB5042 Li-ion Battery
2)Operating Time: indoor (in the non-pulse State)
(1)with 4×AA Dry Batteries: about 130 minutes
(2)with LB5042 Li-ion Battery: about 400 minute
3)Operating Time: outdoor(in the pulse State,with the help of Detector A9029G)
(1)with 4×AA Dry Batteries: about 400 minutes
(2)with LB5042 Li-ion Battery: about 900 minutes
5.Others
1)Operating Temperature: -10℃ ~ 45℃
2)Circular Bubble: 8'/2mm
3)Tripod Thread: internal 5/8"×11,compatible w. all Geomaster Tripods (w. 5/8" External Adapters or Central
Connect Screws) like Laser Tripods and Surveying Tripods (Aluminum Tripods,Wooden Tripods,Fiberglass Tripods)
4)Standard Outfits: PE Carrying Case, Li-ion Battery Pack (LB5042), Power Supply Cable USB C, Power Supply
Adapter (5V2A), Green Laser Goggles
5)Optional Items: Laser Detector A9029G
Note: Any updating would be subject to occur without prior notice!!
