GRP80A-104C5-05Cu/38.1
Geomaster
90159000
Specifications & Features

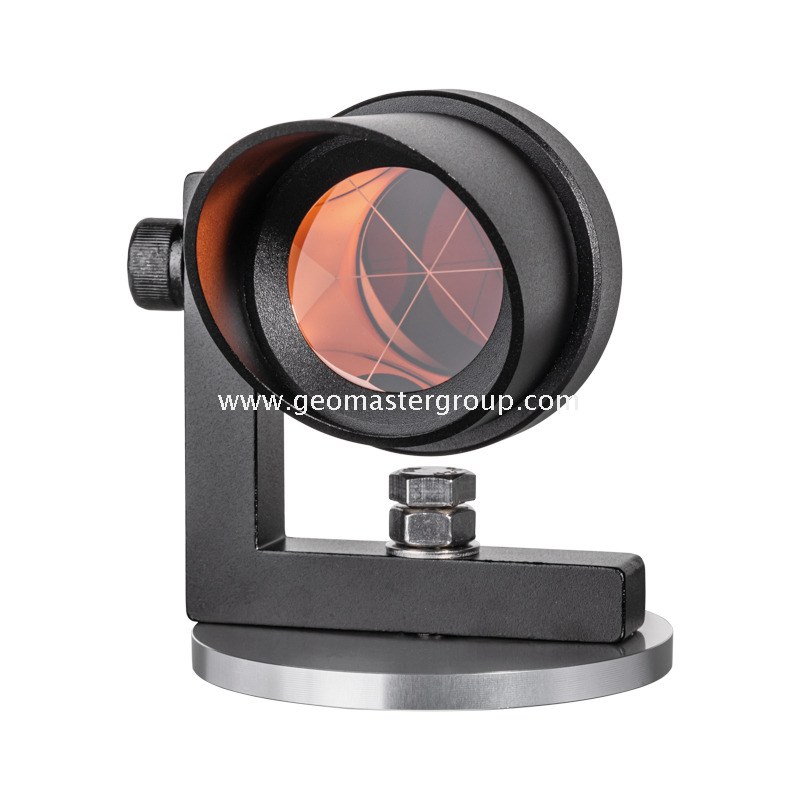

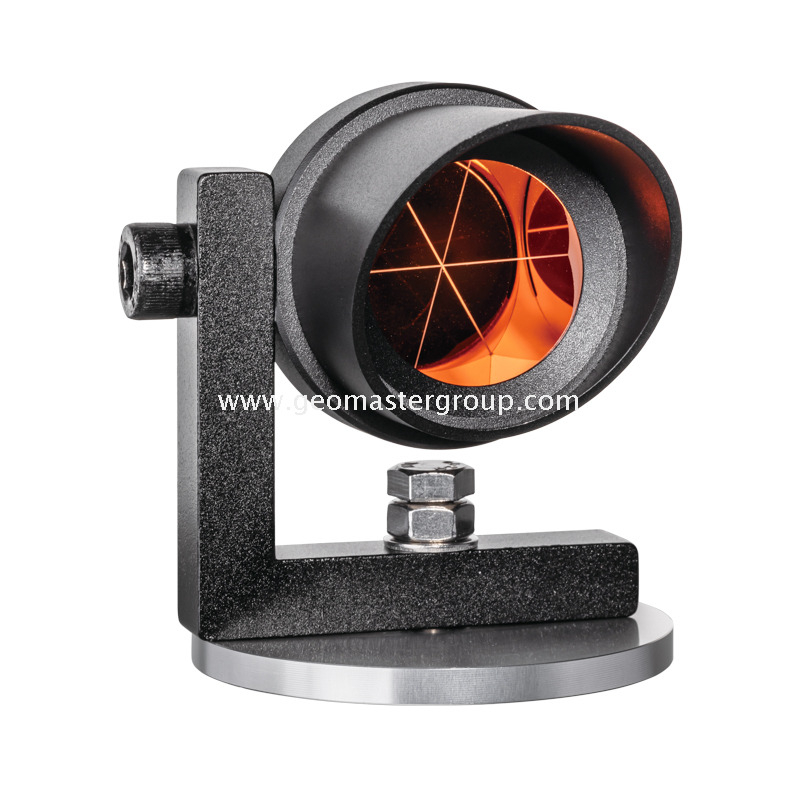

Model: GRP80A-104C5-05Cu/38.1

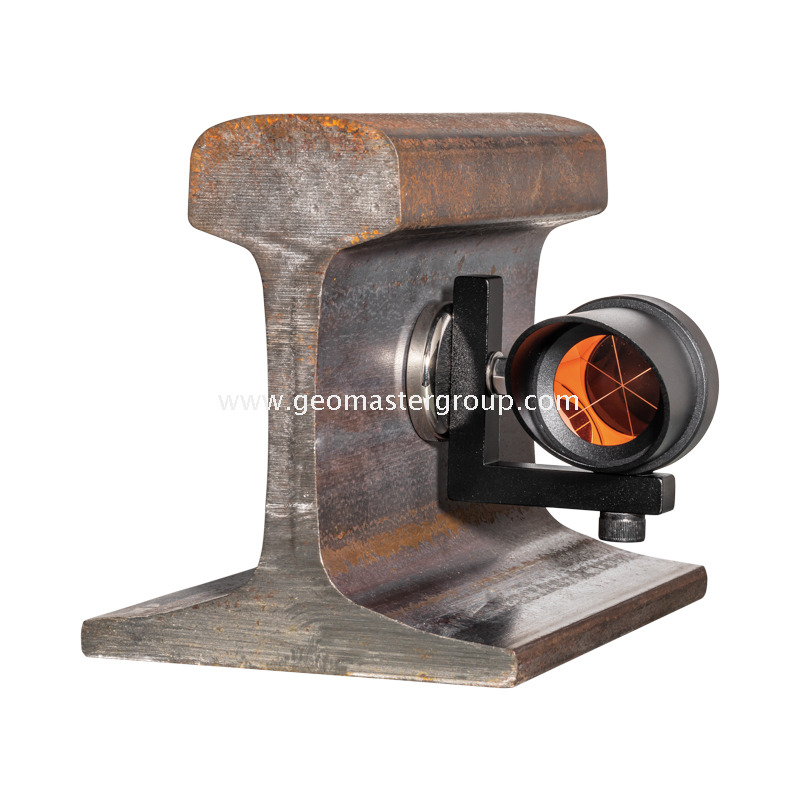

This Rail Prism Kit includes Rail Prism Base GPB80A-30HB and Rain Shelter L-bar Prism GMP104C5-05Cu/38.1

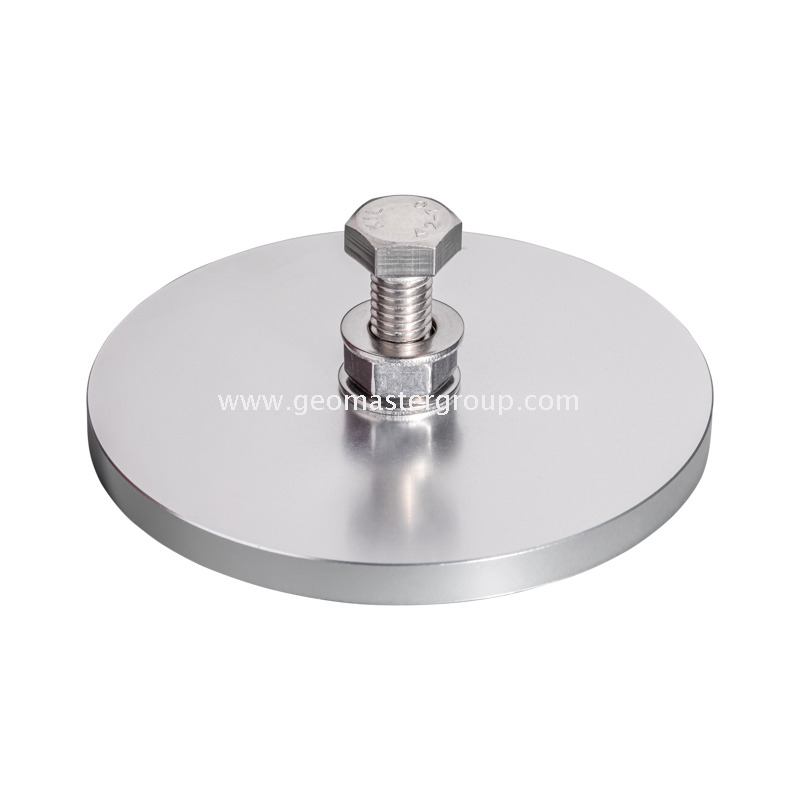

1.Rail Prism Base: GPB80A-30HB
1)Baseplate Dimensions: 80mm (Diameter)×6mm(Thickness)
2)Baseplate Material: Natural Anodized Al (A)
3)Baseplate Center Hole: M8
4)Hex Bolt (HB): M8×30mm

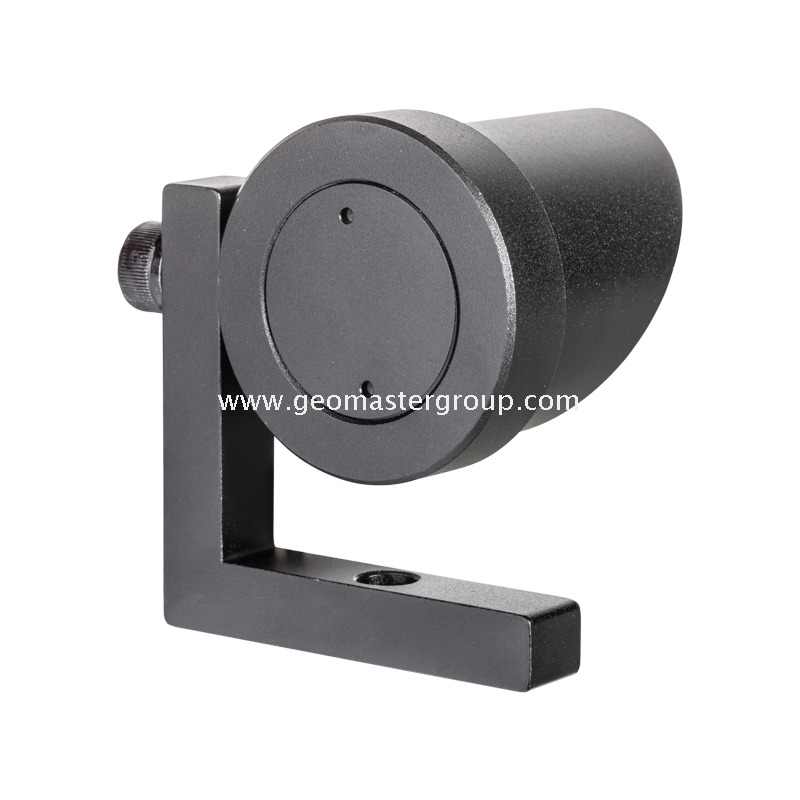

2.Rain Shelter Prism: GMP104C5-05Cu/38.1
1)L-bar Prism w. Rain Shelter

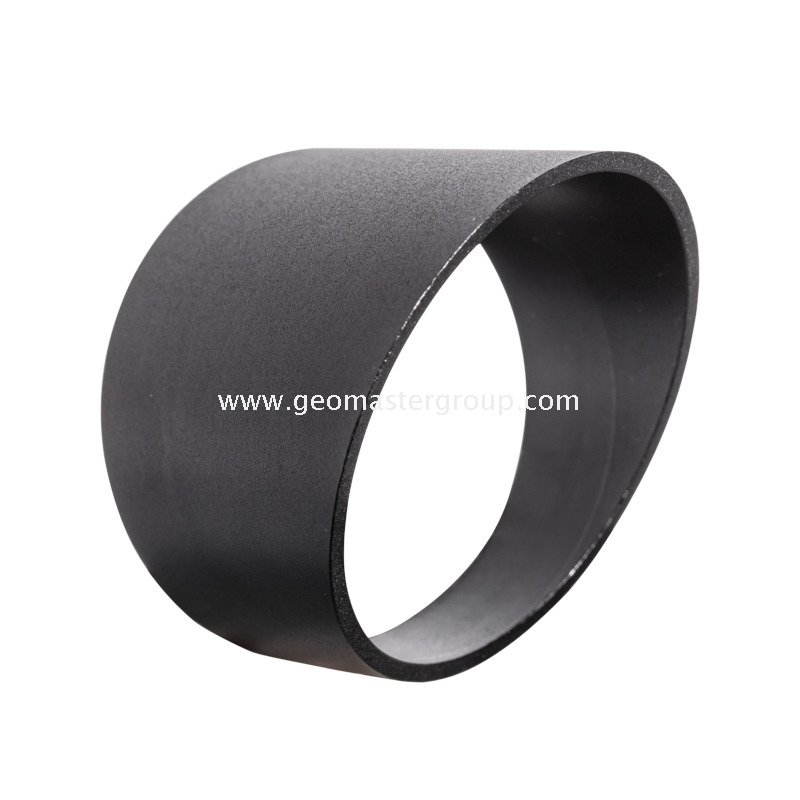

2)Detachable Rain Cover (C): 53mm
3)L-bar Size: 3"×3"
4)Prism Aperture: 38.1mm
5)Prism Accuracy: ≦5" (w. zygo Report)
6)Copper-coated (Cu), waterproof (W)
7)Measuring Range: up to 1200m
3.Customization services a/v
1)Baseplate Diameter: 60-100mm
2)Baseplate Colors: chrome-plated (CR),black-anodized (BK), natural anodized (NA)
3)Hex Bolt Length: 25mm~100mm4)Prism Accuracy: 3",5",8"
5)Prism Coating: non-coated, Copper-coated (Cu), Silver-coated (Ag), Antireflective coating (AR), Aluminum-coated (Al)
Note: Any updates would be subject to change without prior notice.
