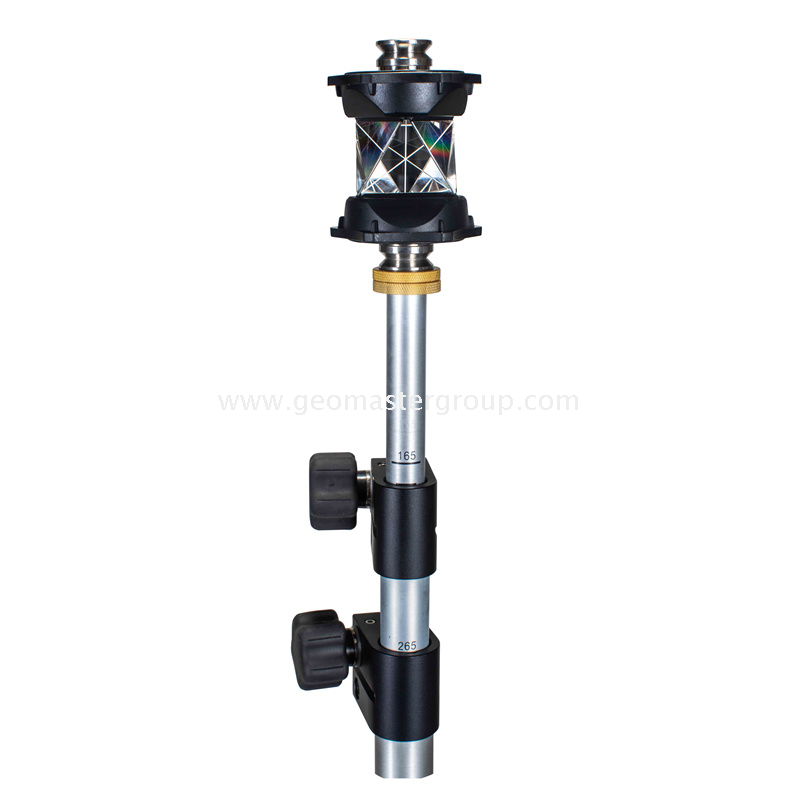

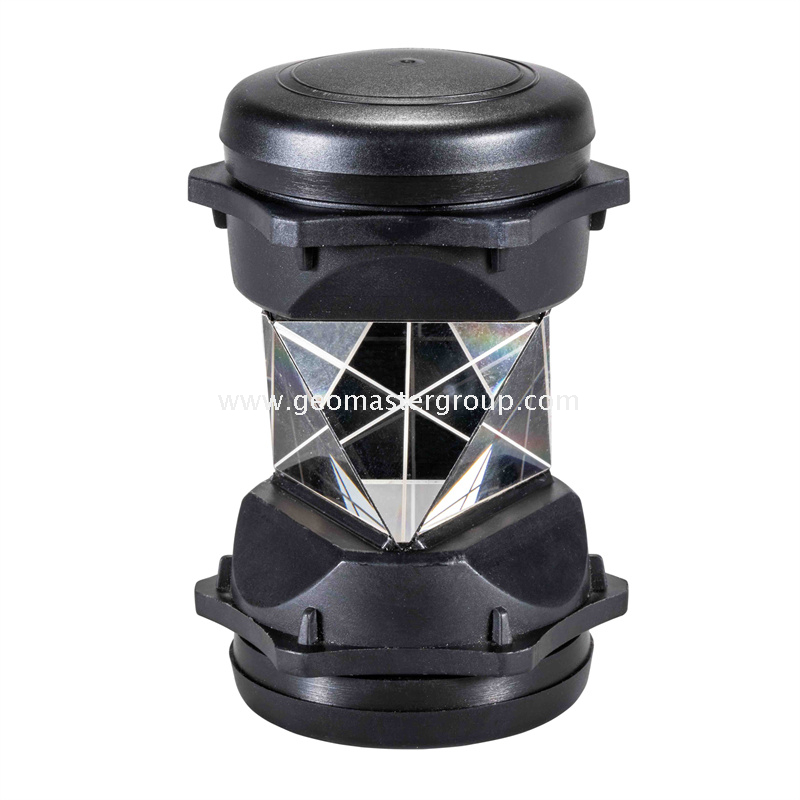

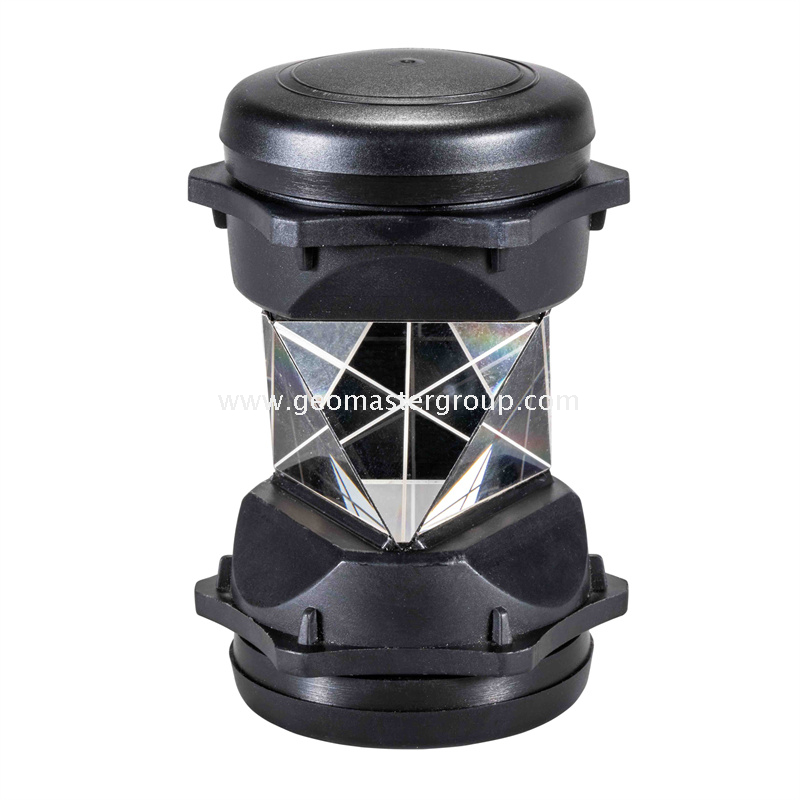

Robotic Prism (360°)

Highlights
Model: Macro-360A
1.Robotic Prism,360°
2.Accuracy: ≤5", silver-coated
3.Prism Offset: -7mm
4.Sokkia ATP1 or Topon ATP2

Quantity:
  • Macro-360A (APT1)
  • Geomaster
  • 9015900090

Specifications
Model: Macro-360A

1.Robotic Prism,360°
2.Accuracy: ≤5"
3.Silver-coated
4.Prism Offset: -7mm
5.N.W.: 358g (w/o bag); 512g (w.bag)
6.Alternative to Sokkia Robotic Prism  ATP1 or Topcon Robotic Prism ATP2

Note: Any updating would be subject to change without prior notice.

Alternative Names
360-deg Prism,90-deg Prism,Cats Eye Prism,L-bar Prism,Leica Prism,Mini Prism,Mini Prism Set,Mini Prism System,Monitoring Mini Prism,Monitoring Prism,
Nikon Prism,Prism Reflector,Prism Station,Reflector Prism,Road Monitoring Prism,Road Prism,Road Stud,Robotic Prism,Robotic Prism Station,Rotating Prism,
Sokkia Prism,Stakeout Mini-Prism, Surveying Accessories,Surveying Equipment,Surveying Instrument,Surveying Prism,Topcon Prism,Traverse Prism Kit,
Traverse Prism System,Trimble Prism,Tunnel Prism,Construction Prism,Subway Prism, Right Angle Prism

Features
Model: Macro-360A
1.Equivalent to and replacement of Sokkia-style ATP1 or Topon-style ATP2
2.Specially designed for robotic surveying work
3.Compatible with most Surveying Instruments, esp Topcon Robotic Stations, Sokkia Robotic Stations...
4.Made of 6 precision-ground Corner Cube Prisms and installed in robust rubberized Flanges with a
solid metal core

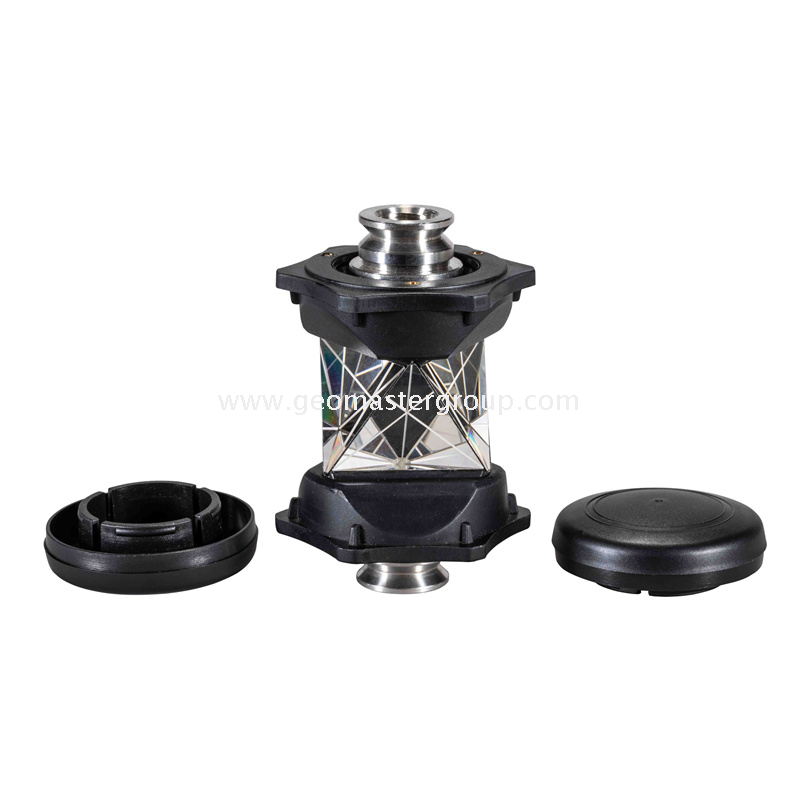

5.Equipped with female Mounting Thread 5/8"×11 (on top and bottom), protected with rugged Plastic

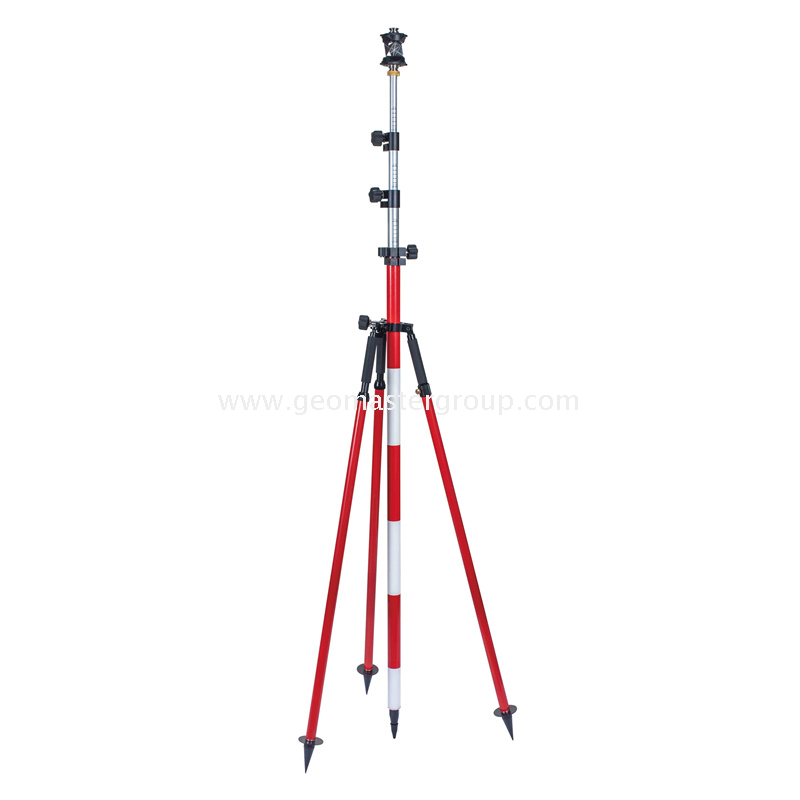

Covers on bothEnds, fitting with Geomaster® Al.Range Poles, Prism Poles, GNSS/GPS Poles, Laser
Poles, Prism Adatpers, GNSS and GPS Adapters,etc
6.Aluminum or Fiberglass GNSS/GPS Adapters (Height Adapters) for option

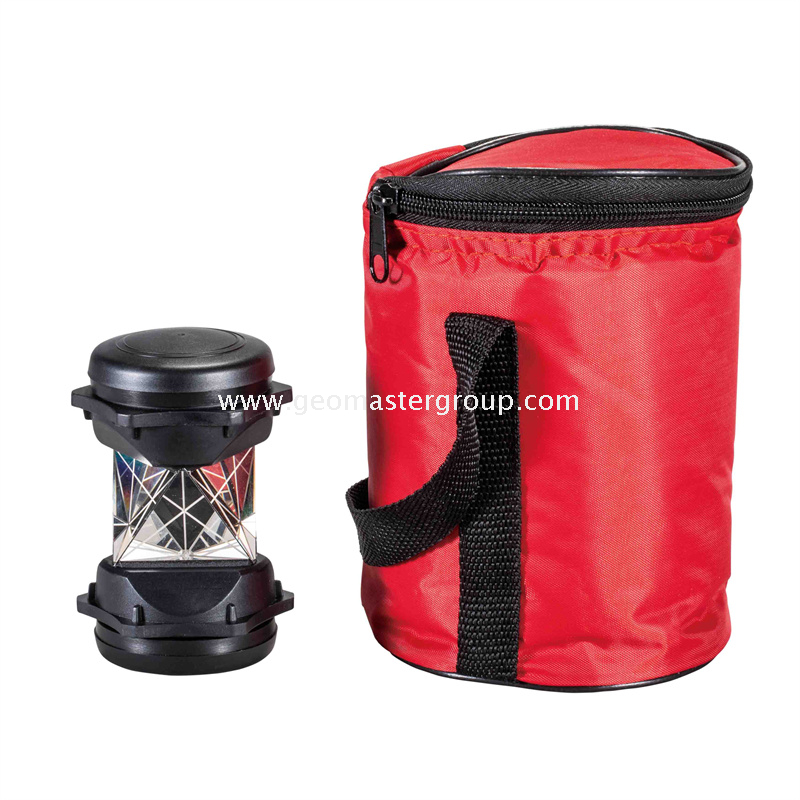

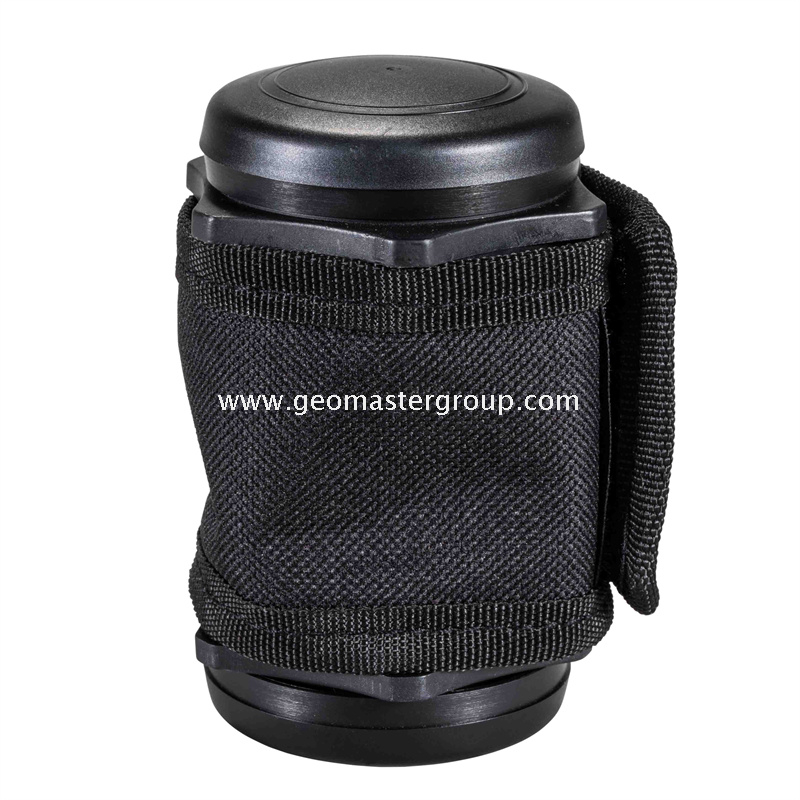

7.Coming with a black velcro protector and a red soft carrying bag.
8.Customization service available.
