Highlights
Model: Macro-360C (GRZ122)
1.Robotic Prism,360°
2.Accuracy: ≤5"
3.Copper-coated
4.Measuring Range up to 600m
5.Replacement of Leica GRZ122
6.w.soft Carrying Bag
| Quantity: | |
|---|---|
Macro-360C (GRZ122)
Geomaster
90159000
Specifications
Model: Macro-360C (GRZ122)

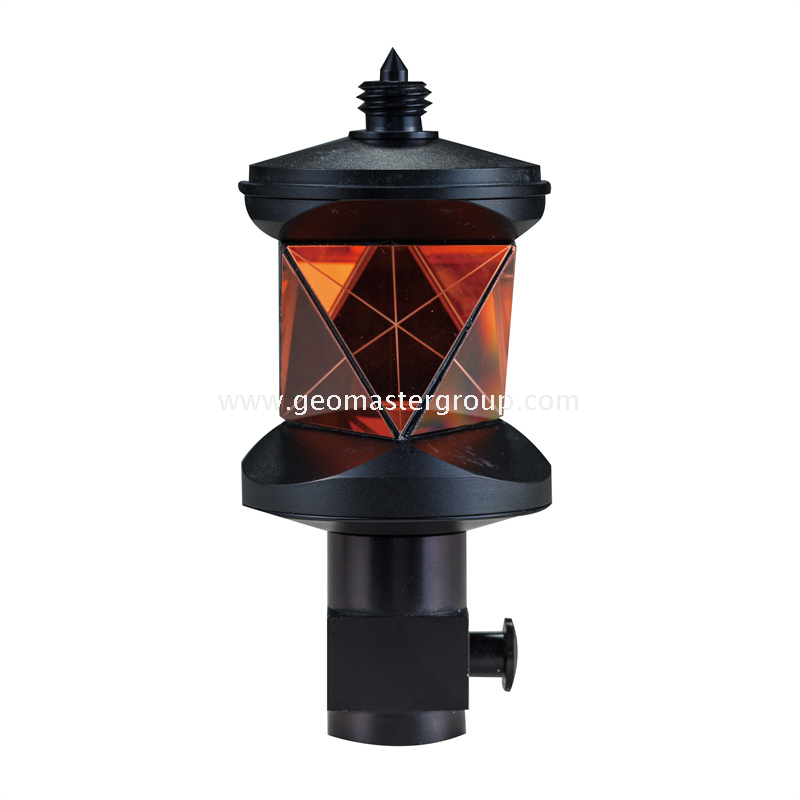

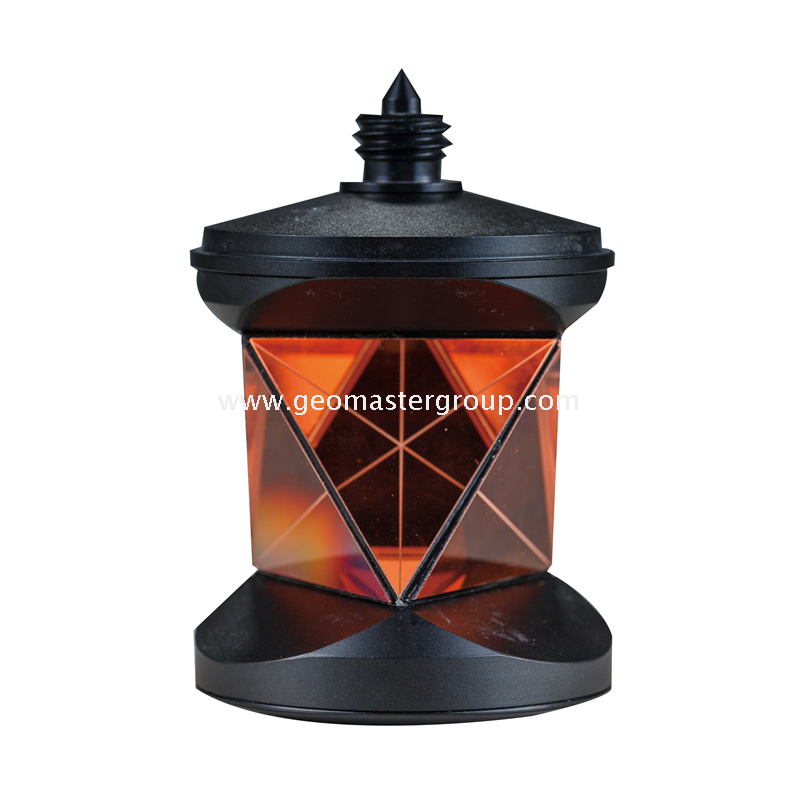

1.CPR-360 Prism Accuracy: ≤5", copper-coated
2.Prism Constant: 23.1mm
3.Measuring Range: up to 600m (2000ft)

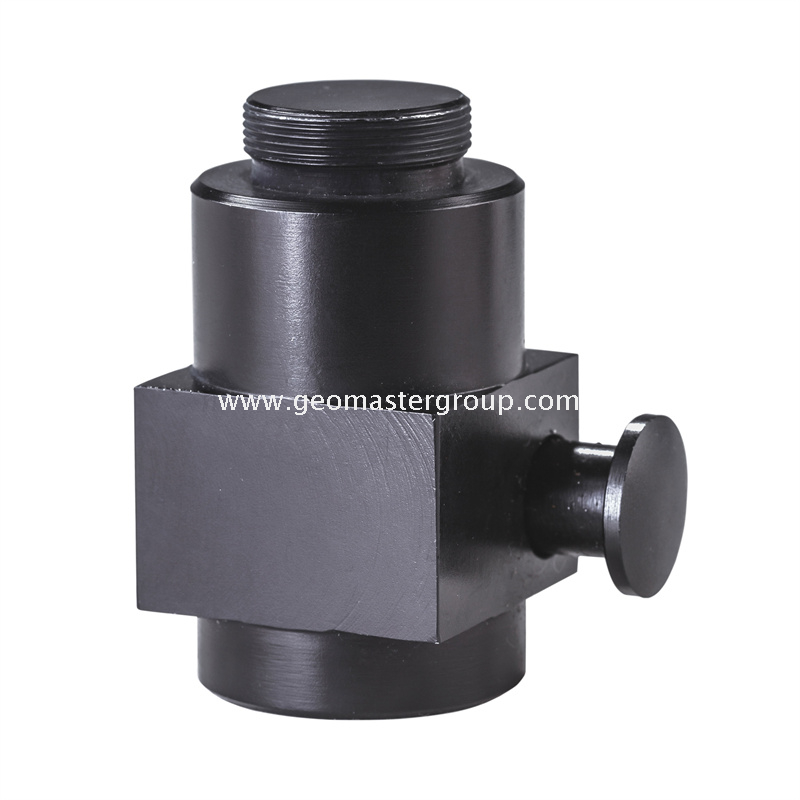

4.Leica-style Adapter ADP-01: Height: 52mm; N.W.: 78-90g

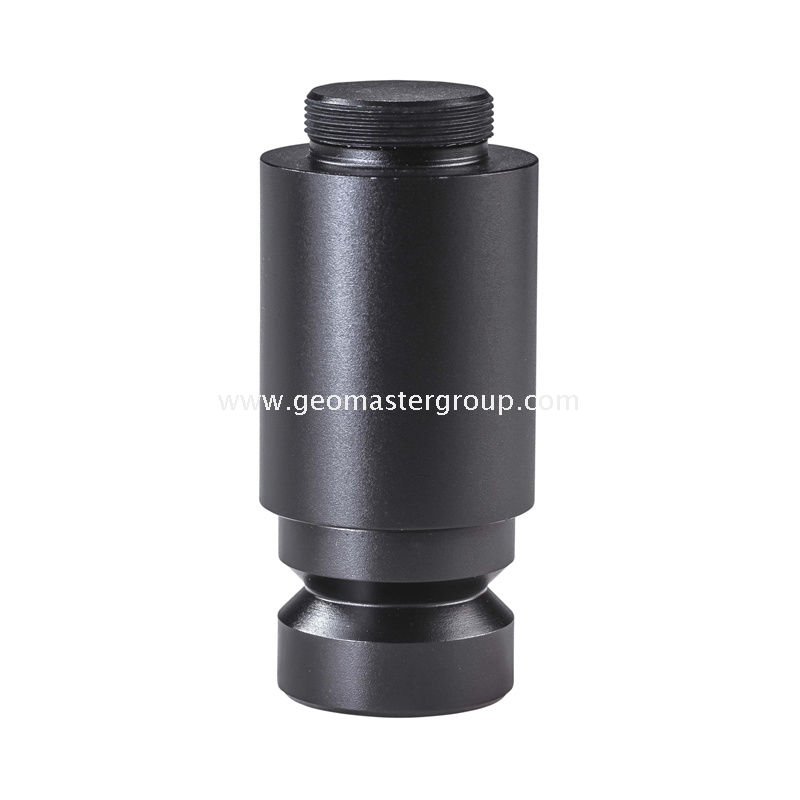

5.Adapter ADP-02: Height: 63.5mm; Female Thread: 5/8"; N.W.: 78-80g

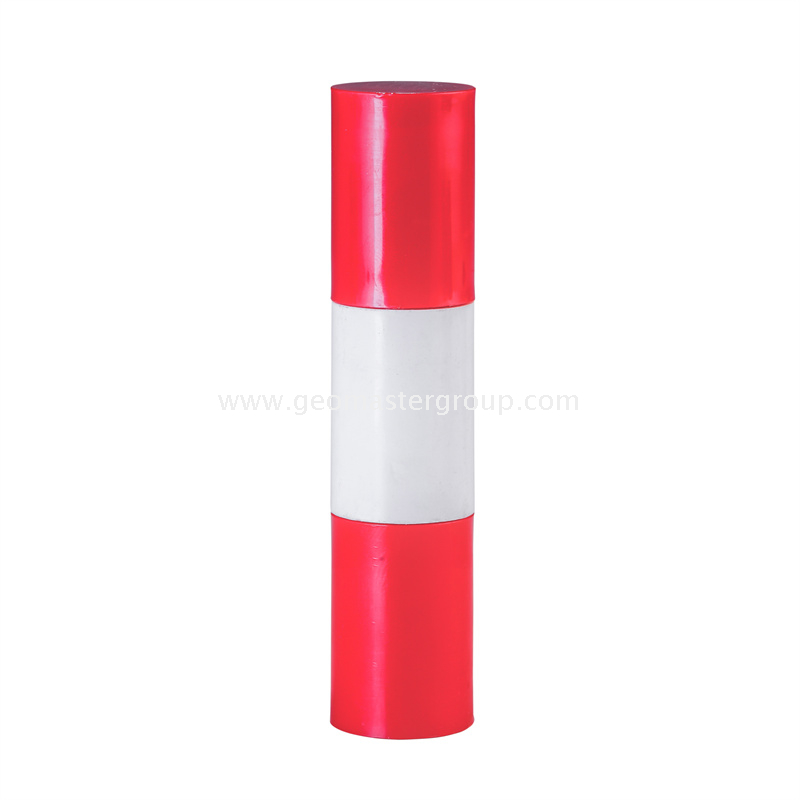

6.Mini Pole AG-01: Length: 90mm; N.W.:18-24g

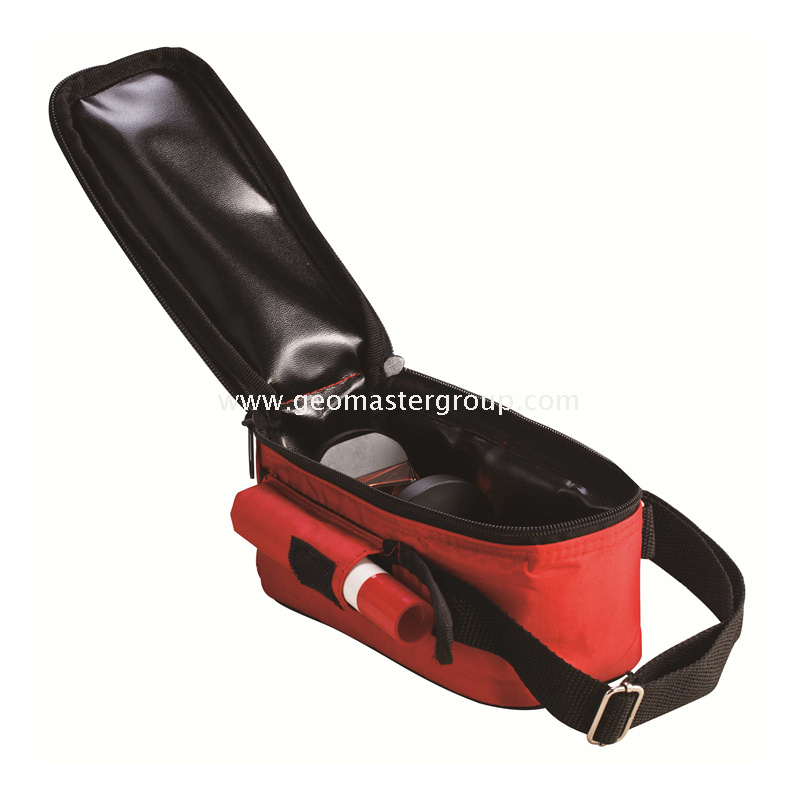

7.Red soft Carrying Bag PAB-10: N.W.:102g
Features
Model: Macro-360C (GRZ122)
1.Equivalent to and replacement of Leica-style GRZ122; Part No.:754384
2.Specially designed for robotic surveying purposes
3.Compatible with most Robotic Total Stations like Trimble, Spectra, Sokkia, Topcon, Leica..
4.Consisting of 6 precision-ground corner cube Prisms
5.Protected by rubber mountings both on the top and the bottom
6.Equipped with female Mounting Thread 5/8"×11,fitting with Geomaster Al. Range Poles,
Prism Poles, GNSS Poles, Laser Poles,etc
7.Coming with Mini Pole and a red soft Carrying Bag
Note: Any updating would be subject to change without prior notice.
Related Names
Surveying Equipment,Surveying Instrument,Surveying Accessories,Surveying Prism,360-deg Prism,90-deg Prism,Cats Eye Prism,L-bar Prism,Mini Prism,Mini Prism Set,
Mini Prism System,Monitoring Mini Prism,Monitoring Prism,Prism Reflector,Prism Station,Reflector Prism,Road Monitoring Prism,Road Prism,Road Stud,Robotic Prism,
Robotic Prism,Robotic Prism Station,Rotating Prism,Stakeout Mini-Prism, Traverse Prism Kit,Traverse Prism System,Tunnel Prism, Drone Prism, UAV Prism,GPS Prism,
Laser Prism,Scanner Prism, 3D Prism, Target Prism, Optical Glass,Optical Prism, Optical Square,Led Flashing Prism, Flashing Prism, Strobe Prism,Geomax Prism,Leica
Prism, Nikon Prism,Pentax Prism,Sokkia Prism,Topcon Prism,Trimble Prism,Geomaster Prism,Tunnel Prism,Construction Prism,Subway Prism,U-bar Prism,U-bar Mini
Prism, U-bar Monitoring Prism,Dual Prism,Dual Sided Prism,45-deg Mini Prism,GLS Pole,GMP Prism,Road Prism,Circular Road Prism,Square Road Prism,Mini Prism
Pack,Ball Prism, Ball Mini Prism,Sliding Prism,Sliding Mini Prism, Spherically Mounted Retro Reflector (SMR), Red Ring Reflector (RRR),Laser Tracker,Spherical Prism,
Spherical Reflector,Railshoe,Rail Shoe,Reflective Sphere Prism
Specifications
Model: Macro-360C (GRZ122)
1.CPR-360 Prism Accuracy: ≤5", copper-coated
2.Prism Constant: 23.1mm
3.Measuring Range: up to 600m (2000ft)
4.Leica-style Adapter ADP-01: Height: 52mm; N.W.: 78-90g
5.Adapter ADP-02: Height: 63.5mm; Female Thread: 5/8"; N.W.: 78-80g
6.Mini Pole AG-01: Length: 90mm; N.W.:18-24g
7.Red soft Carrying Bag PAB-10: N.W.:102g
Features
Model: Macro-360C (GRZ122)
1.Equivalent to and replacement of Leica-style GRZ122; Part No.:754384
2.Specially designed for robotic surveying purposes
3.Compatible with most Robotic Total Stations like Trimble, Spectra, Sokkia, Topcon, Leica..
4.Consisting of 6 precision-ground corner cube Prisms
5.Protected by rubber mountings both on the top and the bottom
6.Equipped with female Mounting Thread 5/8"×11,fitting with Geomaster Al. Range Poles,
Prism Poles, GNSS Poles, Laser Poles,etc
7.Coming with Mini Pole and a red soft Carrying Bag
Note: Any updating would be subject to change without prior notice.
