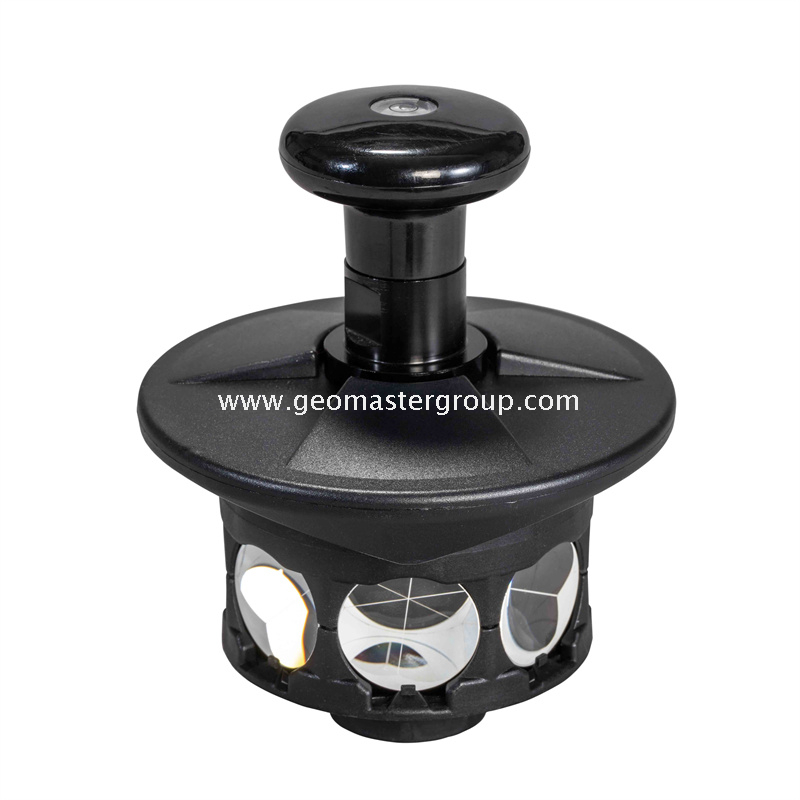

Robotic Prism (360°)

Highlights
Model: Macro-360B
1.Trimble Autolock Robotic Target Kit
2.Robotic Prism,360°
3.Accuracy: ≤5"
4.Silver-coated
5.Prism Constant: +2.0mm
6.Aperture: 25.4mm

Quantity:
  • Macro-360B
  • Geomaster
  • 9015900090

Specifications
Model: Macro-360B
1.Accuracy: ≤5"
2.Silver-coated
3.Aperture: 25.4mm
4.Prism Constant: +2.0mm
5.N.W.: 354g (w/o Bag); 508g (w. Bag)
6.Dimensions: 12.7mm x 7mm
7.Alternative to Trimble Autolock Robotic Target Kit

Note: Any updating would be subject to change without prior notice.

Alternative Names
360-deg Prism,90-deg Prism,Cats Eye Prism,L-bar Prism,Leica Prism,Mini Prism,Mini Prism Set,Mini Prism System,Monitoring Mini Prism,Monitoring Prism,
Nikon Prism,Prism Reflector,Prism Station,Reflector Prism,Road Monitoring Prism,Road Prism,Road Stud,Robotic Prism,Robotic Prism Station,Rotating Prism,
Sokkia Prism,Stakeout Mini-Prism, Surveying Accessories, Surveying Equipment,Surveying Instrument,Surveying Prism,Topcon Prism,Traverse Prism Kit,
Traverse Prism System,Trimble Prism,Tunnel Prism,Construction Prism, Subway Prism,Autolock Robotic

Features
Model: Macro-360B
1.Equivalent to and replacement of Trimble Autolock Robotic Target Kit
2.Specially designed for robotic surveying work,providing 360-deg reflection

3.Compatible with all Robotic Total Stations like Trimble, Spectra, Sokkia, Topcon, Leica...
4.Consisting of 6 precision-ground mini Prisms and installed in a metal Housing

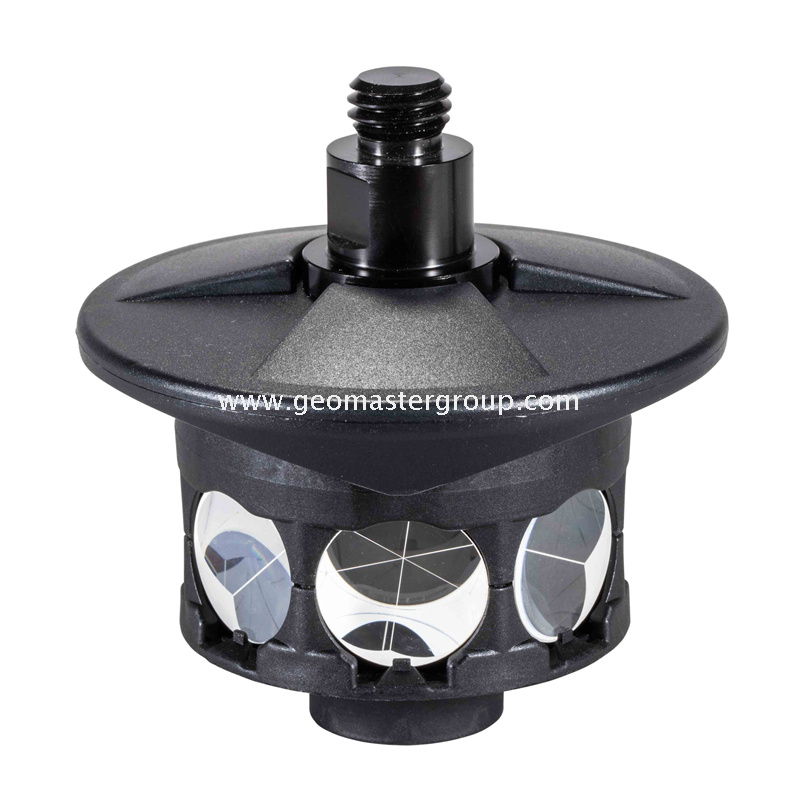

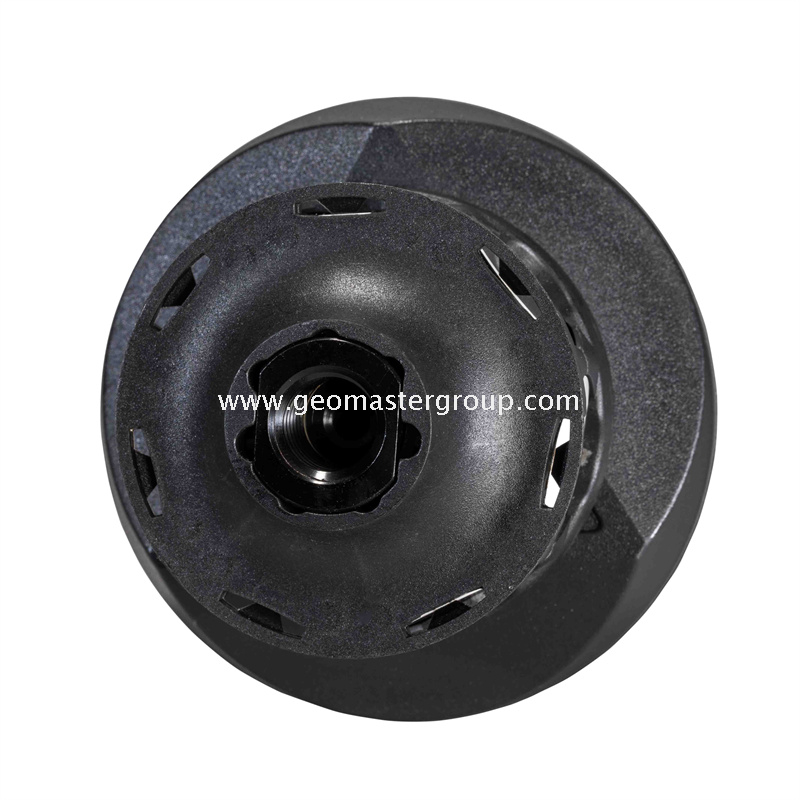

5.Equipped with female Mounting Thread 5/8"×11 and protected with a metal Tiptoe, fitting with

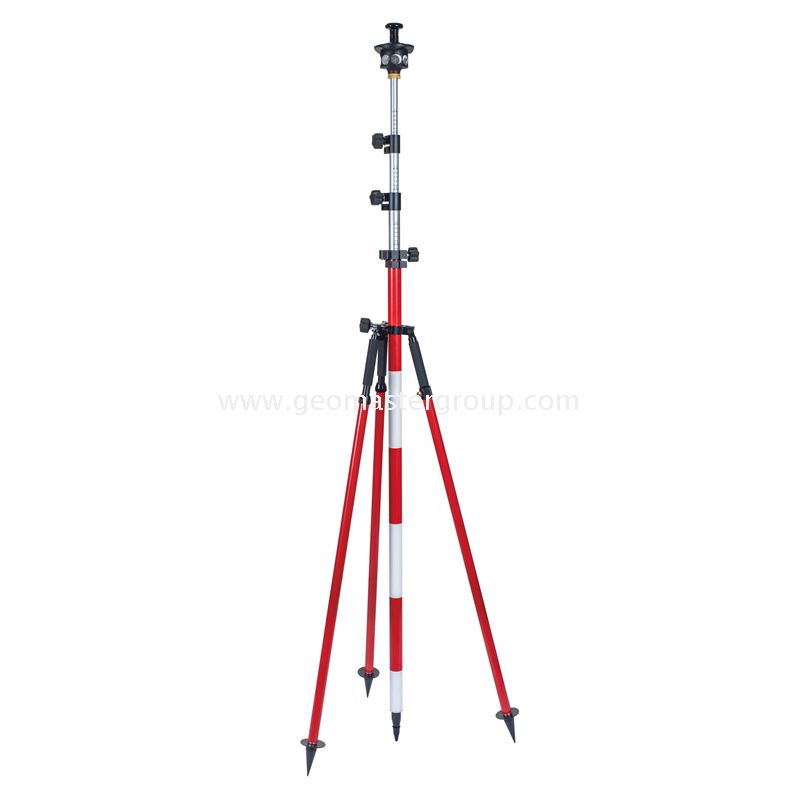

Geomaster® Al.Range Poles, Prism Poles, GNSS Poles, Laser Poles,etc
6.Installed with a built-in bull’s-eye Bubble for fast and accurate leveling
7.Aluminum or Fiberglass GNSS/GPS Adapters (Height Adapters) for option

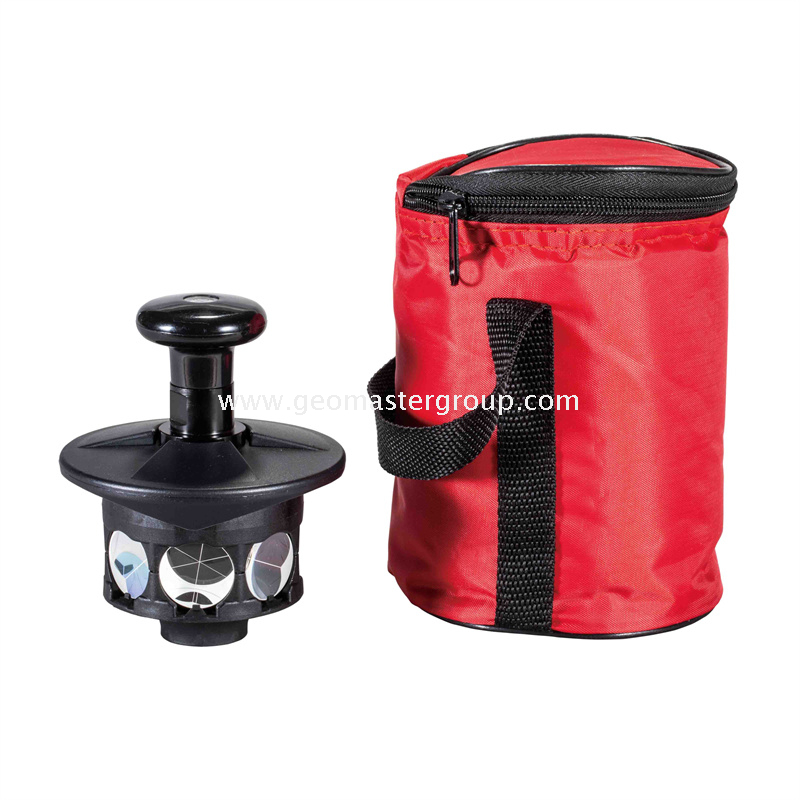

8.Coming with a red soft Carrying Bag
9.Customization service available.
