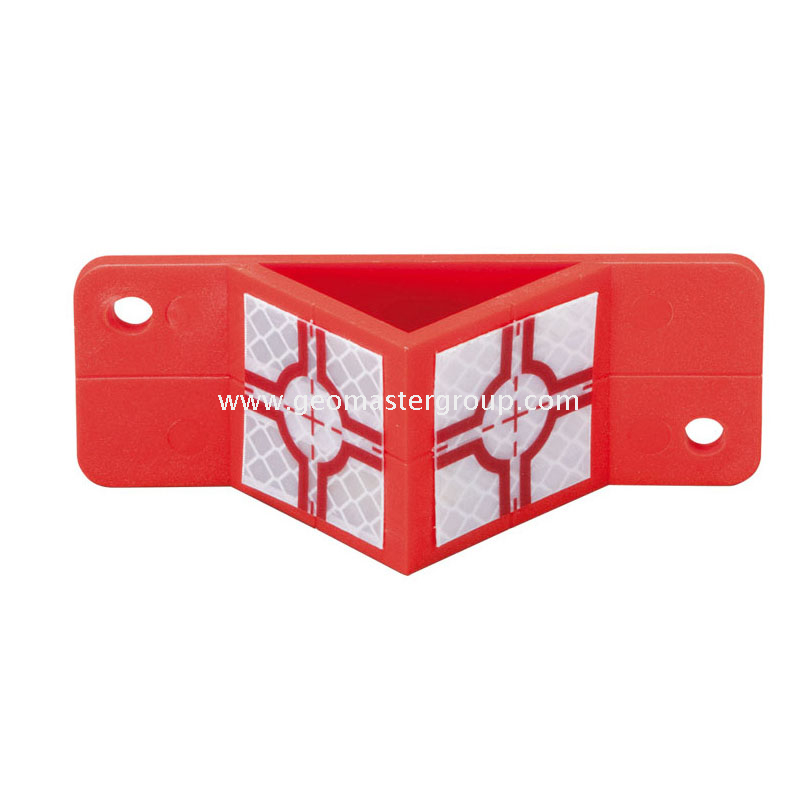

Model: SAT45-30WHT/C1-RD
1.Geomaster Smart Angle Target (SAT)
2.45-degree double-sided Retro Target (45)
3.Sheet Size: 30mm×30mm (30)
4.Patter Color: White (WHT)
5.Sheeting Style: Cross-hair (C1)
6.Back Base Color: Bright Red (RD)
7.Measuring Range: 150m
8.Replacement of Rothbucher RSAK130R
| Quantity: | |
|---|---|
SAT45-30WHT/C1-RD
Geomaster
9031809090
Specifications
Model: SAT45-30WHT/C1-RD
1.45-degree Retro Sheet
1)Sheet Size: 30mm×30mm
2)Pattern Color: White (WHT)
3)Sheeting Style: Cross-hair (C)
4)Measuring Range: 150-160m (depending on Surveying Instruments,orthogonal viewing...)
5)Replacement of Rothbucher Smart Angle Target (Survey Marker) RSAK130R with 30mm Retro Sheet
2.Back Mounting Base
1)Color: Bright Red (RD)
2)Dimensions: 100mm×36mm×3mm
3)Fixing Holes: 2×5.60mm (dia)
4)N.W.: 18g
Features
Model: SAT45-30WHT/C1-RD
1.Installed with double Retro Sheets (45 degree)
2.Sheeting Styles a/v: Cross-hair (C), Arrow-head (AH)
3.Pattern Colors a/v: Fluorescent Lime Green (GRN),Orange (ORG),Amber Yellow (YEL),White (WHT)
4.Back Base Colors a/v: Black(BK),Red (RD),Grey (GR)
5.Ideal for short-range monitoring in difficult construction sites such as bridges, tunnels,railway,subway constructions,etc.
6.Compatible with all present top-brand Surveying Instruments
7.Highly efficient retro-reflectivity 3M™ Diamond Grade™ Reflective Sheets available
8.Customization service available.
Note: Any updating would be subject to change without prior notice.
