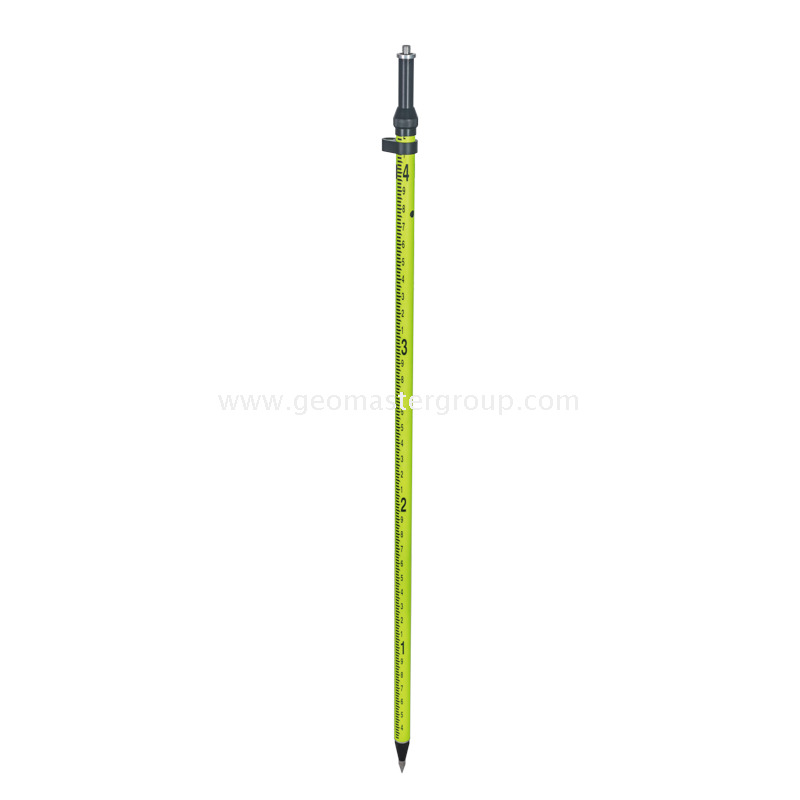

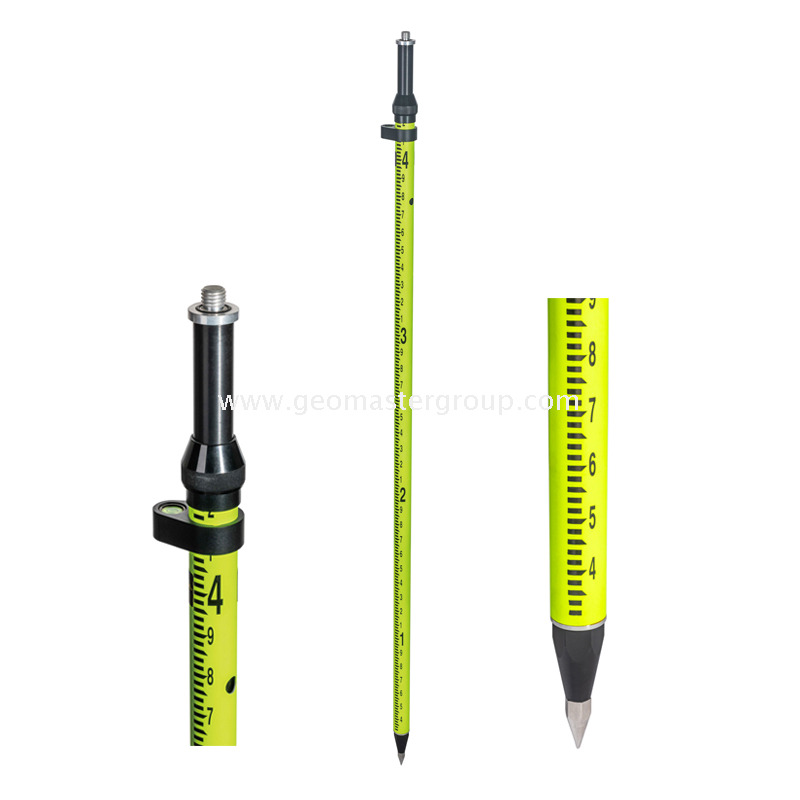

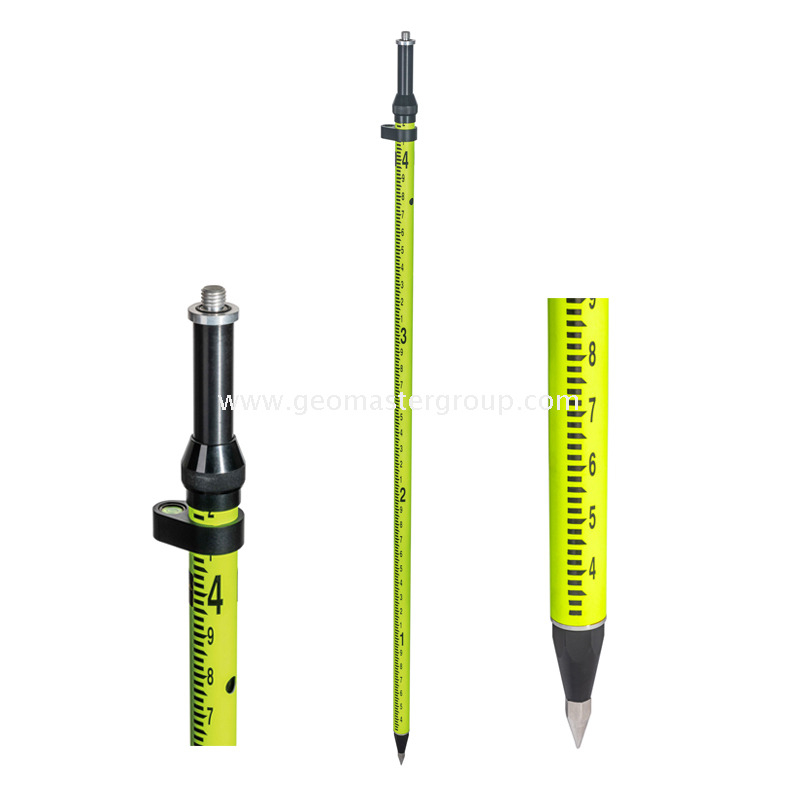

Snap-lock Rover Rod (2m)

Specifications & Features
Model: GLS30-200/FLY-GT

1.Dimensions & Construction
1)Maximum Length: 2m (6.56ft)
2)Minimum Length: 1.33m (4.36ft)
3)Sections: 2 sections, telescopic
4)Outer Tube Diameter: 32mm (1.25")
5)Inner Tube Diameter: 25mm (1")

2.Locking & Stability
1)Two Locking Systems (Snap Lock + Compression Lock) for enhanced stability
2)Snap Locking Position: at 2m

3.Graduations & Leveling
1)Graduation: External “GT” Graduations (10ths/100ths)
2)Adjustable Level Vial: 40-minute / 2mm for quick and accurate leveling

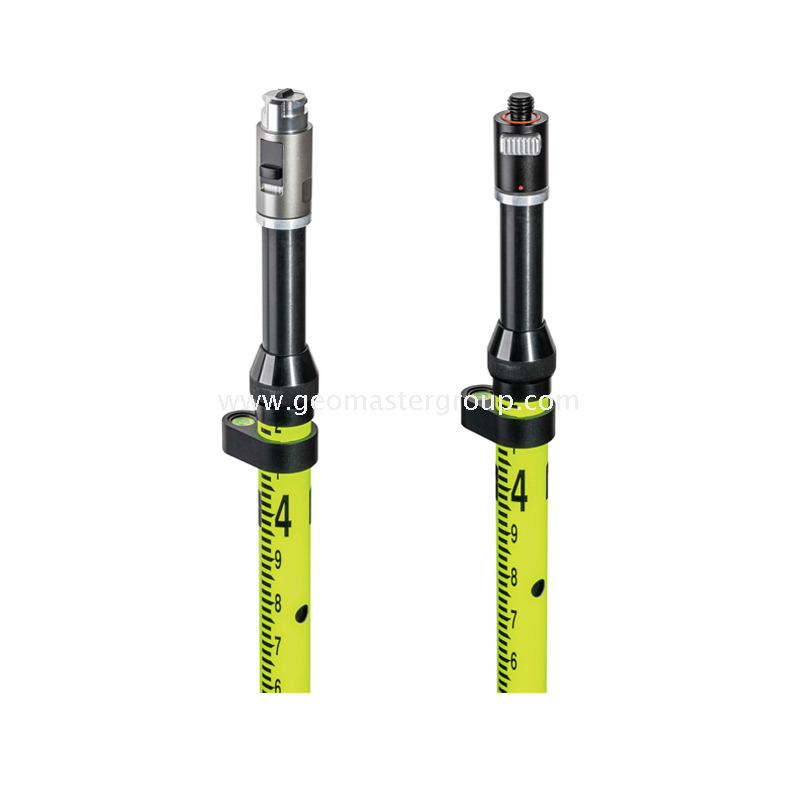

4.Mounting & Compatibility

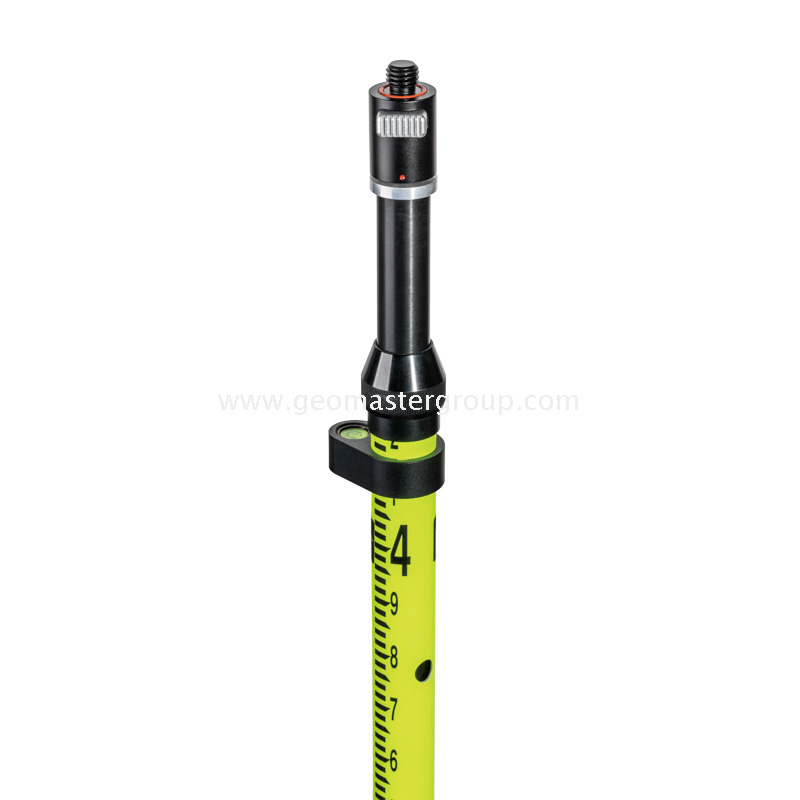

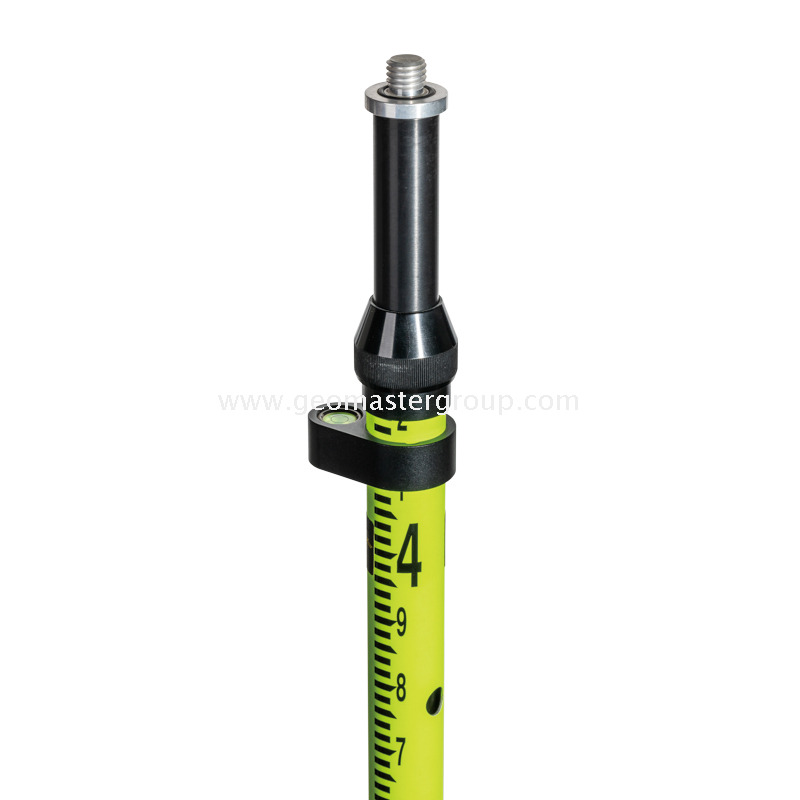

1)External Adapter Thread: 5/8"×11
2)Compatible with most surveying equipment (GPS receivers, GPS rovers, multitrack prisms,
prism holders, survey targets, laser scanner targets)

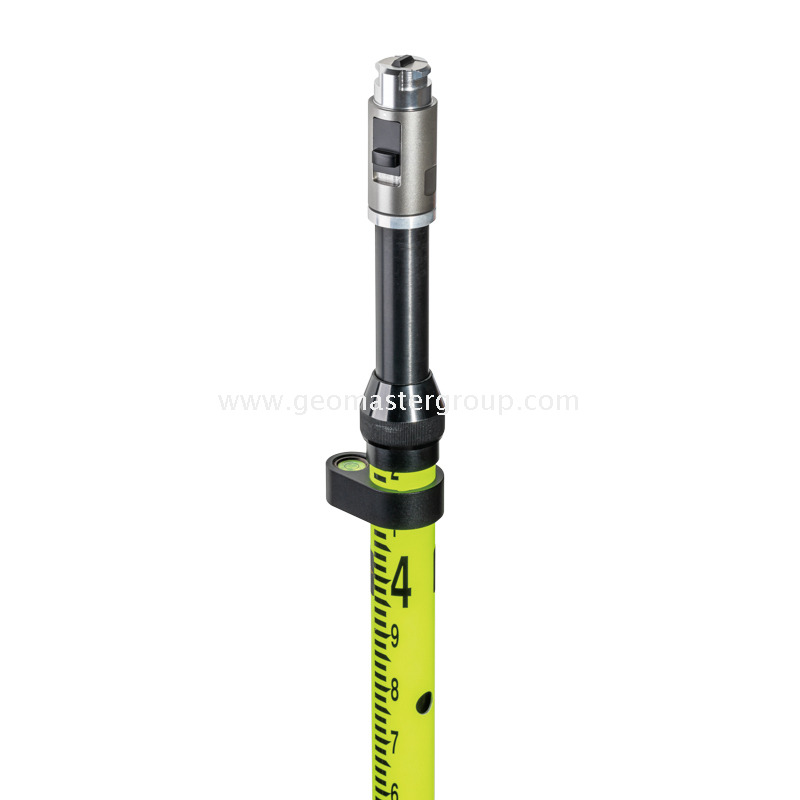

3)Swiss-style quick-release Spigot/Stub
available for compact surveying equipment (prism reflectors, prism targets, laser scanner
targets & spheres, retro targets, snap-on prisms, GNSS/GPS)

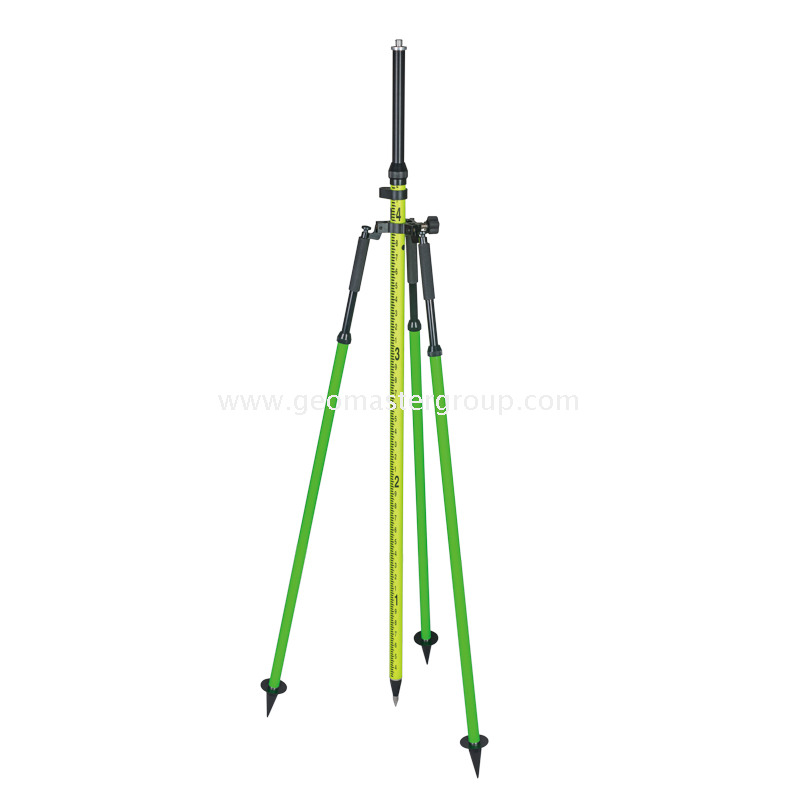

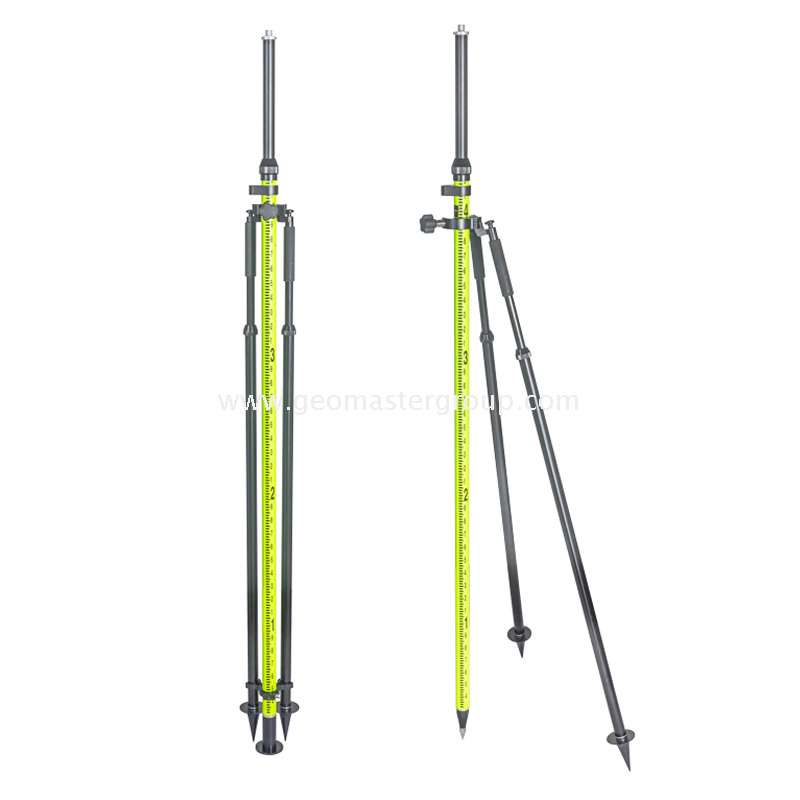

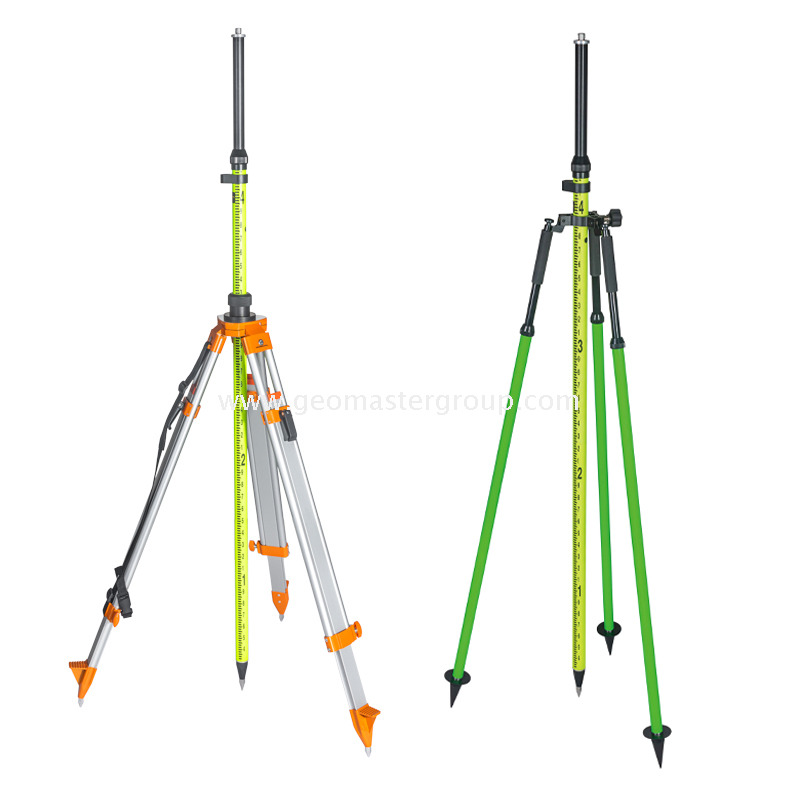

4)Tripod Compatibility
Works with surveying tripods, prism tripods, GPS tripods, laser tripods, prism bipods, and GPS bipods

5.Durability & Portability
1)Durable detachable metal feet with tip point for easy transfixing into the ground

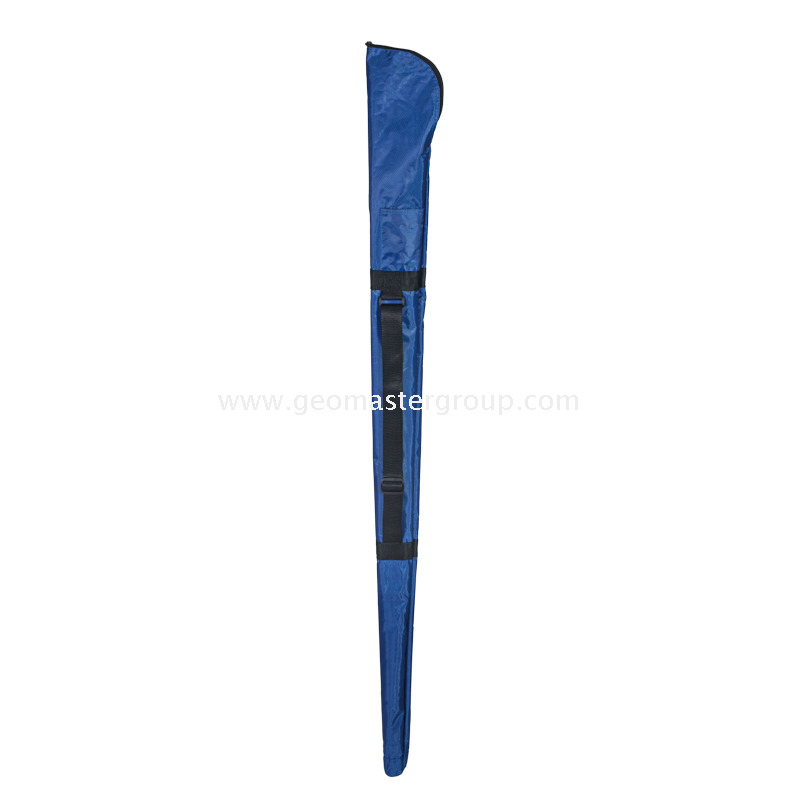

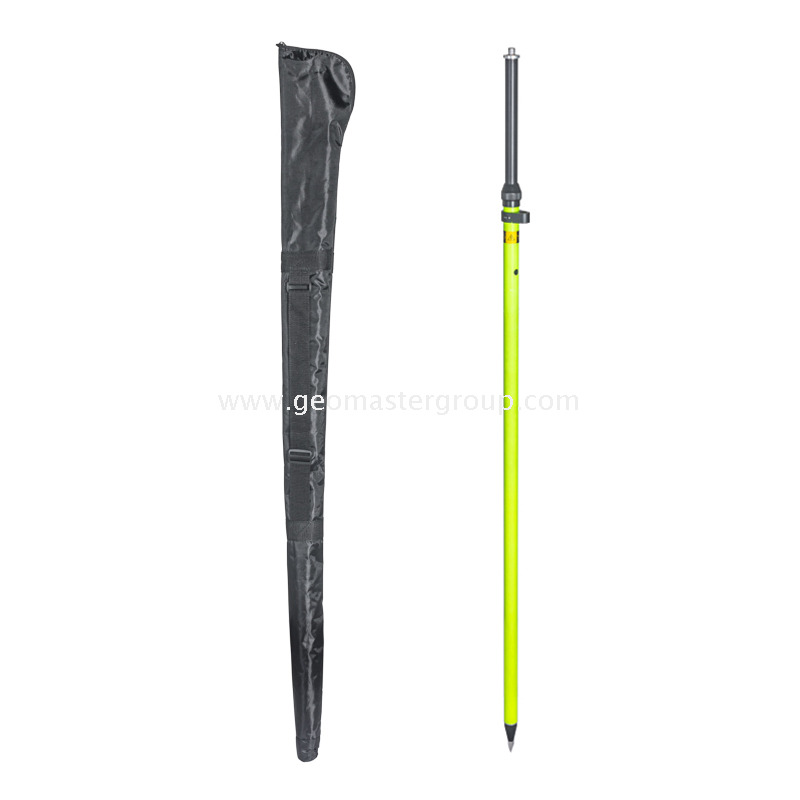

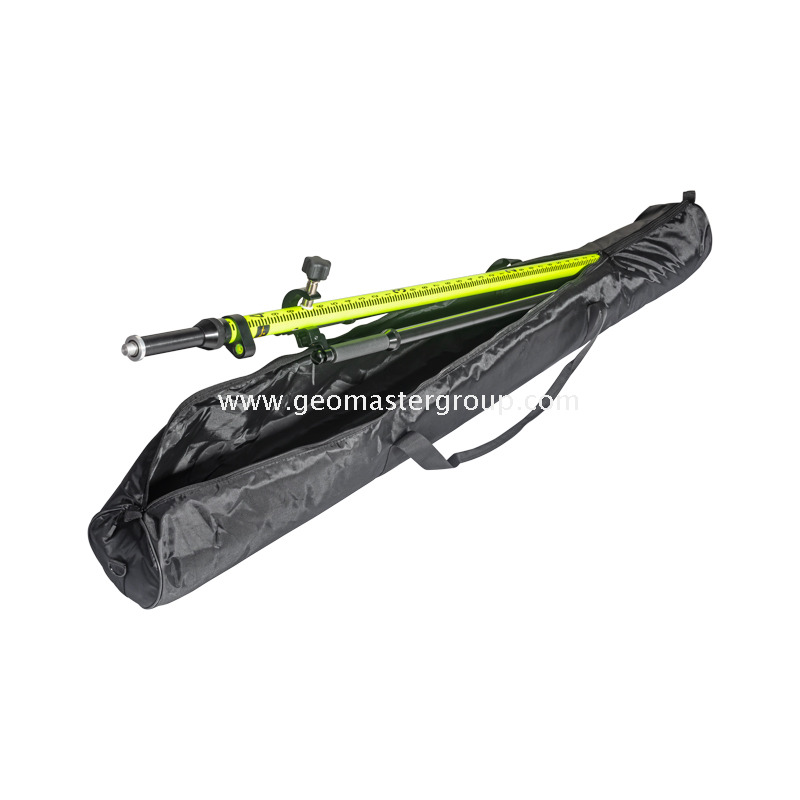

2)Robust soft carrying bag for transport during surveying

6.Customization Services Available
1)External Tube Graduations
“GT” (10ths/100ths) or “GT” (Metric)

2)External Tube Colors
Black (BLK), Regular Yellow (YEL), Regular Orange (ORG), Fluorescent Yellow (FLY), Fluorescent Orange
(FOR)

3)Locking Positions
1 Position (at 2m) or 3 Positions (at 2m, 1.8m, 1.6m)
