Highlights
Model: SPP8-58CU
1.Survey Point Plug/Survey Point Adapter
2.Plug Thread: Brass, Female M8
3.Plug Overall Length: 40mm
4.Universal Adapter: Brass, 5/8" ×11
5.Adapter Bottom Thread: Male, M8
6.Adapter Locking Hole: M6
7.For Survey Marks,Retro Targets,Scanner Spheres,SMR,etc
| Quantity: | |
|---|---|
SPP8-58CU
Geomaster
90159000
Specifications
Model: SPP8-58CU

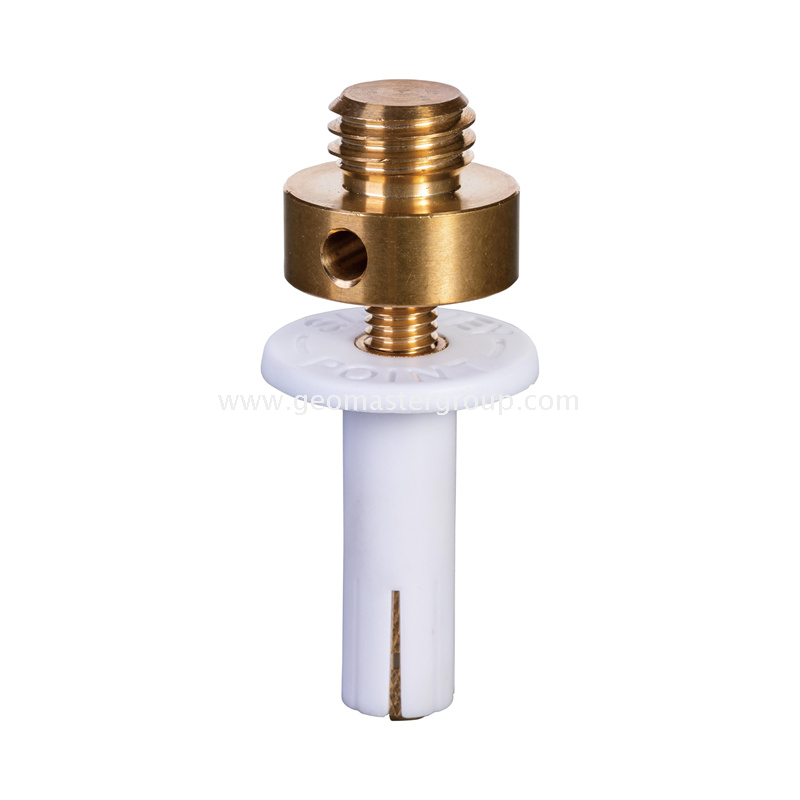

Including Survey Point Plug SPP8-40 and Prism Mount Adapter ADP8-58CU

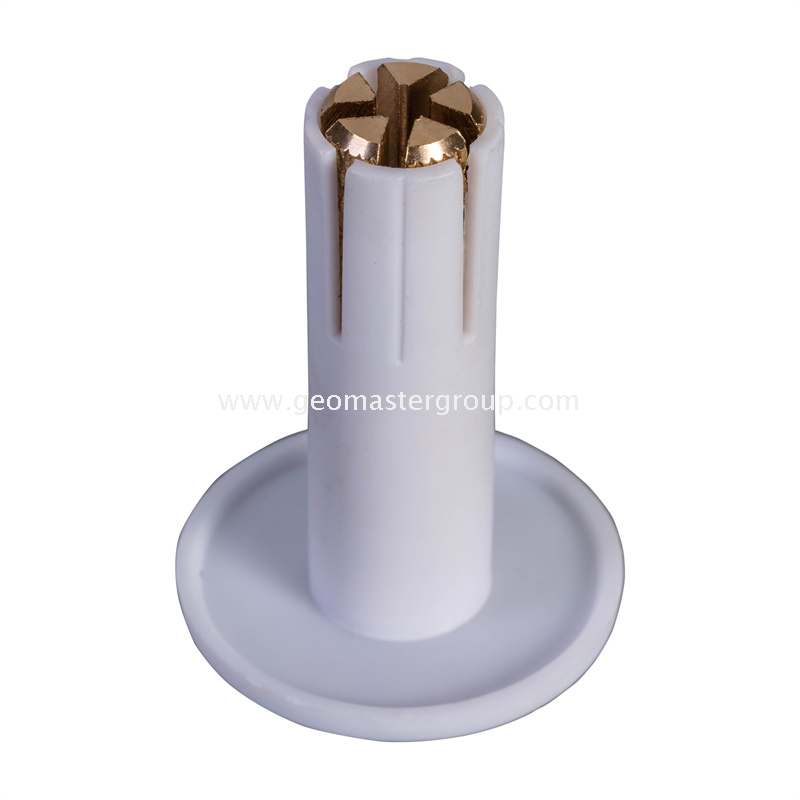

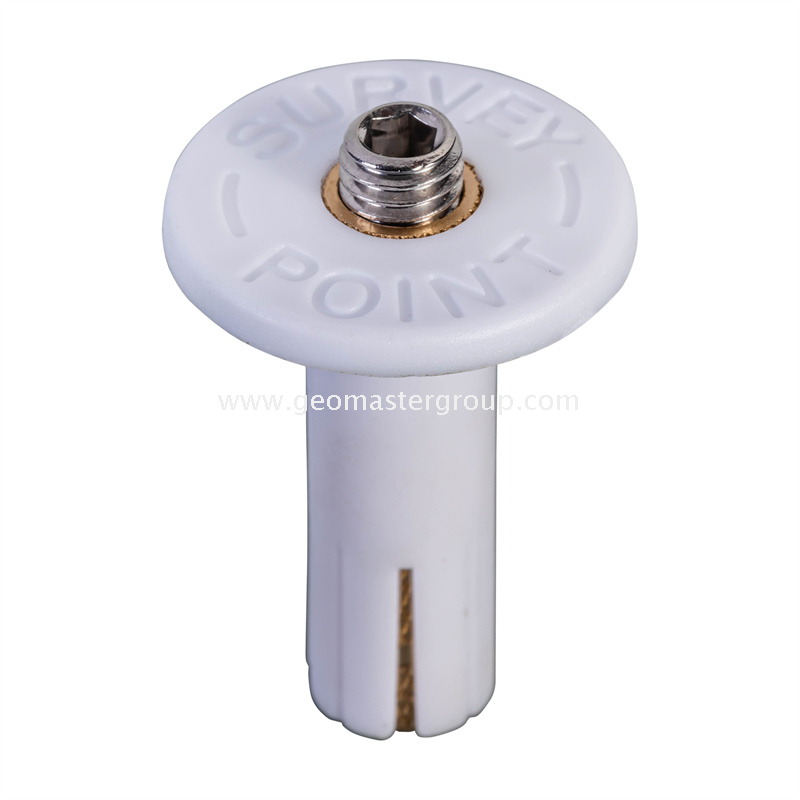

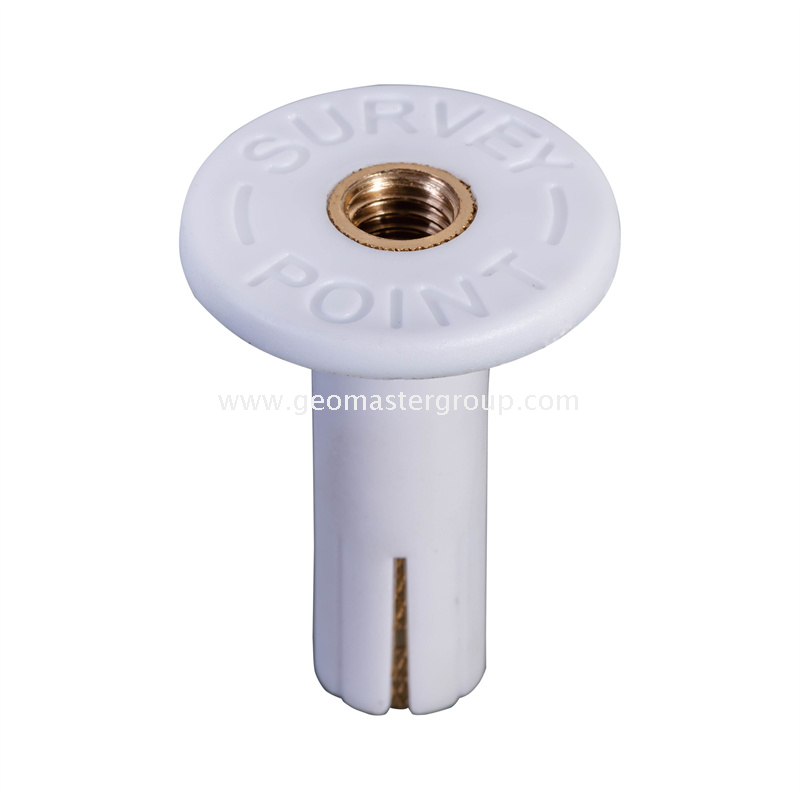

1.Survey Point Plug SPP8-40
1)Flat Head Diameter: 30mm
2)Brass Thread: Female (internal) M8
3)Overall Length/Height: 40mm
4)Grub Screw Diameter: M8×10
5)Steel Ball Diameter: M6
6)Shank Diameter: M12
7)Drill Diameter: 12mm
8)N.W.: 18-20g (full set)

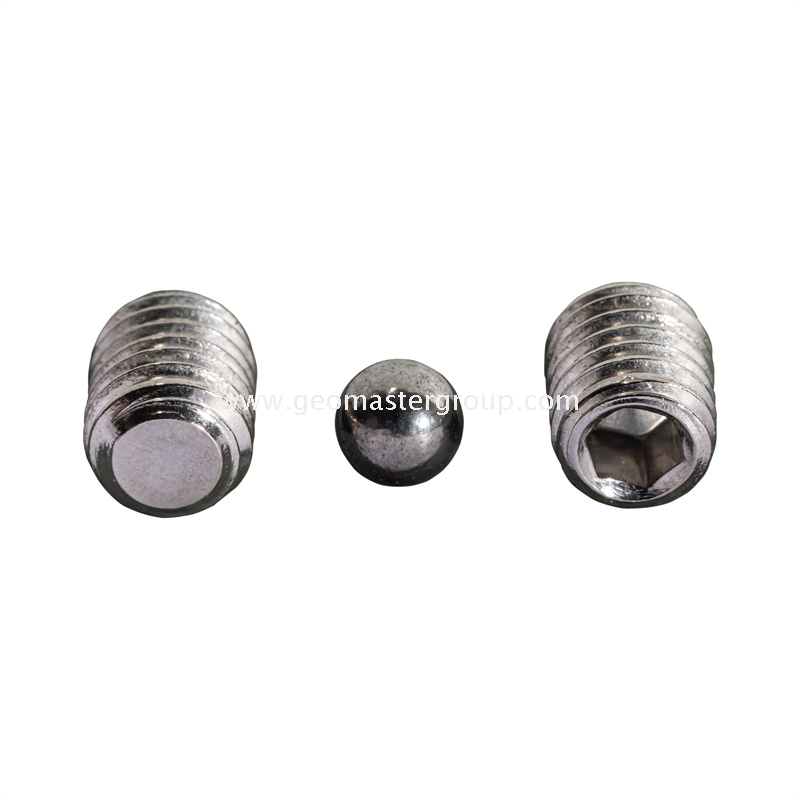

9)2pcs M8 Hex Grub Screws and 1pc Steel Ball

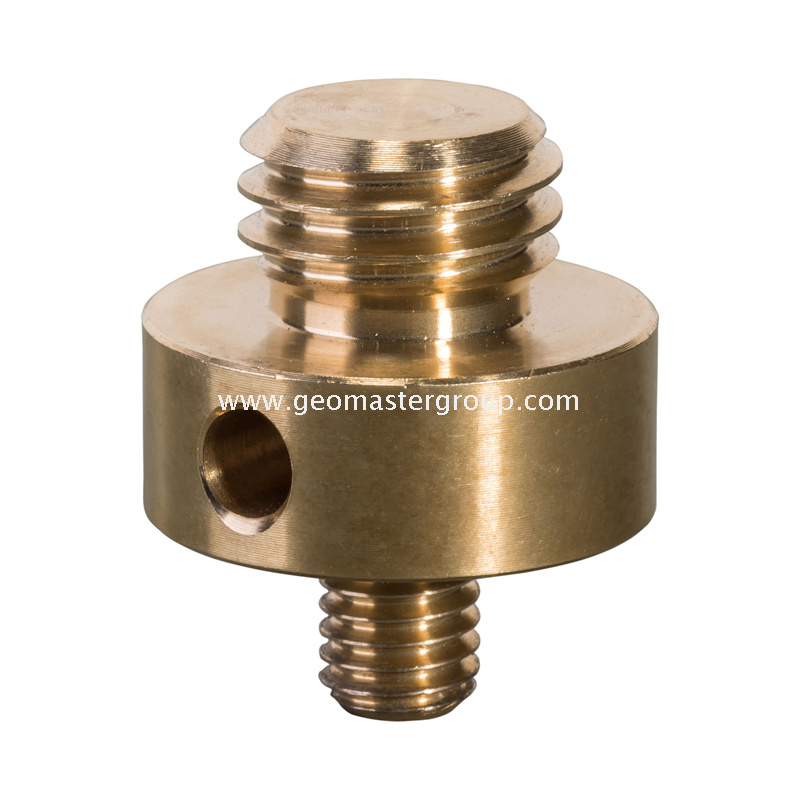

2.Prism Mount Adapter ADP8-58CU
1)Made of Brass H59-1
2)Bottom Thread: Male, M8
3)Top Thread: Universal Male Thread 5/8" ×11
4)Locking Style: equipped with Locking Hole M6
5)N.W.: 50-55g
Features
Model: SPP8-58CU
1.Brass Expansion Survey Point Plug used on the Wall or the Ground
2.White PVC Cladding, highly visible and corrosion-resistant
3.Three highly-visible Colors are available: red, white, yellow
4.Compatible with all Geomaster Geo-Adapters (ADP8 series):
ADP8-12CU,ADP8-58CU,ADP8-12SS/A,ADP8-12SS/B,ADP8-58SS/A,ADP8-58SS/B
5.Suitable for light-weight Surveying Accessories (Survey Marks,Surveying Prisms,Prism Holders,Retro Targets,Scanner Spheres,etc)
6.Customization service available
Note: Any updating would be subject to change without prior notice.
