V-type Prism Mount

Highlights
Model: VPM8-12
1.Stainless-steel Monitoring Prism Mount
2.w.Leica-style brass Spigot (Dia 12mm)
3.w.Circular Vial (40'/2mm)
4.For Surveying Prisms,Retro Targets,Scanner Spheres

Availability:
Quantity:
  • VPM8-12
  • Geomaster
  • 90159000

Specifications & Features
Model: VPM8-12

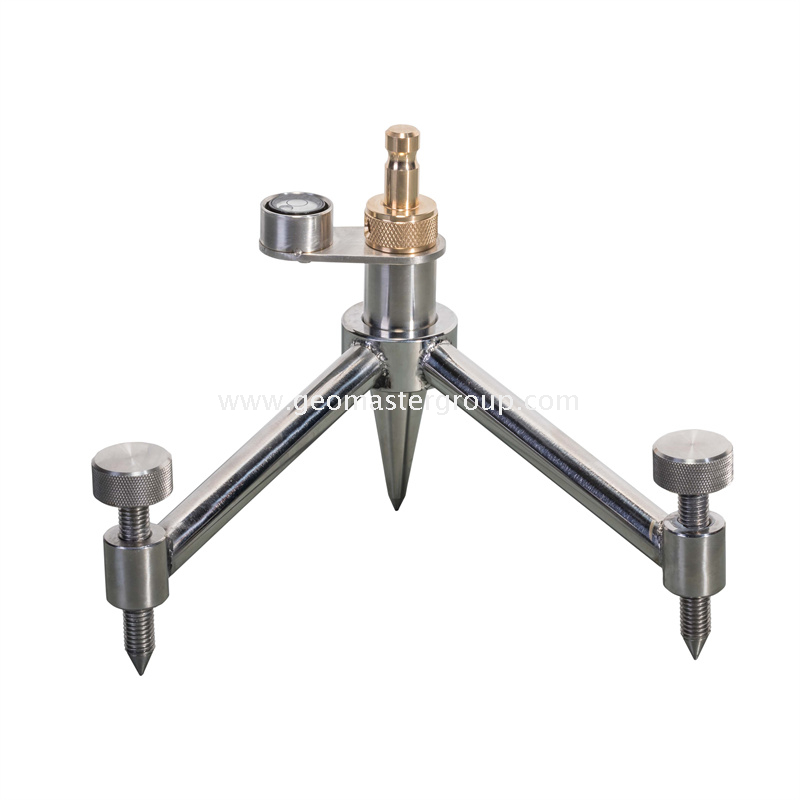

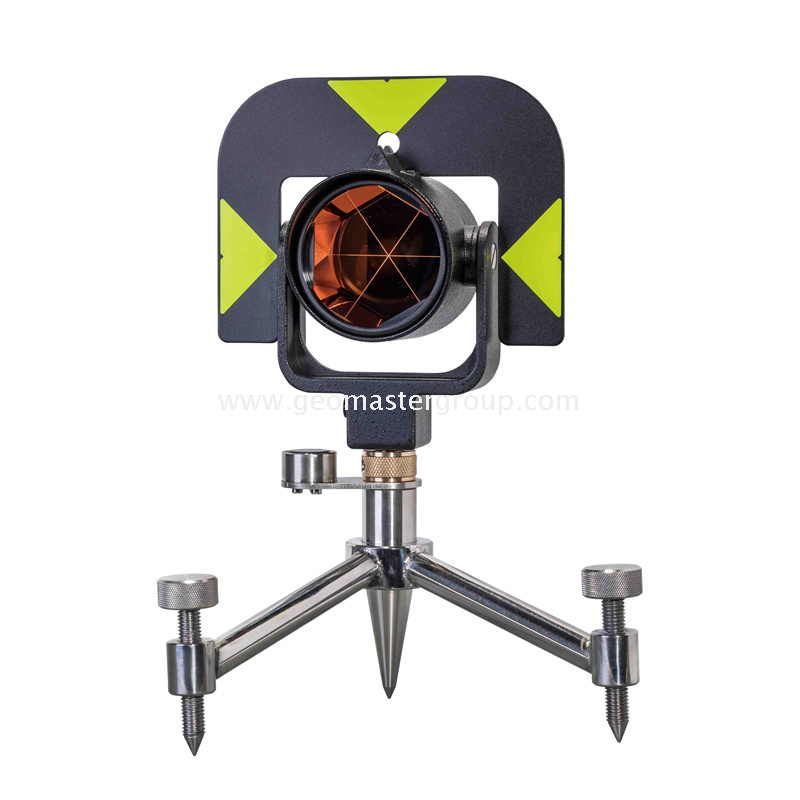

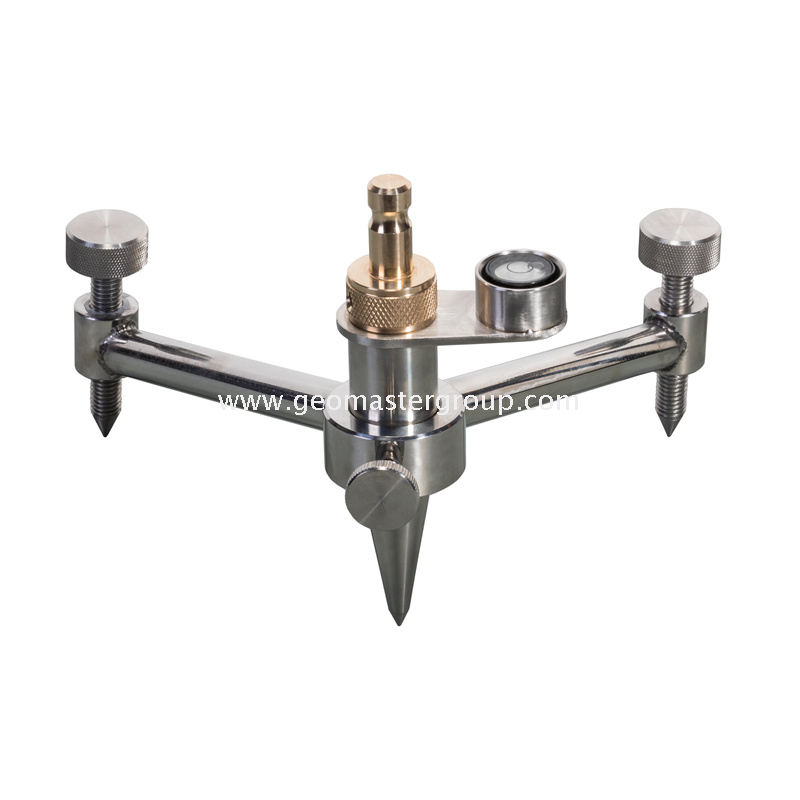

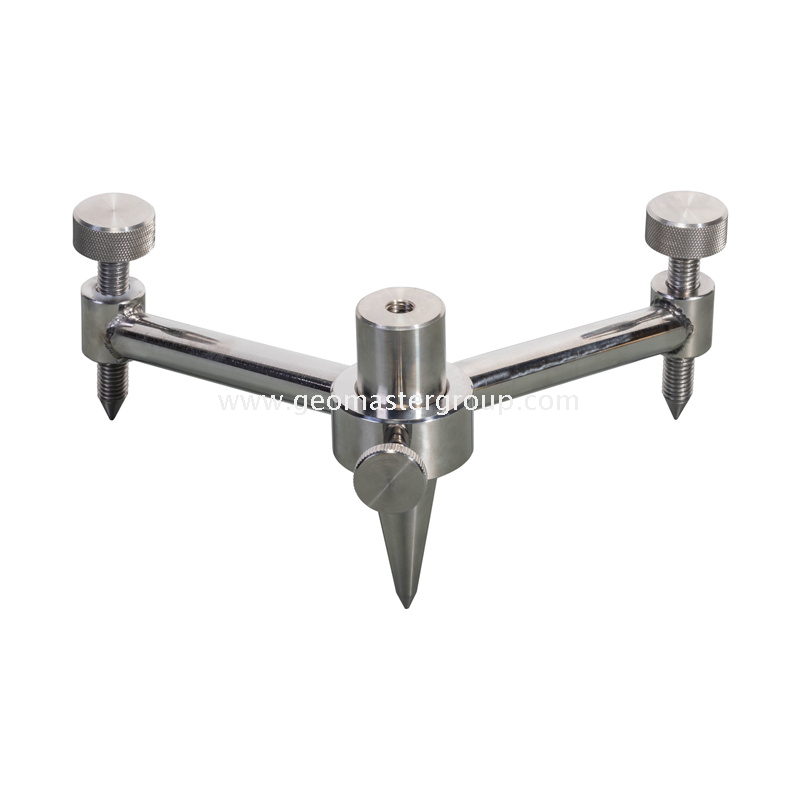

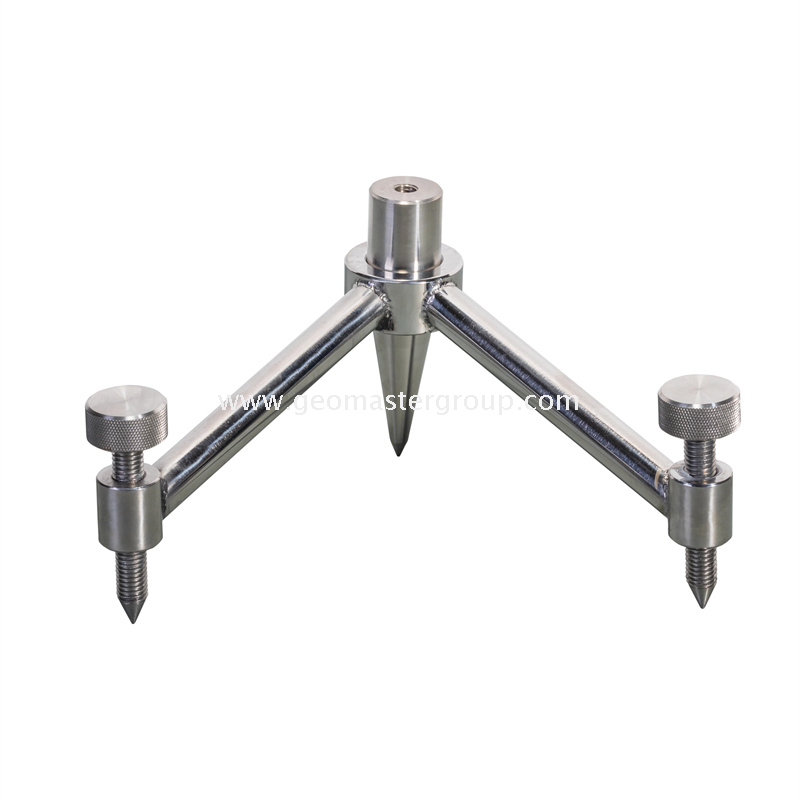

1.V-style Monitoring Prism Mount/Base/Tribrach
Made of stainless steel,compact surveying tool specially designed for exactly mounting and holding Monitoring Prisms, Prism Holders,Retro Targets, Scanner Spheres,etc over a survey mark.

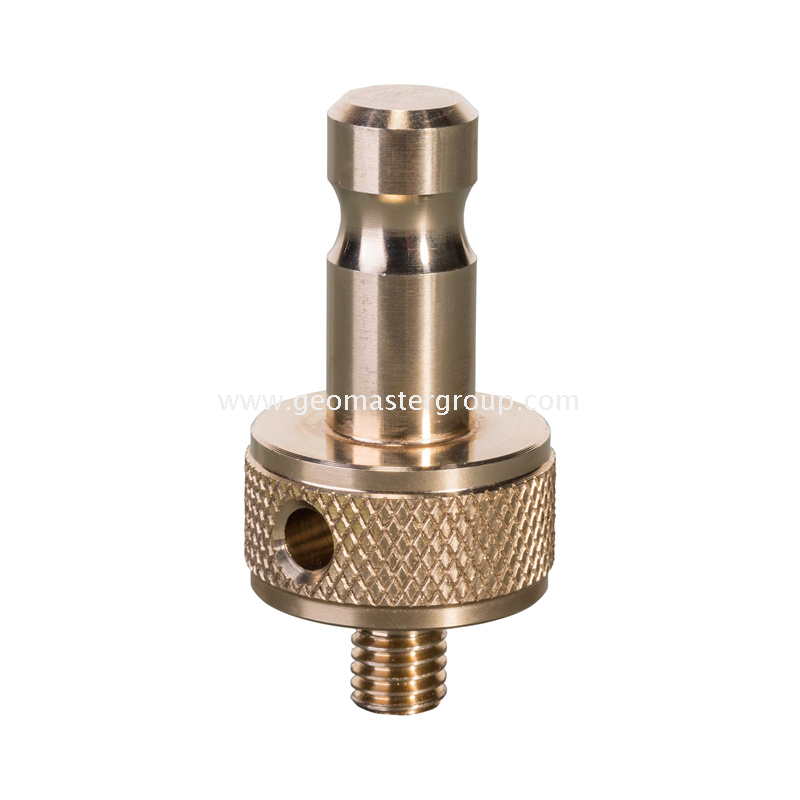

2.Installed w.Leica-style Adapter ADP8-12/CU
Made of Copper H59-1,M8 male thread to Leica-style Stub/Spigot Dia12±0.02×40mm; N.W.: 75-80g, compatible with all Geomaster Leica-style Prisms,Prism Holders and Retro Targets such as GHP1, GHP3, GHP1P, GPR111, GPR121, GPR113, GRZ4, GRZ12, MPR122, etc


3.Coming w.on-board Circular Bubble CB-40
40'/2mm adjustable Circular Vial for quick aligning and positioning

4.Customization service available

Note:
Any updating would be subject to change without prior notice.


Related Names
Surveying Accessories,Surveying Equipment, Surveying Instrument,Fixed Adapter,Fixed Carrier,GPS Adapter,Mini Adapter,Optical Carrier, Precision Carrier,Precision Optical
Carrier, Prism Adapter,Prism Carrier,Rotating Adapter,Rotating Carrier,Scanner Sphere Adapter,Tribrach Adapter,Surveying Tribrach, Traverse Tribrach,GPS Tribrach,Prism
Tribrach, GNSS Tribrach, Laser Tribrach,Traverse Kit,Swiss-style Tribrach,Swiss-style Adapter,Traverse Adapter,Leica Tribrach,Seco Tribrach,Sokkia Tribrach,Nikon Tribrach,
Topcon Tribrach, Trimble Tribrach,Pentax Tribrach, Zeiss-Wild Adapter,Geomaster Tribrach, Geomaster Adapter,Universal Tribrach, Bubble Vial, Bubble Level, Rod Level,
Circular Level, Circular Bubble, Plate Level, Plate Bubble, Railshoe,Mini Tribrach
,Track Prism,Mini Bipod,Mini Tripod

Packing Details
Model: VPM8-12
1.N.W.: 1045-1050 (the whole set)
2.Qty./CTN: TBD
3.G.W./CTN: TBD
4.Size/CTN: TBD
