Ever wonder how surveyors measure buildings without walking to them? It’s not magic—it’s reflectorless total stations. These tools use lasers, not mirrors, to find distances fast and safe. They're changing how we build, map, and measure.
In this post, you’ll learn how reflectorless total stations work,why they matter, and when to use them in the field.

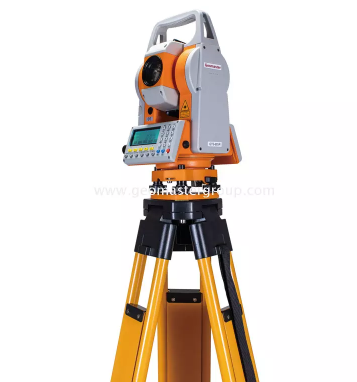

A reflectorless total station is a modern surveying tool that uses a laser or infrared beam to measure distances. Unlike traditional total stations, it doesn't rely on a physical reflector. Instead, the laser beam bounces back from the target surface, and the device calculates the distance based on the time it takes for the beam to return.
The key difference between traditional and reflectorless total stations lies in their measurement method. Traditional models require a prism to reflect the laser back to the station, while reflectorless versions allow measurements without needing one. This makes them more versatile, especially in challenging environments.
Reflectorless total stations are useful for measuring hard-to-reach locations, like rooftops, cliffs, or dense urban areas. They're also great for situations where safety is a concern, such as measuring over rivers or across busy streets. If you want to know more details about total stations, please check the use of a total station.
Total station technology has come a long way. Early models were manual, requiring surveyors to manually adjust the instrument for every measurement. These devices were accurate but slow and labor-intensive.
Later, robotic total stations were introduced. These allowed for remote control, enabling faster and more efficient surveying. Operators could control the station from a distance, reducing the need for physical interaction with the equipment.
Today, we have the reflectorless total station. It integrates laser measurement technology, allowing for quick, accurate readings from a distance. Many models now include GPS integration, imaging features, and remote control capabilities. This advancement further streamlines the surveying process, making it more efficient and adaptable to various project needs.
Reflectorless total stations measure distance using a method called Electronic Distance Measurement (EDM). EDM works by sending out a laser or infrared beam towards a target surface. Once the beam hits the surface, it reflects back to the station. The instrument calculates the time it took for the beam to travel to the target and back.
This process relies on the "time of flight" principle. The total station measures how long the light takes to travel to the target and back. By knowing the speed of light, the station can determine the distance based on the time it took for the laser beam to return.
The laser or infrared beam plays a crucial role in the measurement. It travels in a straight line until it hits a surface. The device then calculates how far the light traveled using the time it took for the beam to reflect back. This method makes measurements quick and accurate.
Once the instrument has the time it took for the light to travel, it uses the speed of light (roughly 299,792 kilometers per second) to calculate the distance. The calculation is precise and nearly instant, making reflectorless total stations efficient for surveying.
A few key components work together to make these measurements:
Telescope: Used to aim the instrument at the target and measure angles.
EDM Module: Emits the laser or infrared beam and receives the reflected signal.
Internal Processor: Calculates the distance by processing the time-of-flight data.
Display and Data Storage: Shows the distance in real-time and stores the data for later use or export.
Setup and LevelingThe first step is to set up the total station on a stable tripod. It’s crucial to make sure the instrument is level before starting any measurements. A built-in spirit level or electronic bubble in the total station helps achieve this. Proper leveling ensures the accuracy of the measurements, as even slight tilts can affect the readings.
Aiming at the SurfaceOnce the total station is set up and leveled, the operator uses the telescope to aim at the target surface. This could be a building, a tree, or any other object in the field. The goal is to align the instrument’s line of sight with the surface being measured. If needed, the instrument is fine-tuned to ensure precise alignment.
Emitting the Laser BeamWhen the instrument is properly aimed, the EDM module sends out a laser or infrared beam toward the target surface. The beam is invisible, but the instrument continuously monitors its path. This beam travels to the surface and reflects back to the total station. The speed of light is constant, so the time it takes for the beam to return is directly proportional to the distance.
Measuring the Time it ReturnsThe total station measures the time it takes for the light to travel to the target and return. This is called the "time of flight." The instrument is equipped with an internal clock to record this time precisely. The accuracy of the total station depends heavily on this measurement, as even tiny errors in timing could lead to significant discrepancies in distance readings.
Calculating Distance and AnglesUsing the recorded time, the internal processor calculates the distance to the target. The time taken by the light to travel to the target and back is multiplied by the speed of light, then divided by two (since the light travels to the target and back). The total station also measures horizontal and vertical angles to the target, allowing it to determine the exact position in three-dimensional space.
Storing and Processing DataOnce the distance and angle measurements are complete, the total station stores this data for processing. Many modern total stations have built-in storage, which allows operators to download the data for further analysis or transfer it to a computer for plotting and mapping. Some models even send the data directly to cloud-based systems for real-time access.
A reflectorless total station doesn’t just measure distances. It also measures angles to provide a complete picture of the surveyed area.
Horizontal and Vertical AnglesThe total station measures both horizontal and vertical angles to the target. These angles are essential for determining the precise location of the target in relation to the instrument. Horizontal angles are measured around a fixed point, while vertical angles help determine the height difference between the instrument and the target.
Determining X, Y, Z CoordinatesUsing the measured distances and angles, the total station calculates the X, Y, and Z coordinates of the target. The X and Y coordinates represent the horizontal position, while the Z coordinate represents the elevation or height. These coordinates are calculated using trigonometric methods and allow surveyors to map the exact position of the target in three-dimensional space.
Triangulation MethodTriangulation is the key mathematical method used to determine the coordinates. By measuring two or more angles and distances from known points, the total station can calculate the position of an unknown point. This process creates a triangle between the instrument and the target. By solving for the unknowns, the total station determines the precise location of the target in space.
In some cases, the total station may use multiple reference points to improve accuracy. This method is particularly useful for large-scale surveying projects, such as road construction or mapping large areas of land. Each measurement taken from different positions helps refine the location of the target, reducing the potential for errors.
Reflectorless total stations are highly accurate, but they do have some limitations compared to traditional prism-based systems. Typically, the accuracy is within a range of a few millimeters to a few centimeters, depending on the model. However, for best accuracy, measurements should ideally be taken within 500 meters. Beyond this range, accuracy can degrade due to factors like signal dispersion and surface reflection.
Prism-based systems tend to offer more reliable accuracy over longer distances, often achieving precision at ranges of up to 3,000 meters. In contrast, reflectorless total stations generally offer high accuracy at shorter distances (under 500 meters). While reflectorless systems are more versatile and convenient, prism-based systems still lead in terms of long-range precision.
For reflectorless total stations, the best results are obtained when the target is within 500 meters. Accuracy starts to drop at longer distances, as the laser beam becomes more diffused, and the return signal weakens. Therefore, it's ideal to use reflectorless total stations for measurements in relatively close range, typically under 500 meters.
Surface Type (Matte vs Shiny)
The surface type significantly influences the measurement accuracy. Matte, light-colored surfaces reflect the laser better, providing more reliable readings. Shiny, dark, or rough surfaces, on the other hand, scatter the light, which can lead to inaccurate measurements.
Incident Angle of the Laser Beam
The angle at which the laser beam strikes the target is another factor. If the laser hits the surface at a steep angle, less light is reflected back, causing weaker signals and less accurate results. For optimal accuracy, the laser should ideally strike the target directly or at a shallow angle.
Environmental Conditions (Fog, Rain, Sunlight)
Environmental conditions can affect the accuracy of measurements. Fog, rain, or even intense sunlight can interfere with the laser's path, scattering the light or causing it to be absorbed by particles in the air. These conditions can reduce the distance the laser travels and distort the return signal.
Distance to Target
The farther the target, the less accurate the measurement becomes. Reflectorless total stations tend to lose precision at longer distances. As the laser travels farther, the beam spreads out, and the signal strength weakens, resulting in a drop in measurement reliability. Keeping the target within the ideal range of 500 meters ensures the best accuracy.
Always Calibrate Before Use
Calibration is crucial to ensure accurate measurements. Always check that your total station is calibrated before starting the survey. This helps avoid any errors caused by incorrect readings or faulty measurements. Calibrate the instrument regularly to maintain its precision.
Choose the Correct Measurement Mode (Prism vs Non-Prism)
Select the appropriate mode depending on your environment and target. If you’re measuring a distant target or one that is not easily accessible, use the non-prism (reflectorless) mode. For areas with clear visibility and less interference, prism-based measurements are ideal for high-precision readings.
Avoid Steep Angles for Best Reflection
To get the best reflection and more accurate readings, aim for shallow angles when shooting your laser. Steep angles cause the light to scatter, weakening the signal and affecting the measurement. Always try to keep your laser beam as direct as possible.
Store and Label Data Clearly for Later Processing
After taking measurements, ensure you store and label the data properly. This makes it easier to retrieve and process the information later. Accurate labeling prevents confusion when dealing with large sets of data and ensures that measurements are correctly associated with specific locations or points in your project.
Reflectorless total stations offer flexibility, safety, and efficiency, making them ideal for modern surveying and engineering. They are particularly useful for solo work and in areas that are difficult to access, such as high-rise buildings, cliffs, or dense forests.
A reflectorless total station uses a laser or infrared beam to measure distances without needing a physical reflector, ideal for hard-to-reach areas.
They are highly accurate within 500 meters, though accuracy decreases with distance and surface conditions.
Environmental factors like fog, rain, and sunlight can affect measurements, so it's best to avoid using the instrument under such conditions.
Most reflectorless total stations provide optimal accuracy within 500 meters. Beyond that, accuracy may degrade.
No, reflectorless total stations do not need a prism, making them ideal for measuring targets that are difficult to access.
