Ever wondered how far a total station can shoot? The answer depends on factors like prism type and surface reflectivity. Understanding these variables is key for accurate measurements.
In this post, we’ll explore the range capabilities of total stations. You’ll learn how different methods—prism vs. reflectorless—affect distance and precision. We’ll break down the main factors influencing shooting range and help you choose the right total station for your project.
Definition of Total Station

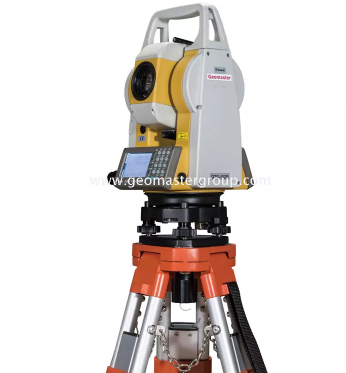

A Total Station is a high-tech surveying instrument. It combines a theodolite’s angle measurement with electronic distance measurement (EDM) technology. This lets surveyors measure distances, angles, and elevations accurately. It’s used in many fields, including construction and land surveying.
Importance of Range in Surveying
The range of a total station is a critical factor in choosing the right tool. For example, large construction sites or infrastructure projects require long-range capabilities. Knowing how far a total station can shoot ensures you’re picking the right one for your needs.
Prism vs. Reflectorless Measurement
Total stations can measure distances using two methods: a prism or reflectorless. The method you choose has a big impact on the shooting range.
Ranges vary from 300 feet to 3,000 feet, depending on the surface.
Reflectorless measurement works best on smooth, reflective surfaces.
Distances can reach up to 1,500 meters (5,000 feet) and even 3,000 meters (9,800 feet).
360-degree prisms are more flexible than standard round prisms, as they don't require direct alignment. You can measure in any direction.
Prism-Based Measurements:
A prism offers greater range and accuracy.
Reflectorless Measurements:
Reflectorless technology uses a laser beam instead of a prism. It’s quicker but has a shorter range.
Surface Reflectivity and Environmental Conditions
The surface you're measuring plays a key role in how far a total station can shoot. The beam’s ability to reflect depends on the surface’s characteristics.
White surfaces (like paper or concrete) reflect better than dark surfaces (like asphalt).
Weather conditions like fog, rain, or dust can limit the laser's effectiveness. Visibility is important for accuracy, as these factors scatter the laser beam.
360-Degree Prism vs. Standard Round Prism
Total stations equipped with prisms can measure distances over long ranges. The type of prism you use plays a key role in how far it can shoot.
A 360-degree prism provides greater flexibility and allows for a wider range of measurement. Unlike the standard round prism, it can capture data from any angle, making it perfect for complex or large-scale surveys.
A typical 360-degree prism can measure up to 1,500 meters (5,000 feet), offering excellent accuracy for projects requiring significant distance measurements.
Standard round prisms, on the other hand, can reach up to 3,000 meters (9,800 feet) but require direct alignment with the total station. This means they need to be pointed in the exact direction of the total station, limiting their use in some scenarios.
Example: Measuring Large Construction Projects
Using a total station with a standard round prism can be invaluable on large construction sites. For example, if you're working on a massive building project, the ability to measure distances of over 3,000 meters (9,800 feet) allows surveyors to determine exact positions of structural elements over vast areas.
Long-range measurements with a round prism make it easier to map out large-scale projects such as the layout of a highway or the placement of structural supports in a skyscraper.
The total station’s ability to shoot long distances provides crucial data to guide workers, reducing the risk of errors and ensuring everything is in the right place.
A total station with a 360-degree prism can also be used for more versatile measurements across large sites, especially when the layout is complex or has multiple angles.
Range of Reflectorless Total Stations
Reflectorless total stations are a great tool for quick measurements. However, their range is typically shorter compared to those using prisms.
A reflectorless total station can measure from 100 meters (328 feet) up to 2,000 meters (6,561 feet). This distance varies depending on surface reflectivity and the laser strength.
The laser beam’s effectiveness is influenced by the surface’s ability to reflect light. Smooth, light-colored surfaces reflect better than rough or dark ones. For example, a shiny, white wall will allow for longer range than a textured asphalt surface.
Advantages of Reflectorless Measurement
Reflectorless technology offers several advantages, making it useful for various surveying tasks.
Safety: One major benefit of reflectorless total stations is the ability to measure hard-to-reach points safely. Instead of using a prism pole, which often requires workers to be at risky heights or in dangerous positions, surveyors can measure from the ground. This reduces the need for scaffolding or ladders, which can be both time-consuming and hazardous.
Flexibility: Reflectorless total stations can be used to measure points that are obstructed. For instance, if there are piles of construction materials blocking your line of sight, the laser can still reflect from distant surfaces. Similarly, you can measure around overhead beams or between walls without needing to move or climb equipment.
Reflectorless technology helps surveyors perform tasks more efficiently and safely, especially when working in complex environments or challenging locations.
Prism Type and Configuration
The type of prism used is crucial when it comes to the range of a total station.
A 360-degree prism is more versatile than a standard round prism. It allows for greater flexibility, as it can measure from any angle. This results in a wider range for measurements, making it ideal for complex sites.
A standard round prism, while effective, requires the total station to be directly aligned with the prism, which can limit its range and precision, especially when working in tight or obstructed spaces.
Surface Reflectivity
Reflectorless measurements depend on how well the surface reflects the laser beam.
Smooth, light-colored surfaces, such as concrete or paper, reflect the laser much better than dark, rough surfaces like asphalt or dirt.
The reflectivity of the surface directly affects how far the total station can shoot, especially for reflectorless measurements. The higher the surface reflectivity, the further the measurement can go.
Environmental Conditions
Weather conditions can significantly impact the shooting range of a total station.
Rain, fog, and dust can scatter the laser beam, reducing its strength and causing less accurate measurements.
Temperature variations can also affect the laser’s precision, as heat can bend the beam and distort readings.
Visibility
Clear lines of sight are crucial for longer-range measurements.
In clear conditions, measurements can reach their full potential. However, when there are obstructions such as buildings or trees, the range can be limited.
Reflectorless technology is particularly impacted by obstructions, as the laser needs a clear path to reflect back to the total station.
Choosing the Right Method Based on Project Requirements
When deciding between a prism-based or reflectorless total station, it’s important to consider your project’s needs.
If you’re working on a construction site with large, open spaces and minimal obstructions, a prism-based total station is often the best choice. It offers the longest range and most accurate measurements, especially over long distances like 3,000 meters (9,800 feet).
For projects in confined spaces or areas with obstructions, a reflectorless total station might be more practical. It provides greater flexibility and allows for measurements in places that might be difficult to reach with a prism. For example, you can measure around walls, overhead beams, or through narrow spaces without needing to move bulky equipment.
Cost-Effectiveness and Safety Considerations
The choice between the two methods also depends on your budget and safety needs.
Reflectorless models can be more expensive but they can save time by reducing the need for additional equipment like scaffolding or ladders. If you're working at heights or in potentially dangerous areas, the safety benefits of reflectorless technology are significant. You can take measurements from a safe distance, avoiding the risk of accidents while improving efficiency.
While a prism-based total station may be more affordable, it might require extra personnel or equipment to position the prism properly, especially on large construction sites. This can increase costs and slow down the process.
Accurate Measurements for Complex Projects
Whether you're working on construction, land surveying, or infrastructure projects, knowing how far your total station can shoot is essential for completing tasks accurately. For large projects that span long distances, having the right shooting range ensures you can measure with precision, especially when dealing with complicated terrains or hard-to-reach points. Accurate measurements prevent costly errors and help ensure that every element is correctly placed.
Increased Productivity
The ability to choose between prism-based and reflectorless technology can make a big difference in how quickly you can complete surveys. If you're dealing with a large, open site, a prism-based total station might be the best option for long-range measurements. However, if you're working in a confined or obstructed space, a reflectorless model can allow for faster measurements without the need to reposition a prism. Understanding the range capabilities helps you choose the right equipment, which can save time and increase overall productivity.
Enhanced Safety on Job Sites
Reflectorless technology offers significant safety benefits. By reducing the need to move into hazardous areas, such as high-up scaffolding or areas with construction materials, you can measure from a safe distance. This feature is especially helpful in environments where workers are exposed to risks, such as high-rise buildings or construction sites with heavy machinery. Reflectorless total stations help avoid accidents and contribute to a safer working environment.
When choosing a total station, it's important to assess whether you need the long-range, high accuracy of a prism-based model or the flexibility and safety offered by a reflectorless version. Your decision should be based on the specific requirements of your project, the environmental conditions, and safety factors.
Understanding the range and accuracy of your total station allows you to maximize its efficiency. By doing so, you ensure that your surveying tasks are completed with the most accurate and reliable results.
1. What is the main difference between a prism-based and a reflectorless total station?
A prism-based total station uses a prism for long-range, accurate measurements, while a reflectorless model uses a laser beam to measure distances without a prism, offering flexibility in hard-to-reach areas.
2. How far can a total station shoot with a prism?
A total station with a 360-degree prism can measure up to 1,500 meters (5,000 feet), while a standard round prism can reach up to 3,000 meters (9,800 feet).
3. What factors affect the shooting range of a total station?
Factors include the type of prism, surface reflectivity, environmental conditions, and visibility. These all impact the accuracy and maximum shooting distance.
4. Can a reflectorless total station measure as far as a prism-based model?
No, reflectorless total stations typically have a shorter range, from 100 meters (328 feet) to 2,000 meters (6,561 feet), depending on the surface reflectivity.
5. What are the safety benefits of using a reflectorless total station?
Reflectorless total stations allow for safer measurements, as they reduce the need to work at heights or in dangerous areas by allowing you to measure from a distance.
