Ever wondered how professionals get such accurate measurements in surveying? The tool behind their precision is the total station. If you're a beginner, the thought of using one might seem daunting. But with the right setup and techniques, it’s simpler than you think.
In this post, you’ll learn how to use a total station from start to finish, including essential setup tips, calibration, and measurement techniques. Get ready to dive into the world of surveying and master this essential tool!

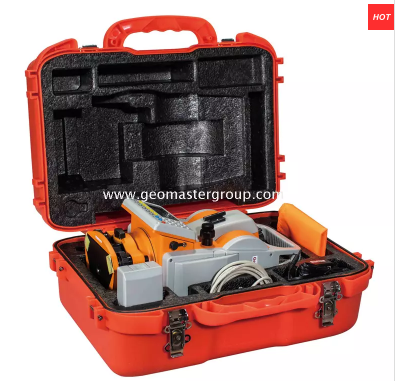

A total station is a powerful surveying instrument that combines a theodolite and an electronic distance measurement (EDM) unit. It is used to measure angles and distances accurately. This tool plays a key role in surveying, allowing professionals to collect precise data for land, construction, and engineering projects.
Total stations have become essential in modern surveying. They replace older methods like tape measuring and manual angle reading, making data collection faster and more reliable.
For beginners, learning to use a total station is invaluable. It opens up opportunities in construction, land surveying, and engineering. The ability to measure angles, distances, and coordinates accurately is crucial in these fields.
Key features such as its advanced laser measuring system, onboard data processing, and precise angle measurement make it indispensable. Mastering this tool early on can improve efficiency and reduce errors in your projects.
The tripod is the foundation of your total station setup. A solid base ensures accurate measurements throughout your survey.
Placing the Tripod on the Reference Point: Start by positioning the tripod over the reference point. Make sure it’s placed directly over the spot you're surveying. This helps keep your measurements precise.
Adjusting the Tripod to Level: Use the leveling screws and the plate level to adjust the tripod. The goal is to ensure the tripod head is as close to level as possible. Fine adjustments can be made using the leveling screws to get it perfectly aligned.
Stabilizing the Tripod: Once it’s leveled, make sure the tripod’s legs are firmly planted. Push the tripod legs into the ground to stabilize it. If the tripod isn’t stable, even small movements can cause errors in measurements.
Now, it’s time to mount the total station on the tripod.
Securing the Tribrach: Attach the tribrach securely to the tripod. This step is important for aligning the total station correctly. Make sure the tribrach is fully connected and doesn’t move.
Mounting the Total Station: Gently place the total station onto the tribrach. Be careful to avoid any sudden movements, which could misalign the equipment. Once the station is in place, tighten the attachment screw to keep it steady.
Powering up the total station is the next step to get it ready for use.
How to Connect the Battery Pack and Controller: First, connect the battery pack to the total station. Then, link the controller to the total station using the provided cables. Ensure the connections are tight to avoid any power or data issues during your survey.
Once all cables are securely connected, your total station is ready to be powered on and calibrated.
Calibration is crucial to ensure your total station provides accurate measurements throughout your survey.
Leveling the Instrument: Start by using the optical and digital levels to get your total station perfectly level.
Begin with the optical level: Adjust the tripod and use the leveling screws to get the bubble centered in the optical level.
For digital leveling, turn on the electronic level and fine-tune the instrument until it shows the correct reading. This step ensures your total station is aligned both horizontally and vertically.
Setting Horizontal and Vertical Zeros: After leveling, set the horizontal and vertical zeros to calibrate the angles.
Horizontal Zero: Align the instrument to a reference point and adjust the horizontal circle to zero.
Vertical Zero: Similarly, adjust the vertical circle to zero by aligning the total station's optics to a known vertical reference.
This ensures the instrument’s angles are accurate, allowing precise measurements when you start collecting data.
Before you begin surveying, you need to initialize your total station.
Powering On the Total Station: To power on the total station, press the power button and wait for it to initialize. You may need to hold the button for a few seconds. The display will show you an interface, allowing you to choose the measurement modes. Once it's powered up, check the display for any error messages or warnings.
Make sure the instrument is ready by confirming the battery level and ensuring all calibration settings are correct before moving on to take measurements.
Using a total station for measuring angles and distances might seem complex at first, but it becomes easy once you get the hang of it.
Selecting the Measurement Mode: Begin by selecting the measurement mode you need. Total stations offer different modes, such as:
Angle Measurement: This is used for measuring horizontal and vertical angles.
Distance Measurement: Ideal for calculating the straight-line distance to a target.
Coordinate Measurement: Use this mode for obtaining precise X, Y, and Z coordinates of a point.
Choose the mode that best suits your survey needs. Each mode helps you gather specific data for your project.
Target Acquisition: To measure accurately, you need to lock onto your target. Look through the eyepiece or use the electronic viewfinder to find your target. Adjust the instrument until the crosshairs are centered on the target. The total station will help you focus and aim precisely.
Recording Measurements: Once the target is in view and focused, use the instrument’s controls to record the measurement. Most total stations have a button or joystick that lets you easily capture the data. After recording, the data will be saved in the system, ready for further processing.
Land surveying involves measuring land areas and creating maps or boundary lines. Total stations play a key role in making this process accurate and efficient.
Establishing Reference Points: Total stations help set up precise reference points on the land. These points define boundaries and help create accurate topographic maps. Using the instrument to measure distances and angles ensures these points are exact, making future measurements more reliable.
Measuring Elevations: Elevation measurements are essential in land surveying, especially for projects involving construction or mapping. The total station can measure the height differences between points, helping to define the contours of the land. This is crucial for tasks like drainage planning, road construction, and flood risk assessment.
In construction, accuracy is critical for building structures correctly. A total station ensures that every detail is in place during construction.
Staking Out Points: The total station helps in laying out construction points on the ground, such as the corners of buildings, roads, or other infrastructure. The instrument ensures each point is placed with high precision, making it easier for workers to follow.
Ensuring Accurate Placement of Structures: Proper alignment is vital for any construction project. By using the total station, builders can ensure that walls, foundations, and other parts of a structure are correctly placed. It helps maintain the correct angles and distances throughout the project, preventing errors that could lead to costly delays.
Archaeologists use total stations to document and preserve the layout of ancient sites. This technology makes it possible to gather accurate data that helps in both excavation and preservation.
Documenting Excavations: Total stations are used to map out the locations of artifacts and other important features in archaeological sites. They ensure that every point is recorded with high accuracy, allowing archaeologists to recreate the site digitally or in maps. This helps in both analyzing and preserving the historical value of the site.
While using a total station, it's easy to make small mistakes that can lead to inaccurate results. Here's how to avoid some of the most common errors.
Collimation Errors: Collimation errors occur when the instrument is not properly aligned with the target. To avoid this, always check that the total station is properly centered on the reference point. Ensure the horizontal and vertical axes are perfectly aligned. A simple way to do this is by using the optical plummet to ensure accurate aiming.
Leveling Errors: Incorrect leveling can cause skewed measurements, especially when measuring distances or angles. To avoid this, always check the leveling bubble both before and during the measurement process. Make small adjustments to the leveling screws as needed to ensure the instrument stays perfectly horizontal and vertical throughout the survey.
To ensure your total station stays accurate over time, regular maintenance and calibration are key.
Regular Calibration: Calibration should be done regularly, especially if the instrument has been moved or handled roughly. Always follow the manufacturer's instructions for calibration, which typically involves resetting the instrument’s horizontal and vertical zeros. This ensures all measurements are correct and consistent.
Checking Equipment Integrity: Over time, your total station may experience wear and tear. Regularly inspect the equipment for any physical damage, like scratches on the lenses or loose connections in the cables. Checking for proper alignment and securing all parts helps maintain consistent performance. Any issues should be addressed immediately to avoid inaccurate data collection.
Total stations offer advanced capabilities that can improve efficiency, especially when integrated with modern software systems like BIM (Building Information Modeling) or CAD (Computer-Aided Design).
Creating 3D Models: Total station data can be used to create accurate 3D models for construction projects. By capturing the coordinates and dimensions of objects or terrain, you can input this data into BIM software to generate detailed models. These models help visualize the project and ensure that every structure fits perfectly into the planned layout.
Generating Digital Terrain Models (DTM): A Digital Terrain Model (DTM) is a 3D representation of the land’s surface, created using data from the total station. These models are crucial for planning construction projects like roads, dams, and buildings. The total station helps collect elevation and surface data, which is then used to generate DTMs, ensuring that all topographical features are accounted for in the design.
Modern total stations come equipped with features designed to boost efficiency and streamline surveying processes.
Automated Data Collection: With the help of integrated software, total stations can automate the data collection process. This reduces the need for manual entry and minimizes human error. Once the data is captured, it can be immediately processed and analyzed, saving time and improving accuracy.
Using a Total Station for Continuous Monitoring: Total stations can be used for continuous monitoring of structures over time. This is especially useful for tracking movements or deformations in buildings, bridges, or other infrastructure. By regularly measuring specific points, you can detect any shifts or changes, ensuring the structure remains safe and stable.
Operating a total station requires careful attention to ensure both the safety of the user and the protection of the equipment.
Handling the Equipment Carefully: Total stations are expensive and delicate instruments, so handling them with care is crucial. Always make sure to securely attach the total station to the tribrach, and avoid any sudden movements that could cause damage. When transporting, place the instrument in a protective case, and always use two hands when carrying it to avoid dropping.
Environmental Awareness: Be mindful of your surroundings while using the total station. Set up the equipment on stable ground to prevent it from tipping over. Watch out for obstacles or hazards, such as moving vehicles or uneven terrain, that could interfere with your work. Weather conditions, like high winds or rain, can also affect the equipment's accuracy, so take precautions when working outdoors.
To ensure safe and efficient use, it's important to follow industry standards and guidelines.
Health and Safety Guidelines: There are specific safety standards in place for surveyors and engineers working with total stations. These include wearing protective gear such as high-visibility vests, helmets, and appropriate footwear. Surveyors should also be trained on how to properly set up and calibrate the equipment to avoid accidents. Regular inspections and maintenance of the equipment are recommended to ensure it remains in safe working condition. Always adhere to local regulations regarding safety when working in different environments, like construction sites or public spaces.
Mastering a total station is essential for beginners. It improves the accuracy and efficiency of your surveying tasks. Learning how to use it will save time and reduce errors.
For beginners, it’s crucial to practice the proper setup and calibration. Following these steps will ensure you get high-quality results every time.
A total station measures distances, angles, and coordinates, helping surveyors accurately map land and structures.
Calibrate by leveling the instrument, setting the horizontal and vertical zeros, and ensuring it’s aligned correctly.
Yes, total stations are used in construction for layout, staking out points, and ensuring accurate placement of structures.
Avoid errors by ensuring the instrument is properly leveled, correctly calibrated, and securely mounted.
Handle the equipment carefully, be aware of your surroundings, and follow industry safety guidelines during operations.
