Have you ever wondered how surveyors measure angles and bearings with precision in the field? A prismatic compass is the key tool that makes this possible.
In this article, we’ll explore the ins and outs of the prismatic compass, from its parts to its functionality. You’ll learn how it differs from other compasses and its applications in surveying and navigation. By the end, you’ll have a deeper understanding of this essential tool and its uses in various fields.

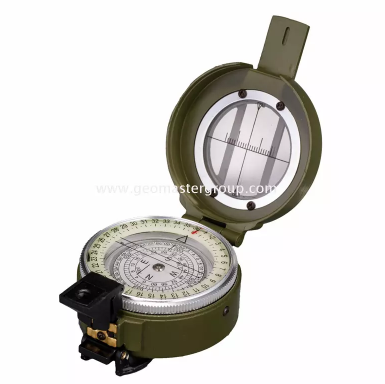

A prismatic compass is a special type of magnetic compass used to measure bearings and angles between two points. It's primarily used in land surveying, geology, and outdoor navigation.
Unlike regular compasses, the prismatic compass includes a prism, which allows users to simultaneously view the compass card and sight a distant object. This feature ensures greater precision when measuring angles over long distances. It’s compact, portable, and easy to use in the field, making it a valuable tool for surveyors and adventurers alike.
The compass operates by aligning the magnetic needle with the Earth’s magnetic field. The user then sights an object and reads the bearing directly from the graduated circle. This simultaneous viewing and reading make it more accurate than other compasses, especially in challenging environments like dense forests or uneven terrain.
Common applications of a prismatic compass include measuring property boundaries, mapping geological features, and guiding hikers. The design allows users to take precise angular measurements while moving, making it a go-to tool for outdoor enthusiasts.
Overall, the prismatic compass is a reliable, simple instrument that plays a crucial role in various fields requiring accurate directional measurements.
The metal box of a prismatic compass serves as the protective casing for all the internal components. It shields the compass from dust, rain, and physical damage during use in the field. The cylindrical design ensures that the compass remains stable while taking measurements, making it ideal for outdoor conditions.
The magnetic needle is the heart of the prismatic compass. It aligns itself with Earth's magnetic field, always pointing toward the magnetic north. This feature is crucial for determining the compass's bearing, as it helps measure the angle between the target and the magnetic meridian.
The prism is located near the graduated circle and helps you sight and read the bearing simultaneously. This feature increases the accuracy of measurements. The graduated circle, typically marked from 0° to 360°, provides a precise reading of the angle between the survey line and magnetic north.
Sight vanes and the object vane play a key role in aligning the compass with the target. The sight vanes help the user look through the sighting line, while the object vane is used to point toward the object being measured. These components ensure that the compass is properly aligned for accurate readings.
Lifting pin and lever: These components help lift the magnetic needle when the compass is not in use, preventing damage.
Reflecting mirror: Used to assist in reading the bearing when viewing high or distant objects.
Eye vane and glasses: These help the user align the compass more precisely, improving visibility.
Spring break mechanism: This feature helps stop the needle’s oscillation quickly, ensuring stability when reading the bearing.
A key feature of the prismatic compass is its ability to allow sighting and reading at the same time. This is made possible by the prism, which reflects the compass scale and magnifies the readings. Instead of looking back and forth between the compass needle and the target, the user can align the compass with the object while simultaneously reading the bearing from the graduated circle.
This dual-action mechanism improves accuracy and makes the compass more efficient compared to regular compasses, where you must alternate between sighting the object and reading the needle. The prism ensures a clear and precise reading, which is crucial for surveyors who need reliable measurements in the field.
Surveyors use the prismatic compass to measure the angle or bearing between a reference line and a target. To take a bearing, the user aligns the compass with the magnetic meridian, which always points north. Then, they sight the target through the sighting vane. As the compass needle aligns with the magnetic field, the angle between the line and the target is read from the graduated circle.
By rotating the compass to align with different targets, the surveyor can measure various bearings. The precision of the prismatic compass helps in tasks like determining boundaries, mapping areas, and creating detailed navigational routes. This makes it an essential tool for land surveying, geology, and outdoor navigation, where accuracy is critical.
Temporary adjustments are quick fixes made before using the prismatic compass. These are essential for accurate readings. The process involves centering the compass over the survey point, ensuring it is level, and focusing the prism for a clear view of the graduated circle. These adjustments help prepare the instrument for use, making sure the needle moves freely and measurements are precise.
Permanent adjustments are needed for long-term accuracy and reliability. These involve ensuring the magnetic needle aligns properly with the compass's pivot point. Additionally, adjustments are made to the sight vanes to ensure they provide a clear line of sight. The sensitivity of the magnetic needle is also fine-tuned to ensure that it responds accurately to magnetic forces for every reading.
The prismatic compass is one of the geo-compasses. In land surveying and construction projects, a prismatic compass is crucial for determining property boundaries, mapping areas, and laying out construction sites. Surveyors rely on it to take accurate measurements of angles, which are essential when creating detailed maps or designing infrastructure. It ensures that boundaries are clearly marked, helping avoid future disputes.
For outdoor activities like hiking and orienteering, the prismatic compass is an ideal tool. Its portability makes it easy to carry, and its ease of use allows hikers and adventurers to measure angles and determine bearings with precision. Whether you’re navigating a forest trail or exploring new terrain, this compass helps ensure you stay on track.
Geologists use the prismatic compass to map geological features and study the magnetic properties of the terrain. It helps them measure angles between rock formations and geological boundaries, allowing for more accurate mapping of natural features. This tool plays a critical role in understanding the earth’s structure and guiding geological research.
A prismatic compass offers several advantages that make it a preferred tool in many surveying and navigation tasks. One of its main benefits is portability. It’s compact and lightweight, making it easy to carry in the field without adding significant weight to your gear. This is especially useful for hikers, surveyors, and outdoor enthusiasts.
Another benefit is its ease of setup. Unlike modern surveying instruments, the prismatic compass requires minimal preparation. You just need to center and level the compass, and you're ready to start taking measurements.
The prismatic compass also has a no power requirement. It operates solely on magnetic principles, meaning you don't have to worry about batteries or charging. This makes it especially reliable in remote locations or situations where electricity isn't available.
Lastly, its design allows it to work in challenging terrains. Whether you're surveying in dense forests, mountains, or rugged construction sites, the prismatic compass remains effective, offering precise readings even when other instruments may not perform as well.
While the prismatic compass is a reliable tool, it has some limitations. One major drawback is its lower precision compared to modern instruments like theodolites or total stations. These newer tools provide much more accurate measurements, making the prismatic compass less ideal for highly detailed surveying work.
The compass is also susceptible to environmental interference. Strong magnetic fields from nearby metal objects or electric currents can distort the needle's alignment, leading to inaccurate readings. This can be problematic when working near metal structures or in areas with significant magnetic interference.
Another limitation is human error. Proper usage of a prismatic compass requires careful sighting and alignment. Small mistakes in centering or leveling the compass can lead to significant errors in measurements. Additionally, the instrument's reliance on manual handling means that mistakes are more likely compared to automated systems.
Despite these disadvantages, the prismatic compass remains a versatile and useful tool for many outdoor and surveying applications.
Using a prismatic compass is straightforward once you understand the steps involved. Here’s a simple guide to help you get accurate measurements in the field.
To begin, you need to center the compass over the survey point. This is crucial for ensuring that your measurements are accurate. Place the compass directly over the survey point, using a marker or peg to align the instrument. This will help keep the compass in place, especially on uneven ground, and prevent any misalignment while taking measurements.
After centering the compass, the next step is to level the compass. Leveling is important because it ensures that the magnetic needle can rotate freely and align correctly with the Earth’s magnetic field. If the compass isn’t level, the needle may not point accurately, leading to incorrect readings. To level the compass, adjust the tripod or use a leveling device to make sure it’s perfectly horizontal.
Now that the compass is centered and leveled, it’s time to take the reading. First, adjust the prism for clear visibility. You should be able to see both the graduated circle and the target object clearly through the prism. Next, align the sighting line (the line within the sight vane) with the target object. When the object is in line, read the bearing from the graduated circle. The reading shows the angle between the target and magnetic north, which is crucial for navigating or mapping the area accurately.
Even in the age of GPS, the prismatic compass remains a crucial tool. Its portability, accuracy, and ease of use make it indispensable for surveyors, geologists, and adventurers. This tool’s ability to measure bearings and angles precisely ensures its place in many fields, despite modern technology.
A prismatic compass is used to measure bearings and angles between two points, providing accurate direction readings.
It allows sighting and reading at the same time, improving accuracy when measuring bearings.
Yes, it is widely used by hikers and navigators to determine precise bearings during outdoor activities.
The key components include the cylindrical metal box, magnetic needle, prism, graduated circle, and sight vanes.
Its portability, minimal setup, and durability in outdoor conditions make it ideal for field surveys and navigation.
