Surveying plays a crucial role in construction and mapping. Precision in measurements can make or break a project. Two of the most important tools in this field are the theodolite and the total station. While both measure angles, their capabilities differ significantly.
In this post, we'll explore the key differences between these tools. You'll learn when to use a theodolite or a total station for accurate, efficient results.
A theodolite is a tool used for measuring horizontal and vertical angles. It's primarily used in surveying and construction projects to determine precise angles. This instrument helps surveyors calculate distances indirectly by measuring angles and using basic trigonometry.

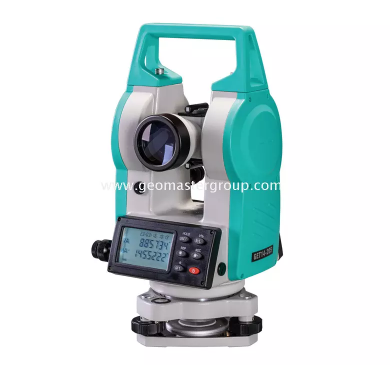

Theodolites come in two types: mechanical and electronic. Mechanical theodolites rely on manual operations, while electronic theodolites display data digitally, offering more accuracy and ease of use.
Theodolites are most commonly used in tasks that involve angle measurements for construction layout, triangulation, and topography. They are ideal for smaller-scale surveying projects where high-tech distance measurements are unnecessary. Check here to see more details about theodolites.
Cost-Effective: Theodolites are cheaper compared to modern total stations.
Simple to Operate: Basic surveying tasks can be done with minimal training.
Perfect for Small Projects: If your task doesn't require high-tech features, the theodolite is an excellent choice.
No Batteries Required: Mechanical models are useful in environments where power is unavailable.
Two Operators Needed: One person handles the instrument, while another holds the measuring rod.
No Direct Distance Measurement: You must calculate distances separately using trigonometry.
Manual Data Recording: All measurements need to be written down manually, which can slow down the process.
Limited Functionality: Theodolites only measure angles; they can't handle advanced surveying tasks like 3D modeling.
A total station is a modern surveying instrument that combines a theodolite and an Electronic Distance Measurement (EDM) device. It measures both angles and distances, making it more efficient than older tools. By integrating these functions, it provides precise, real-time data for a wide range of surveying tasks.
Total stations streamline surveying by offering digital readouts, data storage, and advanced features like GPS integration, improving the speed and accuracy of measurements.
A total station measures both angles and distances simultaneously, providing comprehensive data in real time. This combination reduces the need for multiple instruments, speeding up the surveying process.
It features electronic readouts for easy, accurate measurements and stores data for quick access. Many models integrate with mapping software and GPS, allowing seamless data transfer. Some total stations even feature robotic functionality, letting surveyors operate the tool remotely, making tasks more efficient.
High Accuracy: Provides precise angle and distance measurements, ensuring high-quality results.
Automated Data Collection: Saves time by storing measurements digitally.
Ease of Use: Digital displays make it simpler to operate.
Remote Operation: Robotic models allow solo operation.
Versatile: Ideal for complex tasks like 3D mapping and boundary surveys.
Higher Cost: Total stations are more expensive than theodolites.
More Training Required: Operating a total station requires technical knowledge.
Dependence on Power: Battery life can be a limitation in the field.
Not Ideal for Small Projects: They may be overkill for simple, low-budget surveying tasks.
Theodolite: A theodolite is designed primarily for measuring angles, both horizontal and vertical. It doesn’t calculate distances directly, making it ideal for simpler surveying tasks where precise angle measurements are required, but distance calculations can be done separately using trigonometry.
Total Station: A total station, on the other hand, measures both angles and distances simultaneously. This makes it far more versatile and efficient for complex surveys. With the inclusion of an Electronic Distance Meter (EDM), a total station captures both angular and linear measurements in one tool, eliminating the need for separate instruments.
Theodolites: Typically, the accuracy of a theodolite is measured in seconds of arc. A high-quality theodolite can achieve precision up to 20 seconds of arc, which is sufficient for many basic surveying tasks. This level of accuracy works well in smaller-scale projects where extreme precision isn’t a must.
Total Stations: A total station takes accuracy to a whole new level, offering sub-second accuracy. Some modern total stations are accurate up to 0.5 seconds of arc, which is vital for large-scale projects where high precision is required, such as construction and land boundary surveys. The enhanced precision of total stations ensures that measurements are extremely reliable, even for complex topographies or high-stakes projects.
Theodolite: A theodolite generally requires two operators to function effectively. One person must hold the instrument and sight the target, while another person is needed to read the measurements. This can make theodolite surveys a bit slower, especially on larger projects, where the two-person system can introduce inefficiency.
Total Station: One of the most significant advantages of a total station is that it can be operated by a single person. The digital readout and automated features allow surveyors to take measurements on their own, making total stations ideal for projects where speed and independence are necessary. Robotic total stations even allow remote operation, further reducing the need for multiple workers.
Theodolite: When using a theodolite, manual data logging is required. Surveyors must record measurements by hand, which can introduce human error and slow down the process. Additionally, the data needs to be transcribed later, increasing the chances of mistakes and delays in reporting.
Total Station: In contrast, total stations offer electronic data storage. Measurements are automatically recorded and stored digitally, reducing errors and increasing efficiency. The data can be transferred directly to a computer for further analysis, making the process much faster and more streamlined. This also allows surveyors to generate reports and share findings in real time, improving the overall workflow.
Theodolite: Theodolites are more budget-friendly, making them a great choice for smaller surveys or simpler tasks. If the project doesn’t require precise distance measurement or complex data handling, theodolites can be a more cost-effective option.
Total Station: However, total stations come at a higher price point. The additional features such as angle and distance measurement, electronic data storage, and robotic operation all contribute to the higher cost. Despite the higher initial investment, total stations are more cost-effective in the long run for larger, more complex projects. Their versatility and ability to speed up the surveying process often justify the higher cost, especially for high-precision work.
| Aspect | Theodolite | Total Station |
|---|---|---|
| Primary Function | Measures angles | Measures both angles & distances |
| Accuracy | Up to 20 seconds of arc | Sub-second accuracy |
| Operation | Requires two operators | Can be operated by one person |
| Data Storage | Manual logging | Digital storage & transfer |
| Cost | More budget-friendly | Higher cost, more functionality |
Small Projects with Basic Requirements
Theodolites are ideal for simple surveys where precise angle measurement is the main task. If you’re working on a small construction site or a basic land survey, a theodolite will do the job well.
Situations That Don’t Require Distance Measurements
When you don't need to measure distances, such as when you only need horizontal or vertical angles, theodolites are perfect. For example, measuring the height of a building or setting out grid lines can be done without needing distance calculations.
Low-Budget Surveys
For projects on a tight budget, theodolites are an affordable option. They’re much cheaper than total stations, making them a great choice when the surveying requirements are simple.
Surveying in Remote Areas Without Power Sources
Mechanical theodolites don’t require any batteries, making them useful in remote areas where power might be unavailable. These instruments can function perfectly in outdoor environments without worrying about running out of battery.
Large-Scale Land Surveys and Construction Projects
Total stations are the go-to tool for large projects that require high precision. They’re perfect for land surveying, road construction, and urban planning, where measuring both angles and distances is essential.
Complex Site Layout and Design
For designing complex building sites, total stations provide the accuracy needed to map out detailed layouts. Whether it’s for large commercial buildings or infrastructure, they streamline the process.
Creating 3D Models and Mapping
When you need to create detailed 3D models or topographic maps, total stations are invaluable. They can capture both angle and distance data, making them ideal for generating precise models of terrains, buildings, and other structures.
Tasks Requiring Both Angle and Distance Measurements
Total stations excel in tasks that require both angle and distance measurements simultaneously. They’re essential for projects like boundary surveys, volume calculations, and detailed site analysis.
Budget and Project Size
If you’re working on a small-scale project or have a limited budget, a theodolite might be the better option. It’s much more affordable, making it a cost-effective choice for simpler surveys. However, for large projects requiring high precision, a total station is the way to go.
Required Accuracy and Precision
If you need sub-second accuracy and the ability to measure both angles and distances, the total station is the better tool. It’s perfect for tasks requiring high precision. A theodolite, while accurate, won’t give you the same level of detail, especially for large-scale or complex surveying tasks.
Level of Operator Expertise
A theodolite is simpler to use, but requires two operators to manage the task. If you have less experienced surveyors, a theodolite could work better. On the other hand, a total station requires more training but can be operated by a single person, offering more functionality in one tool.
Type of Surveying Task
For basic angle measurements or smaller projects, a theodolite is sufficient. If you’re working on tasks that need both angle and distance measurements—like boundary surveys, 3D modeling, or construction site layouts—a total station is the better choice.
| Tool | Pros | Cons |
|---|---|---|
| Theodolite | - Budget-friendly | - Requires two operators |
| - Simple operation | - Cannot measure distances directly | |
| - Reliable for small-scale projects | - Manual data logging, prone to human error | |
| - Useful in remote areas without power sources | - Limited to angle measurements | |
| Total Station | - High precision, measures both angles and distances | - Higher cost |
| - One-person operation | - Requires more operator training | |
| - Digital data storage and transfer | - Dependence on power/batteries | |
| - Ideal for complex tasks like 3D mapping | - Not always necessary for small or low-budget surveys |
Consider the project size and budget before deciding. For large, precise surveys, the total station offers more versatility and accuracy. If you’re working on a smaller job where angle measurement is enough, a theodolite will suffice. Always match your tool choice to the level of detail required by the task at hand.
Choosing between a theodolite and a total station depends on your project’s needs. Theodolites are ideal for small, basic tasks with lower budgets. Total stations offer higher precision and efficiency for larger, complex surveys. Always match the tool to the project’s size and accuracy requirements.
Q1: What’s the main difference between a theodolite and a total station?
A theodolite measures angles only, while a total station measures both angles and distances.
Q2: When should I use a theodolite instead of a total station?
Use a theodolite for small projects or when only angle measurements are required.
Q3: Can I use a theodolite for large construction projects?
No, for larger projects requiring high precision, a total station is more suitable.
Q4: Are total stations easier to use than theodolites?
Total stations are more advanced and require training but can be operated by a single person.
Q5: How much more expensive is a total station compared to a theodolite?
Total stations are significantly more expensive due to their advanced functionality and features.
