Highlights
Model: Bolt12-500
1.Geomaster Convergence Bolt
2.Geomaster Retro Target Rebar Adapter
3.Material: Galvanised Steel Rebar
4.Bolt Diameter: 20-22mm
5.Bolt Adapter: Leica Spigot M12
6.Overall Height: 500mm
7.For Prism Holder & Targets w. M12 female Thread
8.For Bi-reflex Targets w. M12 female Thread
| Quantity: | |
|---|---|
Bolt12-500
Geomaster
9015900090
Specifications & Features

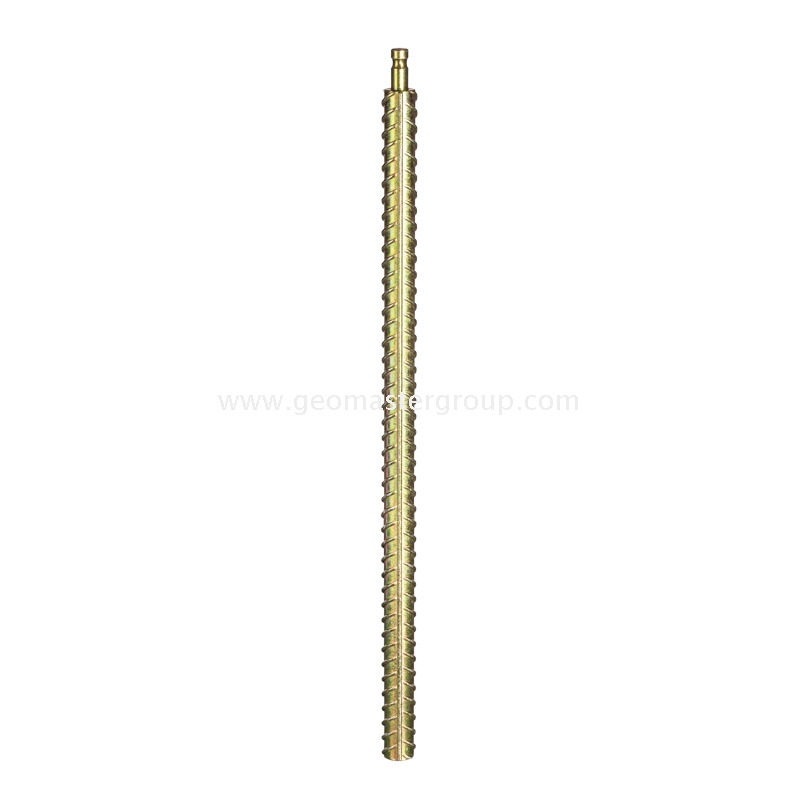

Model: Bolt12-500
1.Geomaster Convergence Bolt (Anodised Reinforcement Rod) and Retro-reflective Target Rebar Adapter for surveying and geotechnical monitoring purposes
2.Material: Galvanised Steel Rebar
3.Bolt Diameter: 20-22mm
4.Bolt Adapter: Leica Spigot M12
5.Overall Height: 500mm; 150mm, 200mm, and 250mm available
6.N.W.: 1400g

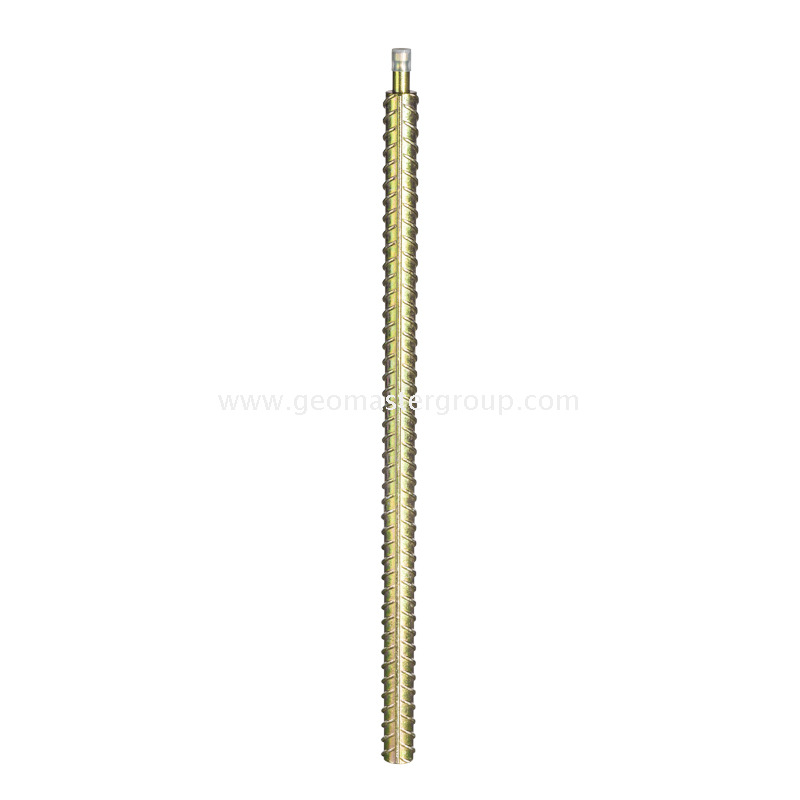

7.With a white PVC protective Cap

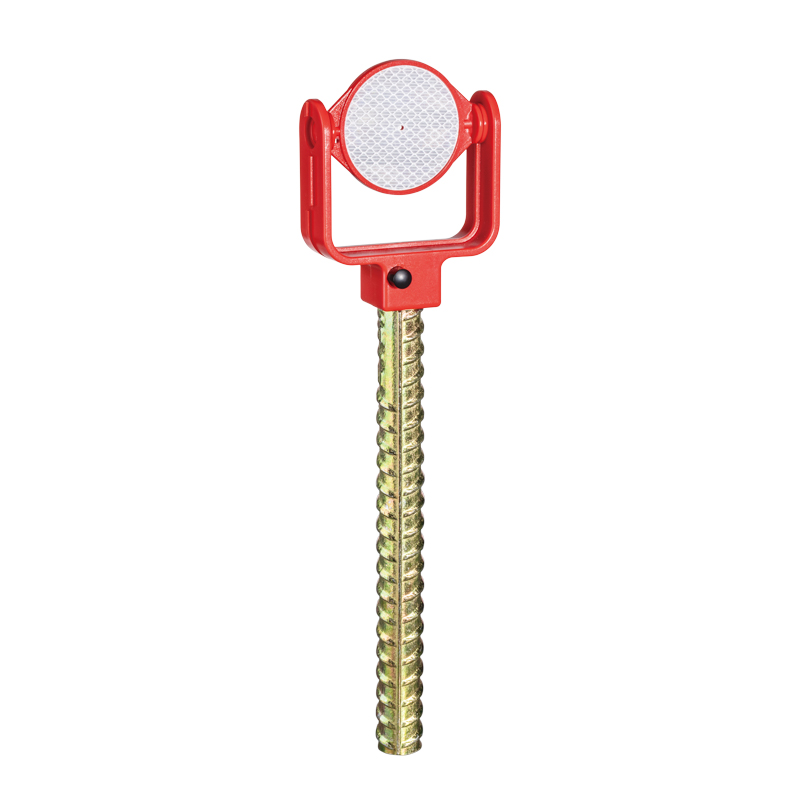

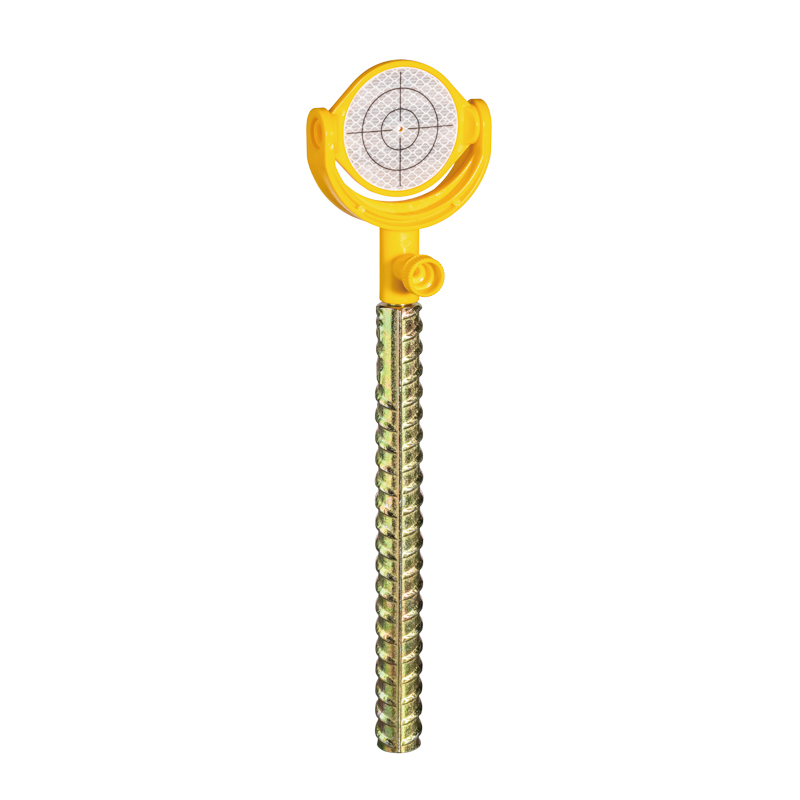

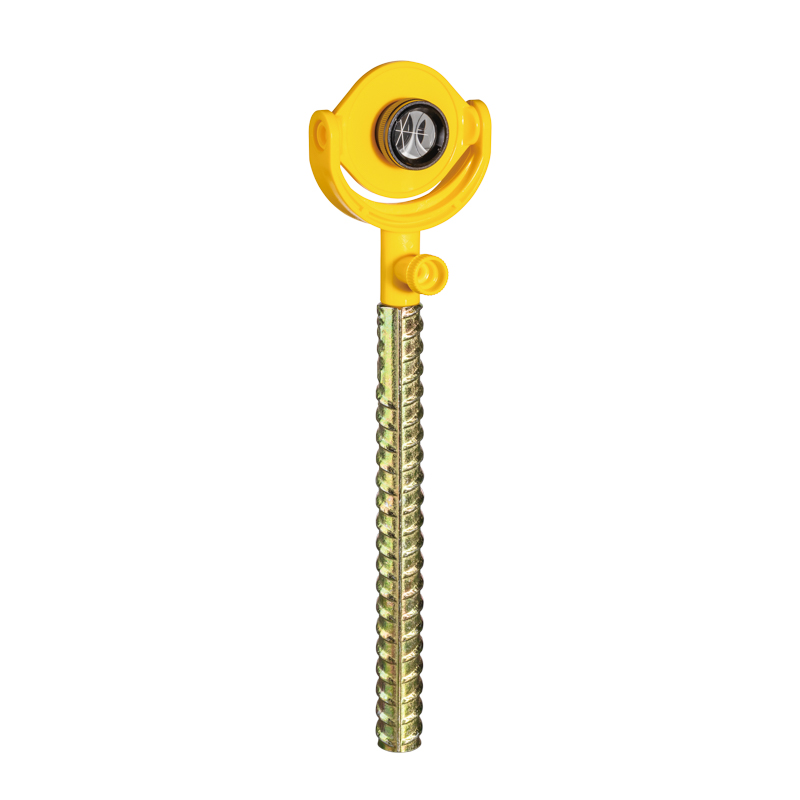

8.Primarily used in civil engineering and construction, such as tunnel building, to monitor ground or structural deformation (convergence measurement). Monitoring Prisms or Bi-relfex Targets are typically assembled on
these Bolts.
9.Featuring a fixed Leica Spigot M12 specifically designed for use with Leica Surveying Equipment with M12 Socket, which eliminates the need for an additional separate adapter.
10.Ideal for Geomaster Bi-reflex Targets GRT144-600 series
11.Fit for Geomaster Prism Holders & Targets and Mounting Sets GHP1, GHP3, GPR1, GPR113, GPR121,GHT112
12.Compatible with all other Leica-style Surveying Equiment (Prism Adapters and Bi-reflex Targets) with M12 female Socket.
Note: Any updating would be subject to change without prior notice.
