Highlights

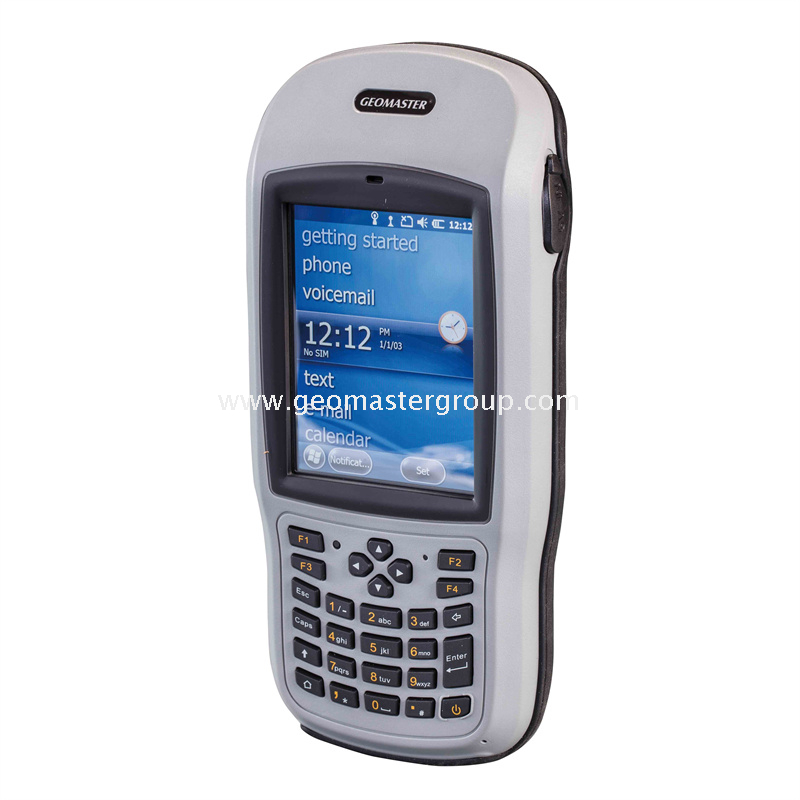

Model: R200
1.For Geomaster GTS Total Stations
2.w.licensed Pro Software
3.Bluetooth Communication
4.TFT Touch Screen
5.Detachable Li-ion Battery
Availability: | |
---|---|
Quantity: | |
R200
Geomaster
90158000
Specifications & Features
Model: R200
1.Application

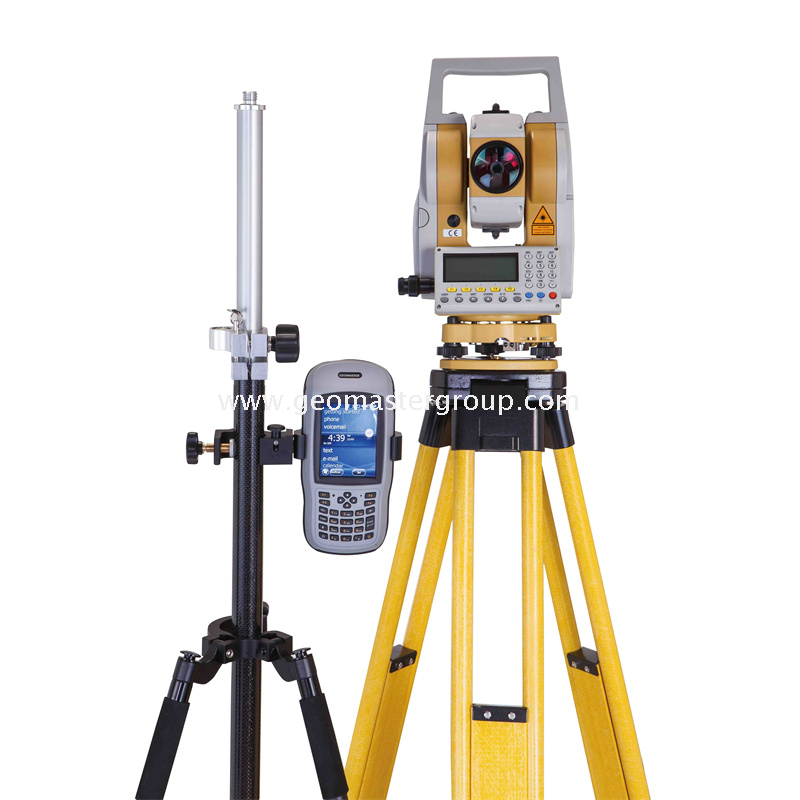

Communication with GTS series Reflectorless Total Stations
2.Operating System
1) Windows Embedded Hand-held 6.5
2) TI AM3715 Dual Core,1GHz Processor
3.Pro Software (licensed)
pfCAD
4.Wireless Communications
1) Bluetooth (V2.1 EDR)
2) Wi-Fi: a/v
5.Display and Keyboard
1) Touchscreen: 3.7",HD,TFT transflective (sunlight readable)
2) Resolution: 640×480 pixels
3) 27 numeric & programmable keypad (control panel)
6.Memory and Dada Transfer
1) RAM: 512MB DDR
2) ROM: 8GB,extensible TF Card up to 32GB
3) Data Transfer with Voice: GSM/3G (WCDMA)

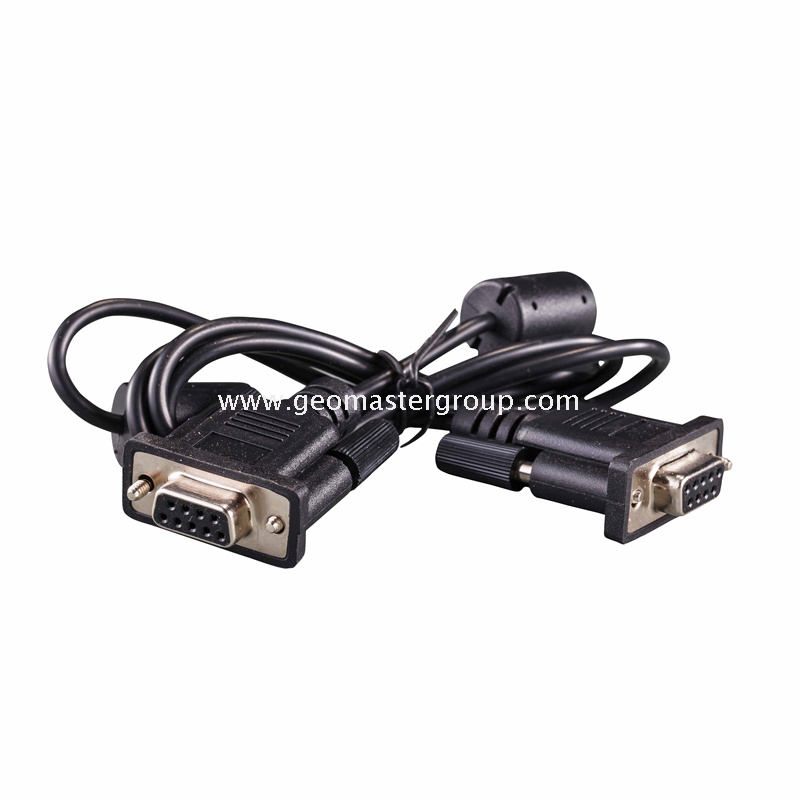

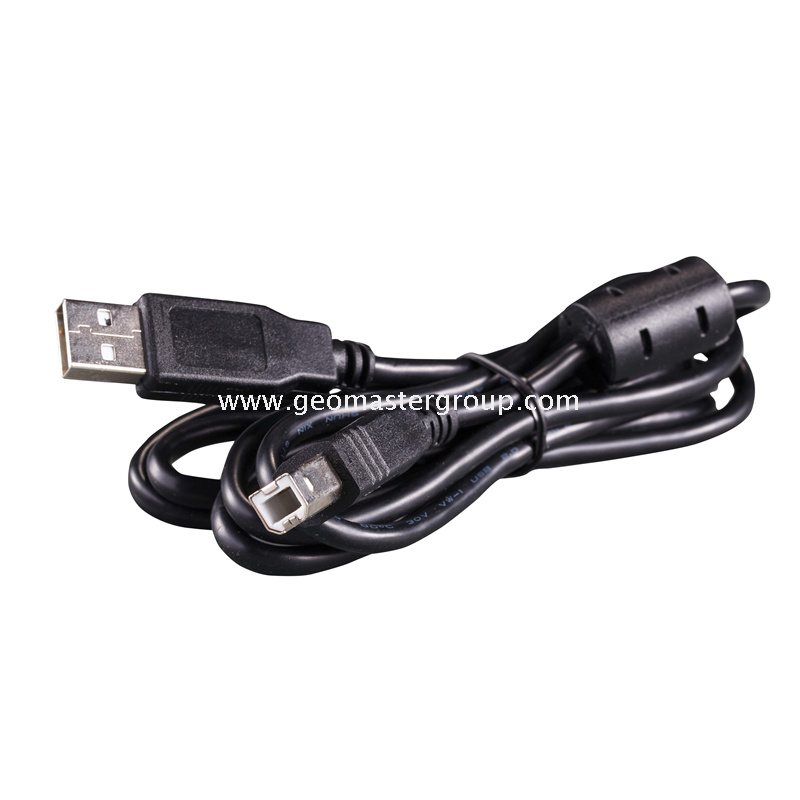

4) USB B Port and Serial Port DB9
5) Flash: Parallel Flash 1GB
7.Power Supply

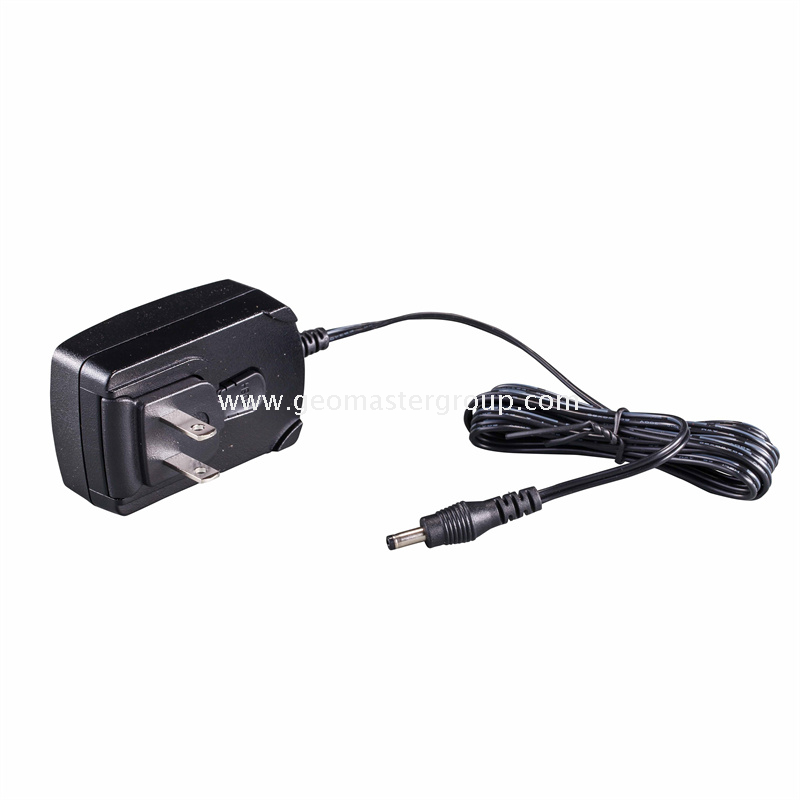

1) Input: 100-240v,0.5A,50-60Hz
2) Output: DC 5.0v,1A

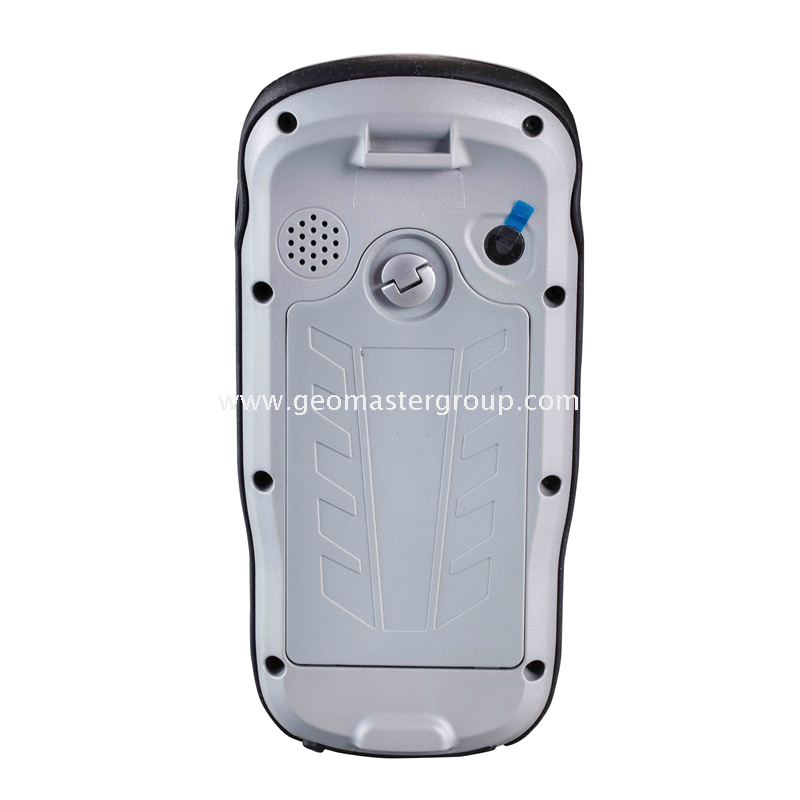

3) Detachable Li-ion battery: 6500mAh,3.7V
4) Battery life: up to 12 hours continuously
8.Environment
1) Working Temperature: -20℃~+60℃
2) Storage temperature: -30℃~70℃
3) Water-proof/Dust-proof: IP65
4) Shock-proof: w/o damage dropped from 1.2m height to hard ground
5) Vibration: MIL-STD 810G
Note: Any updating would be subject to change without prior notice.
Related Names
Surveying Instrument, Surveying Equipment, Surveying Accessory,Data Controller, Data Collector,GIS, Field Controller, Geomax Data
Collector, Leica Data Collector, Allegro Data Collector, Nikon Data Collector, Topcon Data Collector, Sokkia Data Collector, Trimble
Data Collector, Recon Data Collector,Carlson Data Collector, TSC Data Collector, Ranger Data Collector, Geomaster Data Collector,
RTK Data Collector,Quick Release Clamp, Quick Release Cradle,RTK Data Collecor,GIS Data Collecor,GPS Receiver,GNSS
Receiver,RTK Receiver
Specifications & Features
Model: R200
1.Application
Communication with GTS series Reflectorless Total Stations
2.Operating System
1) Windows Embedded Hand-held 6.5
2) TI AM3715 Dual Core,1GHz Processor
3.Pro Software (licensed)
pfCAD
4.Wireless Communications
1) Bluetooth (V2.1 EDR)
2) Wi-Fi: a/v
5.Display and Keyboard
1) Touchscreen: 3.7",HD,TFT transflective (sunlight readable)
2) Resolution: 640×480 pixels
3) 27 numeric & programmable keypad (control panel)
6.Memory and Dada Transfer
1) RAM: 512MB DDR
2) ROM: 8GB,extensible TF Card up to 32GB
3) Data Transfer with Voice: GSM/3G (WCDMA)
4) USB B Port and Serial Port DB9
5) Flash: Parallel Flash 1GB
7.Power Supply
1) Input: 100-240v,0.5A,50-60Hz
2) Output: DC 5.0v,1A
3) Detachable Li-ion battery: 6500mAh,3.7V
4) Battery life: up to 12 hours continuously
8.Environment
1) Working Temperature: -20℃~+60℃
2) Storage temperature: -30℃~70℃
3) Water-proof/Dust-proof: IP65
4) Shock-proof: w/o damage dropped from 1.2m height to hard ground
5) Vibration: MIL-STD 810G
Note: Any updating would be subject to change without prior notice.
Related Names
Surveying Instrument, Surveying Equipment, Surveying Accessory,Data Controller, Data Collector,GIS, Field Controller, Geomax Data
Collector, Leica Data Collector, Allegro Data Collector, Nikon Data Collector, Topcon Data Collector, Sokkia Data Collector, Trimble
Data Collector, Recon Data Collector,Carlson Data Collector, TSC Data Collector, Ranger Data Collector, Geomaster Data Collector,
RTK Data Collector,Quick Release Clamp, Quick Release Cradle,RTK Data Collecor,GIS Data Collecor,GPS Receiver,GNSS
Receiver,RTK Receiver
Packing Details
Model: R200
1.Dimensions: 200mm x 96mm x 32mm
2.N.W.: 515g (w.Battery)
3.Qty./CTN: 10pcs
4.G.W./CTN: 6kg
5.Size/CTN: 0.075cbm(0.49cm×0.39cm×0.39cm)
Packing Details
Model: R200
1.Dimensions: 200mm x 96mm x 32mm
2.N.W.: 515g (w.Battery)
3.Qty./CTN: 10pcs
4.G.W./CTN: 6kg
5.Size/CTN: 0.075cbm(0.49cm×0.39cm×0.39cm)
