English
 |
Highlights
Model: GLS30-1600A

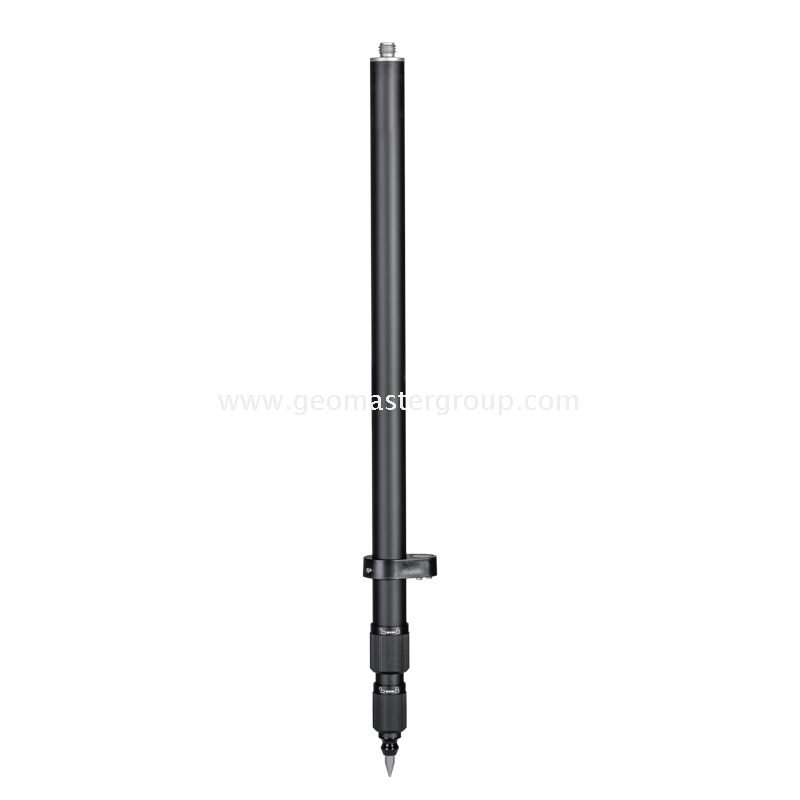

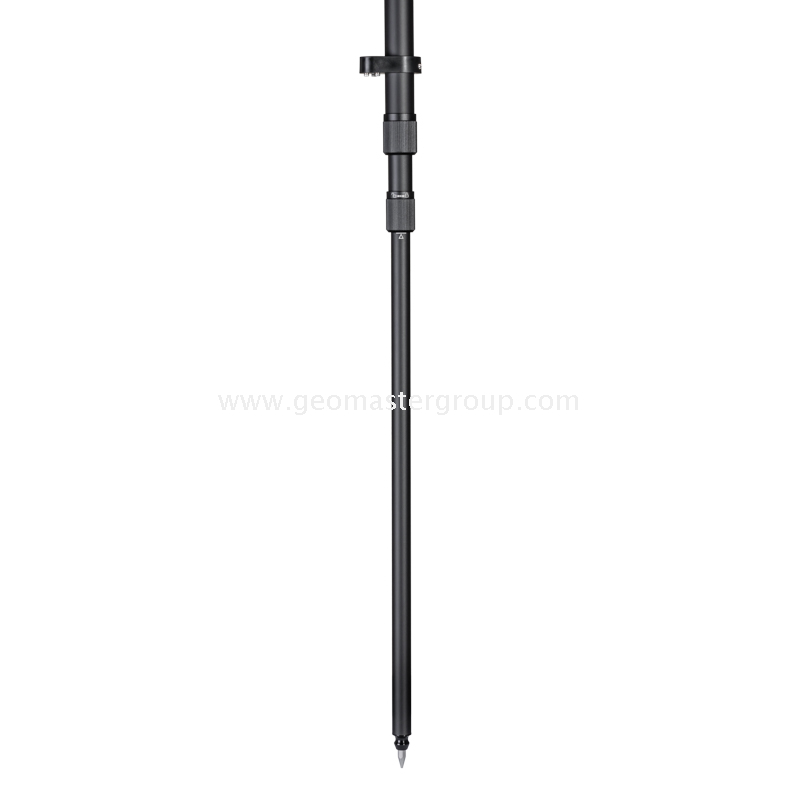

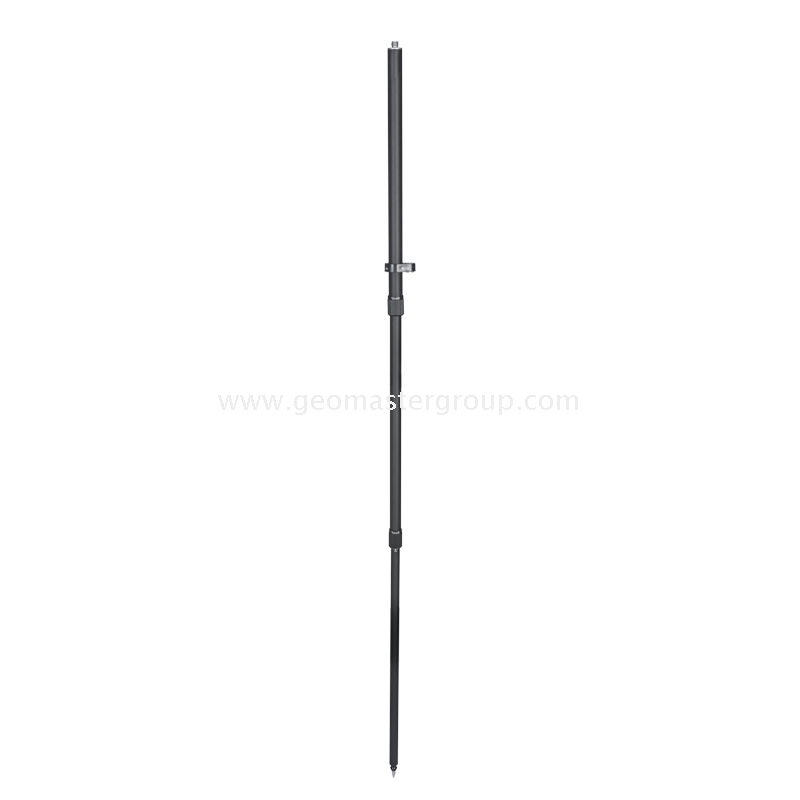

1.Geomaster GPS Rover Pole (GLS30)
2.Geomaster 3-section Survey Pole
3.O.D.of 3 Tubes: 30mm,25mm,20mm
4.Height Range: 0.63-1.6m (24.8-63")
5.External Adapter: 5/8"×11 SST Thread
6.Compression Twist Lock
7.Circular Bubble & Carrying Bag
8.For GPS Receivers,GPS Rovers,Scanner Spheres
| Quantity: | |
|---|---|
GLS30-1600A
Geomaster
90318090
Specifications & Features
Model: GLS30-1600A
1.Geomaster compact Aluminum Telescopic Survey Pole suitable for most common Geodetic Surveying Equipment-GPS Receivers, GPS Rovers,Prism Reflectors,Multitrack Prisms, Prism Holders,Prism Targets,
Retro Targets, Survey Targets, Laser Scanner Spheres,Laser Scanner Targets
2.Outer Diameter of Top Section Tube: 30mm
3.Outer Diameter of Middle Section Tube: 25mm
4.Outer Diameter of Bottom Section Tube: 20mm
5.Tube Thickness: 1.5mm
6.Height Range: 0.63-1.6m (24.8-63")
7.Max Payload: up to 8.5kg
8.Tube Color: black-anodized Aluminum
9.N.W.: 560g (Pole);580g (with Bag)
10.Lightweight (N.W.:560) and compact Construction (contracted to 63cm) ideal for working site trips
11.Evenly distributed weight allows you to carry your Pole with a Rover on it without any dropping risk

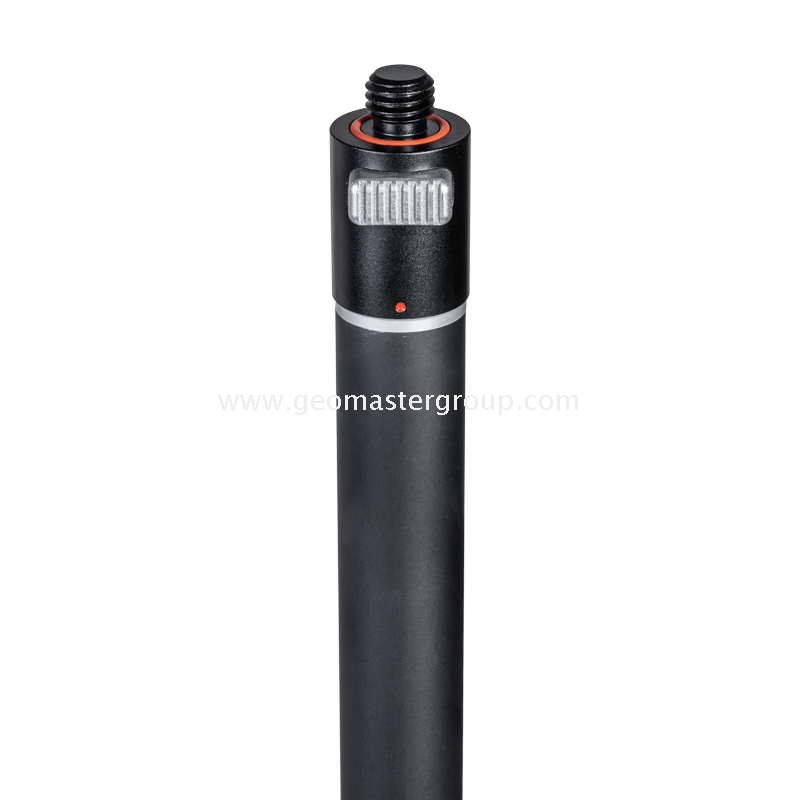

12.Industry-standard 5/8" External stainless steel Thread compatible with most mainstream GPS and
GNSS RTK Receivers/Rovers such as Reach RS2+, Reach RS3, Reach RX....
13.Swiss-style quick-release Spigot/Stub (O.D.: 12mm) available for all compact Swiss-style Snap-on
Surveying Equipment
14.Replaceable durable tip-point Metal Feet for easy transfixing to the ground
15.Compression Twist Locks delivering fast and reliable tightening and loosening

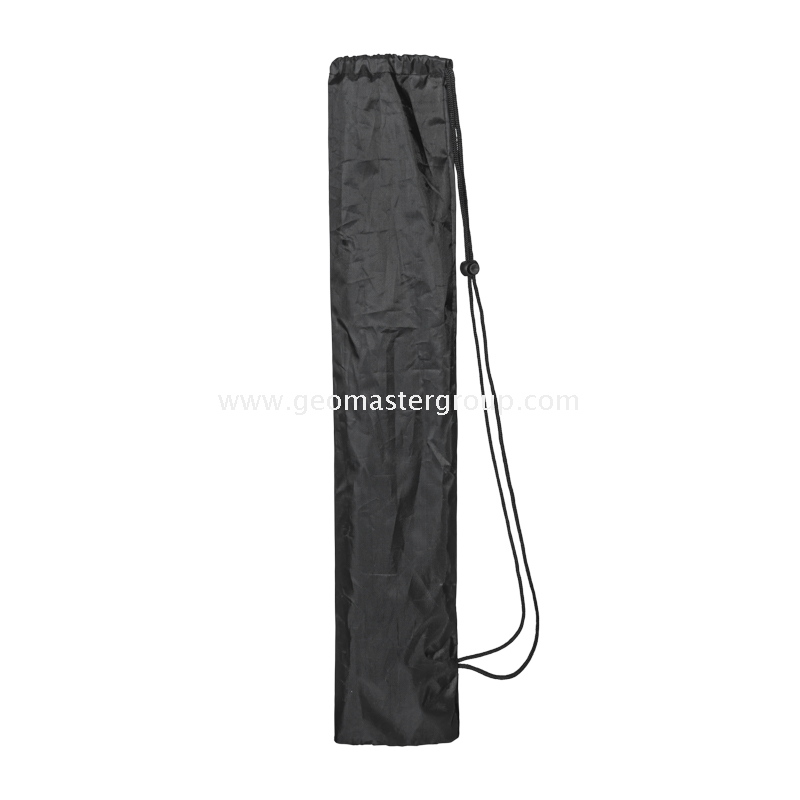

16.Folding robust Carrying Bag (N.W.: 20g) for convenient carry-around during surveying

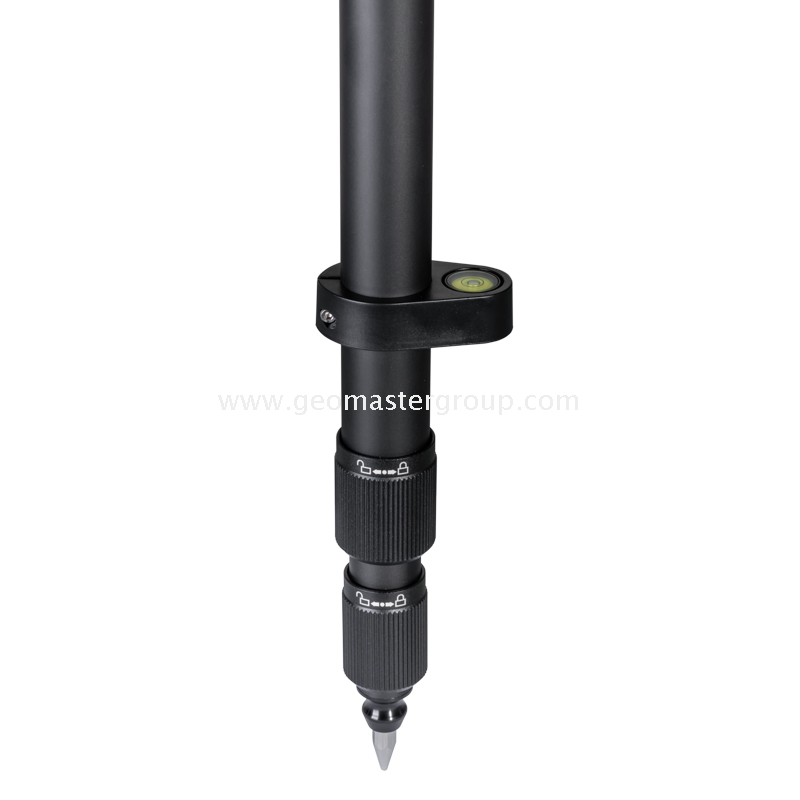

17.Regular Circular Level: Level30-30 (Central Hole Diameter: 30mm; Bubble Accuracy: 30'/2mm)
Note: Any updating would be subject to change without prior notice.
