Model: GLS30-1800
1.Geomaster GPS Rover Pole(GLS30)
2.Geomaster Telescopic Survey Pole
3.O.D.of 3 Sections: 29mm,24mm,19mm
4.Height Range: 0.74-1.8m (29.15-70.9")
5.Bottom Tube graduated at 1.3m,1.4m,1.5m,1.6m,1.7m,1.8m
6.Tubes made of black-anodized Al
7.External Adapter: 5/8"×11 Thread
8.Circular Bubble & Carrying Bag
9.For GPS Receivers,GPS Rovers,Scanner Spheres
| Quantity: | |
|---|---|
GLS30-1800
Geomaster
90318090
Specifications & Features
Model: GLS30-1800
1.Geomaster compact Aluminum Telescopic Survey Pole suitable for most common Surveying
Equipment-GPS Receivers, GPS Rovers,Prism Reflectors,Multitrack Prisms, Prism Holders,
Prism Targets,Retro Targets, Survey Targets, Laser Scanner Spheres,Laser Scanner Targets
2.Outer Diameter of Top Section Tube: 29mm
3.Outer Diameter of Middle Section Tube: 24mm
4.Outer Diameter of Bottom Section Tube: 19mm
5.Tube Thickness: 1.5mm
6.Height Range: 0.74-1.8m (29.15-70.9")
7.Bottom Tube graduated at 1.3m,1.4m,1.5m,1.6m,1.7m and 1.8m for fast and accurate height setting
and reading
8.Max Payload: up to 9kg
9.Tube Color: black-anodized Aluminum
10.N.W.: 670-675g (Pole); 745-750g (with Bag)
11.Lightweight (N.W.:670g) and compact Construction (contracted to 74cm) ideal for working site trips
12.Evenly distributed weight allows you to carry your Pole with a Rover on it without any dropping risk

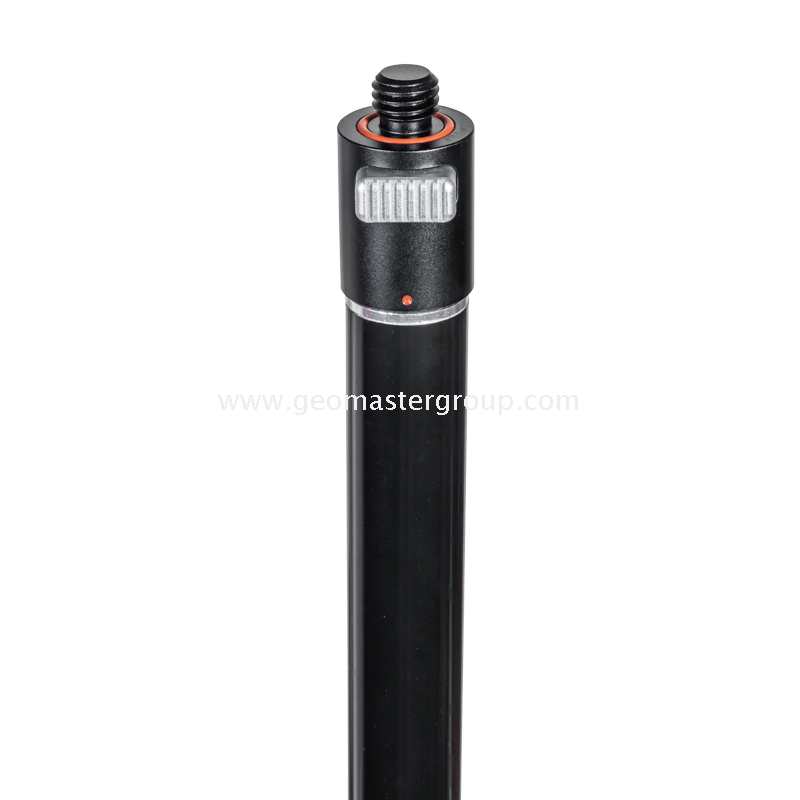

13.Industry-standard 5/8" External brass or stainless steel Thread compatible with most mainstream
GPS and GNSS RTK Receivers/Rovers such as Reach RS2+, Reach RS3, Reach RX....

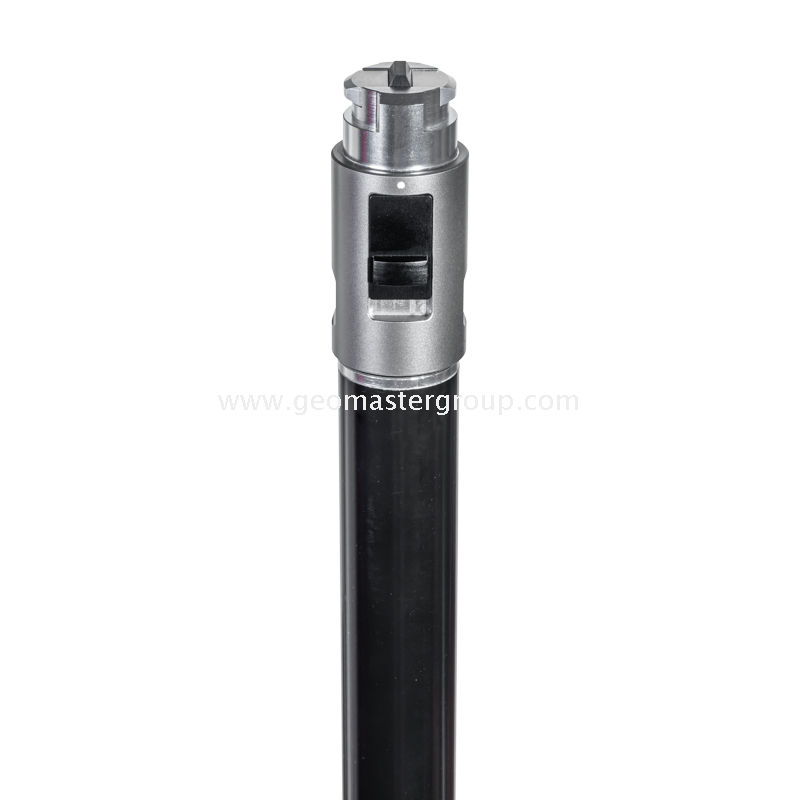

14.Swiss-style quick-release Spigot/Stub (O.D.: 12mm) available for all compact Swiss-style Snap-on
Surveying Equipment
15.Replaceable durable tip-point Metal Feet for easy transfixing to the ground
16.Knurled Aluminum Compression Locks delivering fast and reliable tightening and loosening
17.Folding robust Carrying Bag (N.W.: 80g) for convenient carry-around during surveying
18.Regular Circular Level: Level29-30 (Central Hole Diameter: 29mm; Bubble Accuracy: 30'/2mm)
Note: Any updating would be subject to change without prior notice.
