Highlights
Model: GHT36-86/64
1.Geomaster Prism Pole Toposhoe (GHT36)
2.Shank O.D.: 32mm
3.Shank Height: 86mm
4.Base Outer Diameter: 64mm
5.Connection Thread: internal 5/8" ×11
6.Color: black-anodized (BLK)
7.Fit for most common Prism Poles and GPS Poles
8.Ideal for hard, slippery, and soft grounds
| Quantity: | |
|---|---|
GHT36-86/64
Geomaster
90159000
Specifications & Features
Model: GHT36-86/64

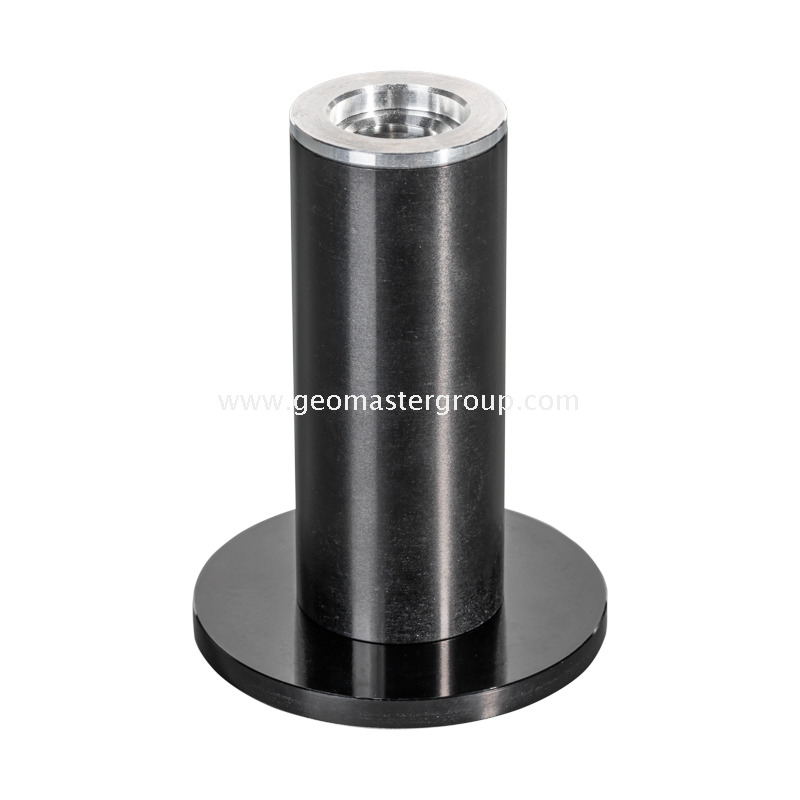

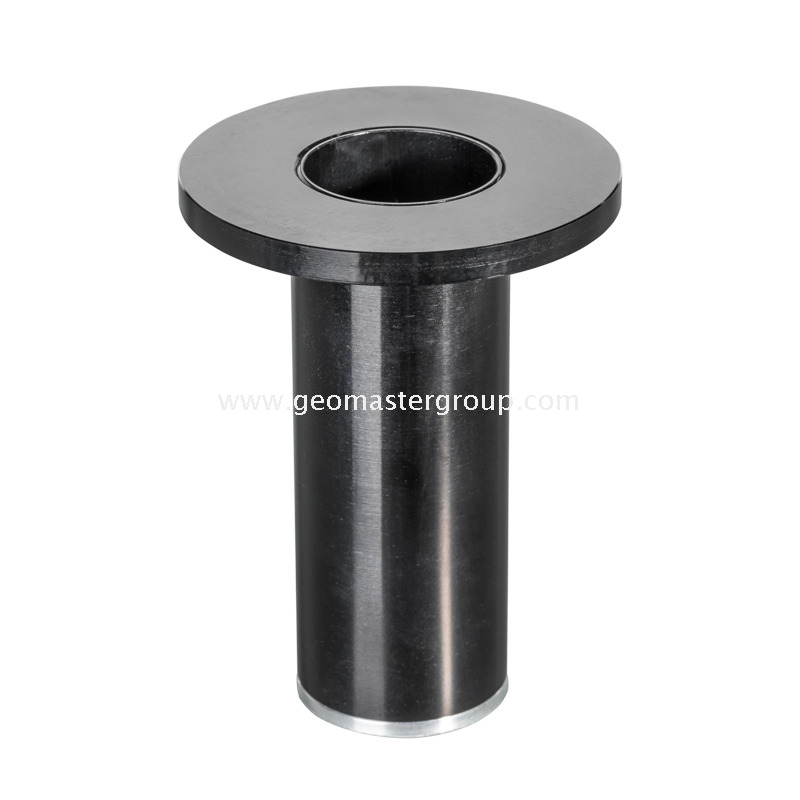

1.This flat Toposhoe or Topoboot Adapter with a wide Base Plate is designed for Prism Poles used on
hard, soft, or slippery working grounds.
2.The Centre of Prism remains the same as with the standard point

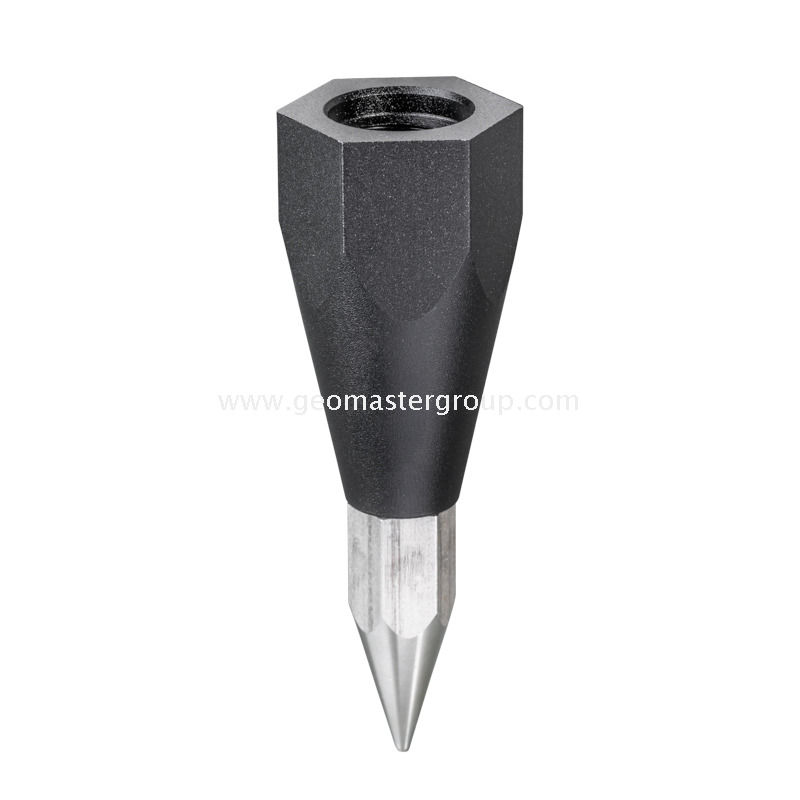

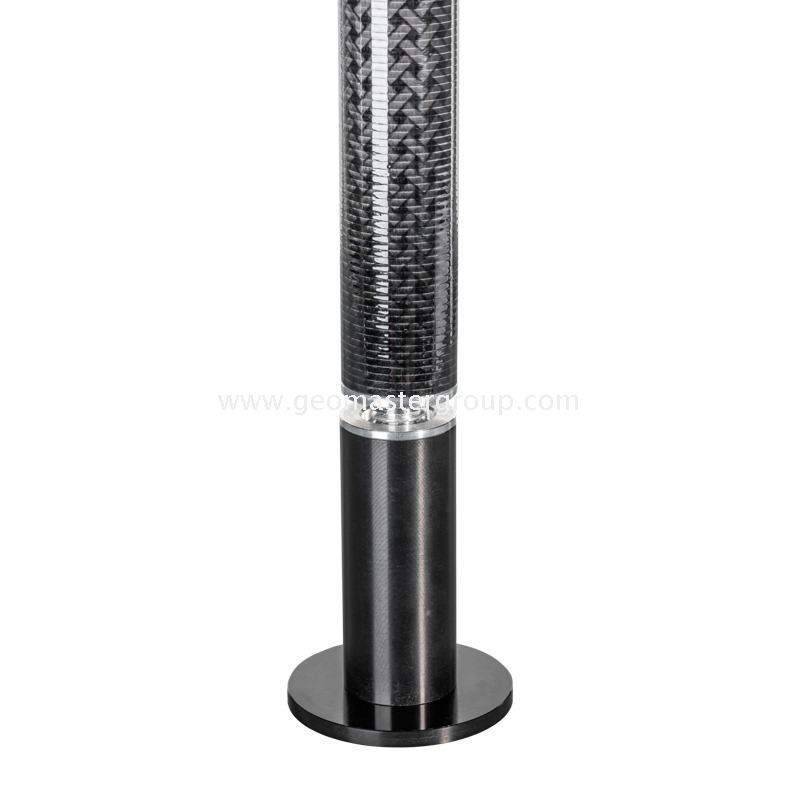

3.Simply unscrew the Pole Tip (GPS Pole, Laser Pole, Prism Pole) and replace it with this Adapter
4.Replacement of Seco wide-base steel Topo Shoe 5192-00 (screw-on Topoboot or Toposhoe)
5.Material: quality Aluminum Alloy; Black Nylon available
6.Color: black-anodized (BLK); anti-corrosive bright yellow (YEL) a/v
7.Shank Outer Diameter: 32mm
8.Shank Height: 86±0.4mm
9.Shank Threads: Internal (female) 5/8" ×11 and Exnternal (male) 5/8" ×11
10.Base Outer Diameter: 64mm (2.5")
11.Base Centre Hole: 5/8" ×11
12.N.W.: 505-510g
Note: Any updating would be subject to change without prior notice.
