Highlights

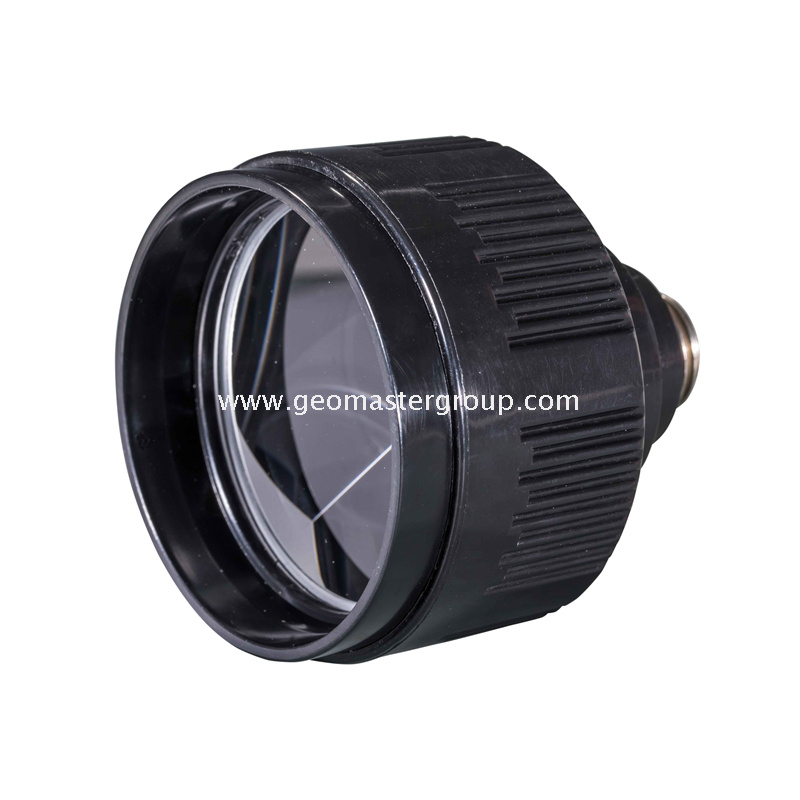

Model: GPR112-BK103W/C
1.Geomaster Prism Reflector (GPR)
2.Canister Color: Black (BK)
3.Prism Accuracy: ≤3"
4.Prism Aperture: 62mm (2.44 inch)
5.Measuring Range: 1500-2000m
6.Water-proof (W), Silver-coated (C)
7.M8 internal THD for Prism Mounting Set (GHT112-8)
8.M20 external THD for Prism Mounting Set (GHT112-20)
| Quantity: | |
|---|---|
GPR112-BK103W/C
Geomaster
90159000
Features & Specifications
Model: GPR112-BK103W/C
1.Geomaster Prism Reflector (GPR)
2.Canister Color: Black Canister and Black Rim/Ring
3.Prism Accuracy: ≤3"
4.Prism Offset: 0 or -30mm depending on Prism Holders mounted on
5.Prism Aperture: 62mm (2.44 inch)
6.Material: precision-ground Optical Glass K9
7.Water-proof (W), Silver-coated (C)
8.Clear Aperture: ≧95%
9.Prism Reflectivity: 95%
10.Prism Surface Finish: 60~40
11.Measuring Range: 1500-2000m (under normal weather condition)
12.M8 internal Thread compatible with on Geomaster Mounting Sets GHT112-8/ALU or GHT112-8/BLK
13.M20 external Thread compatible with most popular Prism Holders (AK series w. M20 Prism Thread) and Geomaster Mounting Sets GHT112-20/ALU or GHT112-20/BLK
14.Each prism coming with a white dust-proof Cover
15.Completely compatible with Top-brand Surveying Instruments like Trimble, Sokkia, Topcon...
16.Customization services a/v
1)Prism Accuracy: 2",3",5"
2)Prism Apertures
3)Prism Coatings: copper-coated, silver-coated, anti-reflecting (AR) coating, non-coated
4)Prism Canister Colors: Black, bright Red, bright Yellow (same as original GPR112)...
5)Prism Mounting Sets GHT112-8 series and GHT112-20 series
Note: Any updating would be subject to change without prior notice.
