Highlights

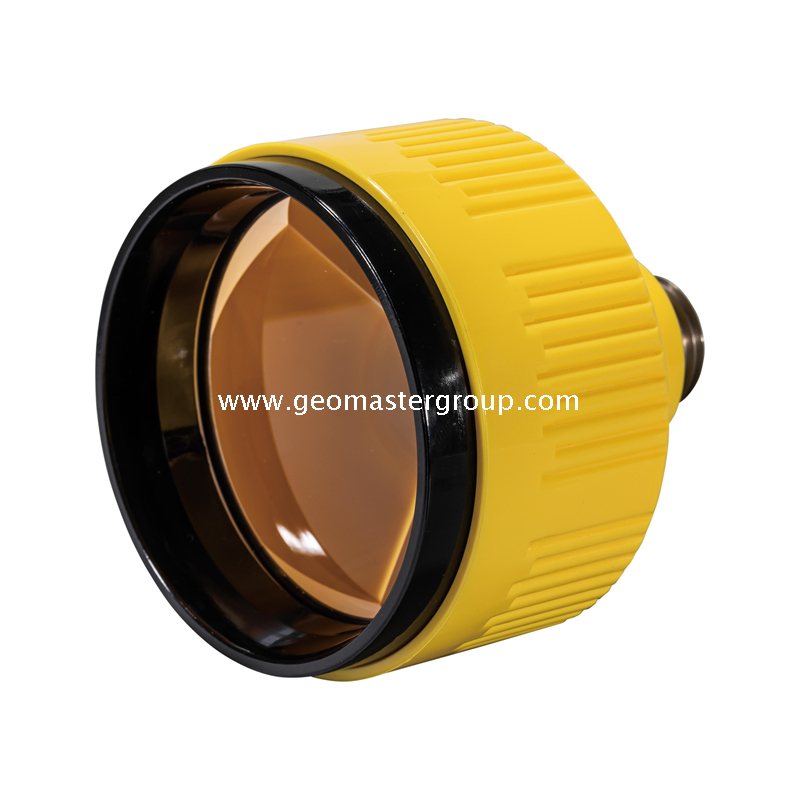

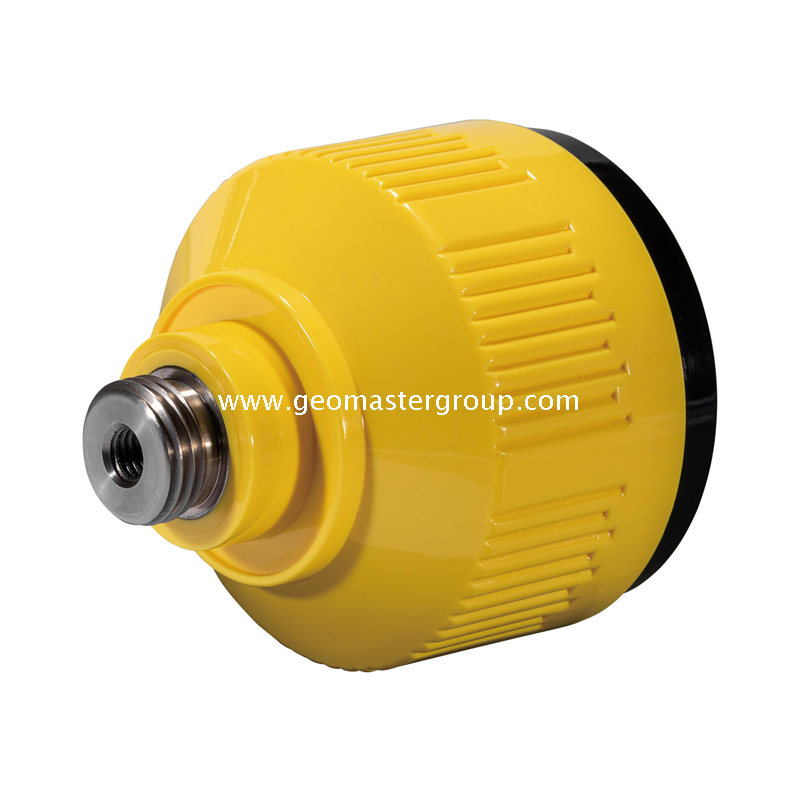

Model: GPR112-YW205/W
1.Geomaster Prism Reflector (GPR)
2.Prism Accuracy: ≤5"
3.Prism Aperture: 62mm (2.44 inch)
4.Measuring Range: 1500-2000m
5.Water-proof (W), non-coated
6.Canister Color: same as original GPR112

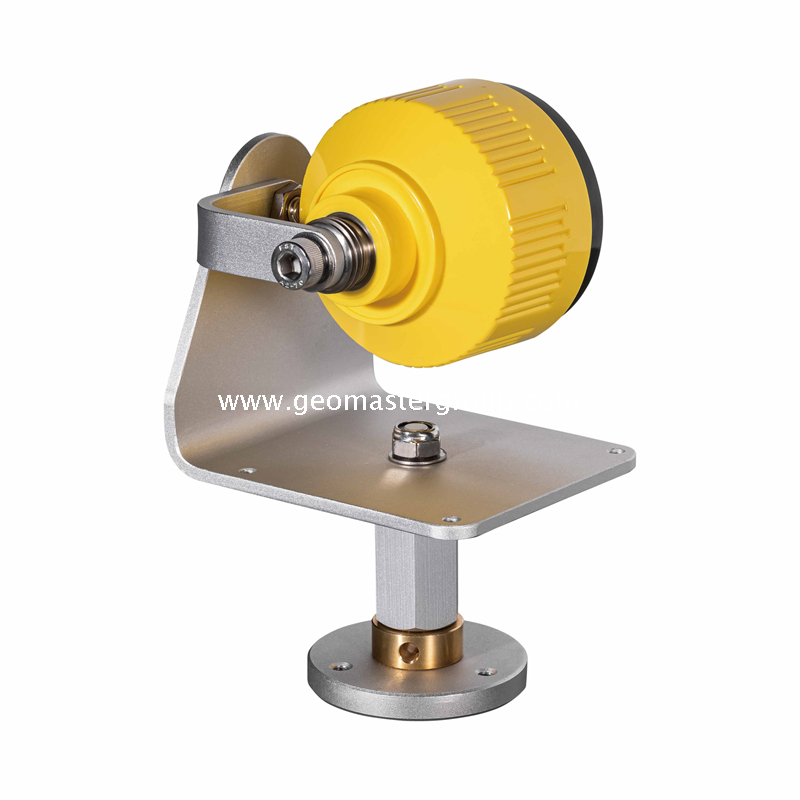

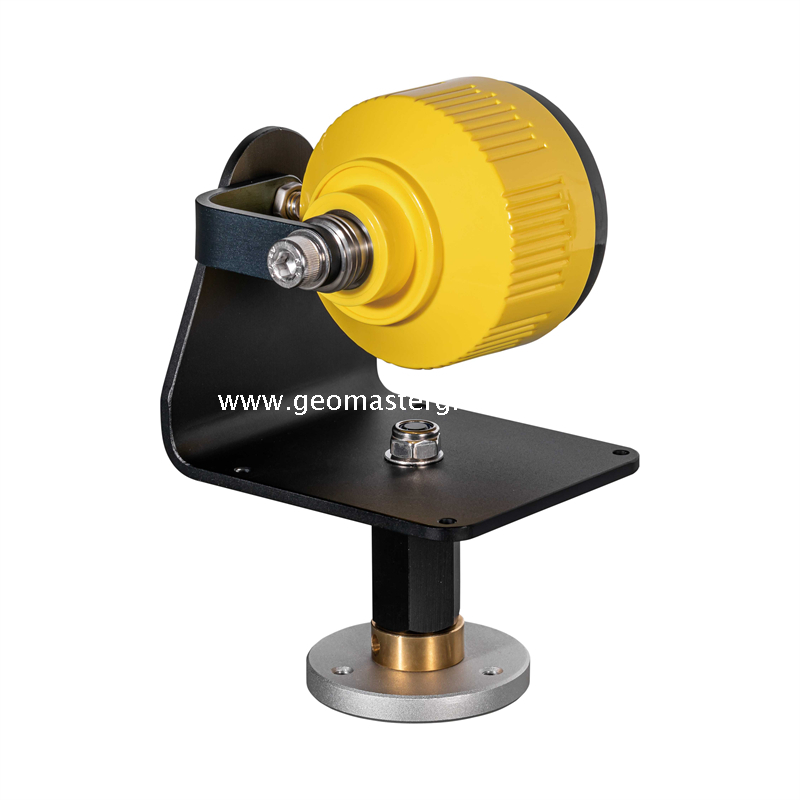

7.M8 int. THD for Prism Mounting Set (GHT112-8)

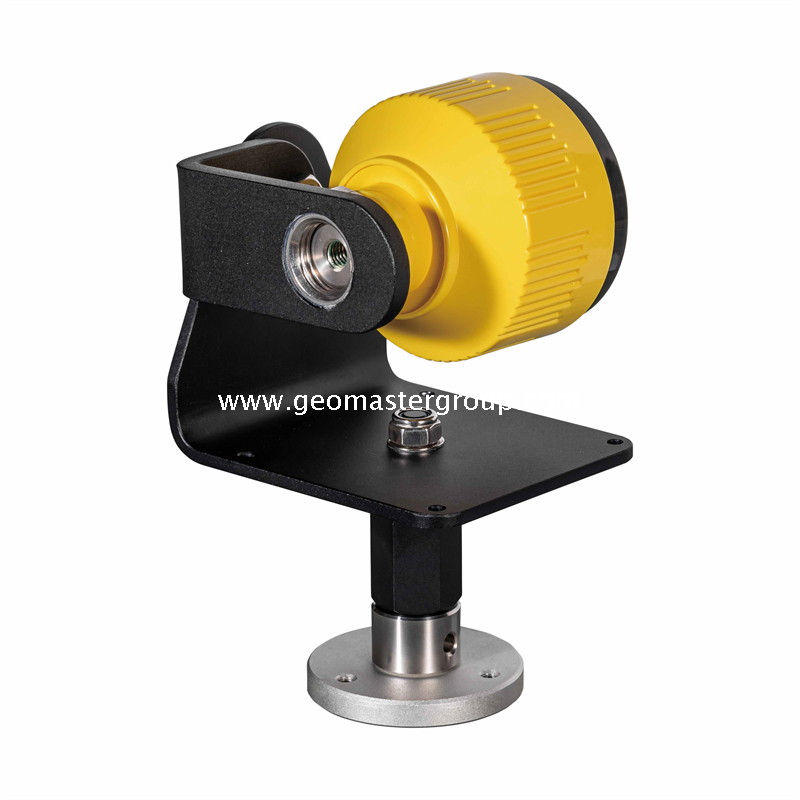

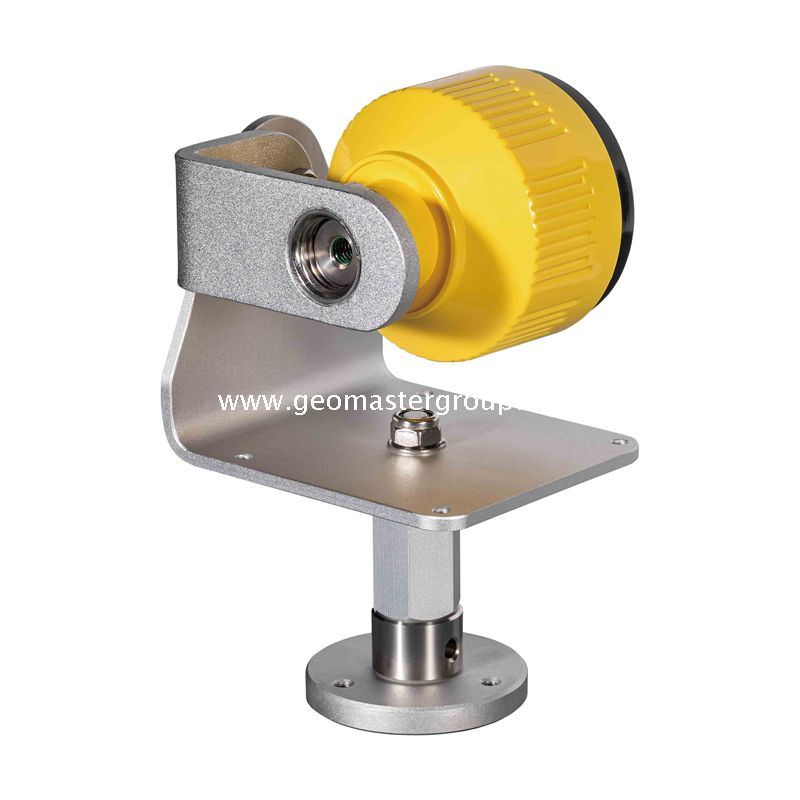

8.M20 ext. THD for Prism Mounting Sets (GHT112-20)
| Quantity: | |
|---|---|
GPR112-YW205/W
Geomaster
90159000
Specifications
Model: GPR112-YW205/W
1.Prism Accuracy: ≤5"
2.Prism Offset: 0 or -30mm depending on Prism Holders mounted on
3.Prism Aperture: 62mm (2.44 inch)
4.Material: precision-ground Optical Glass K9
5.Water-proof (W), non-coated
6.Clear Aperture: ≧95%
7.Prism Reflectivity: 95%
8.Prism Surface Finish: 60~40
9.Measuring Range: 1500-2000m (under normal weather condition)
10.Color of ABS Shell/Canister: bright yellow,same as original Prism Reflector GPR112
Features
Model: GPR112-YW205/W
1.Replacement of original Prism Reflector GPR112
2.Large Aperture (62mm) designed for efficient and accurate surveying and monitoring purposes
3.Different Accuracies (2",3",5") available to meet various surveying and monitoring tasks
4.Coating Protective a/v: silver-coated, copper-coated, non-coated, anti-reflecting coating
5.Water-proof,hermetically sealed in ABS Canister
6.M8 internal Thread compatible with on Geomaster Mounting Sets GHT112-8/ALU or GHT112-8/BLK
7.M20 external Thread compatible with most popular Prism Holders (AK series w. M20 Prism Thread)
and Geomaster Mounting Sets GHT112-20/ALU or GHT112-20/BLK
8.Each prism coming with a white dust-proof Cover
9.Completely compatible with Top-brand surveying instruments like Trimble, Sokkia, Topcon...
10.Customization services available: Prism Apertures, Canister Colors and Mounting Sets
Note: Any updating would be subject to change without prior notice.
