Highlights
Model: GF-SJ08A

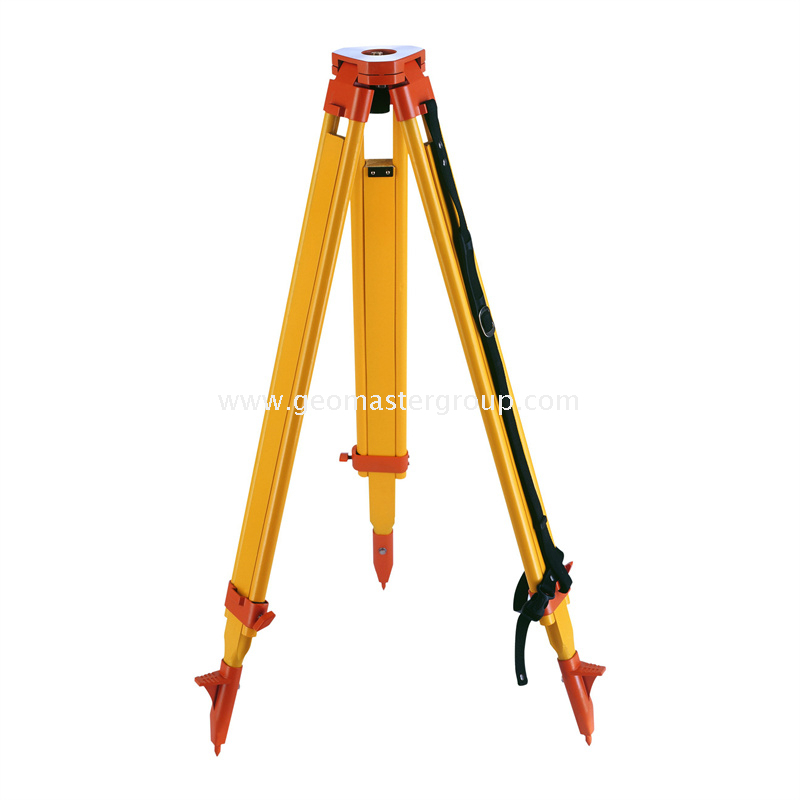

1.Light-duty wooden Tripod
2.Replacement of Leica-style GTS05
3.Height: 94-157cm (37-61.8")
3.Triangular Head
4.Wing-nut Locks
5.Shoulder Carrying Strap
| Quantity: | |
|---|---|
GF-SJ08A (GTS05)
Geomaster
90158000
Specifications
Model: GF-SJ08A
Similar to and replacement of Leica-style light-duty wooden Tripod GST05
1.Head Type: Triangular Flat (F)
2.Lock Style: Wing Nut (Screw Lock,Twist Lock,Side Screw Clamp)
3.Head Size: 125mm (OD)
4.Head Bore: 42mm (ID)
5.Min. Height: 94cm (37")
6.Max. Height: 157cm (61.8")
7.Connecting Screw: 5/8"
Features
Model: GF-SJ08A
1.Flat-head wooden tripod ideal for all types of jobs, in-door or out-door
2.Light-duty for most light-weight surveying instruments (Automatic Levels, Laser Levels...)
3.Round telescoping legs offering sturdy support and desired working heights
4.Strong wing-nut locking mechanism for long secure gripping and stable supporting

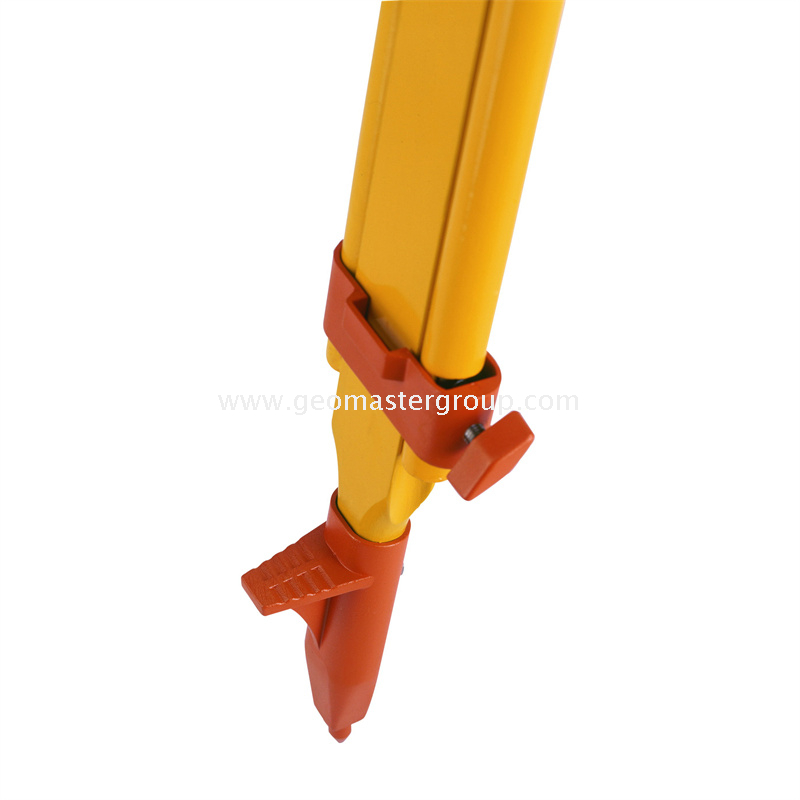

5.Metal pointed tip-toe for hard, slippery, soft, wet and rugged surfaces
6.Universal 5/8" Thread for mounting most surveying and construction instruments
7.Robust poly-webbing Shoulder Strap for easy carrying and transport
8.Optional Colors for metal parts: Black (BK) or Orange (OR)
9.Security stand SST14-600 series for option
10.Similar to Leica-style wooden Tripod GST05
11.Customization service available.
Note: Any updates would be subject to change without prior notice!
