Highlights
Model: AET-163OR

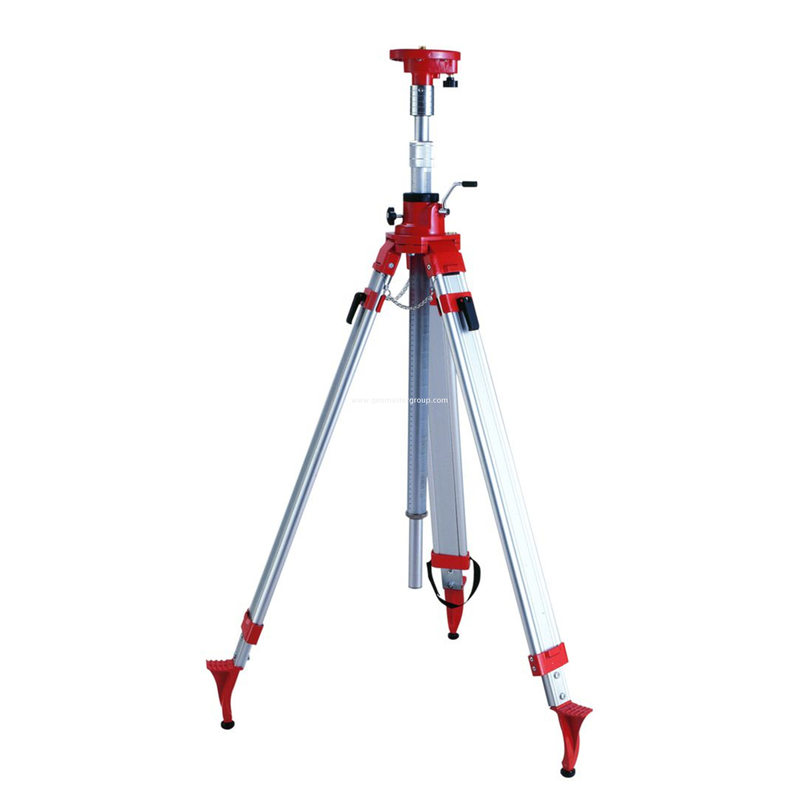

1.Heavy-duty Aluminum Elevator Tripod
2.Height from 0.84m to 1.63m
3.Quick-release,Wing-nut Lock,Anti-skidding Chain
4.Large Platform and 5/8" male Thread
5.Poly-webbing Shoulder Strap
| Quantity: | |
|---|---|
AET-163OR
Geomaster
9031809090
Specifications
Model: AET-163OR
1.Minimum Height: 0.84m (2.75ft)
2.Maximum Height: 1.63m (5.35ft)
3.Elevation Range: 34.5cm
4.Support Plate Diameter: 13cm
5.Locking Systems: Screw Locks+Quick Releases+Wing-nut Lock+Anti-skidding Chain
6.Connecting Screw: 5/8"
Features
Model: AET-163OR
1.Made of heavy-duty construction aluminum
2.Universal Contractor’s Elevator Tripod rugged for outdoor surveying and measuring purposes

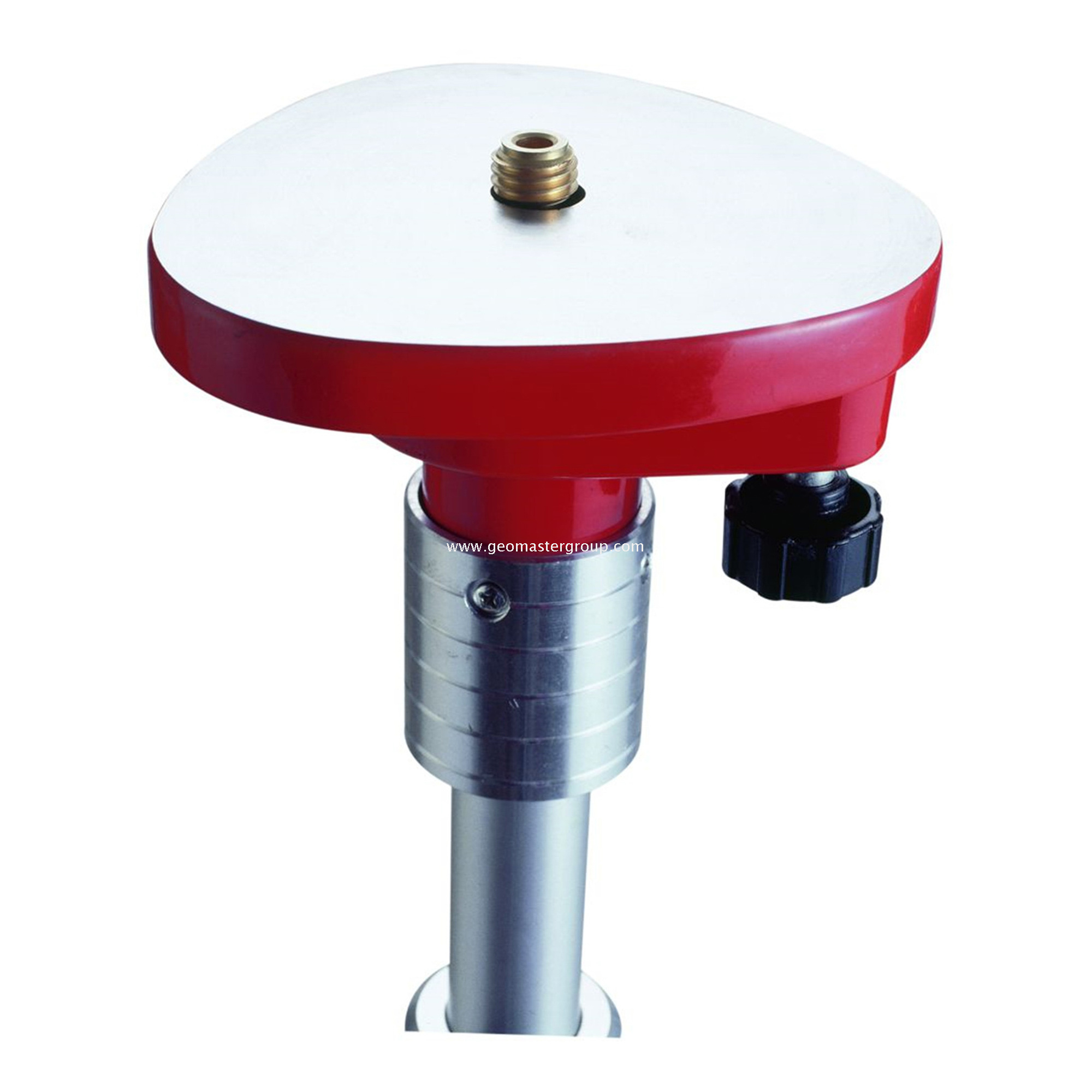

3.Large Platform (Carrier Base, Support Plate, 13cm dia.) with 5/8” thread offering secure and strong support to all present medium-wieght and heavy-weight Surveying Instruments like Rotating Laser Levels,Theodolites,Robotic Total Stations, 3D Laser Scanners,GPS/GNSS Receivers,etc

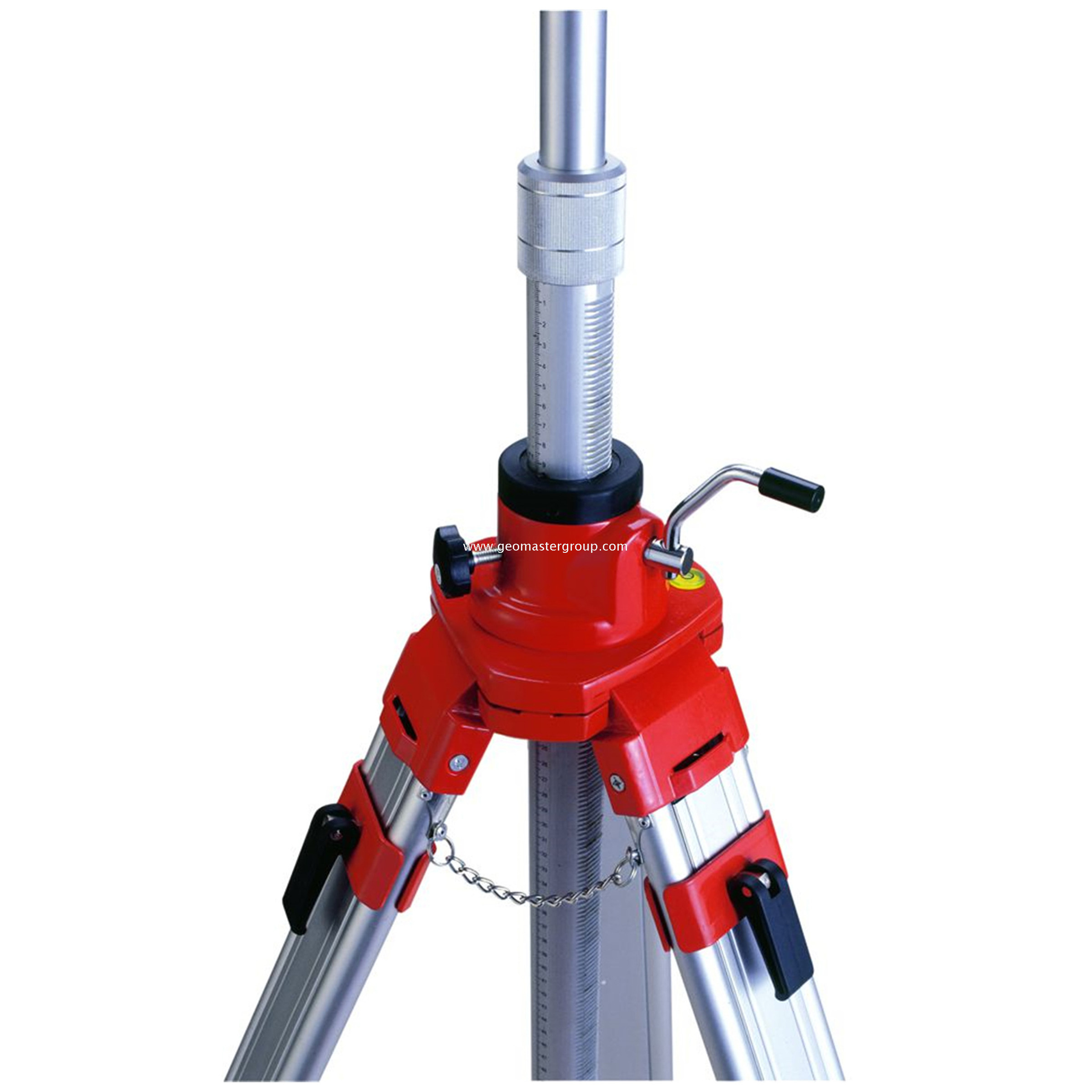

4.Multiple Locking System (Screw Lock+Quick Releases+Wing-nut Lock) offering secure and steady locking function
5.Equipped with anti-skidding Chain and metal feet with Tip Points ideal for hard,soft,slippery or uneven surfaces or grounds
6.Quick-release Elevation Gear quickly pulled up and down for desired working height
7.Equipped with rugged poly-webbing Shoulder Strap easy carry-around
8.Multiple Colors available: Black, Leica Green, Sokkia Grey, Topcon Yellow, Fluorescent Yellow
9.Customization service available
Note: Any updating would be subject to change without prior notice.
