Highlights

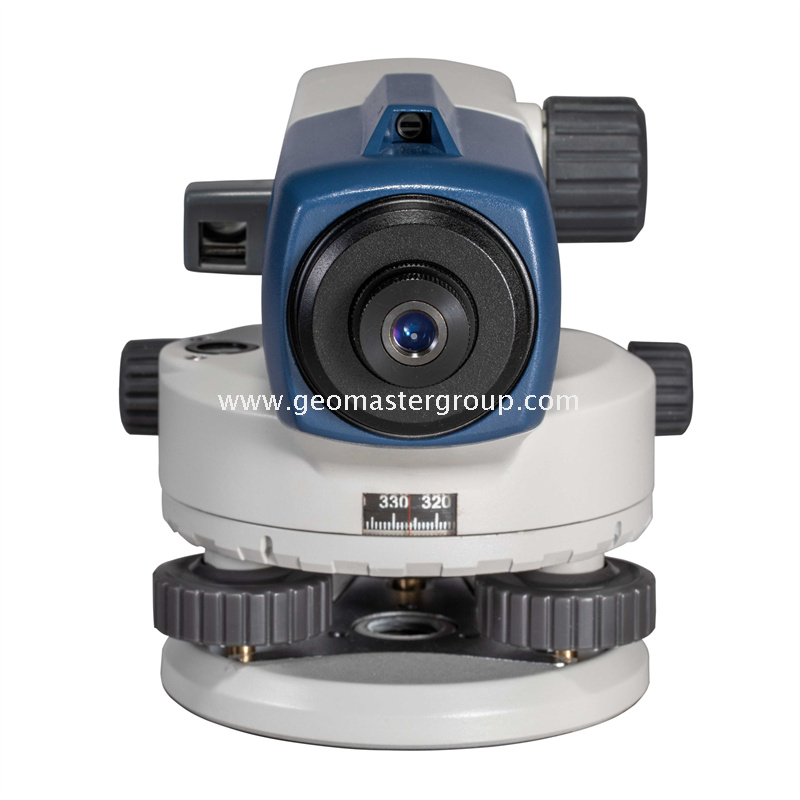

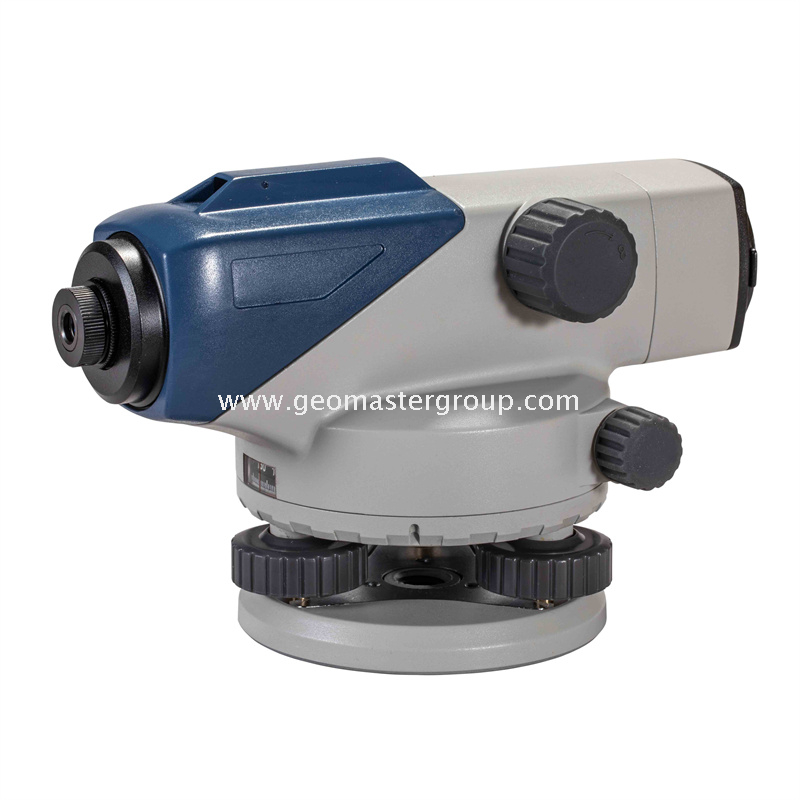

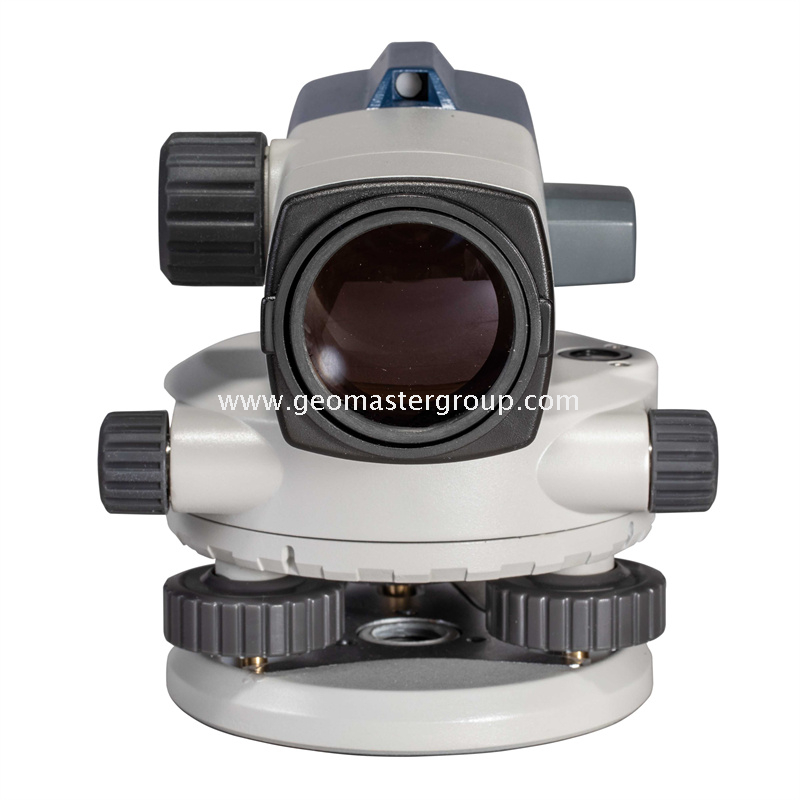

Model: GEO2032
1.Equivalent to and Replacement of Sokkia style B20
2.Magnification: 32x
3.Accuracy: ±1.0mm
4.Aperture: 42mm
5.Sokkia-style Magnetic Compensator
6.Water Protection Grade: IPX6
| Quantity: | |
|---|---|
GEO2032
Geomaster
9015900090
Features & Specifications
Model: GEO2032 (B2032)
1.Equivalent to and Replacement of Sokkia style: B20
2.Magnification: 32x
3.Standard Deviation for1km Double-Run Leveling: ±1.0mm (without Micrometer)
4.Objective Aperture: 42mm
5.Length of Telescope (from Objective to Eyepiece): 215mm
6.Image of Telescope: Erect
7.Shortest Focusing Distance: 0.3m
8.Field of View: 1°20"
9.Setting Time: ≤2"
10.Resolution Power: 3"
11.Reticule Style:
12.Sokkia-style Compensator: Magnetic Damping
13.Working Range: ±15"
14.Setting Accuracy: ±0.3"/1'
15.Multiplication Constant: 100
16.Additive Constant: 0
17.Sensitivity of Circular Level: 8"/2mm
18.Coarse Sighting: Yes
19.Inner Horizontal Circle: Graduation: 360º/1°or 400gon/1gon; Circle Diameter: 103mm
20.Ambient Temperature: －20℃ ~ ＋45℃
21.Water Protection Grade:JID Grade 4 (IPX6)
22.Recommended Staff: Please refer to "Leveling Rods & Bipods"

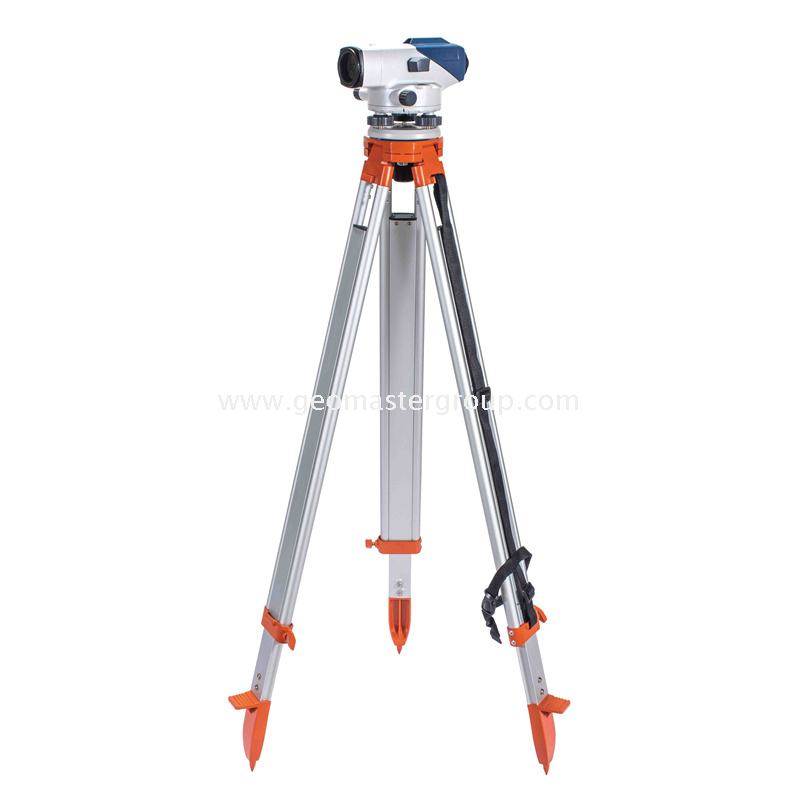

23.Recommended Tripod: Please refer to "Surveying Tripods"
24.Standard Accessories: Adjusting Pin,Desiccating Agent,Allen Wrench,Plumb Bob,
User Manual,Plastic Carrying Case (1.40kg,incl. all Accessories)
Note: Any updating would be subject to occur without prior notice!!
