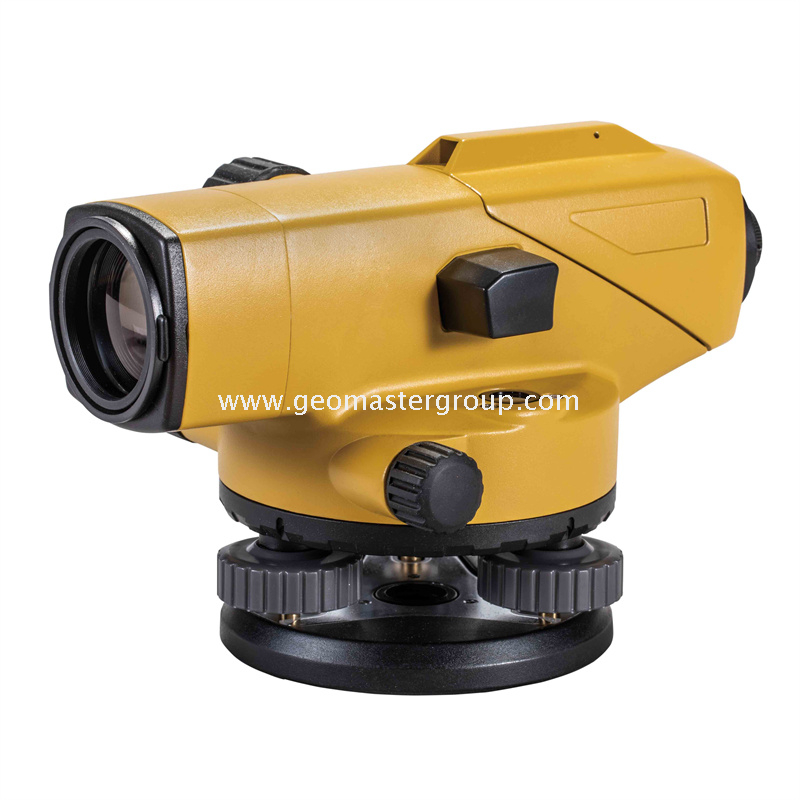

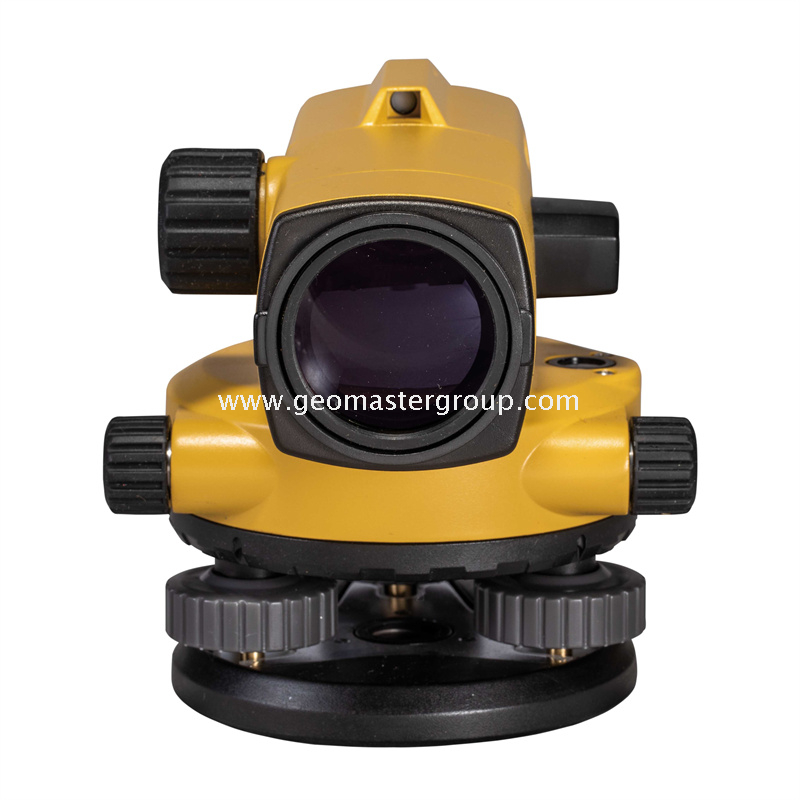

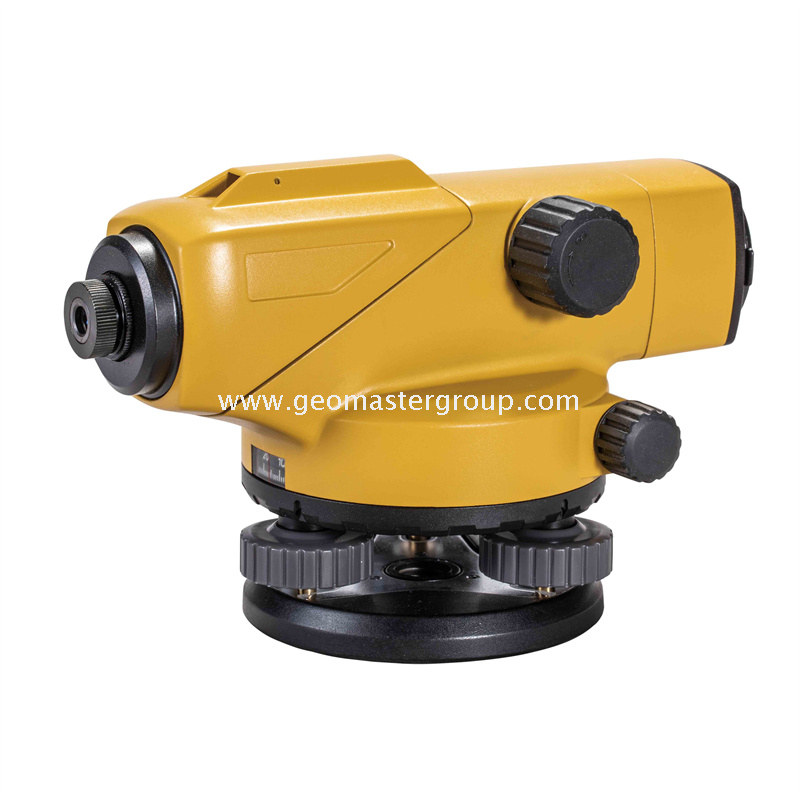

Automatic Level

Highlights
Model: GEO20B2
1.Equivalent to and replacement of Topcon B2
2.Magnification: 32x
3.Accuracy: ±1.0mm
4.Aperture: 42mm
5.Topcon-style Magnetic Compensator
6.Water Protection Grade: IPX6

Availability:
Quantity:
  • GEO20B2

  • Geomaster

  • 9015900090

Features & Specifications
Model: GEO20B2 (B2320,B2032)
1.Equivalent to and replacement of Topcon style: B2
2.Magnification: 32x
3.Standard Deviation for1km Double-Run Leveling: ±1.0mm (without Micrometer)
4.Objective Aperture: 42mm
5.Length of Telescope (from Objective to Eyepiece): 215mm
6.Image of Telescope: Erect
7.Shortest Focusing Distance: 0.3m
8.Field of View: 1°25"
9.Setting Time: ≤2"
10.Resolution Power: 3"
11.Reticule Style:
12.Topcon-style Compensator: Magnetic Damping
13.Working Range: ±15"
14.Setting Accuracy: ±0.3"/1'
15.Multiplication Constant: 100
16.Additive Constant: 0
17.Sensitivity of Circular Level: 8"/2mm
18.Coarse Sighting: Yes

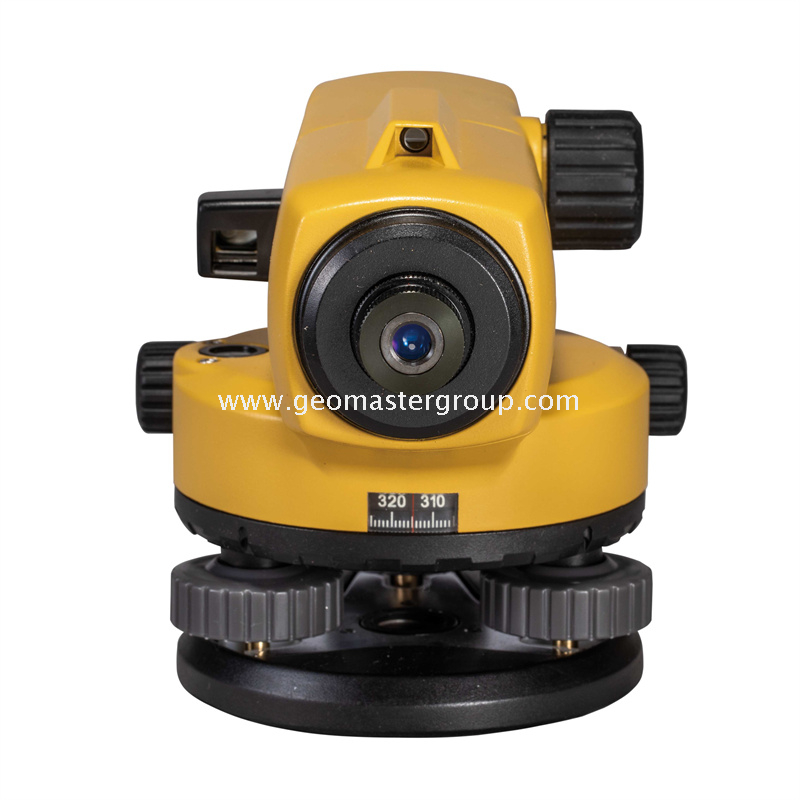

19.Inner Horizontal Circle: Graduation: 360º/1°or 400gon/1gon; Circle Diameter: 103mm
20.Ambient Temperature: -20℃ ~ +45℃
21.Water Protection Grade:JID Grade 4 (IPX6)
22.Recommended Staff: Please refer to "Leveling Rods & Bipods"

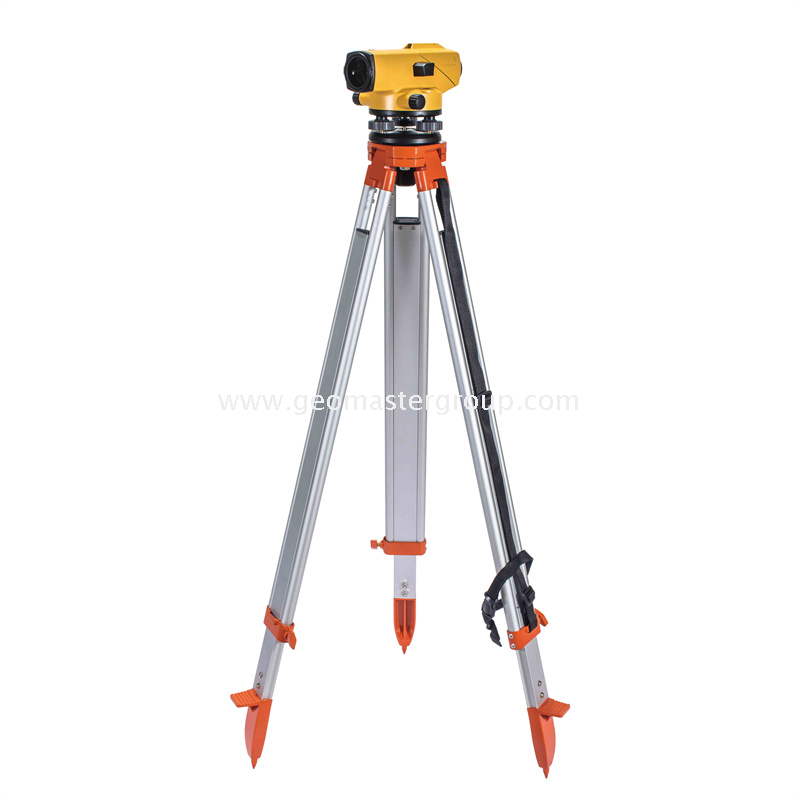

23.Recommended Tripod: Please refer to "Surveying Tripods"

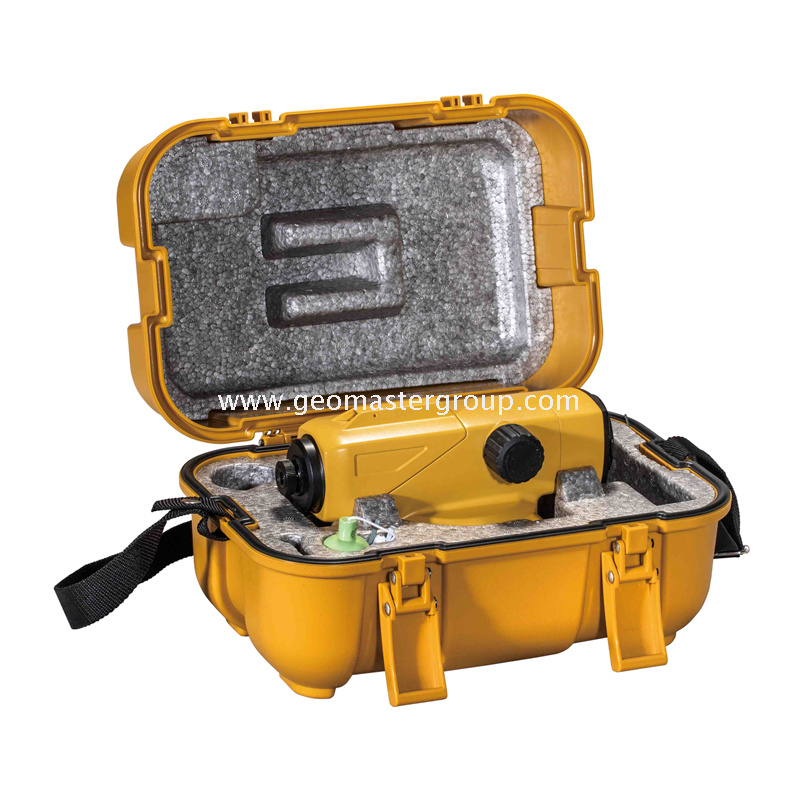

24.Standard Accessories: Adjusting Pin,Desiccating Agent,Allen Wrench,Plumb Bob,
User Manual,Plastic Carrying Case (1.40kg,incl. all Accessories)

Note: Any updating would be subject to occur without prior notice!!

Related Names

Surveying Instrument,Surveying Equipment,Surveying Accessory,Automatic Level,Digital Level, Optical Level,Surveyor Level,Builder Level,Transit Level, Universal Level,Surveying Level,
Contractor Level, Theodolite Level,Leica Level,Nikon Level,Pentax Level,Sokkia Level,Topcon Level,Trimble Level,Johnson Level,Bosch Level,Dewalt Level,CST/Berge
r Level,Spectra Level,
Geomax Level,Geomaster Level

Packing Details
Model: GEO20B2 (B2320,B2032)
1.Each Box
1)Qty: 1pc
2)G.W.: 1.75~1.80kg
3)Size: 215mm×130mm×135mm

2.Each Carton
1)Qty: 4pcs
2)G.W.: 13kg
3)Size: 0.052cbm (61cm×41cm×21cm)
