Highlights
Model: AK-312
1.Self-leveling Red Cross Line & Dot Laser Level
2.Self-Leveling Range: ±3°
3.Working Range: ≦15m
4.In-door, Out-door & Tilting
5.Tilting Cross Line & Dots

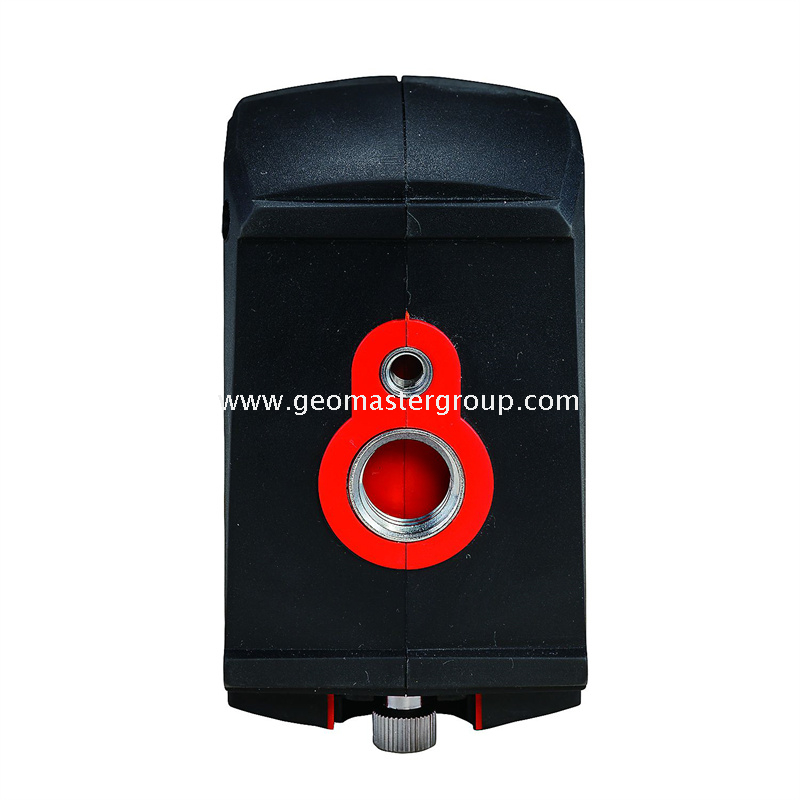

6.Dual Tripod Threads 5/8"-11 & ¼"-20
7.IP54 & w. Carrying Bag
| Quantity: | |
|---|---|
AK-312
Geomaster
9015900090
Specifications
Model: AK-312
1.Laser Beam & Dot: Red color
2.Self-Leveling Mode: Magnetic Damping
3.Self-Leveling Range: ±3°
4.Self-Leveling Time: <5 sec
5.Working Modes: in-door, out-door and tilting
6.Working Range: 15m (Illuminance: 180Lux)
7.Lines/Dots: 1V1H2D (V-vertical Line; H-Horizontal Line; D-Dot)
8.Line Accuracy: ±1mm/5m
9.Line Width: <2.5mm/5m
10.Laser Source: 635nm, Class II, <5mW
11.Power Supply: Alkaline Batteries: 3×AA×1.5v,lasting for 20 hours
12.Operating Temperature: (－)10℃ ~ 40℃
13.Storage Temperature: (－)20℃ ~ 50℃
14.Dual Tripod Threads 5/8"-11 and ¼"-20
15.IP Protection: IP54
Features
Model: AK-312

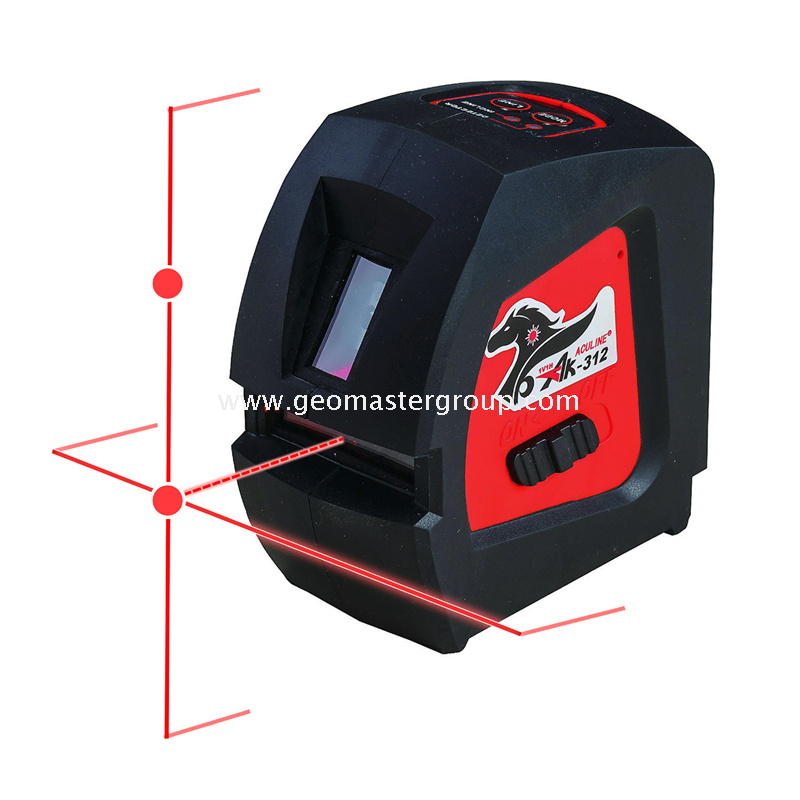

1.Red Laser Level projecting 1 horizontal Line, 1 vertical Line and 2 Dots
2.Tilting Gear permits projecting Cross Lines in any direction on the vertical walls
3.Multiple Working Modes (in-door, out-door and tilting) meeting different measuring purposes
4.Glittering in case of exceeding the self-leveling range
5.Anti-vibration designing suitable for different working conditions
6.IP54, shock-resistant, dust-tight and water-proof for rough working conditions

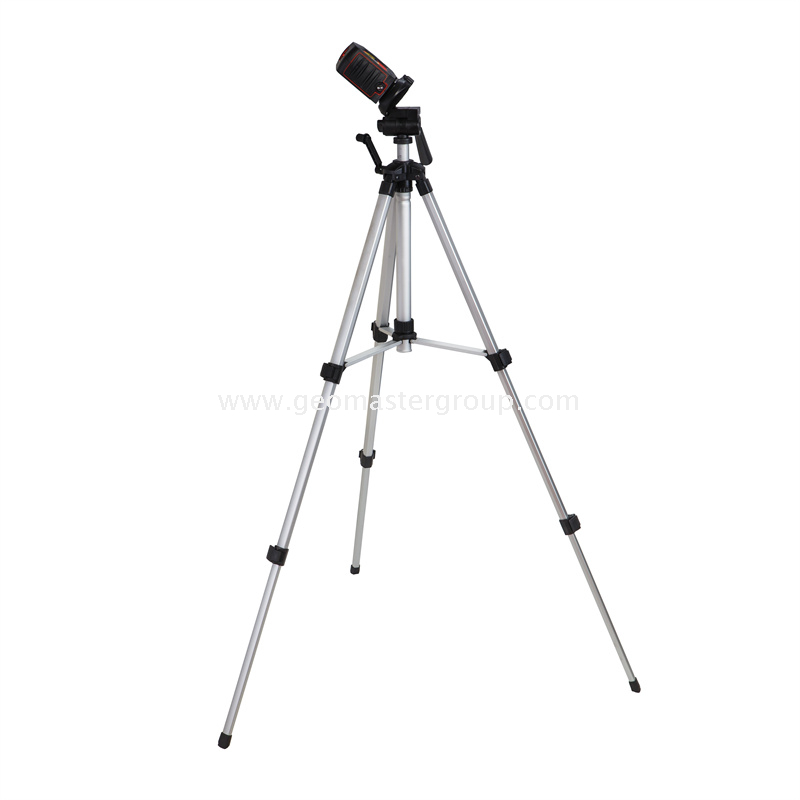

7.Equipped with Universal Female Thread (5/8"-11),compatible w. all Tripods (w. 5/8" -11 male Adapters or Central Connect Screws) like Laser Tripods and Surveying Tripods (Aluminum Tripods,Wooden Tripods,Fiberglass Tripods)
8.Installed with Universal Female Adapter (¼"-20), compatible w. all light-duty Laser Tripods (w. ¼" male Adapters
or Central Connect Screws): LTD-1201, LDT-1202, LTD-1203, LTD-1204, LTD-06, LTD-07

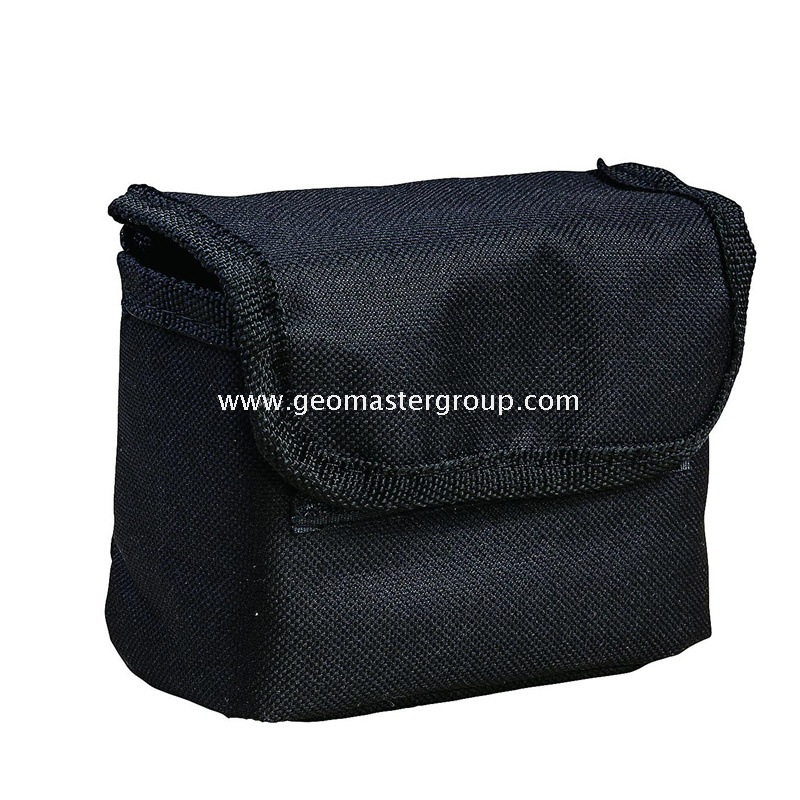

9.Coming with rugged Carrying Bag for easy carrying and secure storage
10.Rotating Bases and Magnetic Wall Brackets available:
AK903-58 (5/8"), AK903-14 (1/4"), AK905-58 (5/8"), AK905-14 (1/4"), A843Z-1/4 (1/4")
Note: Any updating would be subject to occur without prior notice!!
