Highlights
Model: FCS-550

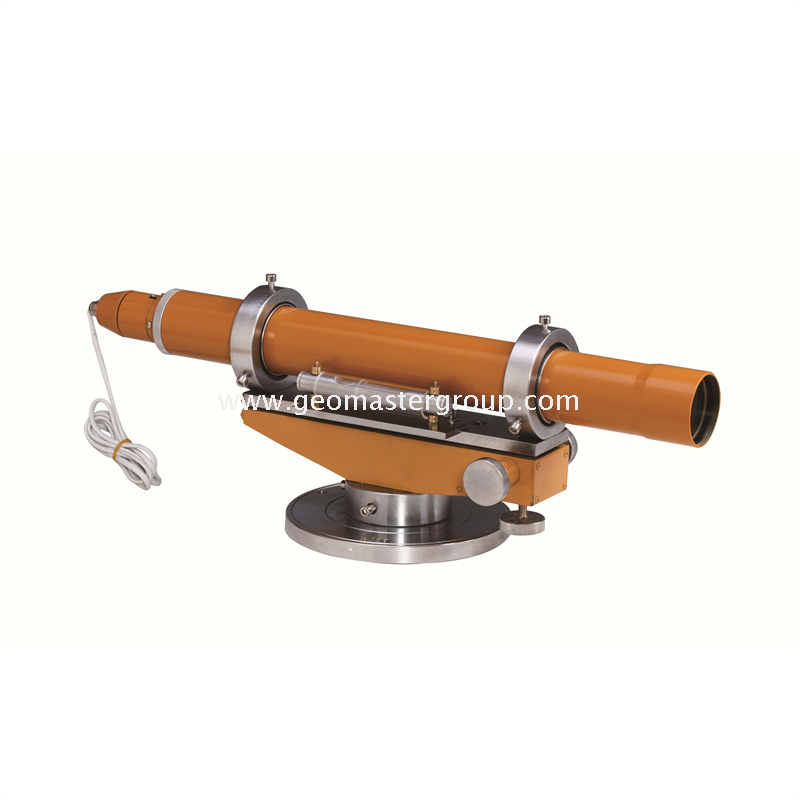

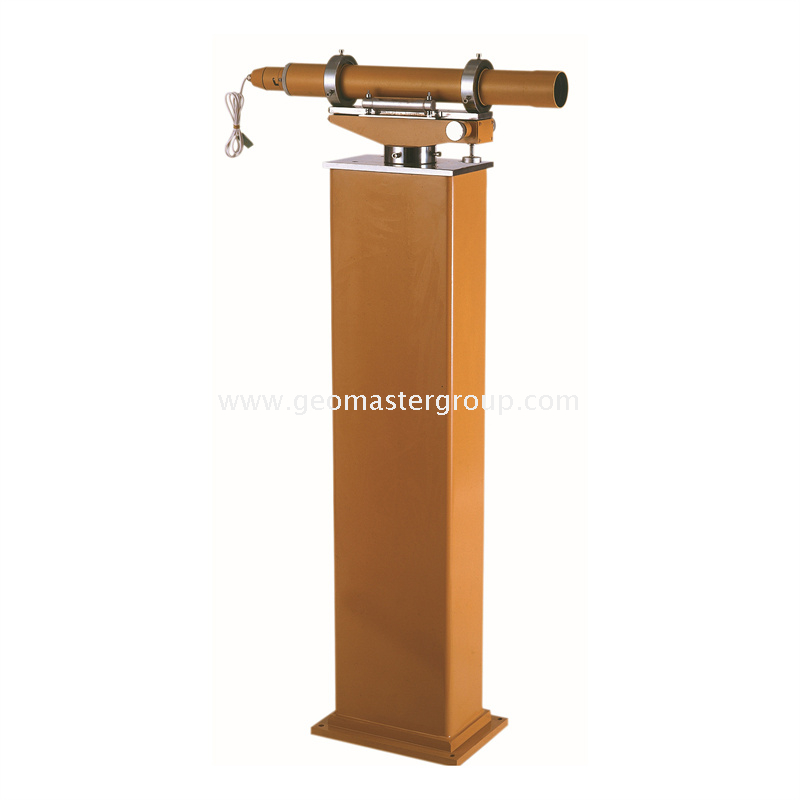

1.Single-tube Floor-type Collimator
2.Focal Length: 550mm
3.Effective Aperture: 55mm
4.Micro-adjusting Gear
5.Tube Support Height 1000mm
Availability: | |
---|---|
Quantity: | |
FCS-550
Geomaster
901580000
Specifications
Model: FCS-550
1.Focal Length: 550mm
2.Effective Aperture: 55mm
3.Relative Aperture: 1:10
4.Tube Length: 545mm
5.Field of View: 2°30'
6.Min. Graduation of Reticule: 30"
7.Stadia Range: 2m ~ ∞
8.Micro-adjusting Range: Left«Right (X Axis): ≦10"; Back«Forth(Y Axis): ≦10"
9.Plate Level: 10"/2mm10.Tube Support Height: 1000mm
11.Power Supply: Input: AC220V; Output: DC4.0-4.5V
Note: Any improvement would be subject to change without prior notice!!
Related Names
Surveying Instrument, Surveying Equipment, Surveying Accessory, Collimator, Optical Collimator, Collimator Station, Collimator Tube,
Surveying Collimator,Floor Collimator, Desktop Collimator, Elevator Collimator,Digital Collimator, Calibration Station,Station Collimator,
Laser Collimator,CCTV Collimator,Optical Tube,Surveying Stand,Surveying Support
Specifications
Model: FCS-550
1.Focal Length: 550mm
2.Effective Aperture: 55mm
3.Relative Aperture: 1:10
4.Tube Length: 545mm
5.Field of View: 2°30'
6.Min. Graduation of Reticule: 30"
7.Stadia Range: 2m ~ ∞
8.Micro-adjusting Range: Left«Right (X Axis): ≦10"; Back«Forth(Y Axis): ≦10"
9.Plate Level: 10"/2mm10.Tube Support Height: 1000mm
11.Power Supply: Input: AC220V; Output: DC4.0-4.5V
Note: Any improvement would be subject to change without prior notice!!
Related Names
Surveying Instrument, Surveying Equipment, Surveying Accessory, Collimator, Optical Collimator, Collimator Station, Collimator Tube,
Surveying Collimator,Floor Collimator, Desktop Collimator, Elevator Collimator,Digital Collimator, Calibration Station,Station Collimator,
Laser Collimator,CCTV Collimator,Optical Tube,Surveying Stand,Surveying Support
Specifications
Model: FCS-550
1.Net Weight: 70kg
2.Qty./Wooden Box: 1pc
3.G.W./Wooden Box: 80kg
4.Size/Wooden Box: 0.31cbm(143cm×42cm×51cm)
Specifications
Model: FCS-550
1.Net Weight: 70kg
2.Qty./Wooden Box: 1pc
3.G.W./Wooden Box: 80kg
4.Size/Wooden Box: 0.31cbm(143cm×42cm×51cm)
