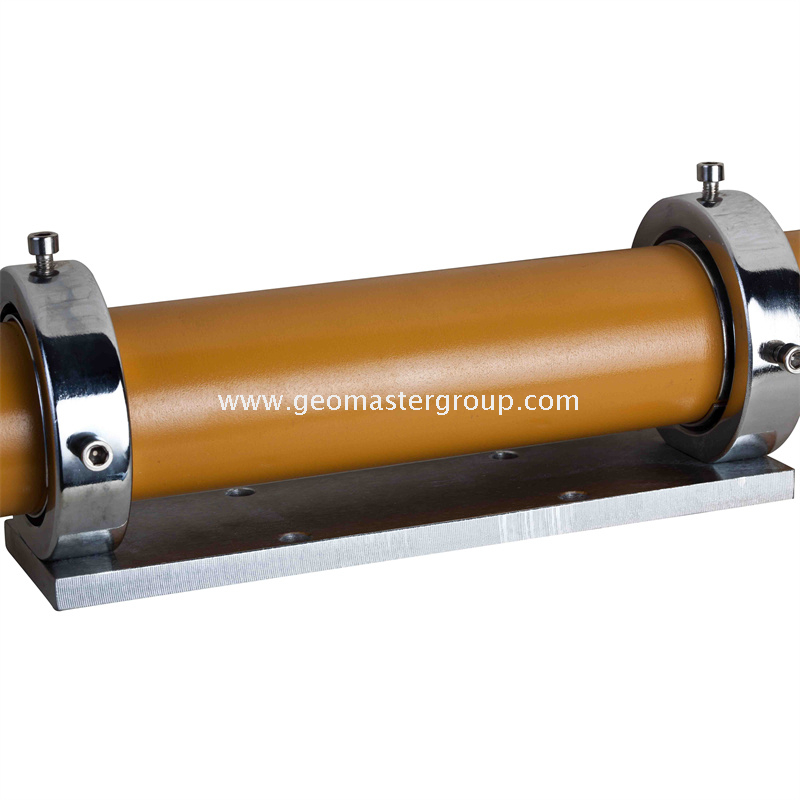

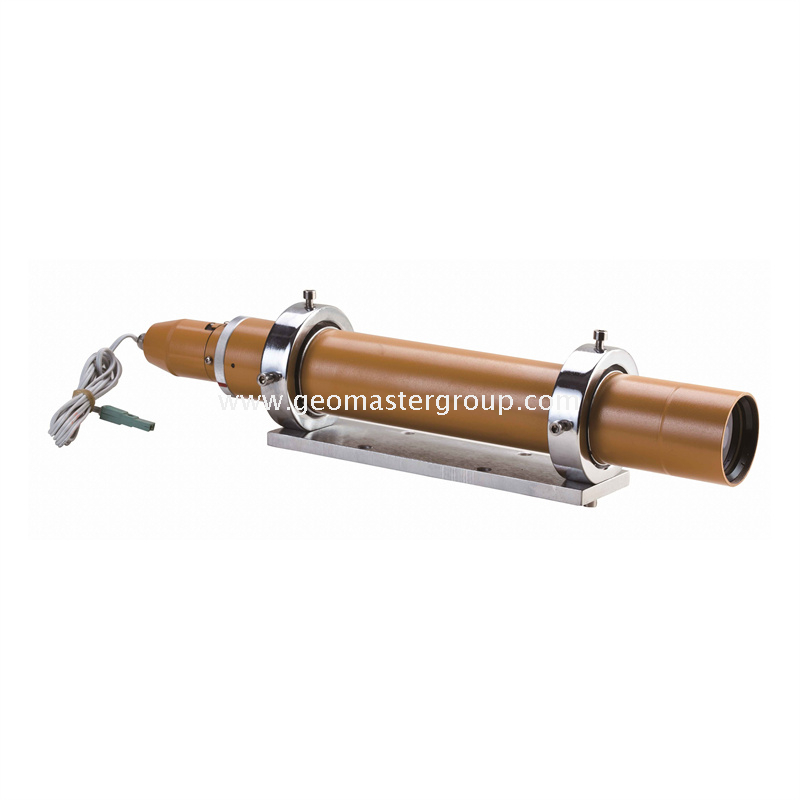

Optical Collimator Tube

Specifications
Model: OCT-420
Specially designed for Optical Collimator System, Collimator Tube, Floor Collimator, Desktop Collimator, Laser
Collimator, Collimator Station to check and calibrate Total Stations, Theodolites, Automatic Levels, Optical Levels,
Laser Levels and etc.
1.Focal Length: 420mm
2.Effective Aperture: 60mm
3.Tube Length: 415mm
4.Field of View: 2°30'
5.Min. Graduation of Reticule: 30"
6.Stadia Range: 2m ~ ∞
7.Power Supply: Input: AC220V; Output: DC4.0-4.5V
8.With stainless steel Mounting Base

Note: Any improvement would be subject to change without prior notice!!
