Highlights

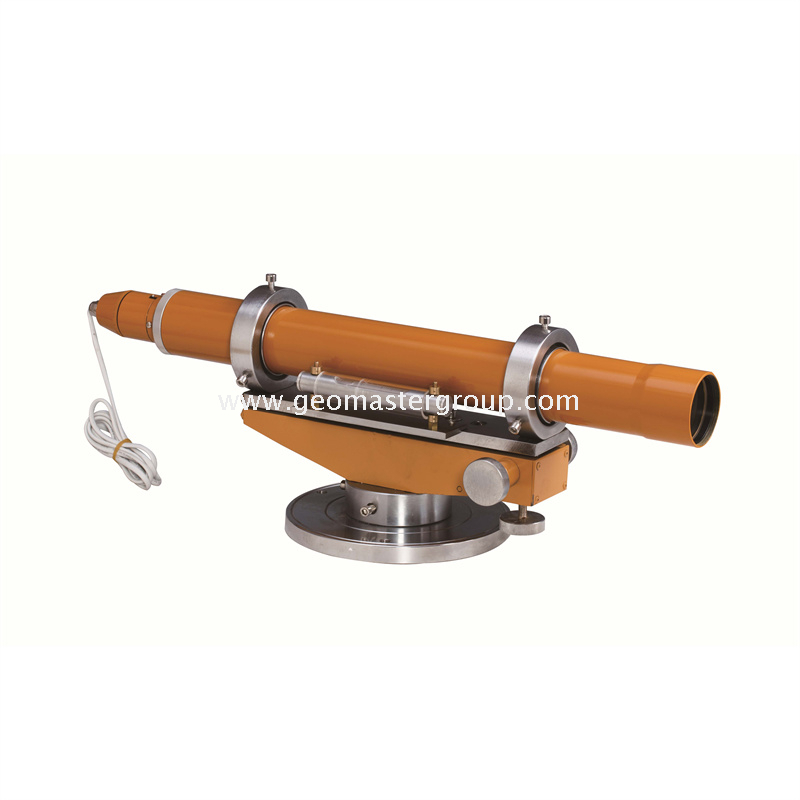

Model: OCT-550WD
1.Desktop portable Optical Collimator
2.Focal Length: 550mm
3.Effective Aperture: 55mm
4.Micro-adjusting Gear
5.Stand Ring Adjusting
6.For Total Stations, Theodolite, Automatic Levels...
| Quantity: | |
|---|---|
OCT-550WD
Geomaster
901580000
Specifications
Model: OCT-550WD
Desktop and portable Optical Collimator System to check and calibrate Total Stations, Theodolites, Automatic Levels, Optical Levels, Laser Levels and etc.
1.Focal Length: 550mm
2.Effective Aperture: 55mm
3.Relative Aperture: 1:10
4.Tube Length: 545mm
5.Magnification: 5.7x
6.Field of View: 2°50'
7.Resolution Power: ≦3"
8.Graduation of Reticule: Max: 5'; Min: 30"
9.Stand Ring Adjusting Range: Left«Right (X Axis): ≧20'; Back«Forth(Y Axis): ≧20'
10.Micro-adjusting Range: Left«Right (X Axis): ≦10"; Back«Forth(Y Axis): ≦10"
11.Plate Level: 10"/2mm
12.Power Supply: Input: AC220V; Output: DC4.0-4.5V
Note: Any improvement would be subject to change without prior notice!!
