Model: OCS-1A
1.Single-tube Optical Collimator
2.Focal Length: 550mm
3.Micrometer Aperture: 50mm
4.Micrometer Range: ±30"
5.Micro-tilt Adjuster Tilting Range:
Axis X: ±15'; Axis Y: ±15'
6.For Automatic Levels, Optical Levels...
| Quantity: | |
|---|---|
OCS-1A
Geomaster
90158000
Specifications
Model: OCS-1A

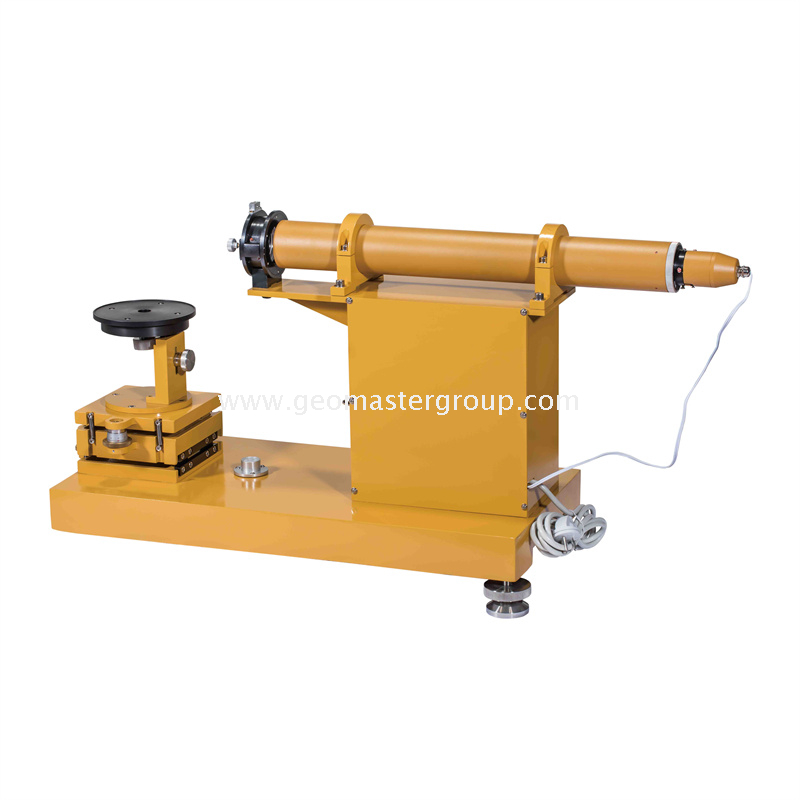

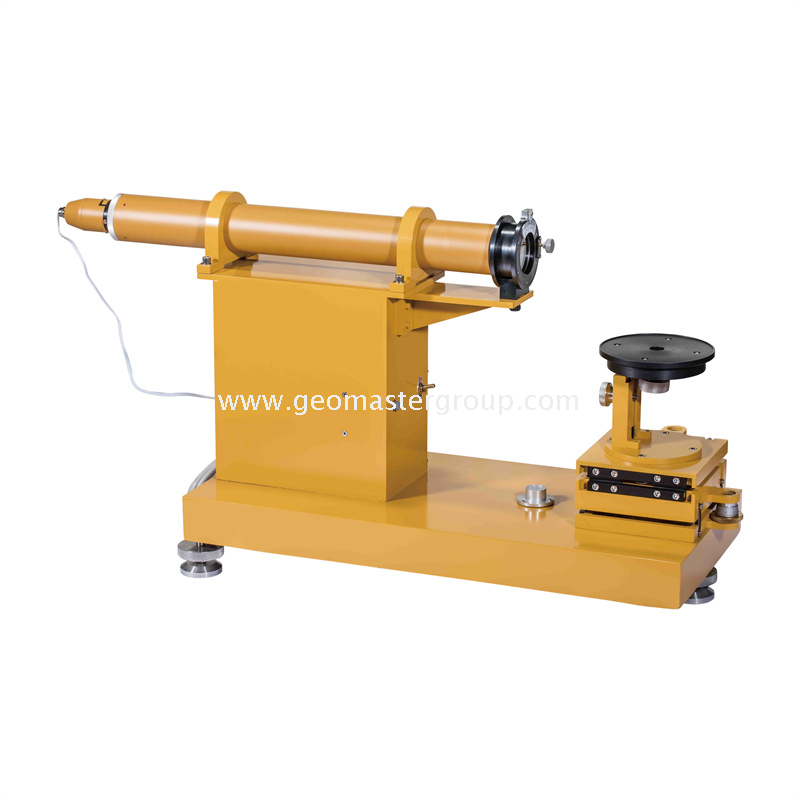

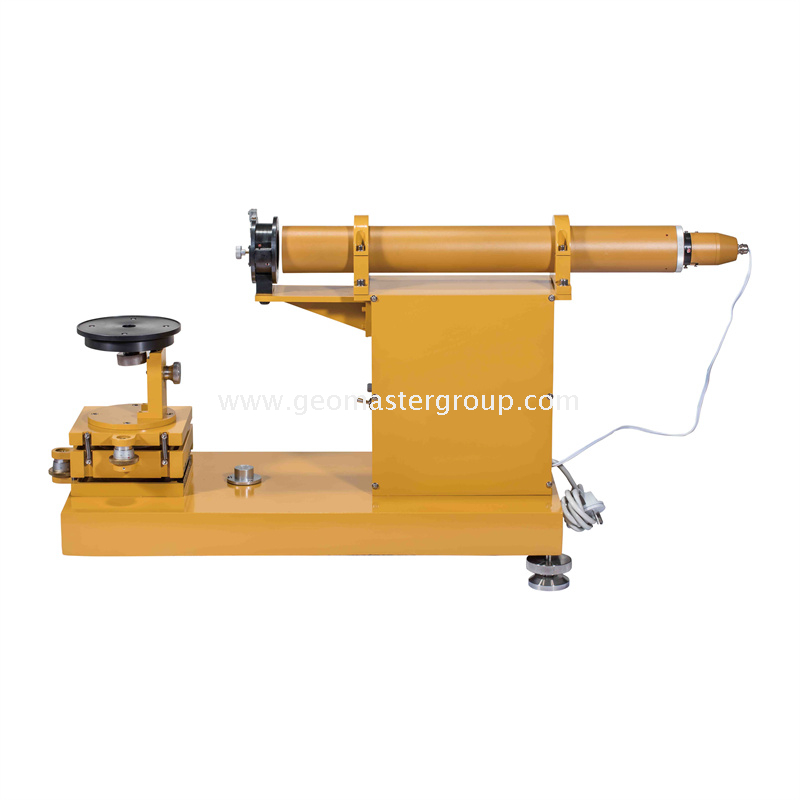

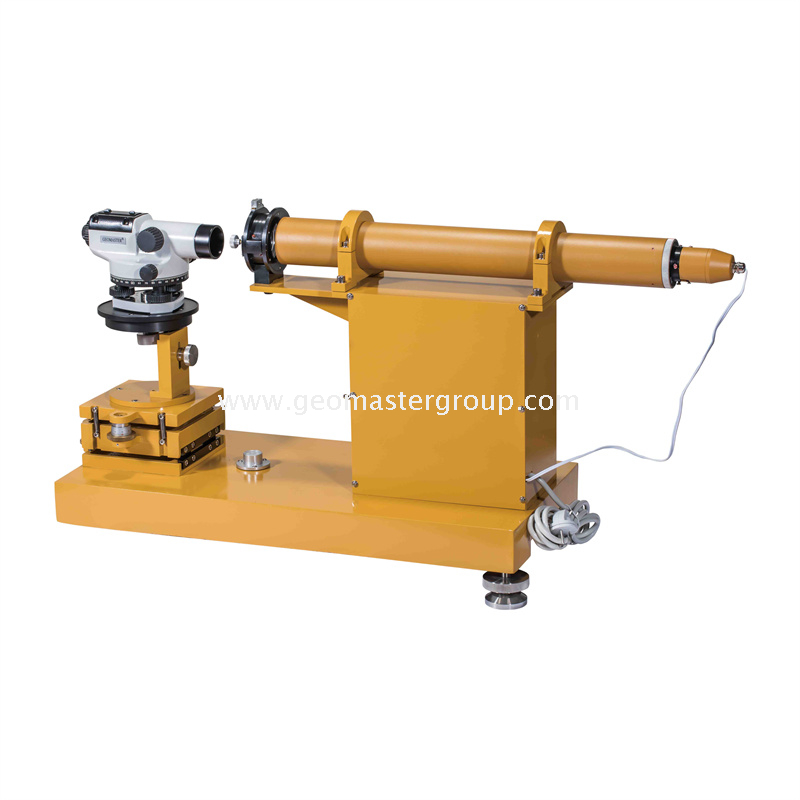

Single-tube Optical Collimator System specially designed for calibrating Surveying Instruments like Automatic Levels, Optical Levels,etc.
1.Optical Tube
1)Focal Length: 550mm
2)Tube Length: 520mm
3)Field of View: 2°30'
4)Magnification of Objective Lens: 0.5~0.6×
2.Reticule
1)Min. Graduation of Reticule: 30"
2)Max. Graduation of Reticule: 5'

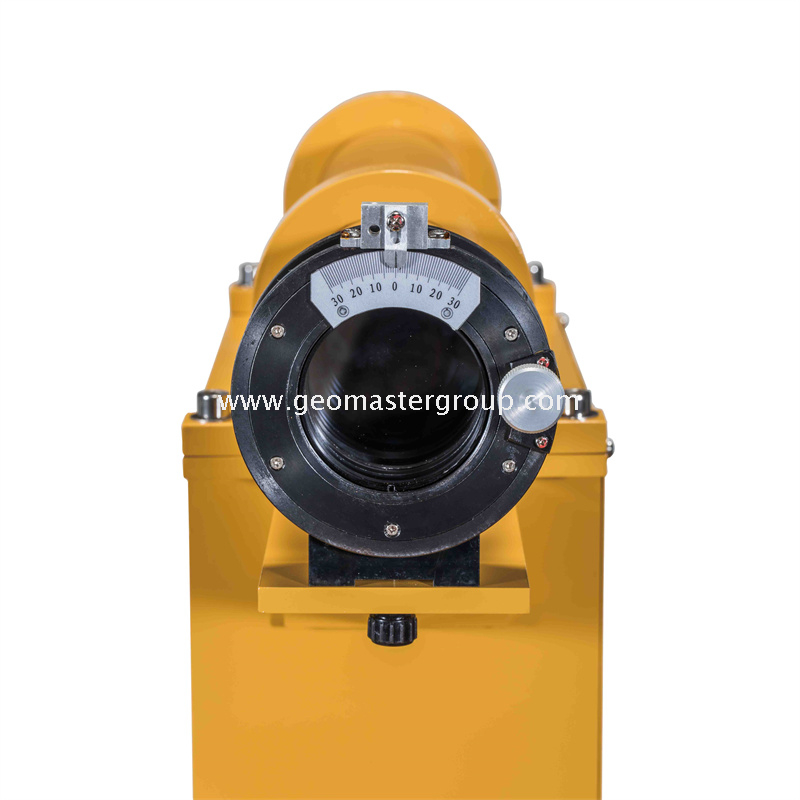

3.Micrometer
1)Effective Aperture of Micrometer: 50mm
2)Measuring Range of Micrometer: ±30"
3)Min. Reading of Micrometer: 1"

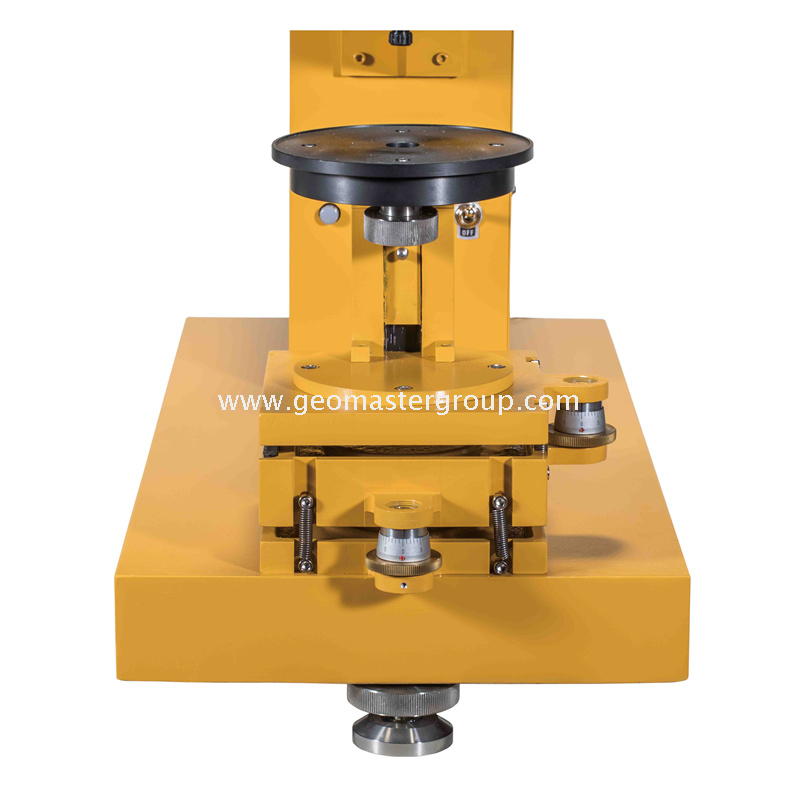

4.Micro-tilt Adjuster
1)Min.Graduation: 1'
2)Tilting Range: X Axis: ±15'; Y Axis: ±15'
3)Bench Elevation Range:100-150mm
5.Plate Bubble
Accuracy: 8'/2mm
6.Power Supply
1)AC Input: 220v, 50Hz
2)DC Output: 3.2-5.0V
Note: Any improvement would be subject to change without prior notice!!
