Model: OCS-360/4

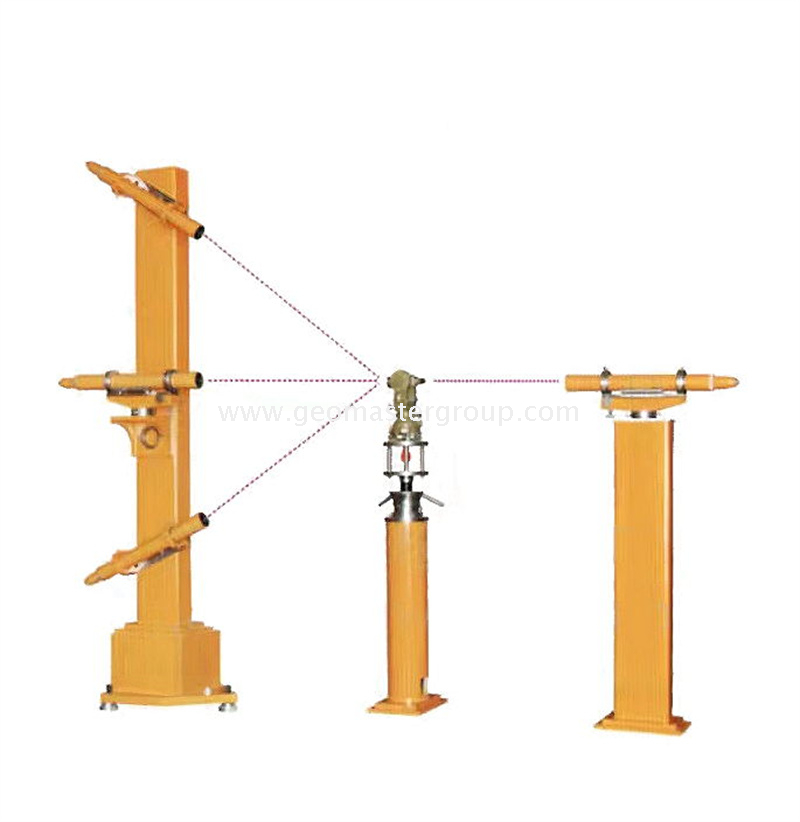

This user-friendly and highly precision Collimator Station, including Triple-tube Collimator System TCS-3, Single-tube floor-style Collimator System FCS-550 and Surveying Elevator Support SES-1, is specially designed for calibrating Surveying Instruments like Total Stations, Theodolites Automatic Levels, Optical Instruments, etc.

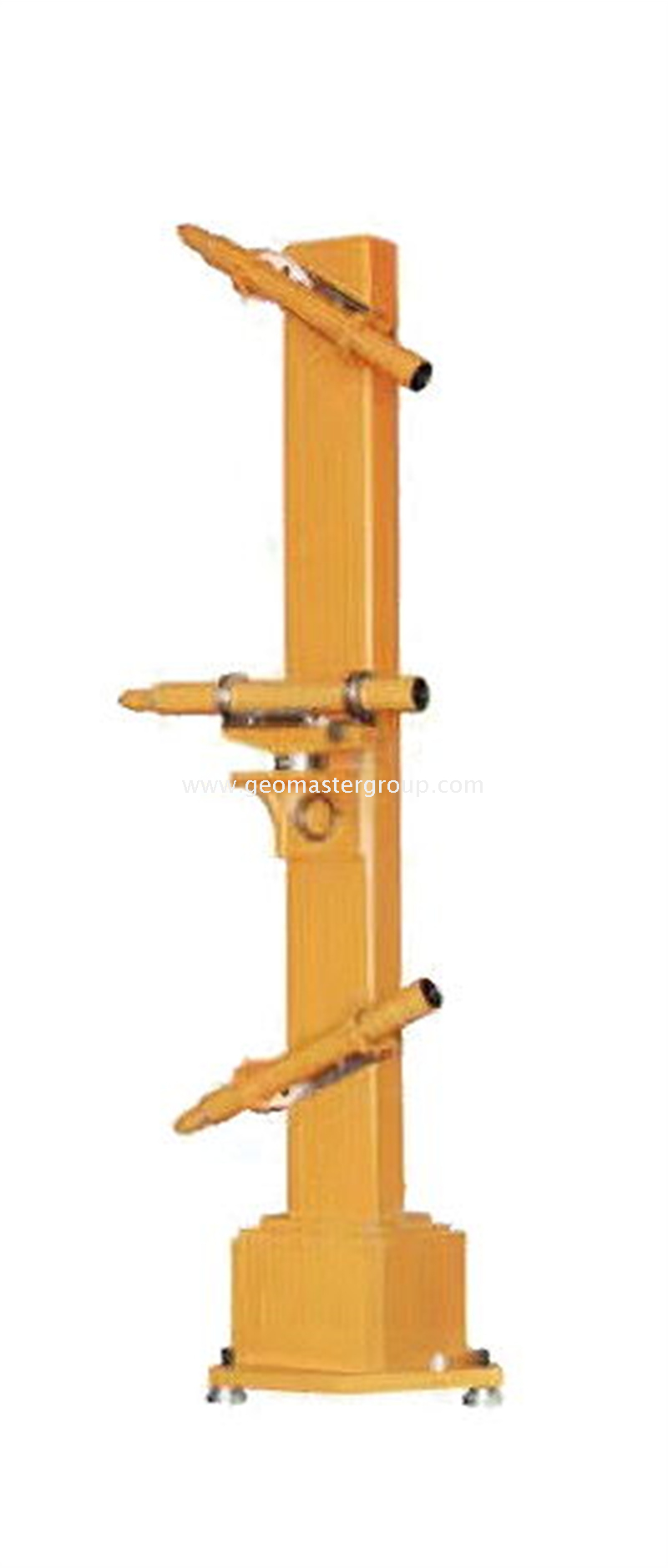

1.Triple-tube Collimator System TCS-3
1)One-piece Column Support Height: 2.25-2.30m
2)Triple Optical Tubes (front-view): Elevation Tube,Depression Tube and Horizontal Tube (Alignment Tube)
3)Angle between Elevation Tube and Horizontal Tube: 30°±15'
4)Angle between Depression Tube and Horizontal Tube: 30°±15'
5)Adjusting Range of Elevation Tube: Horizonal Hair: ≧60'; Vertical Hair: ≧60'
6)Adjusting Range of Depression Tube: Horizonal Hair: ≧60'; Vertical Hair: ≧60'
7)Adjusting Range of Horizonal Tube: Horizonal Hair: ≦10"; Vertical Hair: ≦10"
8)Power Supply: Input: AC220V; Output: DC3.0-4.5v,170-180mW
9)Light Source: cold green light (brightness stepless adjusting)
10)Plate Level: 30"/2mm; Circular Level: 8´/2mm
11)View Distance between TCS-3 and SES-1: 1.0-1.2m

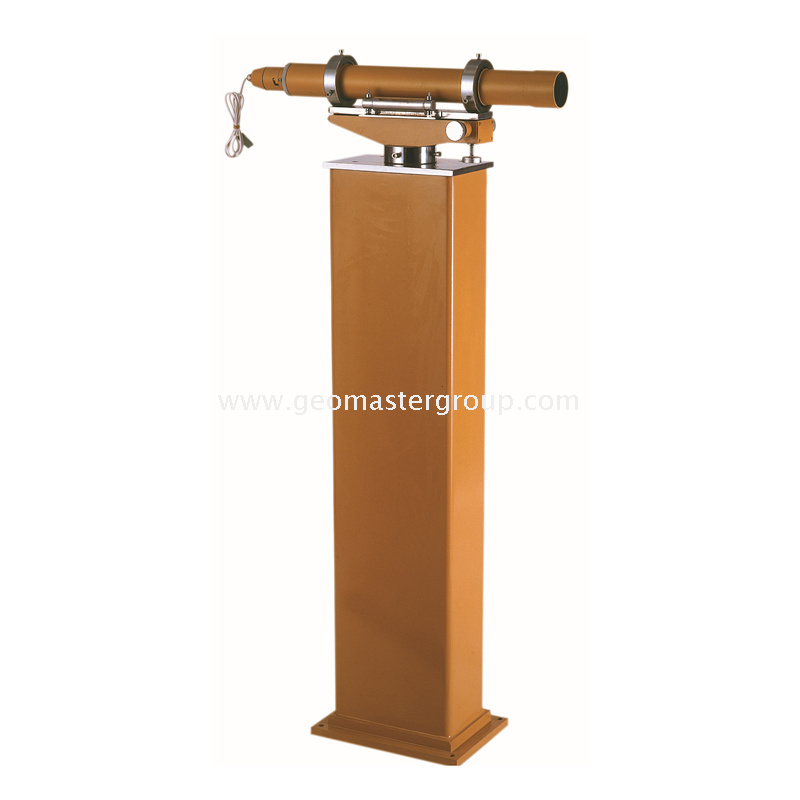

2.Single-tube Floor-style Collimator System FCS-550
Including one Alignment Tube (back-view) and Tube Support (Column)
1)Focal Length: 550mm
2)Effective Aperture: 55mm
3)Tube Length: 535mm
4)Field of View: 2°30'
5)Magnification of Objective Lens: 0.4-0.5×
6)Resolution: 3" (estimated reading)
7)Reticule Graduation: Min: 30"; Max: 10'
8)Shortest Viewing Distance: 2m (~ ∞)
9)Micro-adjusting Range: Horizonal Hair: ≦10"; Vertical Hair: ≦10"
10)Plate Level: 30"/2mm
11)Tube Support (Column) Height: 1000mm
12)Power Supply: Input: AC220V; Output: DC3.5-4.0v,170-180mW
13)Light Source: cold green light (brightness stepless adjusting)
14)View Distance between FCS-550 and SES-1: 1.0-1.2m

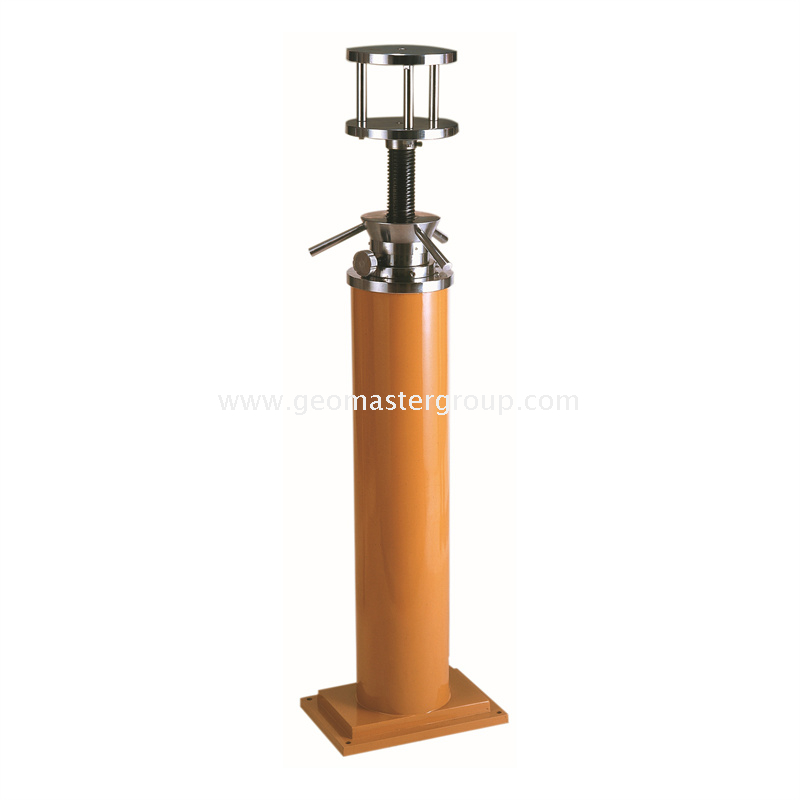

3.Optical Collimator Stand OCS-1350
Portable and steady,specially designed to support Surveying Instruments such as Total Stations,Theodolites,Automatic Levels, Laser Levels and etc
1)Height Range: 1050-1350mm
2)Column Height: 750mm
3)Elevation Height: ≧260mm
4)With 5/8" male Thread suitable for all present Surveying Instruments
5)Load Capacity: ≦35kg
Note: Any improvement would be subject to change without prior notice!!
