Laser Support Pole

Highlights
Model: LSP-3800YW/DK
1.Equivalent to Johnson Level Interior Laser Pole
2.Height: 3.8m, 6 sections
3.Printed in Dual Graduations (10mm and 1")
4.Mounting Bracket w. 5/8" and 1/4" Adapters
5.With heavy-duty Carrying Bag
6.Yellow and Red colors available
7.Laser Pole Tripod LPT-800 for option

Availability:
Quantity:
  • LSP-3800YW/DK

  • Geomaster

  • 90159000

Features and Specifications

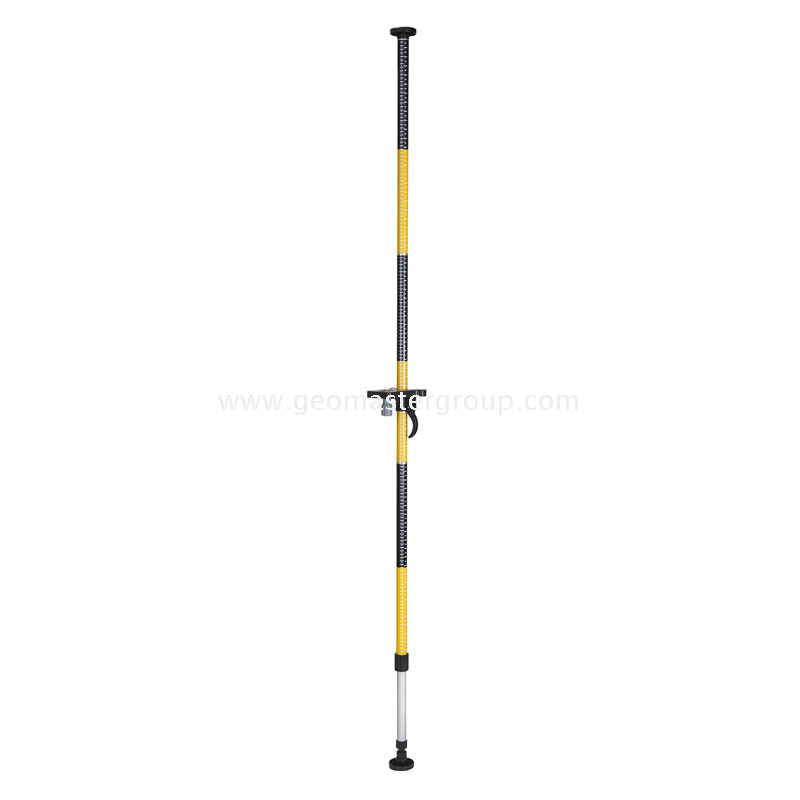

Model: LSP-3800YW/DK, LSP-3800RD/DK
1.Equivalent to and replacement of Johnson Level Floor-to-Ceiling Interior Laser Pole 40-6300
2.Specially designed to support indoor medium-duty or heavy-duty Laser Levels
3.Color: LSP-3800YW/DK: Yellow and Black; LSP-3800RD/DK: Red and Black

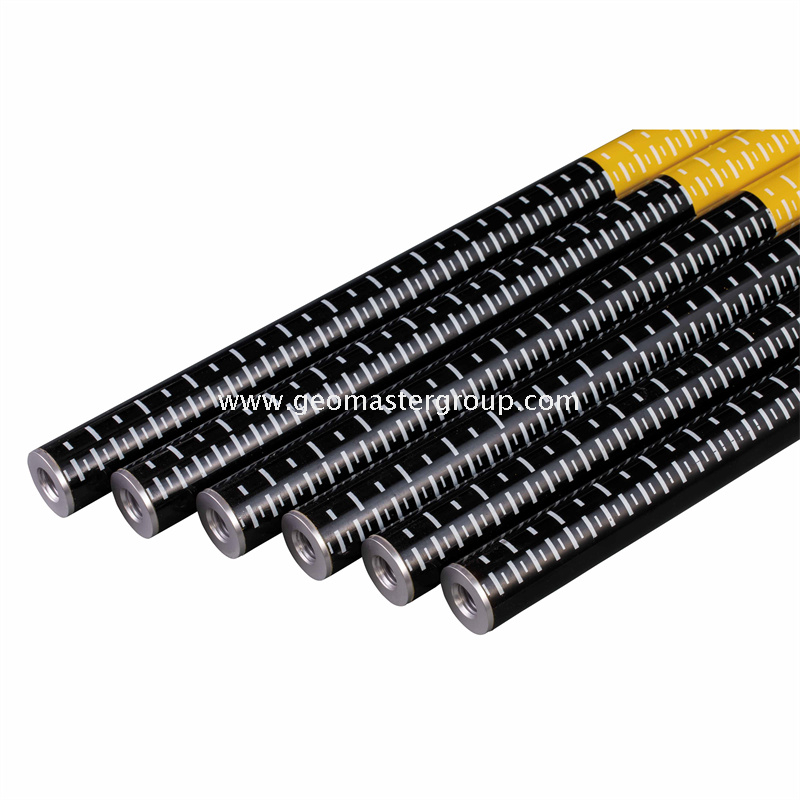

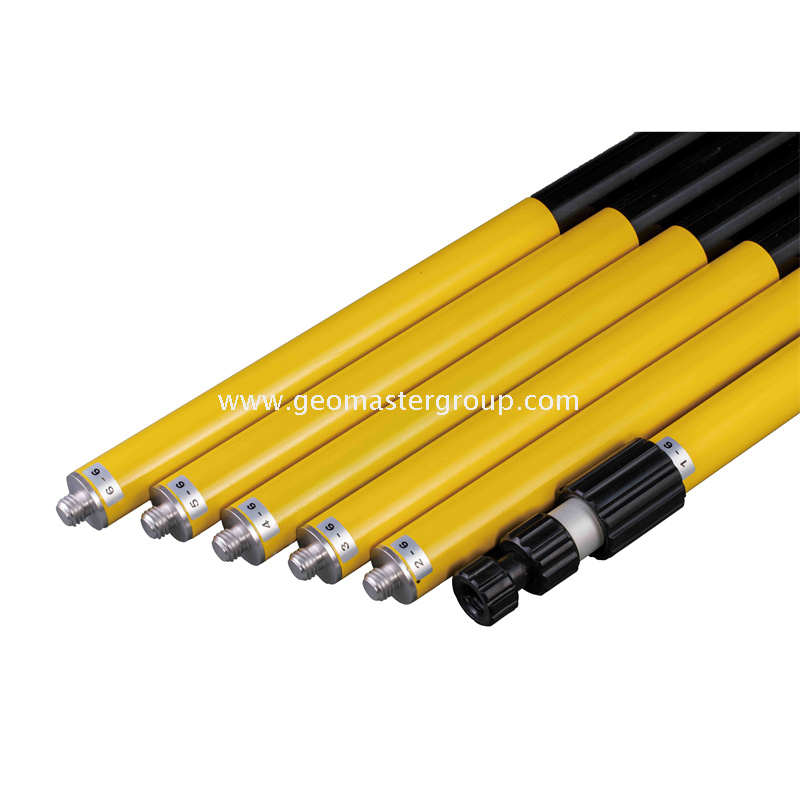

4.Height & Sections: 3.8m (150"), 6 sections; Section 1: 69cm longSections 2/3/4/5/6: 61cm long respectively;
easy to assemble and adjust
5.Pole Tube Outer Diameter: 32mm (1.24")
6.Mounting Bracket Socket Diameter: 32mm (1.25")
7.Pole printed in Dual Graduations: Metric (Min. Grad.: 10mm) and Imperial (Min.Grad.:1")
8.Connecting & Locking Style: Screw-in+Telescopic

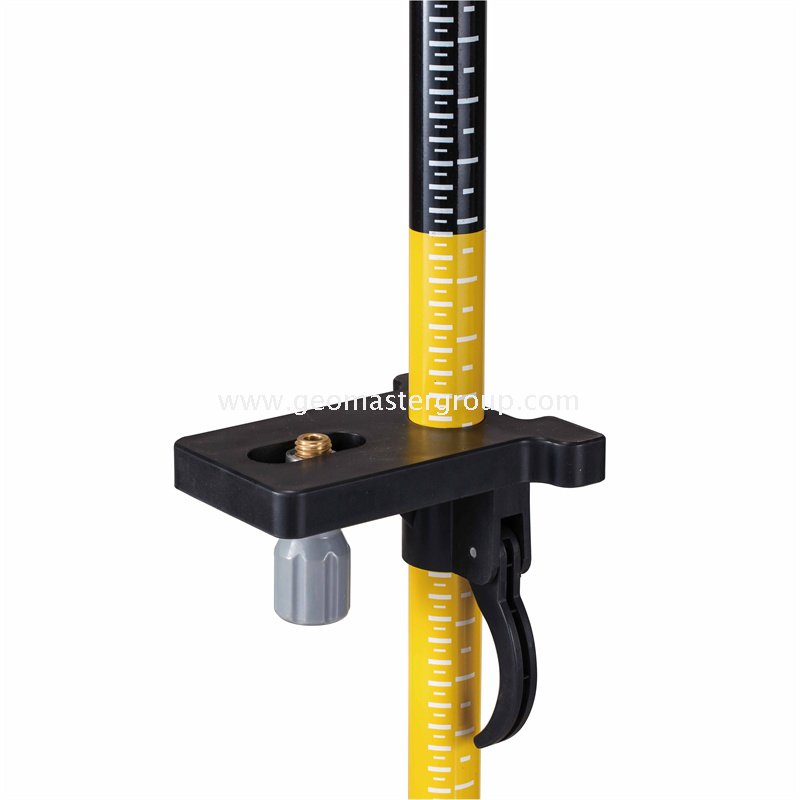

9.Mounting Bracket: made of heavy-duty engineering Plastic; with 5/8" and 1/4" Adaptercompatible with most
surveying & measuring instruments and tools
10.Mounting Bracket Payload: ≤10kg
11.Pole Colors available, bright yellow/black or red/black

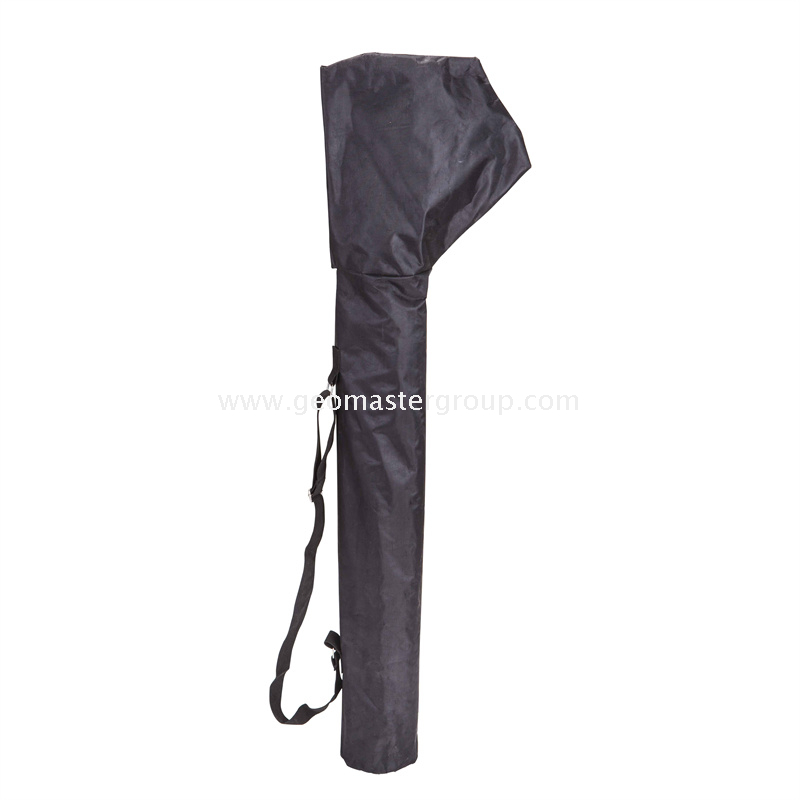

12.Reinforced Carrying Bag (Red or black) for carry-around during surveying
13.Each End Piece made from heavy-duty plastic to ensure extra durability
14.Spring-loaded Bottom End offering tight compression from floor to ceiling.

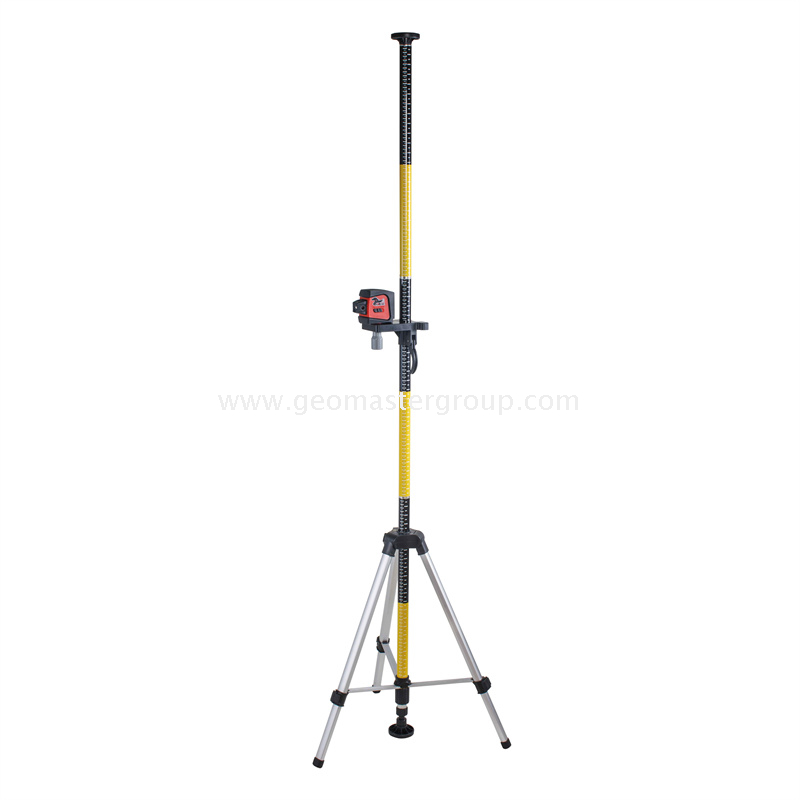

15.Laser Pole Support Tripod LPT-800 for option
16.Customization service available

Note: Any updating would be subject to change without prior notice.


Keywords & Tags
Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,
Remote Surveying,Geospatial,SLAM Survey,Geospatial,Surveying Pole,Surveying Rod,GPS Pole,GPS Rod,GNSS Pole,GNSS Rod,Aluminum Pole,Aluminum Rod,Antenna Mast,Antenna Pole,Antenna Rod, Carbon Fiber Pole,Carbon Pole,Fiber Pole,Mini Pole, Rover Pole,Rover Rod,Satellite Stick,Geospatial Rod,TLV Pole,TLV Rod,GLS Poe,AP20 AutoPole,Auto Pole,Prism Pole,Laser Pole (Artec,DJI,Autel,Cygnus,Holy Stone, Fimi, Faro, Geomax, GeoSLAM, Leica, Mini,
Marvice, Nikon, Onrol, Pentax, Riegl, SEOC, Sokkia, Stonex,Topcon, Trimble,
Zeb,Hilti,Bosch,PLS,Stabila,Johnson,Dewalt,Geomaster)

Packing Details
Model: LSP-3800YW/DK, LSP-3800RD/DK
1.N.W.: 1322g (w/o. Nylon Carrying Bag); 1522g (w. Nylon Carrying Bag)
2.Qty./CTN: 10pcs
3.G.W./CTN: 25kg
4.Size/CTN: 0.21cbm (78cm × 42cm × 64cm)
