Highlights
Model: GMP111-17.5/25.4-120

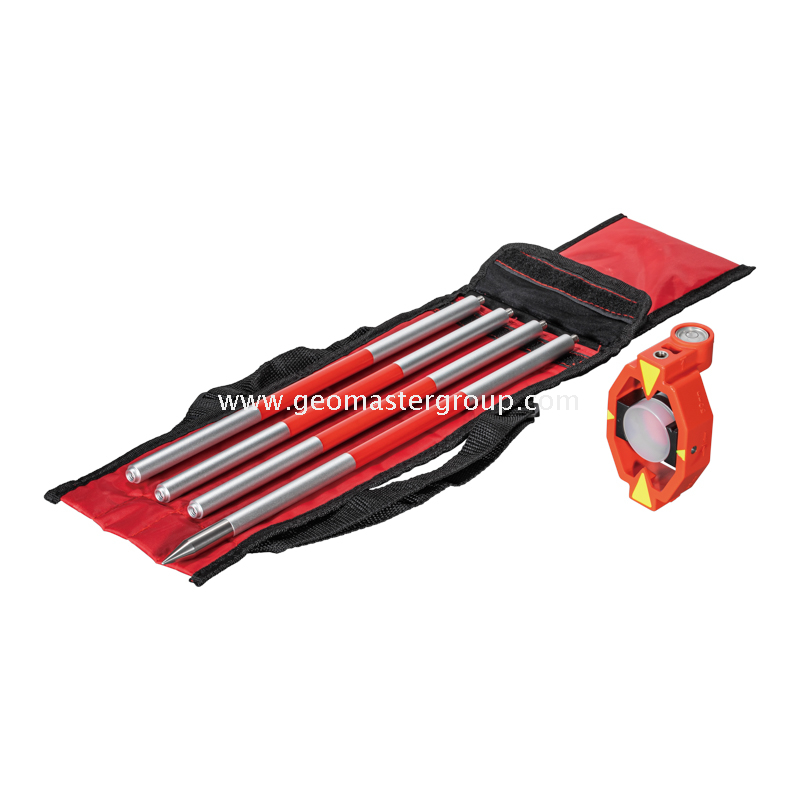

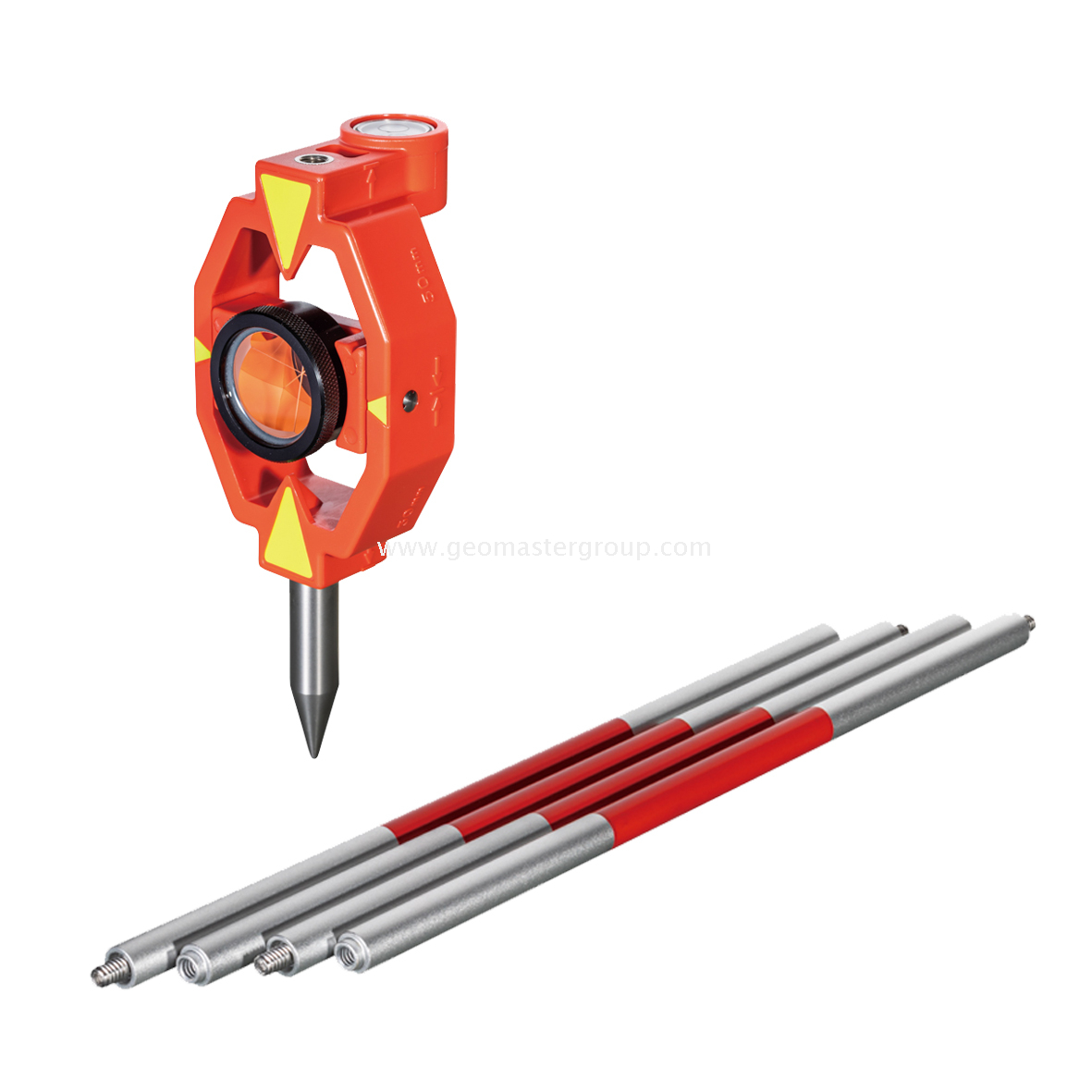

1.Geomaster Mini PrismSet (GMP111)
2.Prism Constant: +17.5mm
3.Prism Accuracy: ≦5"
4.Prism Aperture: 25.4mm(1inch)
5.Copper-coated,water-proof
6.Polymer Holder GHT-111
7.Non-nodal Pole GLS11512/120 (120cm)
| Quantity: | |
|---|---|
GMP111-17.5/25.4-120
Geomaster
9015900090
Specifications
Model: GMP111-17.5/25.4-120

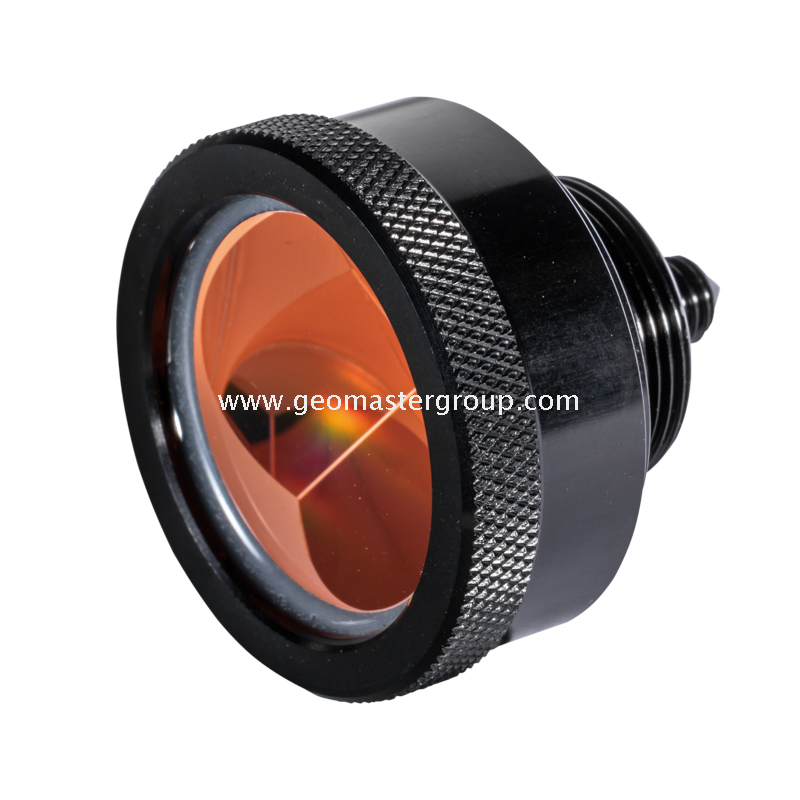

1.Mini Prism GMP111-25.4
1)Effective Aperture: 25.4mm (1inch)
2)Accuracy: ≤5"
3)Material: precision-ground Optical Glass K9
4)Copper-coated,water-proof
5)ATR Measuring Range: up to 500m (under good weather condition)

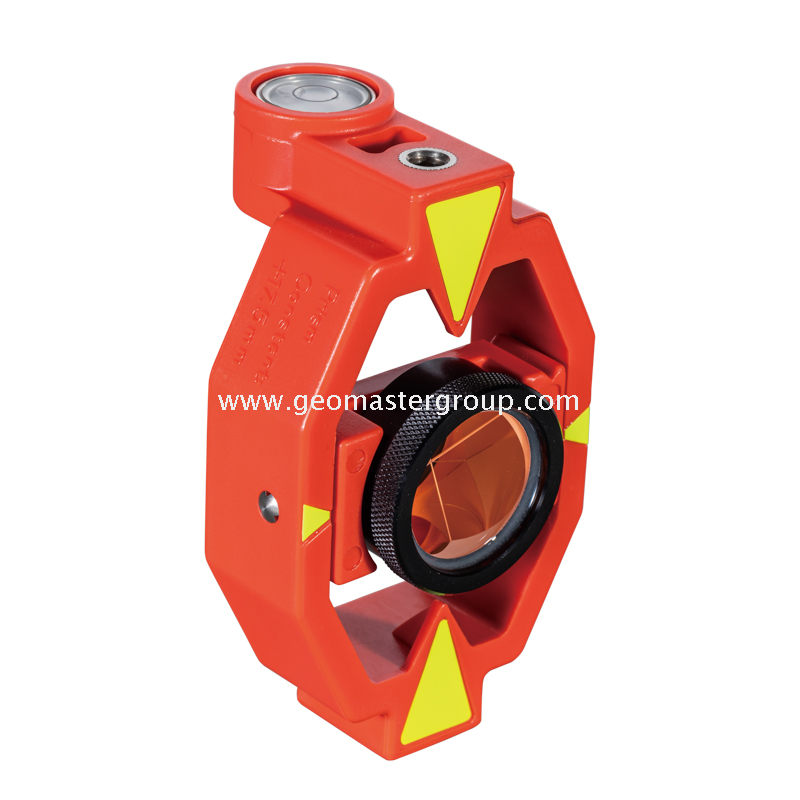

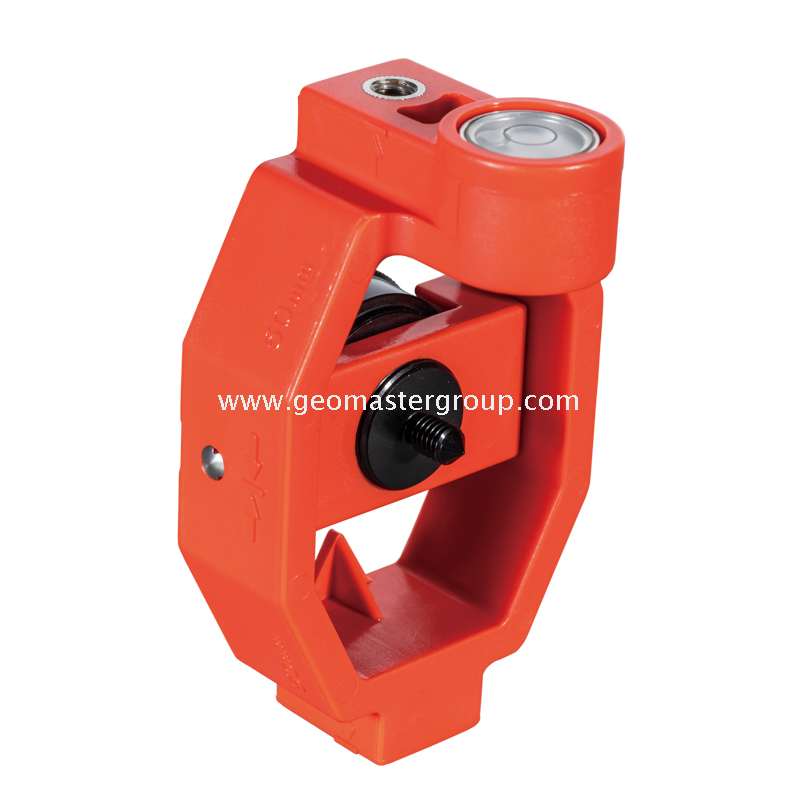

2.Polymer Holder GHT-111
1)Offset: +17.5mm
2)Internal 1/4" Thread, screwed onto Mini Pole GLS115-12-120
3)Built-in adjustable Circular Bubble CB-40: 40'/2mm
3.Non-nodal Aluminum Mini Reflector Pole GLS115-12-120
1)Outer Diameter: 12mm
2)Length: 120cm; 4sections×30cm

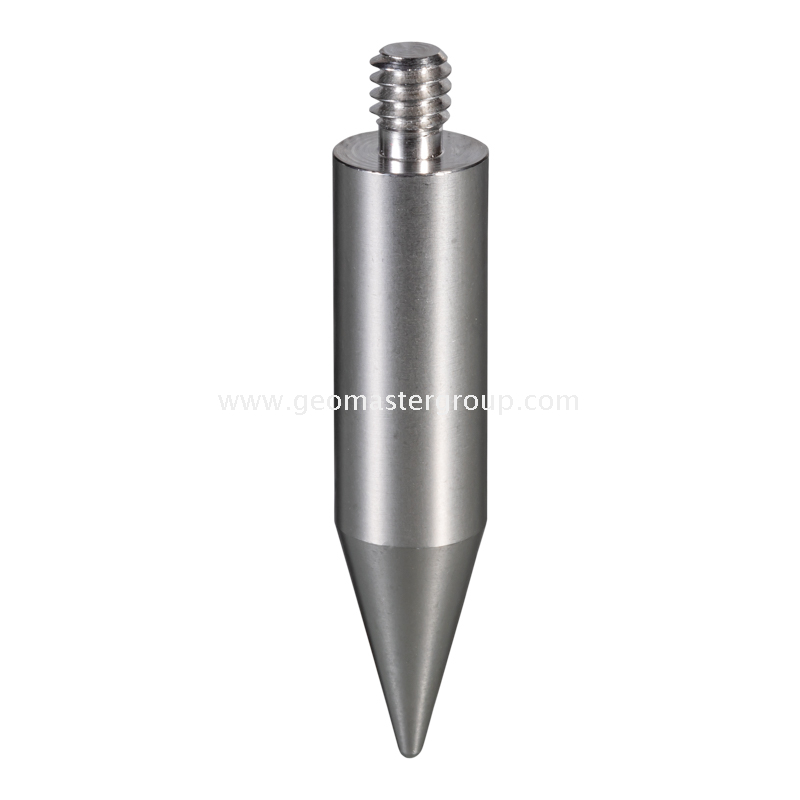

3)Mini Stake Out Pole (Mini Pole Point,Mini Spike Pole) Point14-50: 1/4"×20 Adapter, 5cm, 35g
Features
Model: GMP111-17.5/25.4-120
1.Equivalent to and replacement of Swiss-style GMP111 for back-sighting and accuracy-increasing
2.Different Accuracy (3"/5"/8") for option to meet various surveying and monitoring tasks
3.Silver-coated and copper-coated optional for high reflection rate
4.Prism hermetically sealed in metal Housing for rough working environments
5.Different sections (3 sections×40cm or 4 sections×30cm) to meet desired working heights (10cm, 40cm, 70cm, 100cm,130cm)
6.Built-in Circular Bubble for fast leveling and accurate positioning
7.Coming with strong Carrying Bag Bag-111 for convenient storage and transport
Note: Any updating would be subject to change without prior notice.
