Highlights
Model: DC60-2A/6400
1.Military Compass/Mils Compass/Lensatic Compass
2.Outer Circle (Luminescent Dial): 6400/200/100/50mils
3.Inner Circle (Rose Dial): 360º/2º/ ±1°
4.Eyepiece Dial: 6400/200/20/10mils
5.Filled with Vibration-damping Liquid
6.Connecting Thread: 1/4"
| Quantity: | |
|---|---|
DC60-2A/6400
Geomaster
90140000
Features & Specifications
Model: DC60-2A/6400 (Compass Mils, NATO mils)
1.Sighting System
Lensatic (prismatic) style for more accurate reading and measuring
2.Outer Circle (Luminescent Dial):
1)Range: 6400mil
2)Interval: 200mil
3)Min Graduation: 100mil
4)Estimated Reading: 50mil
3.Inner Circle (Rose Dial)
1)Range: 360º
2)Min Graduation: 2º
3)Estimated Reading: ±1°
4.Eyepiece Dial
1)Range: 6400mil
2)Interval: 200mil
3)Min Graduation: 20mil
4)Accuracy: ±10mil
5.Vibration-damping Liquid
Filled with white mineral oil
6.Color
Army Green, Camouflage....
7.Material
Zinc alloy Casing, Tempered Glass
8.Scales
Rule: 0-5cm; 0-2 inch
9.Connecting Thread
1/4" to be connected to Laser Tripod (with 1/4" Adapter)
10.Ambient/Storage Temperature
-20℃~50℃ (normal-temperature storage suggested)

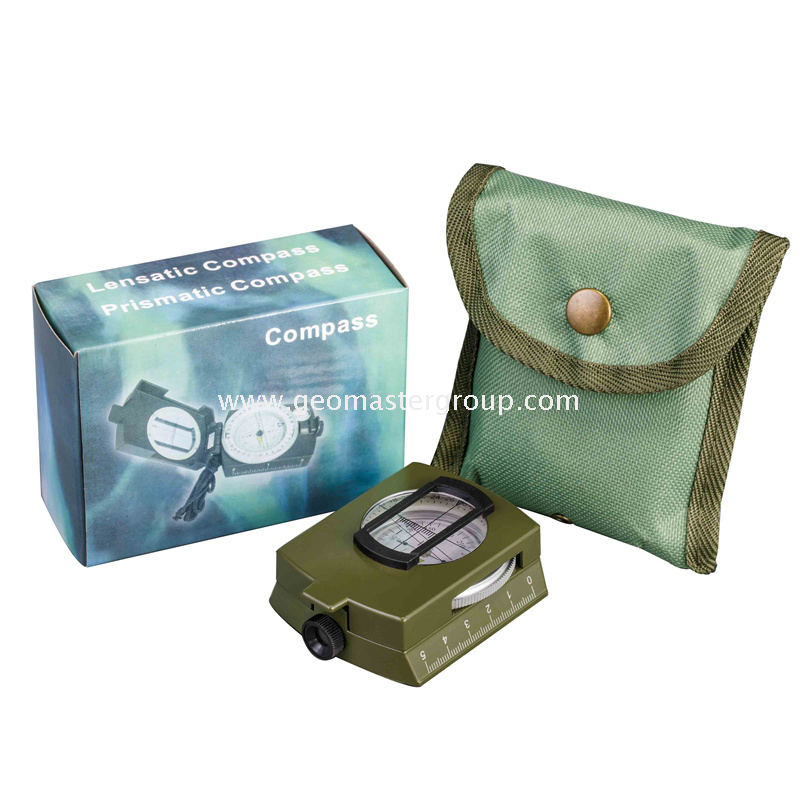

11.Accessories
Standard Cloth Bag, Flannelette, User Guide
Note:Any updating would be subject to change without prior notice.
