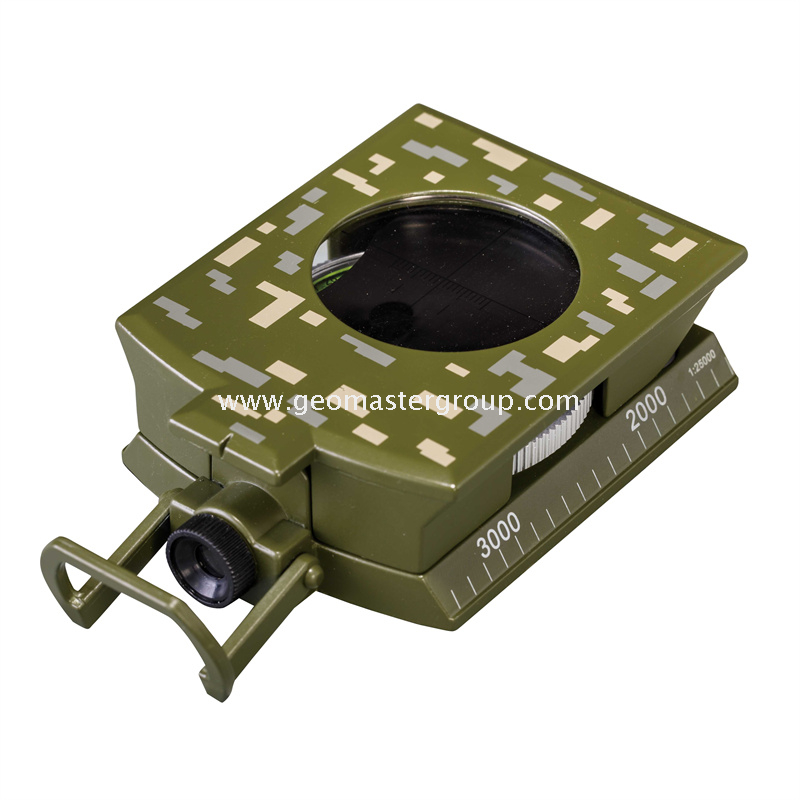

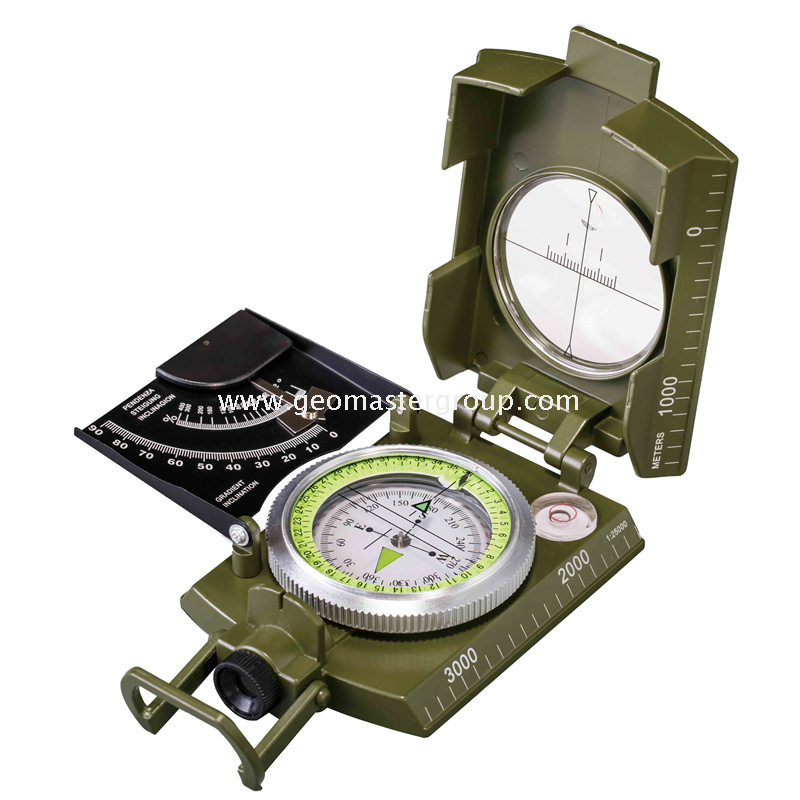

Prismatic Compass

Highlights
Model: DC60-1A/360

1.Military Prismatic Compass
2.Outer Circle (Luminescent Dial): 360º/5º/ ±1°
3.Inner Circle (Rose Dial): 360º/2º/ ±1°
4.Eyepiece Dial: 360º/1º/ ±1°
5.Inclinometer: Range: 0-90º; 0-400%
6.Filled with Vibration-damping Liquid
7.Scale: 1:25000
8.Connecting Thread: 1/4"

Quantity:
  • DC60-1A/360
  • Geomaster
  • 9015900090

Features & Specifications
Model: DC60-1A/360
1.Sighting System: Lensatic (prismatic) style for more accurate reading

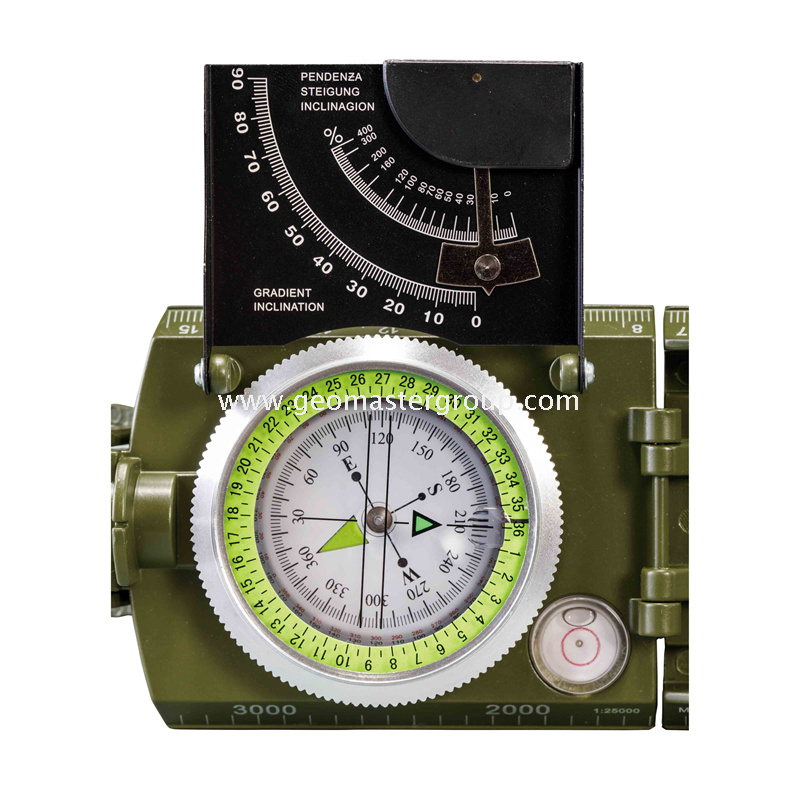

2.Outer Circle (Luminescent Dial):
1)Range: 360º
2)Min Graduation: 5º
3)Estimated Reading: ±1°
3.Inner Circle (Rose Dial):
1)Range: 360º
2)Min Graduation: 2º
3)Estimated Reading: ±1°
4.Eyepiece Dial:
1)Range: 360º
2)Min Graduation: 1º
3)Accuracy: ±1°
5.Inclinometer: Range: 0-90º; 0-400%
6.Vibration-damping Liquid: Filled with white mineral oil
7.Color: Army Green, Camouflage....
8.Material: Zinc alloy Casing, Tempered Glass
9.Scales: Rule: 0-15cm; Scale: 1:25000

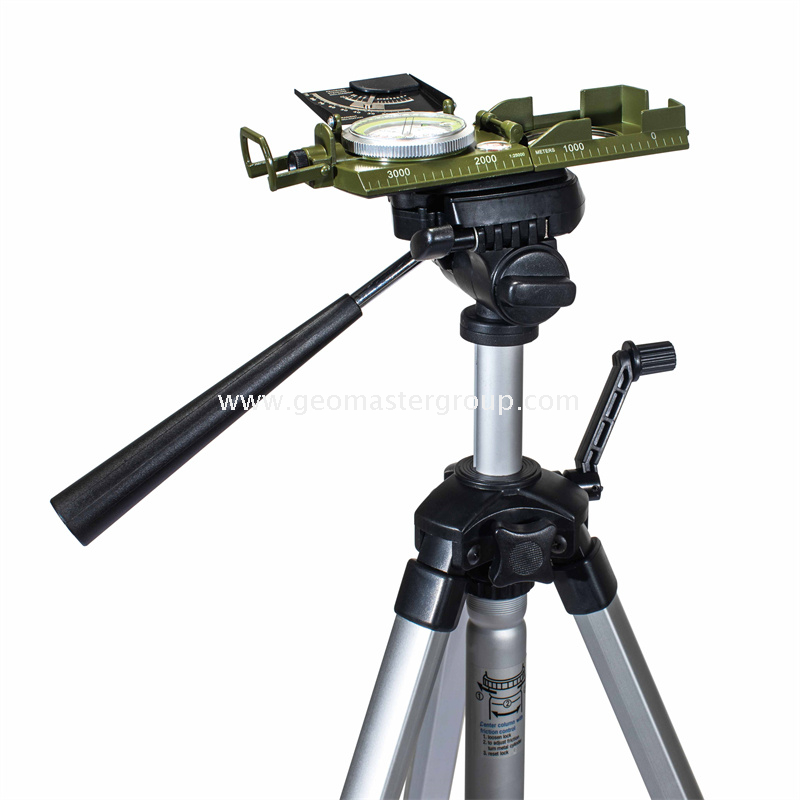

10.Connecting Thread: 1/4" to be connected to Laser Tripod (with 1/4" Adapter)
11.Ambient/Storage Temperature: -20℃~50℃ (normal-temperature storage suggested)

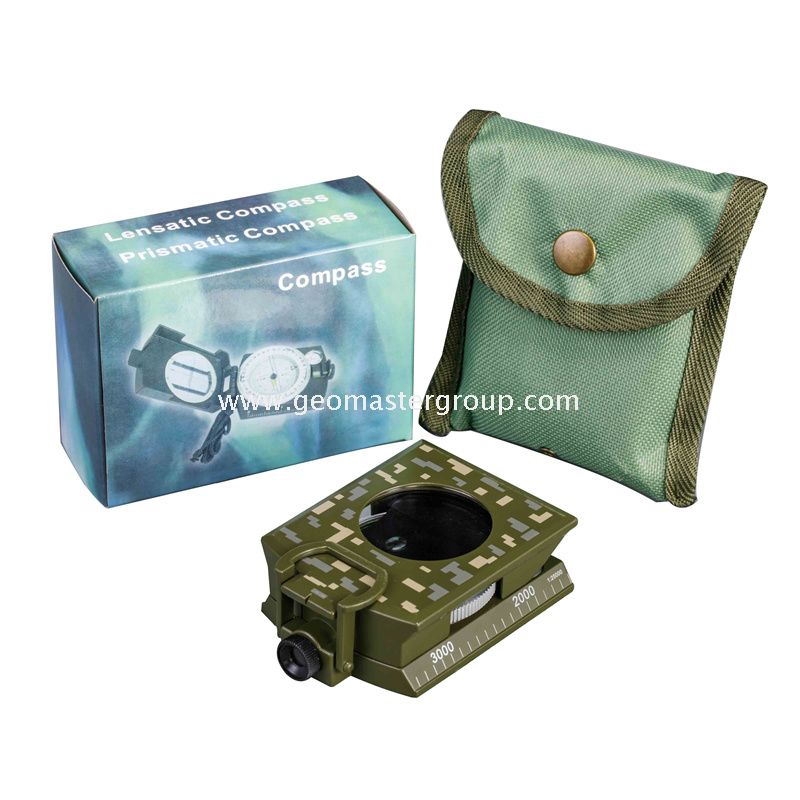

12.Accessories: Standard Cloth Bag, Flannelette, User Guide

Note:Any updating would be subject to change without prior notice.

Alternative Names
Surveying Instrument, Surveying Equipment, Surveying Accessory, Pocket Compass, Optical Compass, Prismatic Compass, Military Compass, Brunton
Compass, Lensatic Compass, GEO Compass, Boussole,Rose Compass, Nautical Compass, Luminous Compass, Transit Compass, Omnisight Compass,
TruArc Compass,Silva Compass, Tritium Compass, Commenga Compass, Russian Compass, Army Compass,Tourism Compass, Surveying Compass,
Sunnto Compass, Rukhs Compass, 6400-mils Compass, 6000-mils Compass, Clinometer Compass, e-Compass, Digital Compass

Packing Details
Model: DC60-1A/360
1.N.W.: & G.W.: N.W.: 290g; G.W.: 326g (w.Box and Accessories)
2.Unit Dimensions: 95mm×66mm×35mm
3.Qty./CTN: 50pcs (10pcs*5 small boxes)
4.G.W./CTN: 15kg
5.Size/CTN: 0.033cbm (26cm×25cm×50cm)
