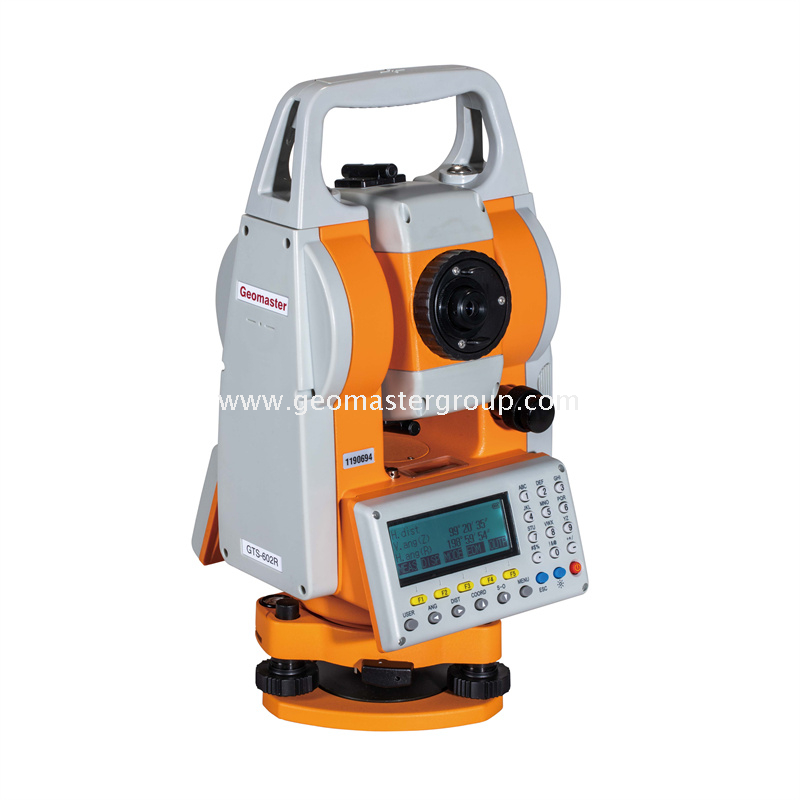

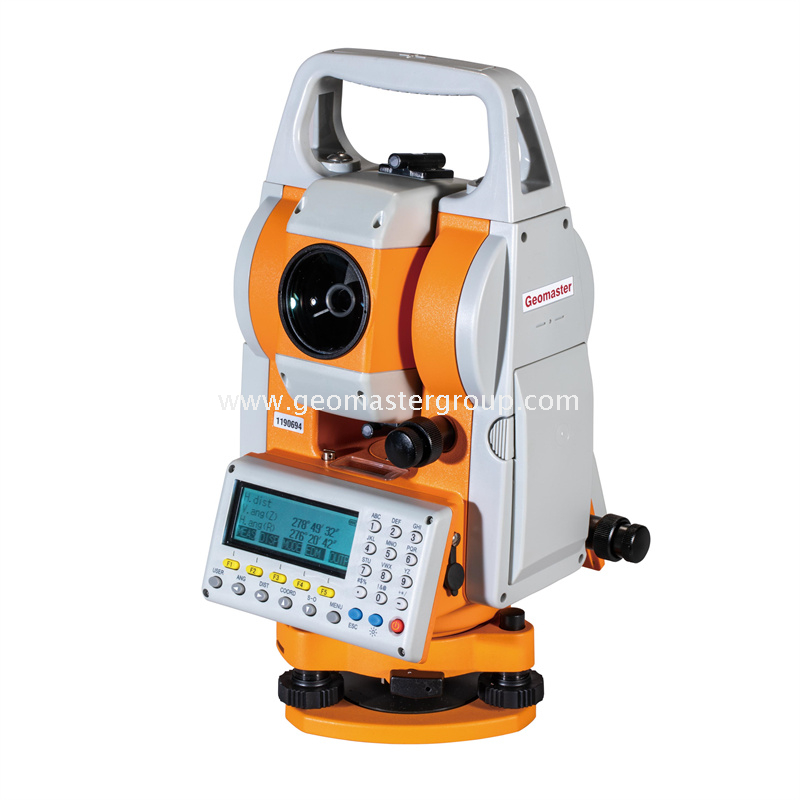

Reflectorless Total Station

Highlights
Model: GTS-602R
1.Angular accuracy: 2"
2.Dual-axis compensation
3.Laser measures up to 600m
4.Prisms measure up to 5000m
5.Bluetooth,USB Drive,Dual LCD
6.English,French,Spanish,German,Portuguese,Turkish

Availability:
Quantity:
  • GTS-602R
  • Geomaster
  • 90158000

Key Specifications
Model: GTS-602R
1.Telescope Magnification: 30x
2.Angular accuracy: 2"
3.Distance accuracy: ±(2mm+2ppm×D)
4.Single-axis compensation
5.Laser measures up to 600m
6.Prisms measure up to 3500-5000m
7.Internal Memory up to 50000 Points
8.Laser or Optical Plummet
9.Ni-H rechargeable Battery
10.Built-in Bluetooth
11.Dual LCD (26 graphic/numeric/functional Keys)
12.English,French,Spanish,German,Portuguese,Turkish

Features
1.Wide applications: Angle measurement,Distance measurement,Coordinate measurement, Area measurement,
Eccentricity measurement, Height-difference measurement, Offset, Layout, inaccessible-points height measurement.
2.Installed with Laser Pointer for quick targeting and precise measuring
3.Built-in Laser Plummet for efficient setting up on surveying point, and Optical Plummet optional
4.Large internal memory up to 50000 points and optional external USB Stick (16G to 32G) for secure and prolonged surveying
5.Auto-compensation function for monitoring the system leveling and eliminating leveling errors
6.Multilingual: English,French,Spanish,German,Portuguese,Turkish
7.Installed with Bluetooth Communication System
8.Three Colors for option: Topcon Yellow, Orange Yellow (YW) or Orange Red (OR)
9.Ideal for novice user or student.

Note: Any updating would be subject to change without prior notice.


Related Names
Surveying Instrument, Surveying Equipment, Surveying Accessory,Total Station, Reflectorless Total Station, Robotic Station, Drone Station, MultiStation, Geomax Station,
Leica Station,Nikon Station,Sokkia Station,StonexStation,Topcon Station, Trimble Station,Pentax Station,Flexline Station,Geomaster Station,Builder Station, FOIF Station,
Hi-Target Station,Viva Station, Nova Station, iCon Station, Builder Station,GPS Receiver,GNSS Receiver,RTK Receiver, RTK Station, Data Controller, Data Collector,GIS,
Base Station,Prism Station,Monitoring Station,Geomaster Station,ScanStation,Scan Station,Scanning Total Station,AutoPole,LiDAR

Detailed Specifications
Model: GTS-602R
1.Telescope
1)Magnification: 30x
2)Image: Erect
3)Objective Aperture: 45mm (EDM: 50mm)
4)Tube Length: 150mm
5)Field of View: 1º30'
6)Resolution Power: 4.0"
7)Shortest Focusing Distance: 1.5m
8)Reticule Illumination: Provided


2.Angle Measurement
1)Accuracy: 2"
2)Measuring Mode: Absolute Encoding
3)Measuring Units: 100%,360º,400gon,mil
4)Minimum Reading: 1", 5" or 10"
5)Measurement Time: ≤0.3sec.
6)Diameter of Circles (HZ and V): 79mm



3.Auto-compensation
1)Compensation Style: Dual Axis
2)Correction Range: ±3'
3)Compensation Accuracy: ±1"


4.Distance Measurement (under good weather conditions)
1)Measuring Accuracy: ±(2mm+2ppm×D)

2)Measuring Range
(1)w/o Prism: 600m
(2)w.Retro Sheet: 600m
(3)w. 2"-3" Single Prism: up to 5000m
(4)w.4"-5" Single Prism: up to 3500m

3)Measuring Least Count
(1)Fine Mode: 1mm
(2)Coarse Mode: 10mm
(3)Tracking mode: 10mm

4)Measuring Time
(1)Fine Mode: 1.8sec (repeated) (initial 2.5sec)
(2)Coarse Mode: 0.9sec (repeated) (initial 2.5sec)
(3)Tracking mode: 0.4sec (initial 1.6sec)

5)Measuring Display: 12 digits; Coordinates: 9999999.999; Distance: 4999.999
6)Distance Measuring Unit: in Metric or English System
7)Atmospheric Correction: Automatic correction by inputting parameters
8)Prism Constant Correction: Automatic correction by inputting parameters

5.Communication (Data Transfer)

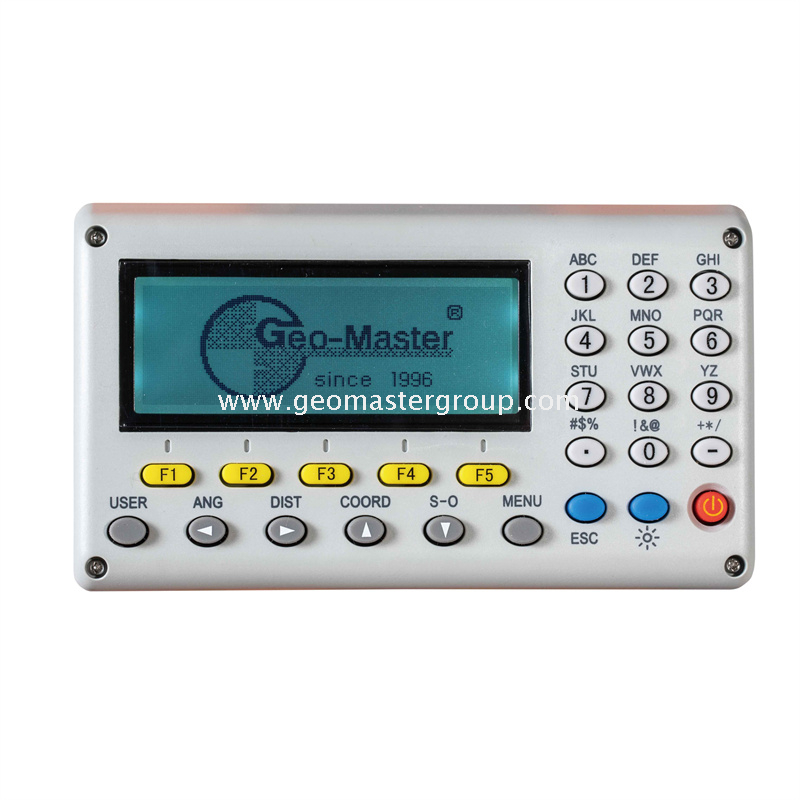

1)LCD and Keyboard: 2 sided, Black and White; Pixel 192×64; graphic, numeric keys and functional Keys (26)

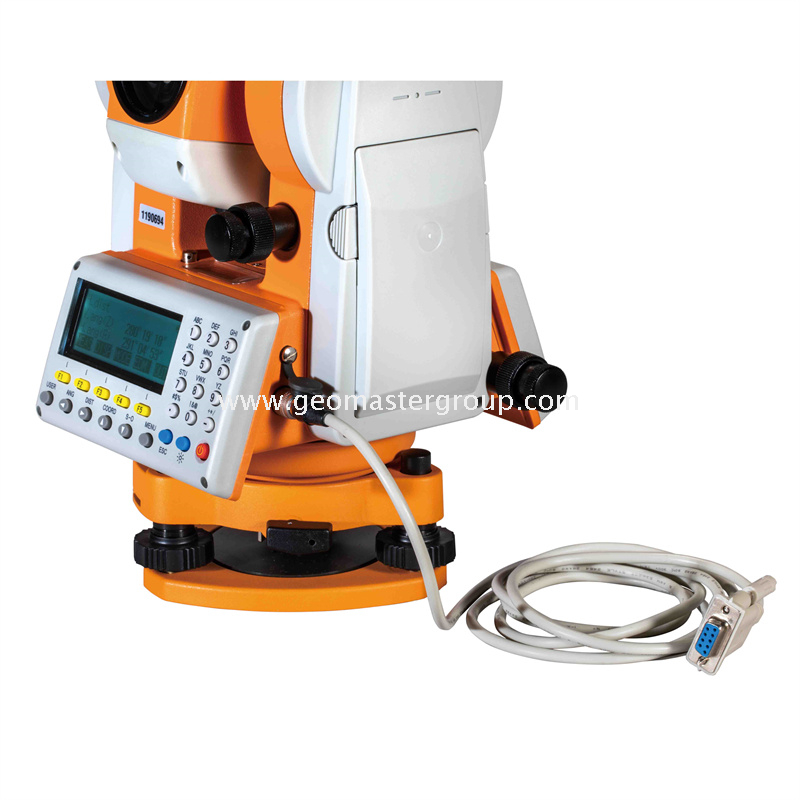

2)Data Interface: RS-232,USB
3)Dada Format: ASCII,DXF,CSV,PTS

6.Memory

1)Internal: Standard: 50000 Points
2)External: Optional: USB Stick (16G to 32G)



7.Laser Plummet (built-in, default)
1)Laser Source: 630-670nm, Class II; output: <0.4mW
2)Dot Diameter: ≤3mm at 1.5m
3)Accuracy: ±1.5mm at 1.5m


8.Optical Plummet (optional)
1)Image: Erect
2)Magnification: 3x
3)Field of View: 5º (Ø114mm/1.3m)
4)Focusing Range: 0.5m to infinity



9.Level(Bubble,Vial)
1)Plate Level: 30"/2mm
2)Circular Level: 8'/2mm



10.Power Supply
1)Adapter (Charger) Model: CHR-100; Input:100-240v,50-60Hz
2)Battery Types: BDC18H: Rechargeable Ni-H: 1.80Ah, DC7.2v
3)Operating Time: Approx. 9hrs for Distance and Angle Measurements



11.Ambient Conditions
1)Operating Temperature: -20℃~50℃
2)Storage Temperature: -20℃~55℃
3)Water-proof and Dust-proof:  IP54 (w.Battery)

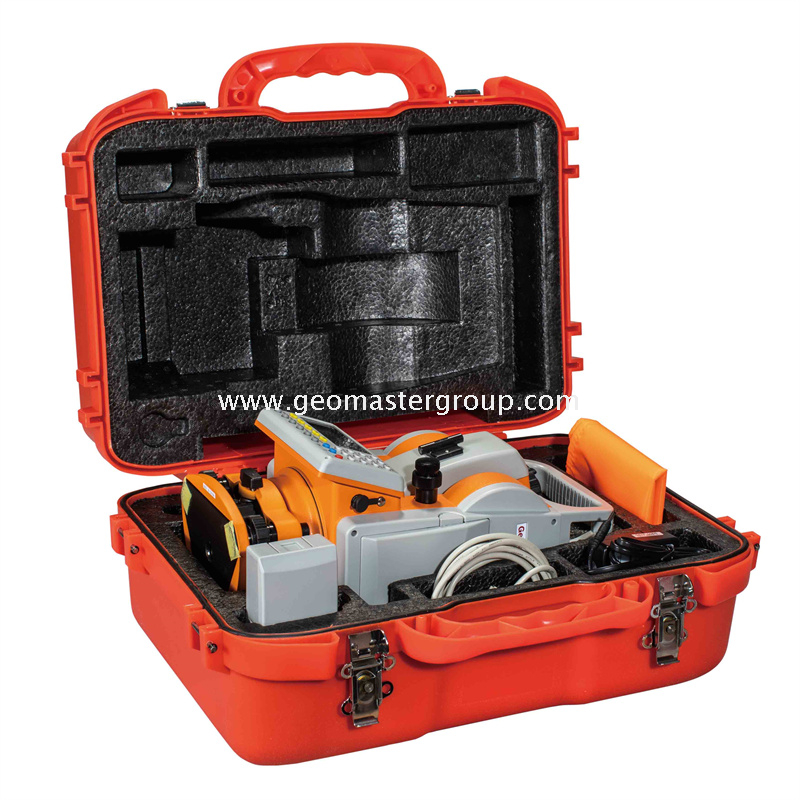

4)Standard Accessories:Adapter (incl.Power Cable),Battery (Ni-H), Data Transfer Cable,Rain Cover,
Tools Bag,User Manual,Plastic Carrying Case
5)Optional Accessories: USB Stick (16G to 32G)


Packing Details
Model: GTS-602R
1.Instrument Dimensions: 350mm×210mm×190mm
2.N.W.: Instrument: 6kg (w.Battery)
3.N.W.: Carrying Case +Accessories: 4kg
4.Qty./CTN: 1pc
5.G.W./CTN: 13kg
6.Size/CTN: 0.11cbm(56cmx38cmx55cm)
