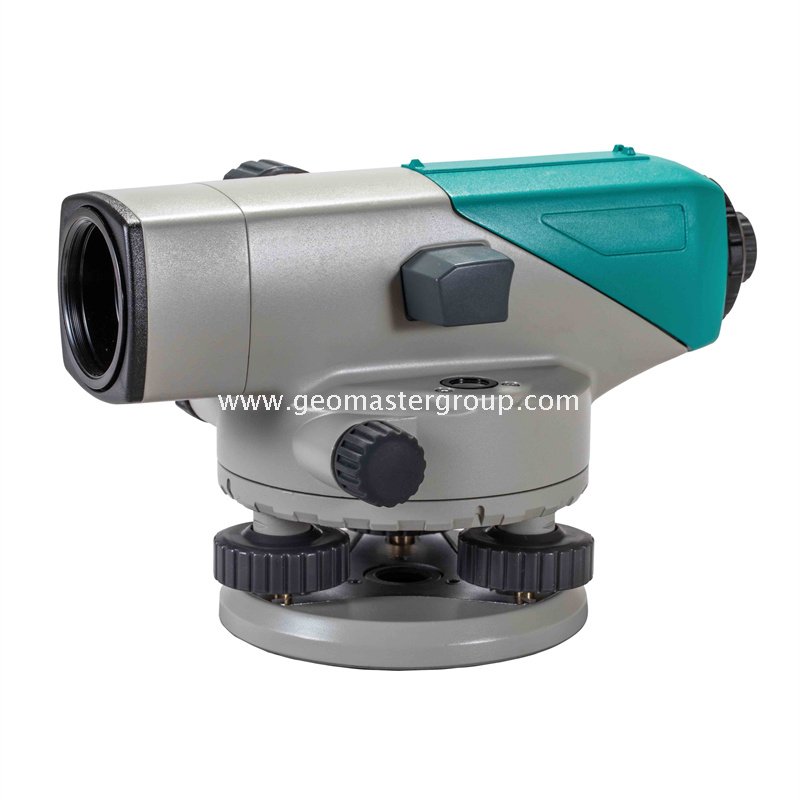

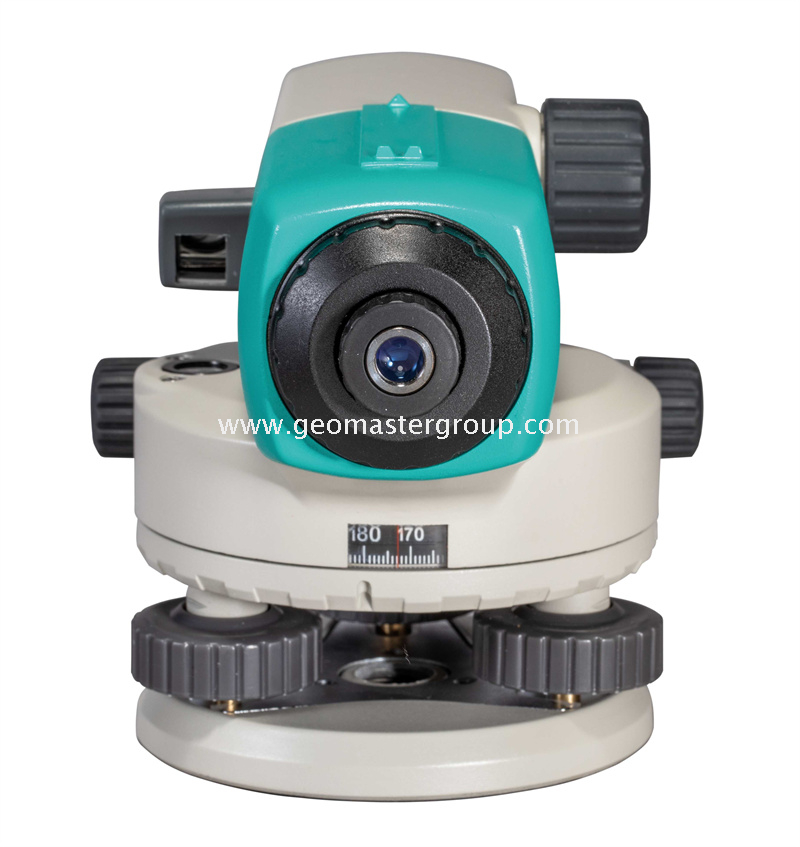

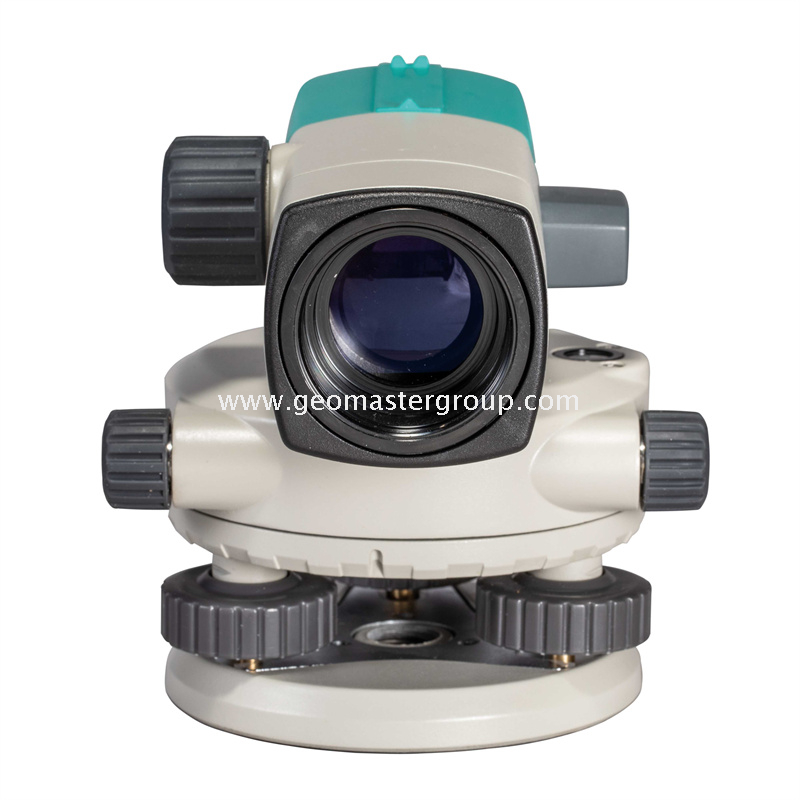

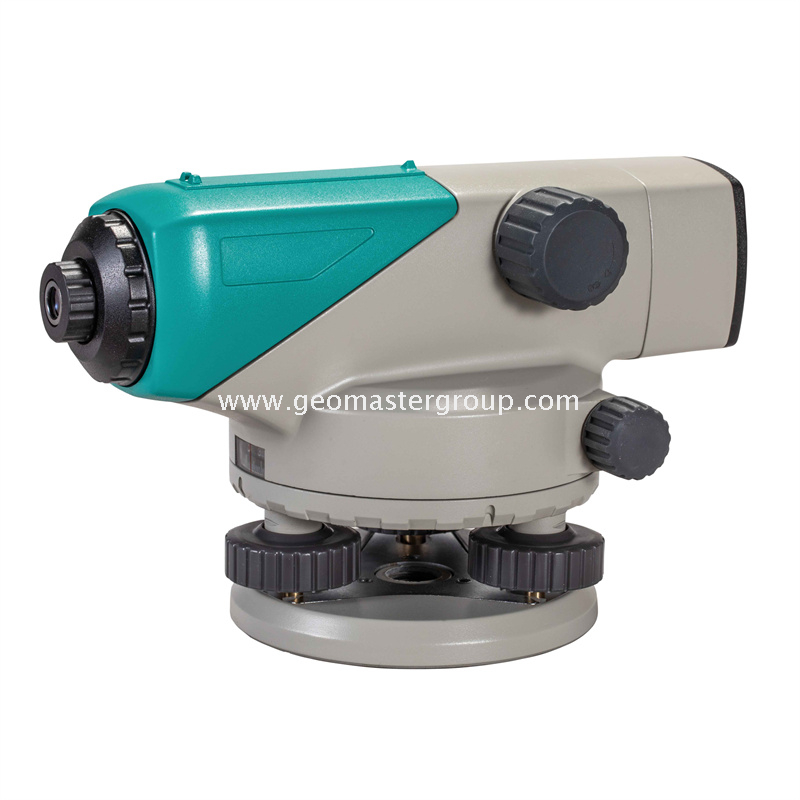

Automatic Level

Highlights
Model: GEO4024
1.Equivalent to and Replacement of Sokkia style B40
2.Magnification: 24x
3.Accuracy: ±2.0mm
4.Aperture: 32mm
5.Sokkia-style Magnetic Compensator
6.Water Protection Grade: IPX6

Quantity:
  • GEO4024
  • Geomaster
  • 9031809090

Features & Specifications
Model: GEO4024 (B4024)
1.Equivalent to and replacement of Sokkia style: B40
2.Magnification: 24x
3.Standard Deviation for1km Double-Run Leveling: ±2.0mm (without Micrometer)
4.Objective Aperture: 32mm
5.Length of Telescope (from Objective to Eyepiece): 215mm
6.Image of Telescope: Erect
7.Shortest Focusing Distance: 0.3m
8.Field of View: 1°20"
9.Setting Time: ≤2"
10.Resolution Power: 6"
11.Reticule Style:
12.Sokkia-style Compensator: Magnetic Damping
13.Working Range: ±15"
14.Setting Accuracy: ±0.5"/1'
15.Multiplication Constant: 100
16.Additive Constant: 0
17.Sensitivity of Circular Level: 8"/2mm
18.Coarse Sighting: Yes
19.Inner Horizontal Circle: Graduation: 360º/1°or 400gon/1gon; Circle Diameter: 103mm
20.Ambient Temperature: -20℃ ~ +45℃
21.Water Protection Grade:JID Grade 4 (IPX6)
22.Recommended Staff: Please refer to "Leveling Staffs & Bipods"

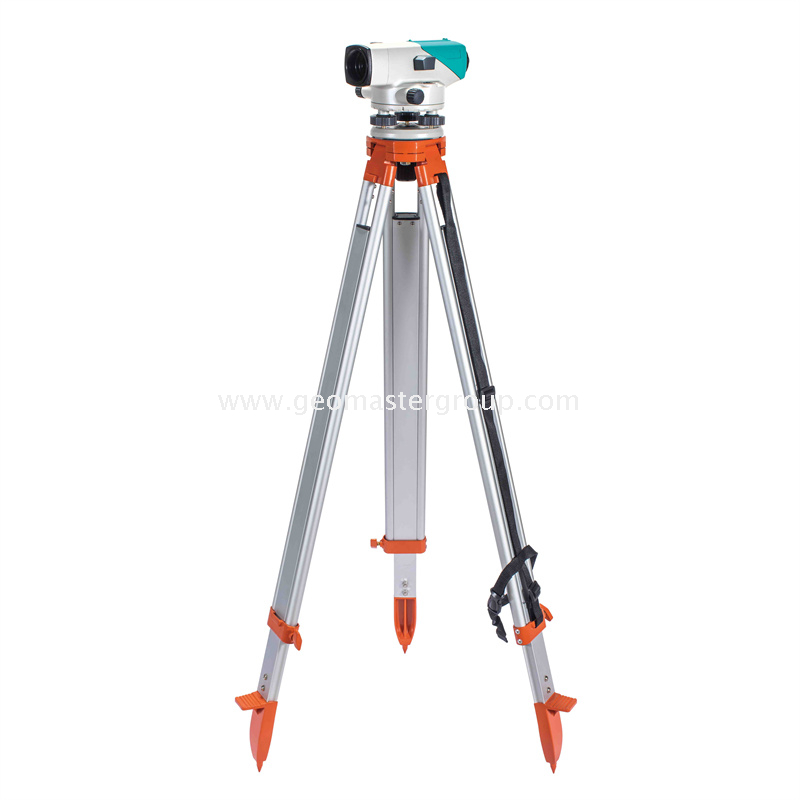

23.Recommended Tripod: Please refer to "Surveying Tripods"
24.Standard Accessories: Adjusting Pin,Desiccating Agent,Allen Wrench,Plumb Bob,

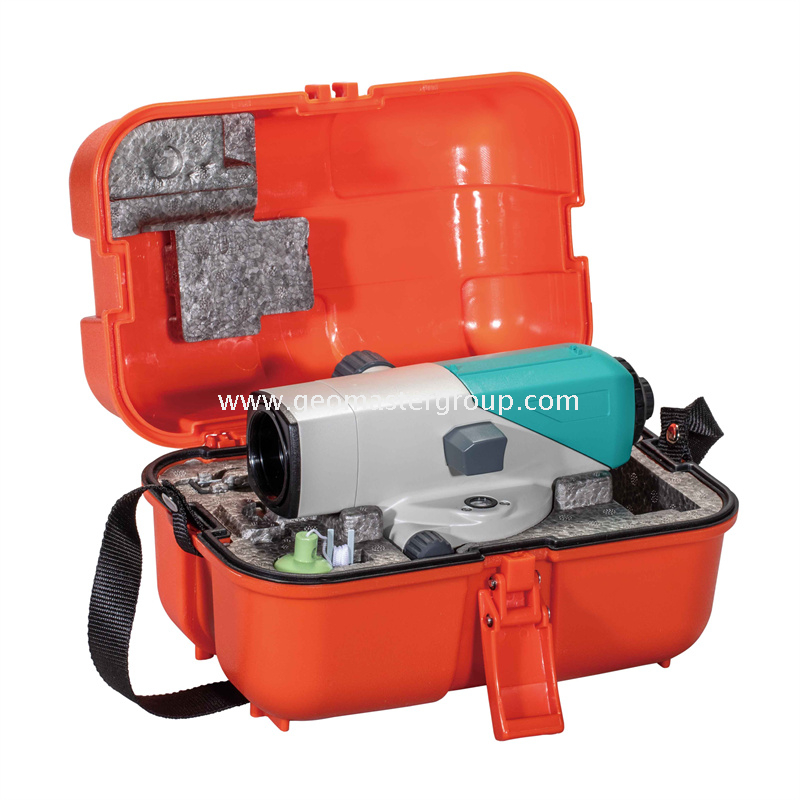

User Manual,Plastic Carrying Case (1.40kg,incl. all Accessories)

Note: Any updating would be subject to occur without prior notice!!

Alternative Names
Surveying Instrument, Surveying Equipment, Surveying Accessory, Automatic Level, Digital Level, Laser Level,Electronic Theodolite, Digital Theodolite, Total
Station, Reflectorless Total Station, Robotic Station,Laser Scanner, 3D Laser Scanner, Surveying Prism, Surveying Tripod, Leveling Rod, Leveling Staff,
Monitoring Prism,Surveying Prism, GPS & GNSS Receiver,RTK Receiver, Data Controller, Drone Survey, Surveying Drone, Mapping Drone, UAV Surveying,
Laser Scanner Taget, Scanner Sphere,Drone Station, MultiStation

PackingDetails
Model: GEO4024 (B4024)
1.Each Box: Qty: 1pc; G.W.:1.75~1.80kg; Size: 215mm×130mm×135mm
2.Each Carton: Qty: 4pcs; G.W.:13kg; Size: 0.052cbm (61cm×41cm×21cm)
