Highlights
Model: AK-355
1.Self-leveling Red Dot Laser Level
2.Self-Leveling Range: ±3°
3.In-door Projecting 5 Dots
4.Working Range: ≦60m

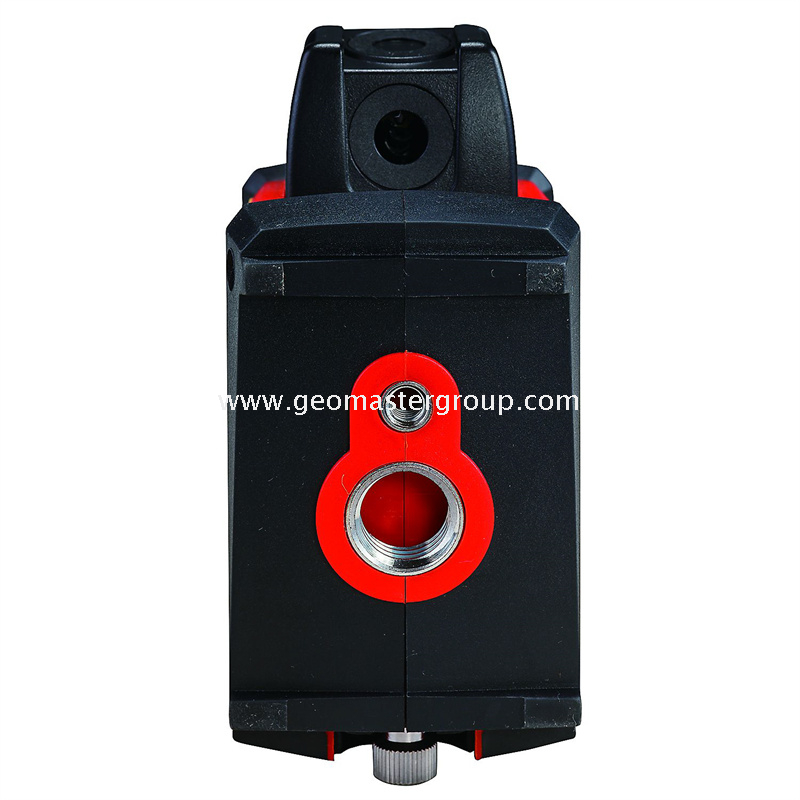

5.Dual Tripod Threads 5/8"-11 & ¼"-20
6.w. Carrying Bag
| Quantity: | |
|---|---|
AK-355
Geomaster
9015900090
Specifications
Model: AK-355
1.Projected Dots: 5 red Dots
2.Self-Leveling Range: ±3º
3.Self-Leveling Time: <5 sec
4.Working Mode: in-door
5.Working Range: ≦60m(Illuminance: 150Lux)
6.Accuracy: ±2mm/5m
7.Dot Accuracy: (4mm×5mm)/5m
8.Laser Source: 660nm, Class II, <5mW
9.Power Supply: Alkaline Batteries: 3×AA×1.5v,lasting for8 hours
10.Operating Temperature: (－)10℃ ~ 40℃
11.Storage Temperature: (－)20℃ ~ 50℃
12.Dual Tripod Threads 5/8"-11 and ¼"-20
Features
Model: AK-355

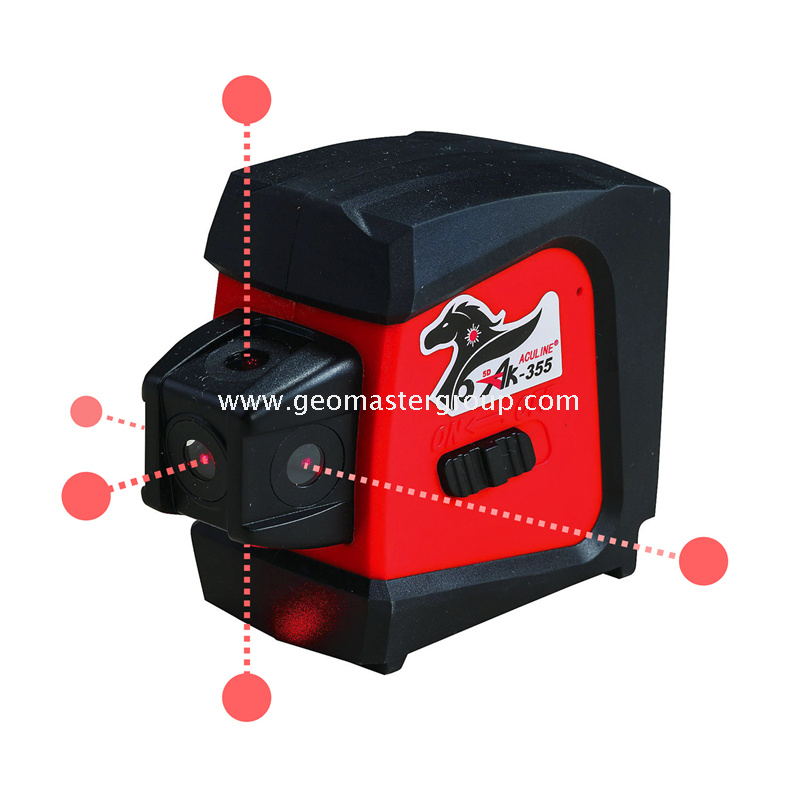

1.Red Dot Laser Level projecting 5 Dots
2.Glittering and Beeping in case of exceeding the self-leveling range
3.Anti-vibration designing suitable for different working conditions

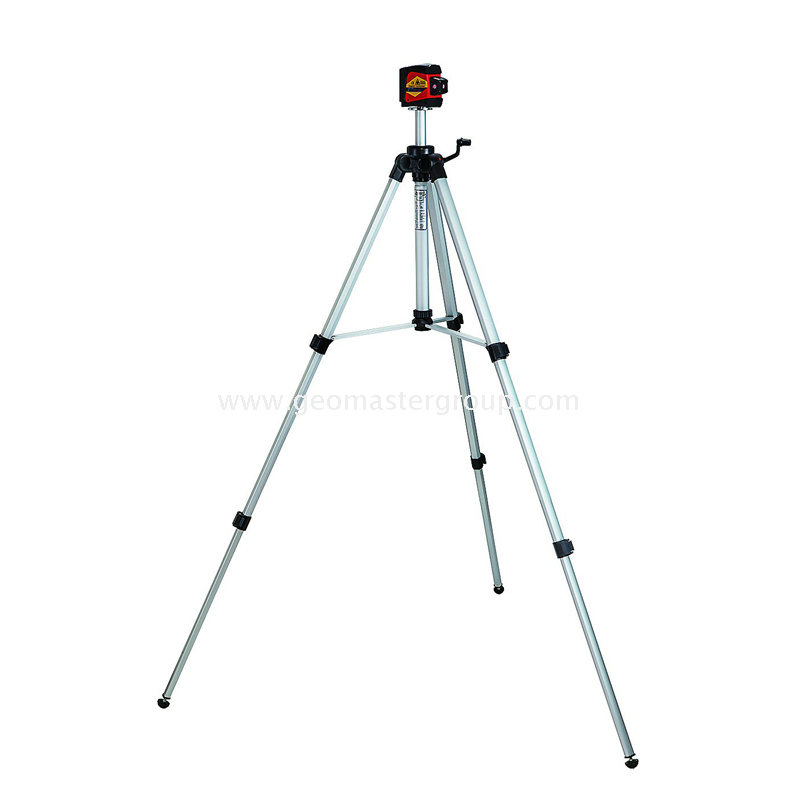

4.Equipped with Universal Female Thread (5/8"-11),compatible w. all Tripods (w. 5/8" -11 male Adapters or Central Connect Screws) like Laser Tripods and Surveying Tripods (Aluminum Tripods,Wooden Tripods,Fiberglass Tripods)
5.Installed with Universal Female Adapter (¼"-20), compatible w. all light-duty Laser Tripods (w. ¼" male Adapters
or Central Connect Screws): LTD-1201, LDT-1202, LTD-1203, LTD-1204, LTD-06, LTD-07
6.Coming with rugged Carrying Bag for easy carrying and secure storage
7.Rotating Bases and Magnetic Wall Brackets available:
AK903-58 (5/8"), AK903-14 (1/4"), AK905-58 (5/8"), AK905-14 (1/4"), A843Z-1/4 (1/4")
Note: Any updating would be subject to occur without prior notice!!
