Highlights

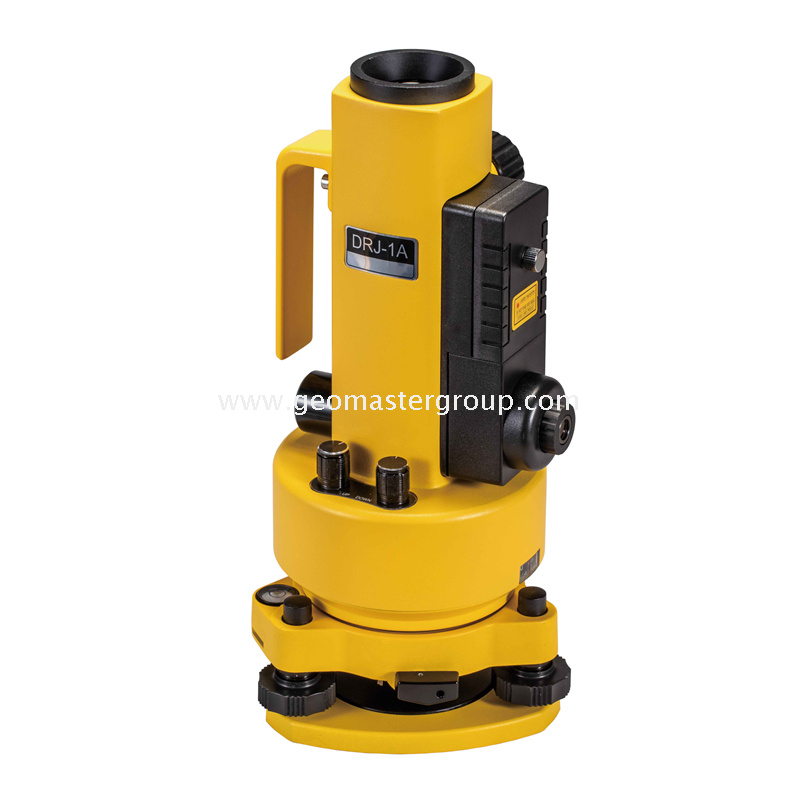

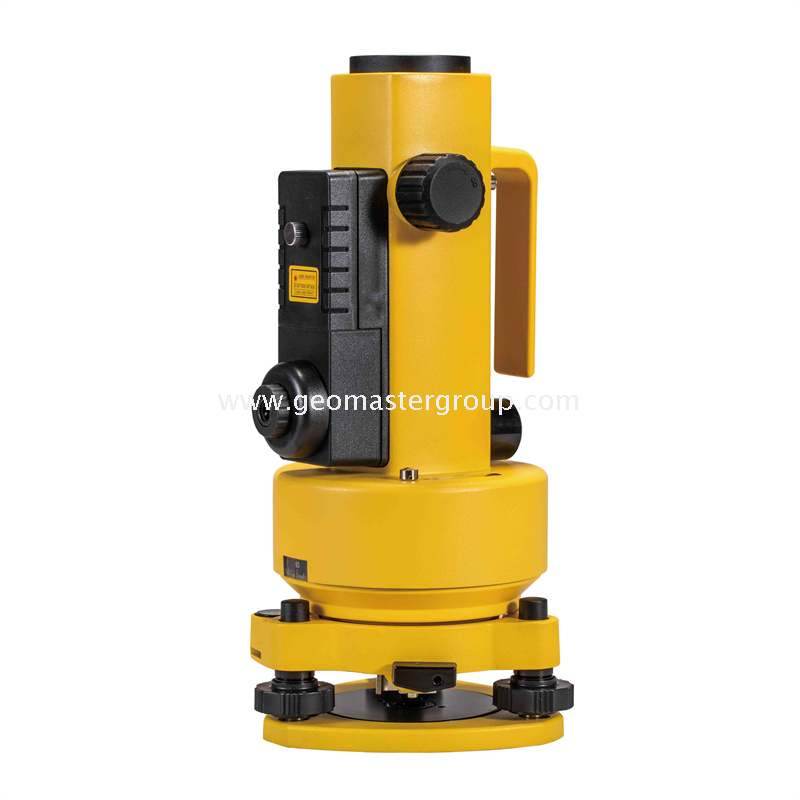

Model: DRJ-1A
1.Manual-leveling Plumb Laser
2.Up-Laser Accuracy: 1/45000
3.Up-Laser Working Range: 120-150m
4.UP-Laser Beam Spot: ≤3mm at 80m
5.Down-Laser Accuracy: 1/2000
6.Down-Laser Min. Focusing Range: 0.5m
| Quantity: | |
|---|---|
DRJ-1A
Geomaster
9015900090
Features & Specifications
Model: DRJ-1A
Specially designed for high-rise construction measurement (Elevator Shafts,TV Towers,Stacks..) requiring zenith control
1.Standard Deviation of one round-trip Up-plumbing Measurement: 1/45000
2.Error Limit of Diametrically downward Observation: 1/2000
3.Coaxial Error between Alignment Axis and Vertical Axis: ≤5mm
4.Coaxial Error between Laser Beam Axis and Alignment Axis: ≤5mm
5.Effective up-Laser Plumbing Range: Day-time: ≥120m; Night-time: ≤150m
6.Telescope System
1)Magnification: 26´
2)Objective Aperture: 36mm
3)Field of View: 1º30´
4)Min.Focusing Range: 0.4m
7.Up-Laser Beam: Semi-conductor Diode,635nm, Class Ⅱ,<5mw
8.Down-Laser Beam: Min. Focusing Range: 0.5m; Semi-conductor Diode,650nm, Class Ⅱ,<0.5mw
9.UP-Laser Beam Spot Size (Diameter): ≤3mm at 80m
10.Plate Level: Accuracy: 20"/2mm
11.Power Supply: Alkaline or Rechargeable Battery: AA×2,DC 3v
12.Working Temperature: -25℃~45℃

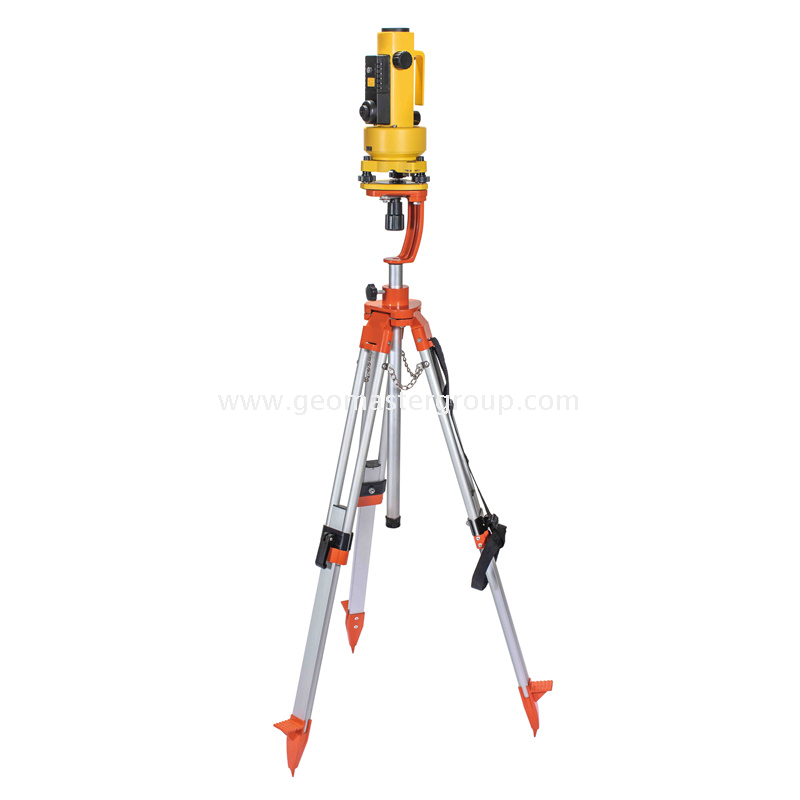

13.Surveying Tripods and Laser Tripods available for DRJ-1A
Note: Any updating would be subject to occur without prior notice!!
