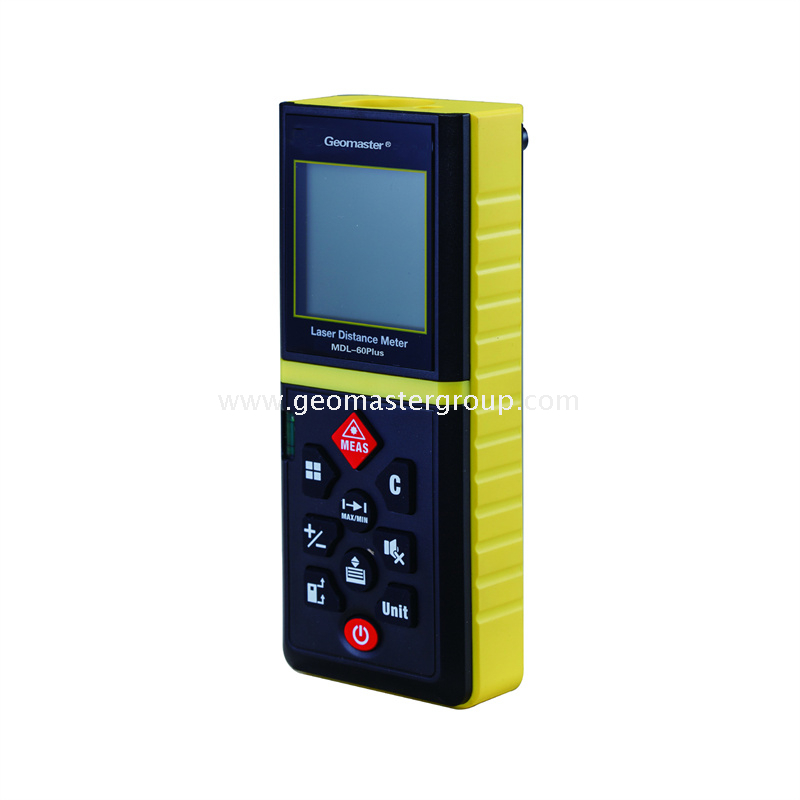

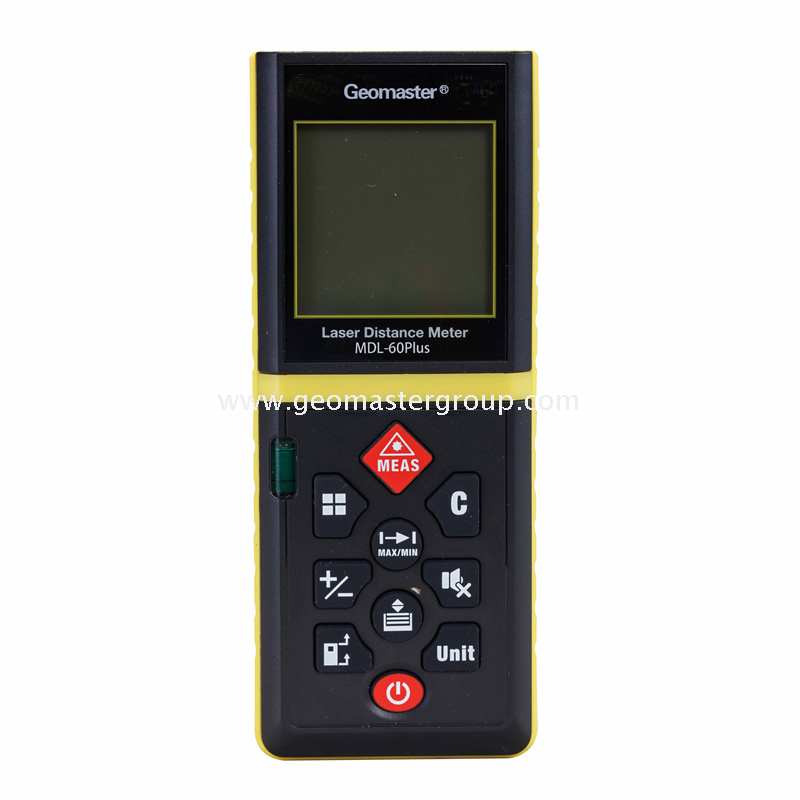

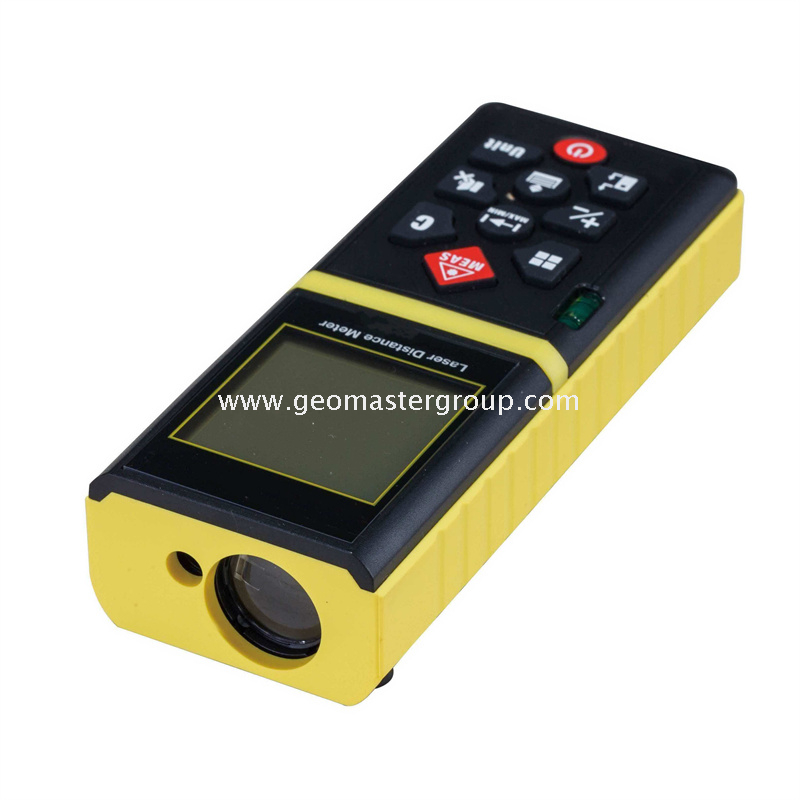

Laser Distance Meter

Highlights
Model: MDL-60Plus
1.Hand-held Laser Distance Meter
2.Laser Measure up to 60m with ±1.5mm
3.Large-format & Back-lit LCD
4.Multiple Measuring Functions
5.Data Memory up to 20 Records
6.Water-proof and dust-proof IP54

Availability:
Quantity:
  • MDL-60Plus
  • Geomaster
  • 9015900090

Features
Model: MDL-60Plus
1.Distance measurement (0.1m up to 60m)
2.Addition/Subtraction
3.Circumference Measurement
4.Area measurement
5.Volume measurement
6.Pythagorean measurement
7.Single measurement
8.Continuous measurement
9.Min/Max measurement
10.Water-proof & dust-proof for rugged working places

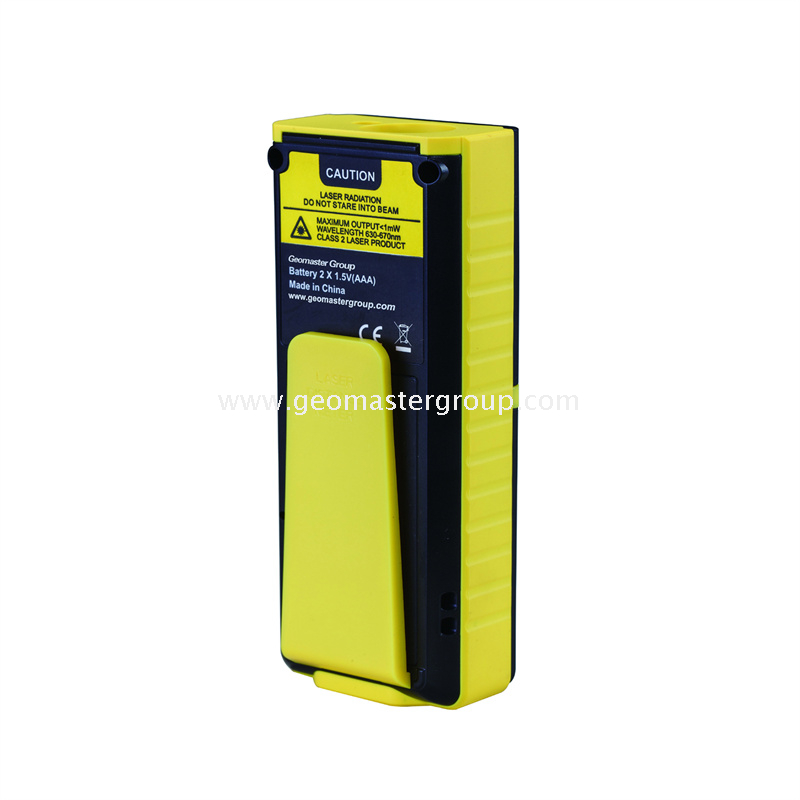

11.Equipped with Belt Clip
12.Back-lit LCD Display suitable for easier measuring and reading in the dark sites


Specifications
Model: MDL-60Plus
1.Distance Measurement
1)Measuring Range (in door): 0.1-60m
2)Accuracy (in door): ±1.5mm (±0.06")
3)Minimum Reading: 1mm
4)Measuring Units: m/mm or ft/in

5)Measuring Time: 3 data in one sec

2.Data Display
1)Illuminated (back-light) LCD
2)Display Capacity: 4 Lines

3.Historical Data Memory
up to 20 Records

4.Laser Source
1)Laser Diode,Class II, 635nm, <1mw
2)Laser auto-off: after 30secs

5.Power Supply
1)Alkaline Battery: DC 3V, 2´AAA
2)Battery Life: Up to 3000 Measurements
3)Auto Power-off: after 180secs

6.Water-proof and Dust-proof
IP54

7.Ambient Temperature
1)Operating Temperature: 0℃~40℃ (32ºF~104F)
2)Operating Temperature: 0℃~40℃ (32ºF~104F)

8.Standard Outfit

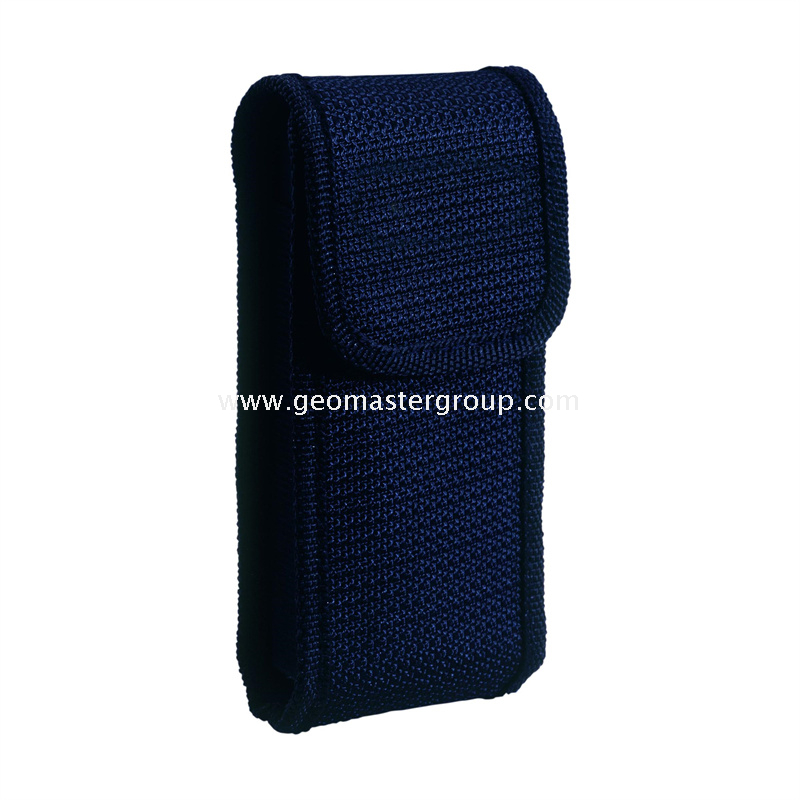

Main Unit, EVA Holster, English-version User Manual

Note:
Any updating would be subject to change without prior notice.


Related Names
Laser Meter, Laser Distance Meter, Laser Tape Measure, Laser Range Finder, Rangefinder, Golf Rangefinder, DIY Tool, Hand Tool, Steel Measuring Tape,
Fiberglass Tape Measure, Fiberglass Measure Tape, Steel Measure Tape,Disto Laser, Disto Measure,
Distometer, Disto Tape, Disto Wheel,Distance Measuring Wheel, Digital Distance Wheel,Nylon-clad Tape, Steel Tape Measure,Stainless Steel Tape Measure, Distance Measure Laser, Laser Measuring Tool, Trumbull Distance Wheel,Roadrunner Measuring Wheel, Keson Distance Measuring Wheel,DigiRoller Measuring Wheel, Lufkin Measuring Wheel,Truemeter Measuring Wheel, Geomaster Measuring Wheel,Kickstand Measuring Wheel,Surveyor Tape,BMI Measure Tape,Nylon-coated Tape,PVC-coated Tape,PVC-clad Tape,Vertex Range Finder,Nikon Range Finder,Bushnell Range Finder,Golf Range Finder


Packing Details
Model: MDL-60Plus
1.Dimensions: 110mm×48mm×28mm
2.N.W.: 85g; 102g (w.Battery/Holster)
3.Qty./CTN: 25pcs
4.G.W./CTN: 9kg
5.Size/CTN: 0.040cbm (34cm×34cm×34cm)
