Highlights

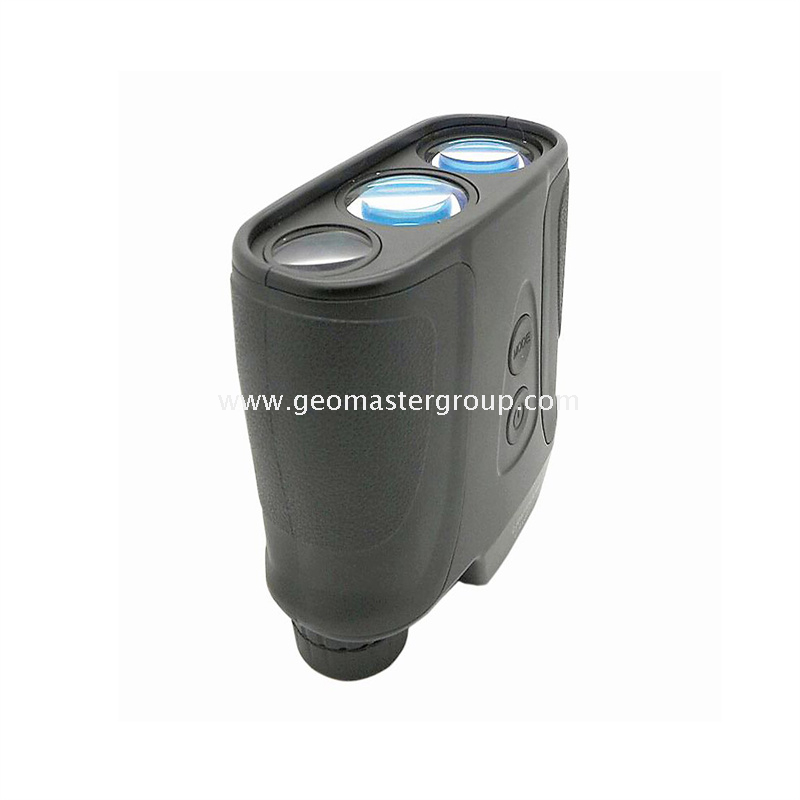

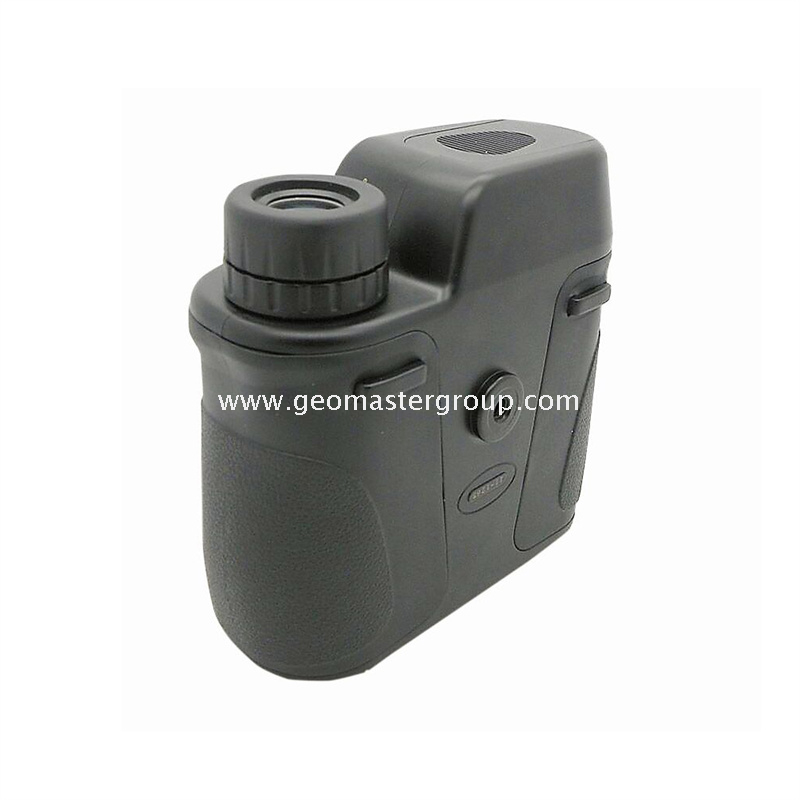

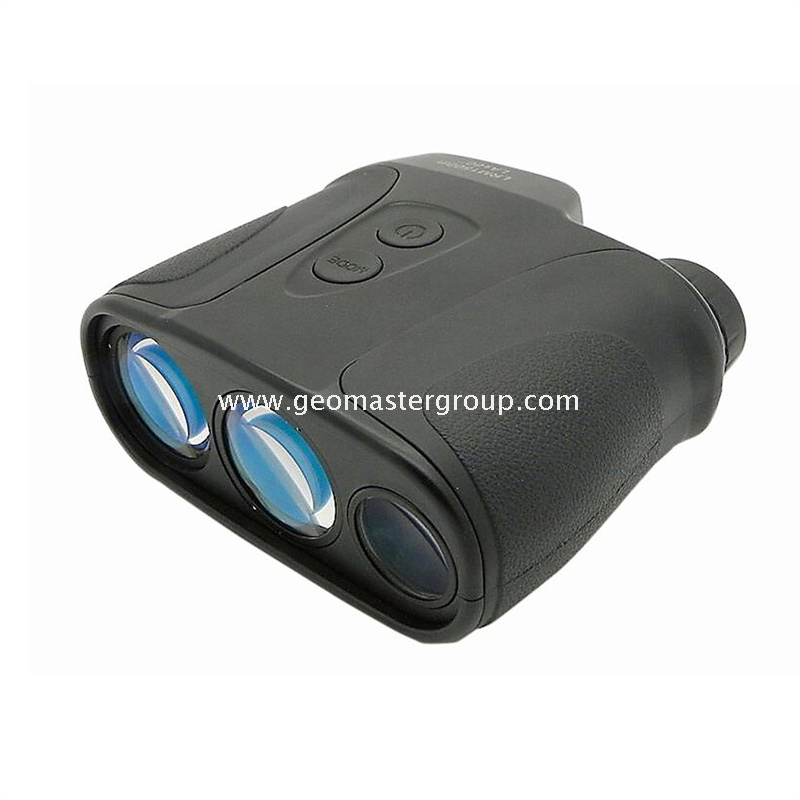

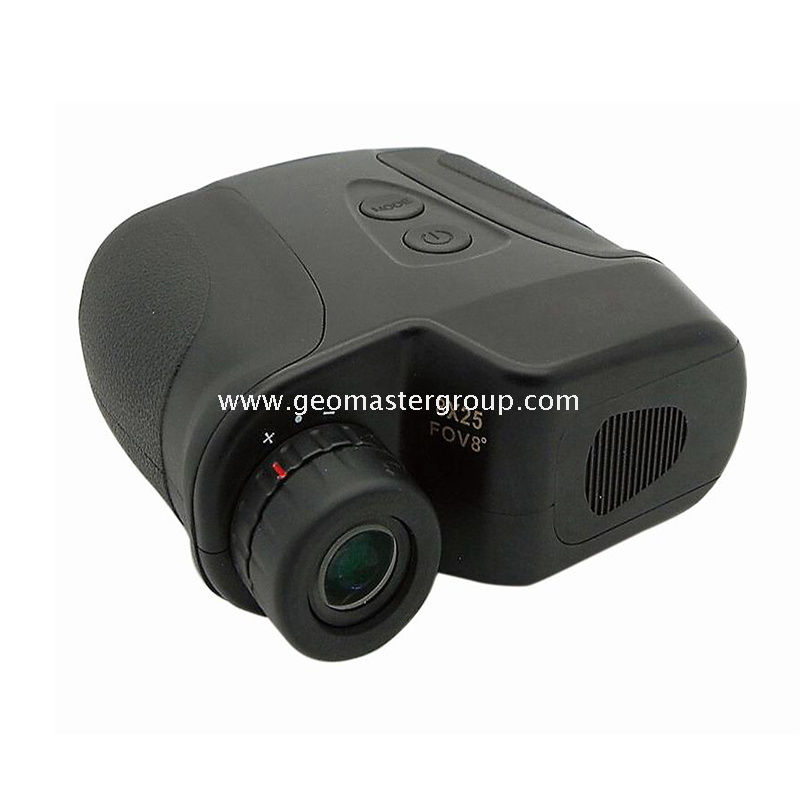

Model: LRF-1500AS
1.Built-in LCD Laser Range Finder
2.Magnification up to 8x
3.Distance Measuring: 5-2000m(yd); ±1m±0.2%
4.Angle Measuring(A): ±60º; ±1º
5.Speed Measuring(S): 0-300km/h; ±5km/h
6.With Tripod Thread 1/4"×20
7.Distance,Angle,Speed,Height,Golf Scan Mode
Availability: | |
---|---|
Quantity: | |
LRF-1500AS
Geomaster
9015900090
Features
Model: LRF-1500AS
1.Widely used for Surveying, Monitoring, Golfing, Hiking, Hunting, Camping, ...
2.Multipurpose measurements: Distance,Height,Angle,Speed,Golf Scan Mode
3.High-quality monocular Telescope with multi-layer Coating producing clear Images
4.Long Eye Relief offering comfortable Viewing and Observing
5.Harmless Laser Indicator,low battery indicator and auto power-off

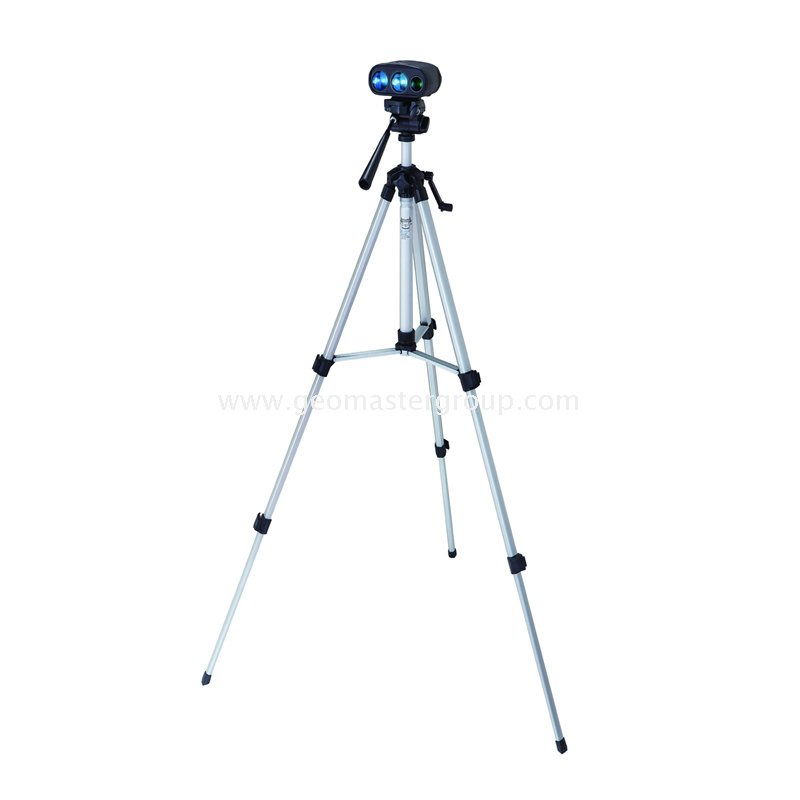

6.Equipped with Thread (1/4"×20) to be connected to Light-duty Camera Tripod
Specifications
Model: LRF-1500AS
1.Distance Measuring
1)Range: 5-1500m (or yd)
2)Accuracy(under normal condition): ±1m±0.2%
3)Time: 0.3-4 sec
2.Angle Measuring(A)
1)Range: ±60º
2)Accuracy: ±1º
3.Speed Measuring(S)
1)Range: 0-300km/h
2)Accuracy: ±5km/h
3)Time: ≤3sec
4.Telescope
1)Magnification: 8x
2)Objective Aperture: 25mm
3)Eyepiece Lens Diameter: 10mm
4)Exit-pupil Diameter: 2.75mm
5)Field of View: 143m/1000m(=8º)
6)Dioptre Adjustment: ±5º
7)Display Mode: built-in LCD
8)Focusing Mode: by eyepiece
9)Lens Coating: fully multi-coated and transmissive
5.Laser Source and Power Supply
1)Laser Source: 905nm, Class I
2)Power Supply: 6F22,9V, auto power-off after 20s standby
6.Ambient Conditions
1)Operating Temperature: -20℃~+50℃
2)Water-proof and fog-proof: no
Related Names
Laser Meter, Laser Distance Meter, Laser Tape Measure, Laser Range Finder, Rangefinder, Golf Rangefinder, DIY Tool, Hand Tool, Steel Measuring Tape,
Fiberglass Tape Measure, Fiberglass Measure Tape, Steel Measure Tape,Disto Laser, Disto Measure, Distometer, Disto Tape, Disto Wheel,Distance Measuring Wheel, Digital Distance Wheel,Nylon-clad Tape, Steel Tape Measure,Stainless Steel Tape Measure, Distance Measure Laser, Laser Measuring Tool, Trumbull Distance Wheel,Roadrunner Measuring Wheel, Keson Distance Measuring Wheel,DigiRoller Measuring Wheel, Lufkin Measuring Wheel,Truemeter Measuring Wheel,Geomaster Measuring Wheel,Kickstand Measuring Wheel,Surveyor Tape,BMI Measure Tape,Nylon-coated Tape,PVC-coated Tape,PVC-clad Tape,Vertex Range Finder,Nikon Range Finder,Bushnell Range Finder,Golf Range Finder
Features
Model: LRF-1500AS
1.Widely used for Surveying, Monitoring, Golfing, Hiking, Hunting, Camping, ...
2.Multipurpose measurements: Distance,Height,Angle,Speed,Golf Scan Mode
3.High-quality monocular Telescope with multi-layer Coating producing clear Images
4.Long Eye Relief offering comfortable Viewing and Observing
5.Harmless Laser Indicator,low battery indicator and auto power-off
6.Equipped with Thread (1/4"×20) to be connected to Light-duty Camera Tripod
Specifications
Model: LRF-1500AS
1.Distance Measuring
1)Range: 5-1500m (or yd)
2)Accuracy(under normal condition): ±1m±0.2%
3)Time: 0.3-4 sec
2.Angle Measuring(A)
1)Range: ±60º
2)Accuracy: ±1º
3.Speed Measuring(S)
1)Range: 0-300km/h
2)Accuracy: ±5km/h
3)Time: ≤3sec
4.Telescope
1)Magnification: 8x
2)Objective Aperture: 25mm
3)Eyepiece Lens Diameter: 10mm
4)Exit-pupil Diameter: 2.75mm
5)Field of View: 143m/1000m(=8º)
6)Dioptre Adjustment: ±5º
7)Display Mode: built-in LCD
8)Focusing Mode: by eyepiece
9)Lens Coating: fully multi-coated and transmissive
5.Laser Source and Power Supply
1)Laser Source: 905nm, Class I
2)Power Supply: 6F22,9V, auto power-off after 20s standby
6.Ambient Conditions
1)Operating Temperature: -20℃~+50℃
2)Water-proof and fog-proof: no
Related Names
Laser Meter, Laser Distance Meter, Laser Tape Measure, Laser Range Finder, Rangefinder, Golf Rangefinder, DIY Tool, Hand Tool, Steel Measuring Tape,
Fiberglass Tape Measure, Fiberglass Measure Tape, Steel Measure Tape,Disto Laser, Disto Measure, Distometer, Disto Tape, Disto Wheel,Distance Measuring Wheel, Digital Distance Wheel,Nylon-clad Tape, Steel Tape Measure,Stainless Steel Tape Measure, Distance Measure Laser, Laser Measuring Tool, Trumbull Distance Wheel,Roadrunner Measuring Wheel, Keson Distance Measuring Wheel,DigiRoller Measuring Wheel, Lufkin Measuring Wheel,Truemeter Measuring Wheel,Geomaster Measuring Wheel,Kickstand Measuring Wheel,Surveyor Tape,BMI Measure Tape,Nylon-coated Tape,PVC-coated Tape,PVC-clad Tape,Vertex Range Finder,Nikon Range Finder,Bushnell Range Finder,Golf Range Finder
Packing Details
Model: LRF-1500A
1.N.W.: 472g (w/o battery)
2.Dimensions: 121mm×127mm×58mm
3.Qty./CTN: 20pcs
4.G.W./CTN: 21kg
5.Size/CTN: 0.055cbm (45cm×35cm×35cm)
Packing Details
Model: LRF-1500A
1.N.W.: 472g (w/o battery)
2.Dimensions: 121mm×127mm×58mm
3.Qty./CTN: 20pcs
4.G.W./CTN: 21kg
5.Size/CTN: 0.055cbm (45cm×35cm×35cm)
